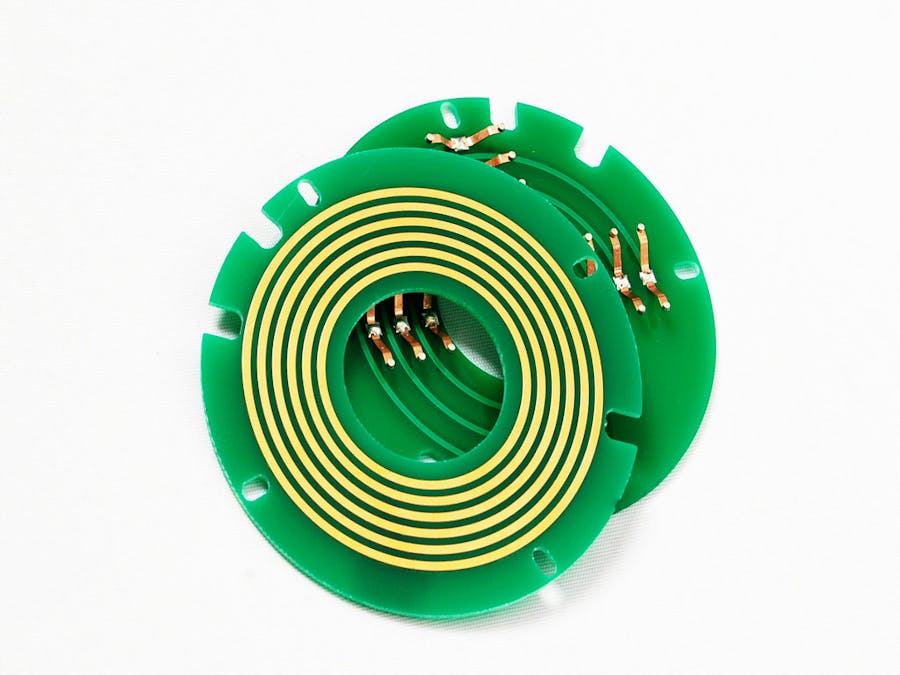

Pancake Slip Ring

Introduction

Pancake slip rings are specially designed for rotating systems that are limited in height. It adopts the compact design to ensure that low friction and low resistance which can meet the requirements of higher current, higher speed and narrow space. It is a special type of conductive slip ring. The pancake slip ring completely satisfies the power and control signal of 360 degree unrestricted rotation and control signal transmission, which can support fiber, high frequency signal and power mixing transmission. The company can provide customers with a wide range of pancake products with solid shape and different sizes hole selection. Supporting for more installation requirements such as signal, power supply and mixed transmission, widely used in rotating operation table, automatic rotating equipment.

LPK / LPKS series of technical highlights and advantages:

• The minimum height can be up to 5mm

• The minimum size is 20mm (3 channels, 2A per channel)

• Can be integrated IC chip and electronic components to use

• The shrapnel is made of imported material, which is gold-plated and has high reliability

• It is mainly used in small space of axial space

Main application areas:

• Military equipment, medical equipment, wind power equipment

• Test equipment, packaging machinery and other equipment
