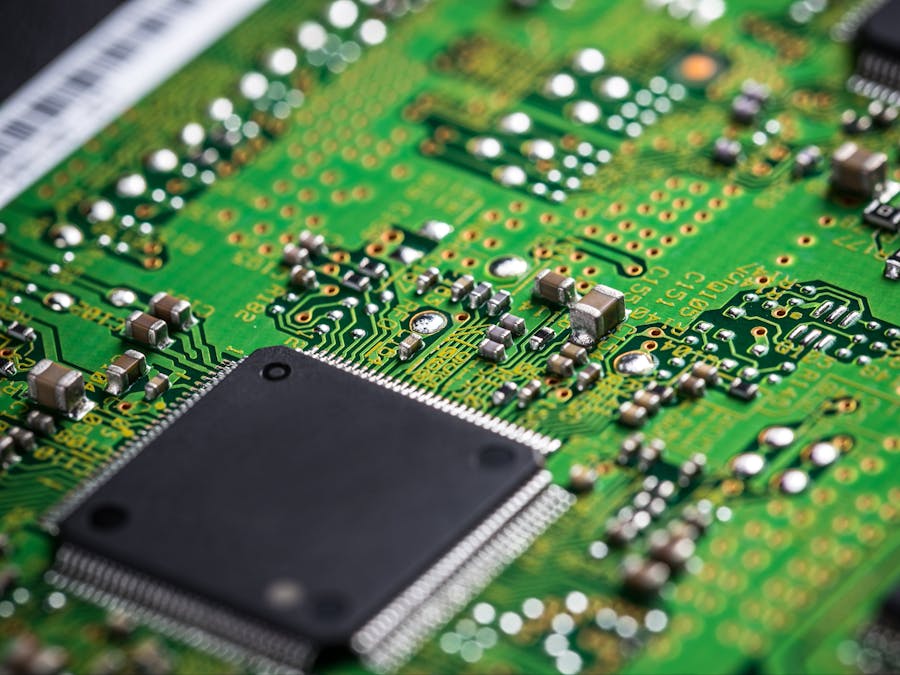

As you all know, PCB or Printed Circuit boards are there in every piece of electronics devices in our lives. From mobile phones to satellites that orbit around the earth, these boards with silver lines play a major part in today’s world.
But how can we make PCB Online? How to design PCB? Can we design PCB Online? Who is the best online PCB Manufacturer? Fear not! We will be answering all your questions in this post.
In this post, we will be taking a look at how to design PCB Online and How to make a PCB layout from the circuit diagram or schematics and get your own high quality PCB. We will be taking a look at what is going on under the roof of one of the worlds best high-quality online PCB manufacturers around the world – JLCPCB.
Learn Arduino the Easy WayAre you new to Arduino? Do you want to improve your skills in Arduino programming? You are in the right place. We have a complete beginner-level tutorial for Arduino which covers everything from scratch.
In this free Arduino Tutorial for Beginners guide, we will be taking a look at Introduction to Arduino Platform, Getting Started with Arduino IDE, Different Types of Arduino Boards, Arduino
Why not make a PCB for your Project?Making a PCB for your DIY project is not hard nowadays. PCB helps to get rid of all messy wires and stuff and gives your project an awesome look. And it’s cool to make your own PCB for your project right?
Design your own PCBs for your Project!I used Altium designer to draw the circuit and design the PCB. It is a powerful tool that can be used to design and create our own PCBs for our project as well as complex and multi-layer PCBs for industrial use.
If you are a DIY Electronic enthusiast, I bet this is gonna be really useful for you guys. I have been using it for the past 3-4 years and let me tell you guys, this is amazing! You can download the Free Trial of Altium PCB Designer from here.
PCB Design Tutorial using AltiumCheck out the below video to start designing your own PCBs in Minutes!
As you know, PCBs are basically a bunch of tiny copper wires sandwiched in between multiple layers of fiberglass. These tiny wires connect all the components to each other in an organized and repeatable way making a neat and tidy electronic circuit board.
Online PCB Design using Easy EDAThe PCB layout and routing can be really hard especially for beginners and require the use of software methods to enable them to be completed.
Luckily, we have online PCB designing tools from Easy EDA, provides all the necessary capability for online PCB Design and PCB Printing of Circuit Boards with hundreds of components and multiple layers with thousands of tracks.
Once you have successfully completed your Online PCB Layout, you can download the Gerber File and order PCB online.
Check out the Below Video Tutorial if you dont want to read the whole Article.
Online PCB Design and Manufacturing Video TutorialWhat is PCB Layout?PCB Layout is actually a significant part of PCB Design, we use PCB Layouts to make PCBs from schematics.
In other words, as long as you complete PCB Layout, you are able to get Gerber which is an indispensable file for us to manufacture PCBs.
Want to Make a Compact 4 Layer PCB?In this video, we will be taking a look at how to design multi Layer PCB and create Layout using EasyEDA and JLCPCB.
Want to make one yourself? Check out this Tutorial and make a 4 Layer PCB Yourself.
How To Design PCB Online – Step By Step Instructions
Follow these steps to get started with online PCB Designing.
Step 1 : Create an Account in EasyEDAGo to EasyEDA website and create a free account.
Register and Login using Google Account is also possible.
Now we will start a new project and start drawing our circuit diagram. Once you are logged in, Go to “Editor”.
File -> New -> Project
Enter the Title, Path and Description and click on save button.
Once a new project is created, to modify your project, right-click on the folder with the project name in the project tree in the left-hand panel, which will open a web page in which you can edit your project.
Step 3: Draw the Circuit / SchematicsPick and Place the components from the EELib tab from the left panel.
You can also go to libraries, and search for components there. Like I said before, EasyEDA has some cool and powerful drawing tools with which you can create your own symbols either by copying existing symbols into your own library and then editing and saving them, or by drawing them from scratch.
Use “Wire” tool to connect the components together.
Once you have finished drawing the circuit, save the circuit by clicking save.
Documents —> Save
Step 5 : Creating Online PCB LayoutNow, from the top tool list, Click on the convert button and Select “Convert to PCB”.
This will open up a window like this.
Here, you can place the components inside the boundary and arrange them the way you want.
To make your PCB to look as clean as possible, It is best to place and route all components with the same function close to each other, like resistors for example.
Once you have finished placing all the components, click save.
Step 7 : Routing the ComponentsThe easy way route all the component is “auto-route” process.
For that, Click on the “Route” Tool and Select “Auto Router”
This will open up an Auto Router Config Page where you can provide details such as clearance, track width, layer information etc. Once you have done that, click on “Run”.
Thats it guys, you layout is now complete. You can now download the Gerber file and use it to manufacture your PCB from JLCPCB.
This is just a simple example for beginners to get started with. You can create multilayer, complex SMD circuits and get your PCB Layout neat and finished. in minutes.
For more details, check out EasyEDA documentation.
Online PCB Order Step By StepFollow below steps to order your own PCB from JLCPCB. It wont take more than 1 minute to get everything done.
Step 1 – Create a Free AccountGo to JLC PCBs website and create a free account.
Register and Login using Google Account is also possible.
Step 2 – Upload Gerber File
Once you have successfully created an account, Click on “Quote Now” and upload your Gerber File.
Gerber File contains information about your PCB such as PCB layout information, Layer information, spacing information, tracks to name a few.
Step 3 – Preview the FileOnce the Gerber file is uploaded, it will show you a preview of your circuit board.
Make sure this is the PCB Layout of the board you want.
Step 4 – Choose Necessary PCB OptionsOnce everything is done, click on “Save To Cart”. In the next page, you can choose a shipping and payment option and Check Out Securely. You can either use Paypal or Credit/Debit Card to pay.
The price depends upon the color, size, thickness and quantity.
Thats it guys. Its Done. The PCB will be manufactured and shipped with in days and will be delivered to your doorstep within the mentioned time period.
