Laser ion engine

My innovation this is engine for sup sonic air plane.

IntermediateFull instructions provided10 hours25

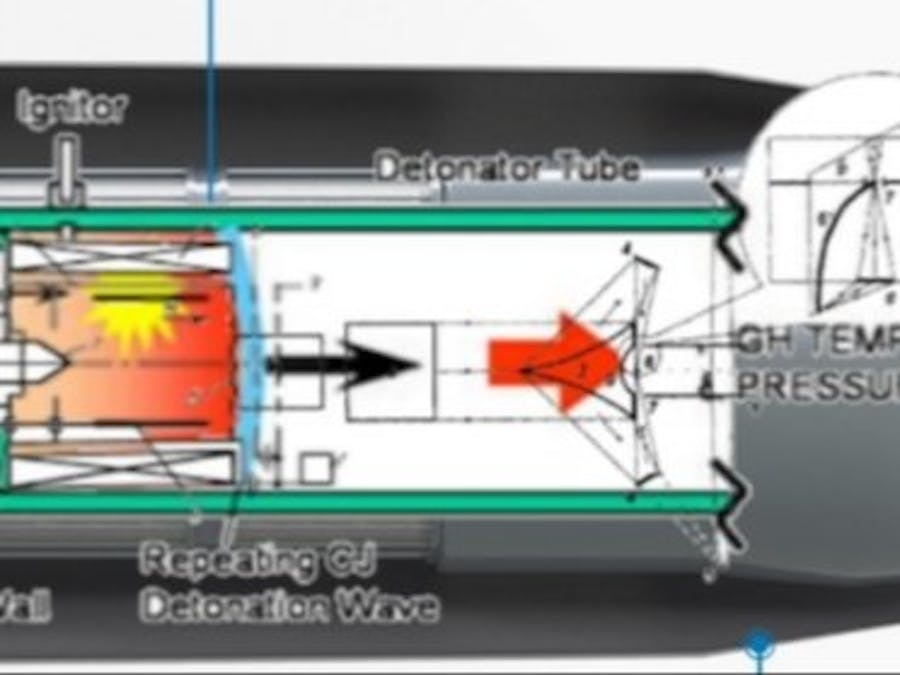

Laser ion engine

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1

Software apps and online services

Jupyter Notebook
Jupyter Notebook

Hand tools and fabrication machines

Hackeet Studio
Hackeet Studio

Story

Read more

Custom parts and enclosures


Schematics


Code

space shuttle.ino

C/C++
void setup() {
}


#include <Wire.h>                          //Include the Wire.h library so we can communicate with the gyro.
#include <EEPROM.h>                        //Include the EEPROM.h library so we can store information onto the EEPROM

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//PID gain and limit settings
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
float pid_p_gain_roll = 1.3;               //Gain setting for the roll P-controller
float pid_i_gain_roll = 0.04;              //Gain setting for the roll I-controller
float pid_d_gain_roll = 18.0;              //Gain setting for the roll D-controller
int pid_max_roll = 400;                    //Maximum output of the PID-controller (+/-)

float pid_p_gain_pitch = pid_p_gain_roll;  //Gain setting for the pitch P-controller.
float pid_i_gain_pitch = pid_i_gain_roll;  //Gain setting for the pitch I-controller.
float pid_d_gain_pitch = pid_d_gain_roll;  //Gain setting for the pitch D-controller.
int pid_max_pitch = pid_max_roll;          //Maximum output of the PID-controller (+/-)

float pid_p_gain_yaw = 4.0;                //Gain setting for the pitch P-controller. //4.0
float pid_i_gain_yaw = 0.02;               //Gain setting for the pitch I-controller. //0.02
float pid_d_gain_yaw = 0.0;                //Gain setting for the pitch D-controller.
int pid_max_yaw = 400;                     //Maximum output of the PID-controller (+/-)

boolean auto_level = true;                 //Auto level on (true) or off (false)

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//Declaring global variables
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
byte last_channel_1, last_channel_2, last_channel_3, last_channel_4;
byte eeprom_data[36];
byte highByte, lowByte;
int receiver_input_channel_1, receiver_input_channel_2, receiver_input_channel_3, receiver_input_channel_4;
int counter_channel_1, counter_channel_2, counter_channel_3, counter_channel_4, loop_counter;
int esc_1, esc_2, esc_3, esc_4;
int throttle, battery_voltage;
int cal_int, start, gyro_address;
int receiver_input[5];
int temperature;
int acc_axis[4], gyro_axis[4];
float roll_level_adjust, pitch_level_adjust;

long acc_x, acc_y, acc_z, acc_total_vector;
unsigned long timer_channel_1, timer_channel_2, timer_channel_3, timer_channel_4, esc_timer, esc_loop_timer;
unsigned long timer_1, timer_2, timer_3, timer_4, current_time;
unsigned long loop_timer;
double gyro_pitch, gyro_roll, gyro_yaw;
double gyro_axis_cal[4];
float pid_error_temp;
float pid_i_mem_roll, pid_roll_setpoint, gyro_roll_input, pid_output_roll, pid_last_roll_d_error;
float pid_i_mem_pitch, pid_pitch_setpoint, gyro_pitch_input, pid_output_pitch, pid_last_pitch_d_error;
float pid_i_mem_yaw, pid_yaw_setpoint, gyro_yaw_input, pid_output_yaw, pid_last_yaw_d_error;
float angle_roll_acc, angle_pitch_acc, angle_pitch, angle_roll;
boolean gyro_angles_set;

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//Setup routine
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
void setup(){
  //Serial.begin(57600);
  //Copy the EEPROM data for fast access data.
  for(start = 0; start <= 35; start++)eeprom_data[start] = EEPROM.read(start);
  start = 0;                                                                //Set start back to zero.
  gyro_address = eeprom_data[32];                                           //Store the gyro address in the variable.

  Wire.begin();                                                             //Start the I2C as master.

  TWBR = 12;                                                                //Set the I2C clock speed to 400kHz.

  //Arduino (Atmega) pins default to inputs, so they don't need to be explicitly declared as inputs.
  DDRD |= B11110000;                                                        //Configure digital poort 4, 5, 6 and 7 as output.
  DDRB |= B00110000;                                                        //Configure digital poort 12 and 13 as output.

  //Use the led on the Arduino for startup indication.
  digitalWrite(12,HIGH);                                                    //Turn on the warning led.

  //Check the EEPROM signature to make sure that the setup program is executed.
  while(eeprom_data[33] != 'J' || eeprom_data[34] != 'M' || eeprom_data[35] != 'B')delay(10);

  //The flight controller needs the MPU-6050 with gyro and accelerometer
  //If setup is completed without MPU-6050 stop the flight controller program
  if(eeprom_data[31] == 2 || eeprom_data[31] == 3)delay(10);

  set_gyro_registers();                                                     //Set the specific gyro registers.

  for (cal_int = 0; cal_int < 1250 ; cal_int ++){                           //Wait 5 seconds before continuing.
    PORTD |= B11110000;                                                     //Set digital poort 4, 5, 6 and 7 high.
    delayMicroseconds(1000);                                                //Wait 1000us.
    PORTD &= B00001111;                                                     //Set digital poort 4, 5, 6 and 7 low.
    delayMicroseconds(3000);                                                //Wait 3000us.
  }

  //Let's take multiple gyro data samples so we can determine the average gyro offset (calibration).
  for (cal_int = 0; cal_int < 2000 ; cal_int ++){                           //Take 2000 readings for calibration.
    if(cal_int % 15 == 0)digitalWrite(12, !digitalRead(12));                //Change the led status to indicate calibration.
    gyro_signalen();                                                        //Read the gyro output.
    gyro_axis_cal[1] += gyro_axis[1];                                       //Ad roll value to gyro_roll_cal.
    gyro_axis_cal[2] += gyro_axis[2];                                       //Ad pitch value to gyro_pitch_cal.
    gyro_axis_cal[3] += gyro_axis[3];                                       //Ad yaw value to gyro_yaw_cal.
    //We don't want the esc's to be beeping annoyingly. So let's give them a 1000us puls while calibrating the gyro.
    PORTD |= B11110000;                                                     //Set digital poort 4, 5, 6 and 7 high.
    delayMicroseconds(1000);                                                //Wait 1000us.
    PORTD &= B00001111;                                                     //Set digital poort 4, 5, 6 and 7 low.
    delay(3);                                                               //Wait 3 milliseconds before the next loop.
  }
  //Now that we have 2000 measures, we need to devide by 2000 to get the average gyro offset.
  gyro_axis_cal[1] /= 2000;                                                 //Divide the roll total by 2000.
  gyro_axis_cal[2] /= 2000;                                                 //Divide the pitch total by 2000.
  gyro_axis_cal[3] /= 2000;                                                 //Divide the yaw total by 2000.

  PCICR |= (1 << PCIE0);                                                    //Set PCIE0 to enable PCMSK0 scan.
  PCMSK0 |= (1 << PCINT0);                                                  //Set PCINT0 (digital input 8) to trigger an interrupt on state change.
  PCMSK0 |= (1 << PCINT1);                                                  //Set PCINT1 (digital input 9)to trigger an interrupt on state change.
  PCMSK0 |= (1 << PCINT2);                                                  //Set PCINT2 (digital input 10)to trigger an interrupt on state change.
  PCMSK0 |= (1 << PCINT3);                                                  //Set PCINT3 (digital input 11)to trigger an interrupt on state change.

  //Wait until the receiver is active and the throtle is set to the lower position.
  while(receiver_input_channel_3 < 990 || receiver_input_channel_3 > 1020 || receiver_input_channel_4 < 1400){
    receiver_input_channel_3 = convert_receiver_channel(3);                 //Convert the actual receiver signals for throttle to the standard 1000 - 2000us
    receiver_input_channel_4 = convert_receiver_channel(4);                 //Convert the actual receiver signals for yaw to the standard 1000 - 2000us
    start ++;                                                               //While waiting increment start whith every loop.
    //We don't want the esc's to be beeping annoyingly. So let's give them a 1000us puls while waiting for the receiver inputs.
    PORTD |= B11110000;                                                     //Set digital poort 4, 5, 6 and 7 high.
    delayMicroseconds(1000);                                                //Wait 1000us.
    PORTD &= B00001111;                                                     //Set digital poort 4, 5, 6 and 7 low.
    delay(3);                                                               //Wait 3 milliseconds before the next loop.
    if(start == 125){                                                       //Every 125 loops (500ms).
      digitalWrite(12, !digitalRead(12));                                   //Change the led status.
      start = 0;                                                            //Start again at 0.
    }
  }
  start = 0;                                                                //Set start back to 0.

  //Load the battery voltage to the battery_voltage variable.
  //65 is the voltage compensation for the diode.
  //12.6V equals ~5V @ Analog 0.
  //12.6V equals 1023 analogRead(0).
  //1260 / 1023 = 1.2317.
  //The variable battery_voltage holds 1050 if the battery voltage is 10.5V.
  battery_voltage = (analogRead(0) + 65) * 1.2317;

  loop_timer = micros();                                                    //Set the timer for the next loop.

  //When everything is done, turn off the led.
  digitalWrite(12,LOW);                                                     //Turn off the warning led.
}
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//Main program loop
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
void loop(){

  //65.5 = 1 deg/sec (check the datasheet of the MPU-6050 for more information).
  gyro_roll_input = (gyro_roll_input * 0.7) + ((gyro_roll / 65.5) * 0.3);   //Gyro pid input is deg/sec.
  gyro_pitch_input = (gyro_pitch_input * 0.7) + ((gyro_pitch / 65.5) * 0.3);//Gyro pid input is deg/sec.
  gyro_yaw_input = (gyro_yaw_input * 0.7) + ((gyro_yaw / 65.5) * 0.3);      //Gyro pid input is deg/sec.

  //Gyro angle calculations
  //0.0000611 = 1 / (250Hz / 65.5)
  angle_pitch += gyro_pitch * 0.0000611;                                    //Calculate the traveled pitch angle and add this to the angle_pitch variable.
  angle_roll += gyro_roll * 0.0000611;                                      //Calculate the traveled roll angle and add this to the angle_roll variable.

  //0.000001066 = 0.0000611 * (3.142(PI) / 180degr) The Arduino sin function is in radians
  angle_pitch -= angle_roll * sin(gyro_yaw * 0.000001066);                  //If the IMU has yawed transfer the roll angle to the pitch angel.
  angle_roll += angle_pitch * sin(gyro_yaw * 0.000001066);                  //If the IMU has yawed transfer the pitch angle to the roll angel.

  //Accelerometer angle calculations
  acc_total_vector = sqrt((acc_x*acc_x)+(acc_y*acc_y)+(acc_z*acc_z));       //Calculate the total accelerometer vector.

  if(abs(acc_y) < acc_total_vector){                                        //Prevent the asin function to produce a NaN
    angle_pitch_acc = asin((float)acc_y/acc_total_vector)* 57.296;          //Calculate the pitch angle.
  }
  if(abs(acc_x) < acc_total_vector){                                        //Prevent the asin function to produce a NaN
    angle_roll_acc = asin((float)acc_x/acc_total_vector)* -57.296;          //Calculate the roll angle.
  }

  //Place the MPU-6050 spirit level and note the values in the following two lines for calibration.
  angle_pitch_acc -= 0.0;                                                   //Accelerometer calibration value for pitch.
  angle_roll_acc -= 0.0;                                                    //Accelerometer calibration value for roll.

  angle_pitch = angle_pitch * 0.9996 + angle_pitch_acc * 0.0004;            //Correct the drift of the gyro pitch angle with the accelerometer pitch angle.
  angle_roll = angle_roll * 0.9996 + angle_roll_acc * 0.0004;               //Correct the drift of the gyro roll angle with the accelerometer roll angle.

  pitch_level_adjust = angle_pitch * 15;                                    //Calculate the pitch angle correction
  roll_level_adjust = angle_roll * 15;                                      //Calculate the roll angle correction

  if(!auto_level){                                                          //If the quadcopter is not in auto-level mode
    pitch_level_adjust = 0;                                                 //Set the pitch angle correction to zero.
    roll_level_adjust = 0;                                                  //Set the roll angle correcion to zero.
  }


  //For starting the motors: throttle low and yaw left (step 1).
  if(receiver_input_channel_3 < 1050 && receiver_input_channel_4 < 1050)start = 1;
  //When yaw stick is back in the center position start the motors (step 2).
  if(start == 1 && receiver_input_channel_3 < 1050 && receiver_input_channel_4 > 1450){
    start = 2;

    angle_pitch = angle_pitch_acc;                                          //Set the gyro pitch angle equal to the accelerometer pitch angle when the quadcopter is started.
    angle_roll = angle_roll_acc;                                            //Set the gyro roll angle equal to the accelerometer roll angle when the quadcopter is started.
    gyro_angles_set = true;                                                 //Set the IMU started flag.

    //Reset the PID controllers for a bumpless start.
    pid_i_mem_roll = 0;
    pid_last_roll_d_error = 0;
    pid_i_mem_pitch = 0;
    pid_last_pitch_d_error = 0;
    pid_i_mem_yaw = 0;
    pid_last_yaw_d_error = 0;
  }
  //Stopping the motors: throttle low and yaw right.
  if(start == 2 && receiver_input_channel_3 < 1050 && receiver_input_channel_4 > 1950)start = 0;

  //The PID set point in degrees per second is determined by the roll receiver input.
  //In the case of deviding by 3 the max roll rate is aprox 164 degrees per second ( (500-8)/3 = 164d/s ).
  pid_roll_setpoint = 0;
  //We need a little dead band of 16us for better results.
  if(receiver_input_channel_1 > 1508)pid_roll_setpoint = receiver_input_channel_1 - 1508;
  else if(receiver_input_channel_1 < 1492)pid_roll_setpoint = receiver_input_channel_1 - 1492;

  pid_roll_setpoint -= roll_level_adjust;                                   //Subtract the angle correction from the standardized receiver roll input value.
  pid_roll_setpoint /= 3.0;                                                 //Divide the setpoint for the PID roll controller by 3 to get angles in degrees.


  //The PID set point in degrees per second is determined by the pitch receiver input.
  //In the case of deviding by 3 the max pitch rate is aprox 164 degrees per second ( (500-8)/3 = 164d/s ).
  pid_pitch_setpoint = 0;
  //We need a little dead band of 16us for better results.
  if(receiver_input_channel_2 > 1508)pid_pitch_setpoint = receiver_input_channel_2 - 1508;
  else if(receiver_input_channel_2 < 1492)pid_pitch_setpoint = receiver_input_channel_2 - 1492;

  pid_pitch_setpoint -= pitch_level_adjust;                                  //Subtract the angle correction from the standardized receiver pitch input value.
  pid_pitch_setpoint /= 3.0;                                                 //Divide the setpoint for the PID pitch controller by 3 to get angles in degrees.

  //The PID set point in degrees per second is determined by the yaw receiver input.
  //In the case of deviding by 3 the max yaw rate is aprox 164 degrees per second ( (500-8)/3 = 164d/s ).
  pid_yaw_setpoint = 0;
  //We need a little dead band of 16us for better results.
  if(receiver_input_channel_3 > 1050){ //Do not yaw when turning off the motors.
    if(receiver_input_channel_4 > 1508)pid_yaw_setpoint = (receiver_input_channel_4 - 1508)/3.0;
    else if(receiver_input_channel_4 < 1492)pid_yaw_setpoint = (receiver_input_channel_4 - 1492)/3.0;
  }

  calculate_pid();                                                            //PID inputs are known. So we can calculate the pid output.

  //The battery voltage is needed for compensation.
  //A complementary filter is used to reduce noise.
  //0.09853 = 0.08 * 1.2317.
  battery_voltage = battery_voltage * 0.92 + (analogRead(0) + 65) * 0.09853;

  //Turn on the led if battery voltage is to low.
  if(battery_voltage < 1000 && battery_voltage > 600)digitalWrite(12, HIGH);


  throttle = receiver_input_channel_3;                                      //We need the throttle signal as a base signal.

  if (start == 2){                                                          //The motors are started.
    if (throttle > 1800) throttle = 1800;                                   //We need some room to keep full control at full throttle.
    esc_1 = throttle - pid_output_pitch + pid_output_roll - pid_output_yaw; //Calculate the pulse for esc 1 (front-right - CCW)
    esc_2 = throttle + pid_output_pitch + pid_output_roll + pid_output_yaw; //Calculate the pulse for esc 2 (rear-right - CW)
    esc_3 = throttle + pid_output_pitch - pid_output_roll - pid_output_yaw; //Calculate the pulse for esc 3 (rear-left - CCW)
    esc_4 = throttle - pid_output_pitch - pid_output_roll + pid_output_yaw; //Calculate the pulse for esc 4 (front-left - CW)

    if (battery_voltage < 1240 && battery_voltage > 800){                   //Is the battery connected?
      esc_1 += esc_1 * ((1240 - battery_voltage)/(float)3500);              //Compensate the esc-1 pulse for voltage drop.
      esc_2 += esc_2 * ((1240 - battery_voltage)/(float)3500);              //Compensate the esc-2 pulse for voltage drop.
      esc_3 += esc_3 * ((1240 - battery_voltage)/(float)3500);              //Compensate the esc-3 pulse for voltage drop.
      esc_4 += esc_4 * ((1240 - battery_voltage)/(float)3500);              //Compensate the esc-4 pulse for voltage drop.
    }

    if (esc_1 < 1200) esc_1 = 1200;                                         //Keep the motors running.
    if (esc_2 < 1200) esc_2 = 1200;                                         //Keep the motors running.
    if (esc_3 < 1200) esc_3 = 1200;                                         //Keep the motors running.
    if (esc_4 < 1200) esc_4 = 1200;                                         //Keep the motors running.

    if(esc_1 > 2000)esc_1 = 2000;                                           //Limit the esc-1 pulse to 2000us.
    if(esc_2 > 2000)esc_2 = 2000;                                           //Limit the esc-2 pulse to 2000us.
    if(esc_3 > 2000)esc_3 = 2000;                                           //Limit the esc-3 pulse to 2000us.
    if(esc_4 > 2000)esc_4 = 2000;                                           //Limit the esc-4 pulse to 2000us.
  }

  else{
    esc_1 = 1000;                                                           //If start is not 2 keep a 1000us pulse for ess-1.
    esc_2 = 1000;                                                           //If start is not 2 keep a 1000us pulse for ess-2.
    esc_3 = 1000;                                                           //If start is not 2 keep a 1000us pulse for ess-3.
    esc_4 = 1000;                                                           //If start is not 2 keep a 1000us pulse for ess-4.
  }


  if(micros() - loop_timer > 4050)digitalWrite(12, HIGH);                   //Turn on the LED if the loop time exceeds 4050us.

  //All the information for controlling the motor's is available.
  //The refresh rate is 250Hz. That means the esc's need there pulse every 4ms.
  while(micros() - loop_timer < 4000);                                      //We wait until 4000us are passed.
  loop_timer = micros();                                                    //Set the timer for the next loop.

  PORTD |= B11110000;                                                       //Set digital outputs 4,5,6 and 7 high.
  timer_channel_1 = esc_1 + loop_timer;                                     //Calculate the time of the faling edge of the esc-1 pulse.
  timer_channel_2 = esc_2 + loop_timer;                                     //Calculate the time of the faling edge of the esc-2 pulse.
  timer_channel_3 = esc_3 + loop_timer;                                     //Calculate the time of the faling edge of the esc-3 pulse.
  timer_channel_4 = esc_4 + loop_timer;                                     //Calculate the time of the faling edge of the esc-4 pulse.

  //There is always 1000us of spare time. So let's do something usefull that is very time consuming.
  //Get the current gyro and receiver data and scale it to degrees per second for the pid calculations.
  gyro_signalen();

  while(PORTD >= 16){                                                       //Stay in this loop until output 4,5,6 and 7 are low.
    esc_loop_timer = micros();                                              //Read the current time.
    if(timer_channel_1 <= esc_loop_timer)PORTD &= B11101111;                //Set digital output 4 to low if the time is expired.
    if(timer_channel_2 <= esc_loop_timer)PORTD &= B11011111;                //Set digital output 5 to low if the time is expired.
    if(timer_channel_3 <= esc_loop_timer)PORTD &= B10111111;                //Set digital output 6 to low if the time is expired.
    if(timer_channel_4 <= esc_loop_timer)PORTD &= B01111111;                //Set digital output 7 to low if the time is expired.
  }
}

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//This routine is called every time input 8, 9, 10 or 11 changed state. This is used to read the receiver signals.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

ISR(PCINT0_vect){
  current_time = micros();
  //Channel 1=========================================
  if(PINB & B00000001){                                                     //Is input 8 high?
    if(last_channel_1 == 0){                                                //Input 8 changed from 0 to 1.
      last_channel_1 = 1;                                                   //Remember current input state.
      timer_1 = current_time;                                               //Set timer_1 to current_time.
    }
  }
  else if(last_channel_1 == 1){                                             //Input 8 is not high and changed from 1 to 0.
    last_channel_1 = 0;                                                     //Remember current input state.
    receiver_input[1] = current_time - timer_1;                             //Channel 1 is current_time - timer_1.
  }
  //Channel 2=========================================
  if(PINB & B00000010 ){                                                    //Is input 9 high?
    if(last_channel_2 == 0){                                                //Input 9 changed from 0 to 1.
      last_channel_2 = 1;                                                   //Remember current input state.
      timer_2 = current_time;                                               //Set timer_2 to current_time.
    }
  }
  else if(last_channel_2 == 1){                                             //Input 9 is not high and changed from 1 to 0.
    last_channel_2 = 0;                                                     //Remember current input state.
    receiver_input[2] = current_time - timer_2;                             //Channel 2 is current_time - timer_2.
  }
  //Channel 3=========================================
  if(PINB & B00000100 ){                                                    //Is input 10 high?
    if(last_channel_3 == 0){                                                //Input 10 changed from 0 to 1.
      last_channel_3 = 1;                                                   //Remember current input state.
      timer_3 = current_time;                                               //Set timer_3 to current_time.
    }
  }
  else if(last_channel_3 == 1){                                             //Input 10 is not high and changed from 1 to 0.
    last_channel_3 = 0;                                                     //Remember current input state.
    receiver_input[3] = current_time - timer_3;                             //Channel 3 is current_time - timer_3.

  }
  //Channel 4=========================================
  if(PINB & B00001000 ){                                                    //Is input 11 high?
    if(last_channel_4 == 0){                                                //Input 11 changed from 0 to 1.
      last_channel_4 = 1;                                                   //Remember current input state.
      timer_4 = current_time;                                               //Set timer_4 to current_time.
    }
  }
  else if(last_channel_4 == 1){                                             //Input 11 is not high and changed from 1 to 0.
    last_channel_4 = 0;                                                     //Remember current input state.
    receiver_input[4] = current_time - timer_4;                             //Channel 4 is current_time - timer_4.
  }
}

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//Subroutine for reading the gyro
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
void gyro_signalen(){
  //Read the MPU-6050
  if(eeprom_data[31] == 1){
    Wire.beginTransmission(gyro_address);                                   //Start communication with the gyro.
    Wire.write(0x3B);                                                       //Start reading @ register 43h and auto increment with every read.
    Wire.endTransmission();                                                 //End the transmission.
    Wire.requestFrom(gyro_address,14);                                      //Request 14 bytes from the gyro.

    receiver_input_channel_1 = convert_receiver_channel(1);                 //Convert the actual receiver signals for pitch to the standard 1000 - 2000us.
    receiver_input_channel_2 = convert_receiver_channel(2);                 //Convert the actual receiver signals for roll to the standard 1000 - 2000us.
    receiver_input_channel_3 = convert_receiver_channel(3);                 //Convert the actual receiver signals for throttle to the standard 1000 - 2000us.
    receiver_input_channel_4 = convert_receiver_channel(4);                 //Convert the actual receiver signals for yaw to the standard 1000 - 2000us.

    while(Wire.available() < 14);                                           //Wait until the 14 bytes are received.
    acc_axis[1] = Wire.read()<<8|Wire.read();                               //Add the low and high byte to the acc_x variable.
    acc_axis[2] = Wire.read()<<8|Wire.read();                               //Add the low and high byte to the acc_y variable.
    acc_axis[3] = Wire.read()<<8|Wire.read();                               //Add the low and high byte to the acc_z variable.
    temperature = Wire.read()<<8|Wire.read();                               //Add the low and high byte to the temperature variable.
    gyro_axis[1] = Wire.read()<<8|Wire.read();                              //Read high and low part of the angular data.
    gyro_axis[2] = Wire.read()<<8|Wire.read();                              //Read high and low part of the angular data.
    gyro_axis[3] = Wire.read()<<8|Wire.read();                              //Read high and low part of the angular data.
  }

  if(cal_int == 2000){
    gyro_axis[1] -= gyro_axis_cal[1];                                       //Only compensate after the calibration.
    gyro_axis[2] -= gyro_axis_cal[2];                                       //Only compensate after the calibration.
    gyro_axis[3] -= gyro_axis_cal[3];                                       //Only compensate after the calibration.
  }
  gyro_roll = gyro_axis[eeprom_data[28] & 0b00000011];                      //Set gyro_roll to the correct axis that was stored in the EEPROM.
  if(eeprom_data[28] & 0b10000000)gyro_roll *= -1;                          //Invert gyro_roll if the MSB of EEPROM bit 28 is set.
  gyro_pitch = gyro_axis[eeprom_data[29] & 0b00000011];                     //Set gyro_pitch to the correct axis that was stored in the EEPROM.
  if(eeprom_data[29] & 0b10000000)gyro_pitch *= -1;                         //Invert gyro_pitch if the MSB of EEPROM bit 29 is set.
  gyro_yaw = gyro_axis[eeprom_data[30] & 0b00000011];                       //Set gyro_yaw to the correct axis that was stored in the EEPROM.
  if(eeprom_data[30] & 0b10000000)gyro_yaw *= -1;                           //Invert gyro_yaw if the MSB of EEPROM bit 30 is set.

  acc_x = acc_axis[eeprom_data[29] & 0b00000011];                           //Set acc_x to the correct axis that was stored in the EEPROM.
  if(eeprom_data[29] & 0b10000000)acc_x *= -1;                              //Invert acc_x if the MSB of EEPROM bit 29 is set.
  acc_y = acc_axis[eeprom_data[28] & 0b00000011];                           //Set acc_y to the correct axis that was stored in the EEPROM.
  if(eeprom_data[28] & 0b10000000)acc_y *= -1;                              //Invert acc_y if the MSB of EEPROM bit 28 is set.
  acc_z = acc_axis[eeprom_data[30] & 0b00000011];                           //Set acc_z to the correct axis that was stored in the EEPROM.
  if(eeprom_data[30] & 0b10000000)acc_z *= -1;                              //Invert acc_z if the MSB of EEPROM bit 30 is set.
}

///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
//Subroutine for calculating pid outputs
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

void calculate_pid(){
  //Roll calculations
  pid_error_temp = gyro_roll_input - pid_roll_setpoint;
  pid_i_mem_roll += pid_i_gain_roll * pid_error_temp;
  if(pid_i_mem_roll > pid_max_roll)pid_i_mem_roll = pid_max_roll;
  else if(pid_i_mem_roll < pid_max_roll * -1)pid_i_mem_roll = pid_max_roll * -1;

  pid_output_roll = pid_p_gain_roll * pid_error_temp + pid_i_mem_roll + pid_d_gain_roll * (pid_error_temp - pid_last_roll_d_error);
  if(pid_output_roll > pid_max_roll)pid_output_roll = pid_max_roll;
  else if(pid_output_roll < pid_max_roll * -1)pid_output_roll = pid_max_roll * -1;

  pid_last_roll_d_error = pid_error_temp;

  //Pitch calculations
  pid_error_temp = gyro_pitch_input - pid_pitch_setpoint;
  pid_i_mem_pitch += pid_i_gain_pitch * pid_error_temp;
  if(pid_i_mem_pitch > pid_max_pitch)pid_i_mem_pitch = pid_max_pitch;
  else if(pid_i_mem_pitch < pid_max_pitch * -1)pid_i_mem_pitch = pid_max_pitch * -1;

  pid_output_pitch = pid_p_gain_pitch * pid_error_temp + pid_i_mem_pitch + pid_d_gain_pitch * (pid_error_temp - pid_last_pitch_d_error);
  if(pid_output_pitch > pid_max_pitch)pid_output_pitch = pid_max_pitch;
  else if(pid_output_pitch < pid_max_pitch * -1)pid_output_pitch = pid_max_pitch * -1;

  pid_last_pitch_d_error = pid_error_temp;

  //Yaw calculations
  pid_error_temp = gyro_yaw_input - pid_yaw_setpoint;
  pid_i_mem_yaw += pid_i_gain_yaw * pid_error_temp;
  if(pid_i_mem_yaw > pid_max_yaw)pid_i_mem_yaw = pid_max_yaw;
  else if(pid_i_mem_yaw < pid_max_yaw * -1)pid_i_mem_yaw = pid_max_yaw * -1;

  pid_output_yaw = pid_p_gain_yaw * pid_error_temp + pid_i_mem_yaw + pid_d_gain_yaw * (pid_error_temp - pid_last_yaw_d_error);
  if(pid_output_yaw > pid_max_yaw)pid_output_yaw = pid_max_yaw;
  else if(pid_output_yaw < pid_max_yaw * -1)pid_output_yaw = pid_max_yaw * -1;

  pid_last_yaw_d_error = pid_error_temp;
}

//This part converts the actual receiver signals to a standardized 1000  1500  2000 microsecond value.
//The stored data in the EEPROM is used.
int convert_receiver_channel(byte function){
  byte channel, reverse;                                                       //First we declare some local variables
  int low, center, high, actual;
  int difference;

  channel = eeprom_data[function + 23] & 0b00000111;                           //What channel corresponds with the specific function
  if(eeprom_data[function + 23] & 0b10000000)reverse = 1;                      //Reverse channel when most significant bit is set
  else reverse = 0;                                                            //If the most significant is not set there is no reverse

  actual = receiver_input[channel];                                            //Read the actual receiver value for the corresponding function
  low = (eeprom_data[channel * 2 + 15] << 8) | eeprom_data[channel * 2 + 14];  //Store the low value for the specific receiver input channel
  center = (eeprom_data[channel * 2 - 1] << 8) | eeprom_data[channel * 2 - 2]; //Store the center value for the specific receiver input channel
  high = (eeprom_data[channel * 2 + 7] << 8) | eeprom_data[channel * 2 + 6];   //Store the high value for the specific receiver input channel

  if(actual < center){                                                         //The actual receiver value is lower than the center value
    if(actual < low)actual = low;                                              //Limit the lowest value to the value that was detected during setup
    difference = ((long)(center - actual) * (long)500) / (center - low);       //Calculate and scale the actual value to a 1000 - 2000us value
    if(reverse == 1)return 1500 + difference;                                  //If the channel is reversed
    else return 1500 - difference;                                             //If the channel is not reversed
  }
  else if(actual > center){                                                                        //The actual receiver value is higher than the center value
    if(actual > high)actual = high;                                            //Limit the lowest value to the value that was detected during setup
    difference = ((long)(actual - center) * (long)500) / (high - center);      //Calculate and scale the actual value to a 1000 - 2000us value
    if(reverse == 1)return 1500 - difference;                                  //If the channel is reversed
    else return 1500 + difference;                                             //If the channel is not reversed
  }
  else return 1500;
}

void set_gyro_registers(){
  //Setup the MPU-6050
  if(eeprom_data[31] == 1){
    Wire.beginTransmission(gyro_address);                                      //Start communication with the address found during search.
    Wire.write(0x6B);                                                          //We want to write to the PWR_MGMT_1 register (6B hex)
    Wire.write(0x00);                                                          //Set the register bits as 00000000 to activate the gyro
    Wire.endTransmission();                                                    //End the transmission with the gyro.

    Wire.beginTransmission(gyro_address);                                      //Start communication with the address found during search.
    Wire.write(0x1B);                                                          //We want to write to the GYRO_CONFIG register (1B hex)
    Wire.write(0x08);                                                          //Set the register bits as 00001000 (500dps full scale)
    Wire.endTransmission();                                                    //End the transmission with the gyro

    Wire.beginTransmission(gyro_address);                                      //Start communication with the address found during search.
    Wire.write(0x1C);                                                          //We want to write to the ACCEL_CONFIG register (1A hex)
    Wire.write(0x10);                                                          //Set the register bits as 00010000 (+/- 8g full scale range)
    Wire.endTransmission();                                                    //End the transmission with the gyro

    //Let's perform a random register check to see if the values are written correct
    Wire.beginTransmission(gyro_address);                                      //Start communication with the address found during search
    Wire.write(0x1B);                                                          //Start reading @ register 0x1B
    Wire.endTransmission();                                                    //End the transmission
    Wire.requestFrom(gyro_address, 1);                                         //Request 1 bytes from the gyro
    while(Wire.available() < 1);                                               //Wait until the 6 bytes are received
    if(Wire.read() != 0x08){                                                   //Check if the value is 0x08
      digitalWrite(12,HIGH);                                                   //Turn on the warning led
      while(1)delay(10);                                                       //Stay in this loop for ever
    }

    Wire.beginTransmission(gyro_address);                                      //Start communication with the address found during search
    Wire.write(0x1A);                                                          //We want to write to the CONFIG register (1A hex)
    Wire.write(0x03);                                                          //Set the register bits as 00000011 (Set Digital Low Pass Filter to ~43Hz)
    Wire.endTransmission();                                                    //End the transmission with the gyro

  }
}
void loop() {
}
