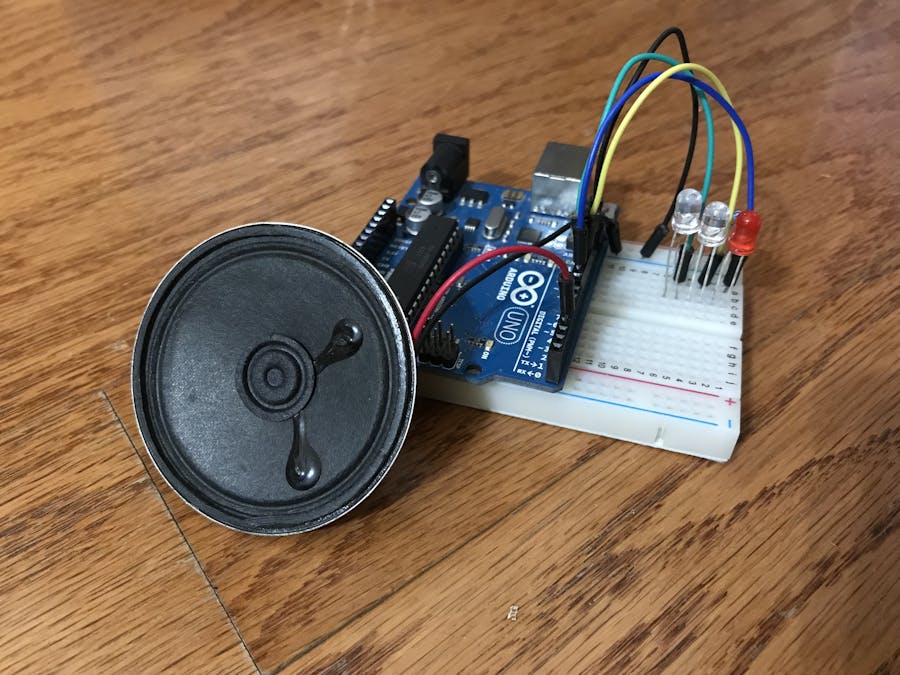

Happy Birthday: Lights and Sounds

Have a very happy birthday celebration using this simple Arduino device that plays the happy birthday tune while flashing lights!

BeginnerFull instructions provided14,962

Things used in this project

Hardware components

Speaker: 0.25W, 8 ohms

You may need to solder wires on, and mine is half a watt

Breadboard (generic)

Arduino UNO

Jumper wires (generic)

LED (generic)

1 red, 1 blue, 1 white. (feel free to choose your own colors)

Software apps and online services

Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)

If needed

Story

Introduction

After attempting and failing to make an LED bar graph distance visualizer, I decided to make easier projects. After looking around the Arduino Project Hub for inspiration, I got an idea to make this.

Step 1:

Gather all materials. If needed, solder jumper wires to the speaker.

Step 2:

Attach the 3 LEDs to the breadboard. They should be close to each other.

Step 3:

Use jumper wires to wire the anode (positive segment/longer segment) to the Arduino pins as follows:

RED: pin 9

BLUE: pin 10

WHITE: pin 11

1 / 2

Step 4:

Connect the cathode (negative segment/smaller segment) to 3 220 Ohm resistors. Connect those to the negative lane of the breadboard. Wire the negative lane of the breadboard to the GND pin of the Arduino.

Step 5:

Connect the speaker to the Arduino and breadboard: The negative wire goes to the negative lane on the breadboard, and the positive wire goes to pin 3 on the Arduino.

Code

//RED 9;
//BLUE 10;
//WHITE 11;

#include "pitches.h"

//notes in the melody
int melody[] = {
  NOTE_C4, NOTE_C4, NOTE_D4, NOTE_C4, NOTE_F4, NOTE_E4, NOTE_C4, NOTE_C4, NOTE_D4, NOTE_C4, NOTE_G4, NOTE_F4, NOTE_C4, NOTE_C4, NOTE_C5, NOTE_A4, NOTE_F4, NOTE_E4, NOTE_D4, NOTE_AS4, NOTE_AS4, NOTE_A4, NOTE_F4, NOTE_G4, NOTE_F4
};

//note durations: 4 = quarter note, 8 = eight note, etc.
int noteDurations[] = {
  8, 8, 4, 4, 4, 2, 8, 8, 4, 4, 4, 2, 8, 8, 4, 4, 4, 4, 4, 8, 8, 4, 4, 4, 2,
};

void setup() {
  pinMode (9, OUTPUT);
  pinMode (10, OUTPUT);
  pinMode (11, OUTPUT);

  for (int thisNote = 0 ; thisNote < 25 ; thisNote++) {
    int randomLight1 = random(9, 12);
    int randomLight2 = random(9, 12);
    int randomLight3 = random(9, 12);

    digitalWrite (randomLight1, HIGH);
    digitalWrite (randomLight2, HIGH);

    digitalWrite (randomLight3, LOW);
    //digitalWrite (random(9, 12), LOW);

    int noteDuration = 1130/noteDurations[thisNote];
    tone (3, melody[thisNote], noteDuration);

    int pause = noteDuration * 1.275;
    delay (pause);

    noTone(3);


  }

  delay(3000);
    digitalWrite(9, LOW);
    digitalWrite(10, LOW);
    digitalWrite(11, LOW);

}

void loop() {
  //no need to repeat

}

/*************************************************
