Automated Home with Safety System and Fire Sensor

Prototype home safety system, fully Automated with the help of Arduino Uno. 3 main features : Fire System, Card Reader and Motion Sensor

IntermediateShowcase (no instructions)1,106
Automated Home with Safety System and Fire Sensor

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Breadboard (generic)
Breadboard (generic)
×1
RFID reader (generic)
×1
RFID Module (Generic)
×1
PIR Motion Sensor (generic)
PIR Motion Sensor (generic)
×1
Buzzer, Piezo
Buzzer, Piezo
×1
I2C 16x2 Arduino LCD Display Module
DFRobot I2C 16x2 Arduino LCD Display Module
×1

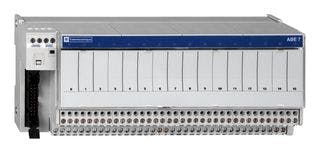

Relay Subbase, DC Type
Relay Subbase, DC Type
×1
LED (generic)
LED (generic)
×1
Gravity: Analog Flame Sensor For Arduino
DFRobot Gravity: Analog Flame Sensor For Arduino
×1
Male/Female Jumper Wires
Male/Female Jumper Wires
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Soldering iron (generic)
Soldering iron (generic)

Story

Read more

Custom parts and enclosures

EAGLE schematic

This is the EAGLE schematic for the circuit which shows h=all the proper connections of each component to the Arduino Uno

Schematics

Flowchart

This is the flowchart for the project and gives a general idea on what the Home Safety System should do and how it performs

Pseudo Code

This is the Pseudo code for the project which shows how the project is supposed to be implemented. It is gives the user a step by step idea on how the project works.

Code

Code for the Flame Sensor

Arduino
#include <Wire.h>
#include <LiquidCrystal_I2C.h>

// Set the LCD address to 0x27 for a 16 chars and 2 line display
LiquidCrystal_I2C lcd(0x27, 16, 2);

int flameSensorPin = 0; // input pin for flame sensor
int fR; // reading of the flame sensor
int buzzerPin=8; // pin assigned to buzzer
int tt=1023;
void setup(void)
{
  Serial.begin(9600); // starting the serial monitor
  pinMode(buzzerPin,OUTPUT); // output for the buzzer
   pinMode(7, OUTPUT); // output for the DC relay
}
void loop(void)
{
  fR = analogRead(flameSensorPin);  // reads the flamesensor pin


  if(fR<1023) //if loop for flame detected
           {

            digitalWrite(7, HIGH); //DC relay turned on
            digitalWrite(buzzerPin,HIGH); //buzzer turned on
            delay(1000);
            digitalWrite(7, LOW); //DC relay turned on

            // initialize the LCD
  lcd.begin();

  // Turn on the blacklight and print a message.
  lcd.backlight();
  lcd.print("LCD is Working");

                         }
else                           // incase no fire detected
          {
           digitalWrite(buzzerPin,LOW);
           digitalWrite(7, LOW);
           delay(1000);
                        }

 Serial.print("Analog reading = ");
 Serial.println(fR); // the raw analog reading delay(1000);
 delay(500);
}
