Arduino Basic Project-#3

This project is all about the fade in and fade out the led light with Arduino UNO.

BeginnerFull instructions provided30 minutes227

Things used in this project

Hardware components

Arduino UNO

Breadboard (generic)

5 mm LED: Red

Jumper wires (generic)

Software apps and online services

Arduino IDE

Story

Introduction

This is a very basic project on Arduino. In this project I am going to show how we can automatic fade in and fade out the brightness of a LED by the help of Arduino UNO. Basically here we are going to control the brightness of a led light automatically.

Circuit Analysis

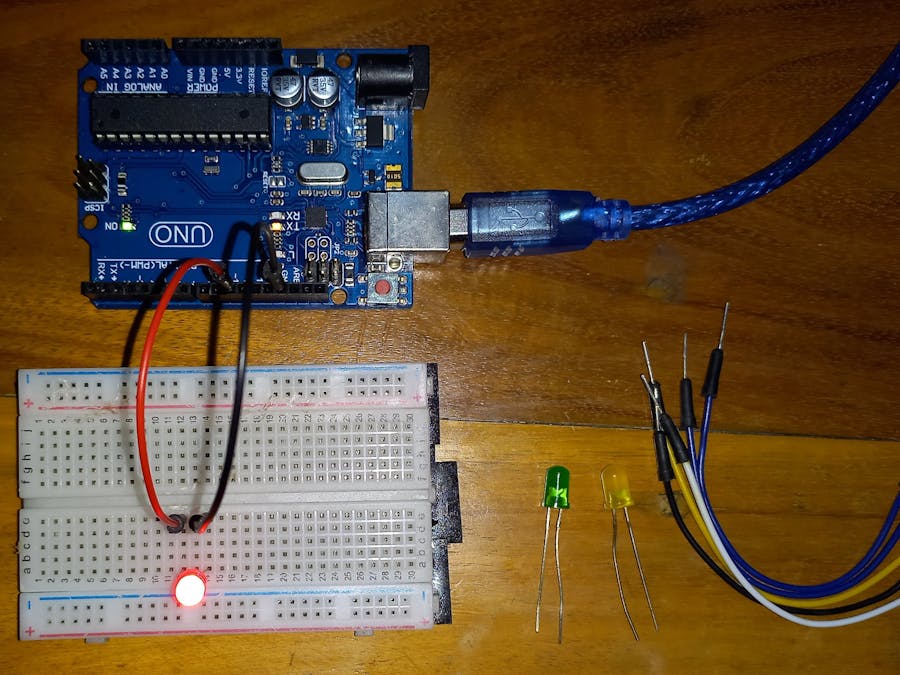

The circuit diagram of this project is very easy. Here we have just used a 5mm led, breadboard and Arduino UNO board. The anode of the led will connect with the Arduino digital pin 10 and the cathode will connect with the GND pin of Arduino.

Demonstration Video

Arduino Basic Project Video

Links

Github Repository Link:https://github.com/KAST-Tech/arduino-basics-projects/tree/main/Project-%233

Tinkercad Project Link:https://www.tinkercad.com/things/g6t4ts21rLb

Schematics

Code

Arduino-Basic-Project-#3 - Code

// Date: 15/11/21
// Name: Khaled Saifullah
// @kastTech
// Dhaka,Bangladesh

int led = 10;
int brightness = 255;
int fadeAmount = 2;
void setup() {
 pinMode(led, OUTPUT);
 Serial.begin(9600);
}
void loop() {
 analogWrite(10, brightness);
 delay(10);
 brightness = brightness + fadeAmount;
 Serial.println(brightness);
 Serial.println(fadeAmount);
 if((brightness == 0) || (brightness == 255))
 {
   fadeAmount = -fadeAmount;
   Serial.println(fadeAmount);
 }
}
