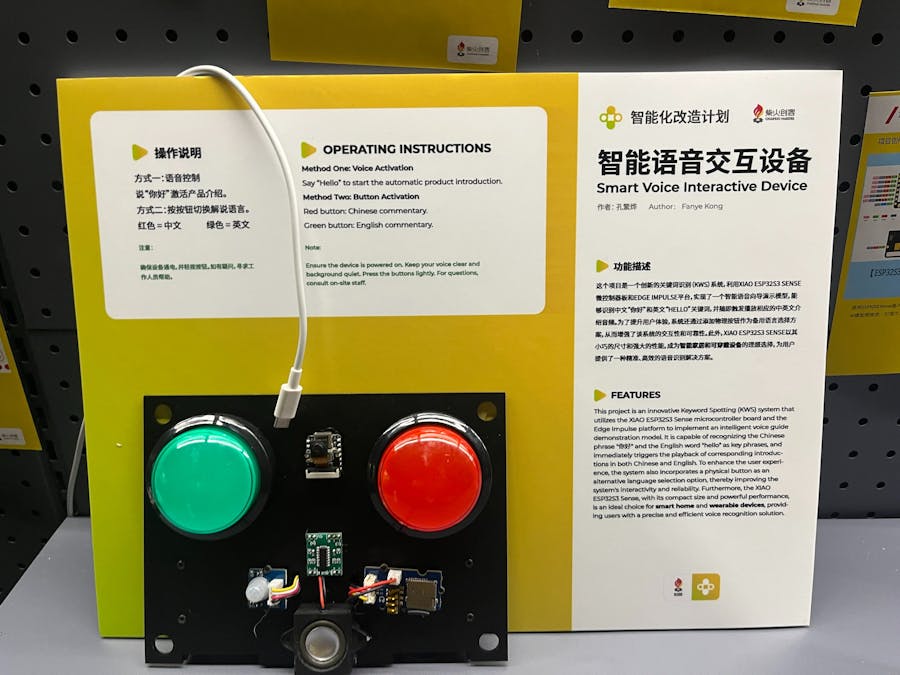

MIniature Voice Assistant base on XIAO ESP32S3 Sense

/*
 * WAV Recorder for Seeed XIAO ESP32S3 Sense
 *
 * NOTE: To execute this code, we will need to use the PSRAM
 * function of the ESP-32 chip, so please turn it on before uploading.
 * Tools>PSRAM: "OPI PSRAM"
 *
 * Adapted by M.Rovai @May23 from original Seeed code
*/

#include <ESP_I2S.h>
#include "FS.h"
#include "SD.h"
#include "SPI.h"

// make changes as needed
#define RECORD_TIME   10  // seconds, The maximum value is 240
#define WAV_FILE_NAME "data"

// do not change for best
#define SAMPLE_RATE 16000U
#define SAMPLE_BITS 16
#define WAV_HEADER_SIZE 44
#define VOLUME_GAIN 2

I2SClass I2S;
String baseFileName;

int fileNumber = 1;
bool isRecording = false;

void setup() {
  Serial.begin(115200);
  while (!Serial) ;

  // setup 42 PDM clock and 41 PDM data pins
  I2S.setPinsPdmRx(42, 41);
  if (!I2S.begin(I2S_MODE_PDM_RX, 16000, I2S_DATA_BIT_WIDTH_16BIT, I2S_SLOT_MODE_MONO)) {
    Serial.println("Failed to initialize I2S!");
    while (1) ;
  }
  if(!SD.begin(21)){
    Serial.println("Failed to mount SD Card!");
    while (1) ;
  }
  Serial.printf("Enter with the label name\n");
  //record_wav();
}

void loop() {
  if (Serial.available() > 0) {
    String command = Serial.readStringUntil('\n');
    command.trim();
    if (command == "rec") {
      isRecording = true;
    } else {
      baseFileName = command;
      fileNumber = 1; // reset file number each time a new base file name is set
      Serial.printf("Send rec for starting recording label \n");
    }
  }
  if (isRecording && baseFileName != "") {
    String fileName = "/" + baseFileName + "." + String(fileNumber) + ".wav";
    fileNumber++;
    record_wav(fileName);
    delay(1000); // delay to avoid recording multiple files at once
    isRecording = false;
  }
}

void record_wav(String fileName)
{
  uint32_t sample_size = 0;
  uint32_t record_size = (SAMPLE_RATE * SAMPLE_BITS / 8) * RECORD_TIME;
  uint8_t *rec_buffer = NULL;
  Serial.printf("Start recording ...\n");

  File file = SD.open(fileName.c_str(), FILE_WRITE);
  // Write the header to the WAV file
  uint8_t wav_header[WAV_HEADER_SIZE];
  generate_wav_header(wav_header, record_size, SAMPLE_RATE);
  file.write(wav_header, WAV_HEADER_SIZE);

  // PSRAM malloc for recording
  rec_buffer = (uint8_t *)ps_malloc(record_size);
  if (rec_buffer == NULL) {
    Serial.printf("malloc failed!\n");
    while(1) ;
  }
  Serial.printf("Buffer: %d bytes\n", ESP.getPsramSize() - ESP.getFreePsram());

  // Start recording
  esp_i2s::i2s_read(esp_i2s::I2S_NUM_0, rec_buffer, record_size, &sample_size, portMAX_DELAY);
  if (sample_size == 0) {
    Serial.printf("Record Failed!\n");
  } else {
    Serial.printf("Record %d bytes\n", sample_size);
  }

  // Increase volume
  for (uint32_t i = 0; i < sample_size; i += SAMPLE_BITS/8) {
    (*(uint16_t *)(rec_buffer+i)) <<= VOLUME_GAIN;
  }

  // Write data to the WAV file
  Serial.printf("Writing to the file ...\n");
  if (file.write(rec_buffer, record_size) != record_size)
    Serial.printf("Write file Failed!\n");

  free(rec_buffer);
  file.close();
  Serial.printf("Recording complete: \n");
  Serial.printf("Send rec for a new sample or enter a new label\n\n");
}

void generate_wav_header(uint8_t *wav_header, uint32_t wav_size, uint32_t sample_rate)
{
  // See this for reference: http://soundfile.sapp.org/doc/WaveFormat/
  uint32_t file_size = wav_size + WAV_HEADER_SIZE - 8;
  uint32_t byte_rate = SAMPLE_RATE * SAMPLE_BITS / 8;
  const uint8_t set_wav_header[] = {
    'R', 'I', 'F', 'F', // ChunkID
    file_size, file_size >> 8, file_size >> 16, file_size >> 24, // ChunkSize
    'W', 'A', 'V', 'E', // Format
    'f', 'm', 't', ' ', // Subchunk1ID
    0x10, 0x00, 0x00, 0x00, // Subchunk1Size (16 for PCM)
    0x01, 0x00, // AudioFormat (1 for PCM)
    0x01, 0x00, // NumChannels (1 channel)
    sample_rate, sample_rate >> 8, sample_rate >> 16, sample_rate >> 24, // SampleRate
    byte_rate, byte_rate >> 8, byte_rate >> 16, byte_rate >> 24, // ByteRate
    0x02, 0x00, // BlockAlign
    0x10, 0x00, // BitsPerSample (16 bits)
    'd', 'a', 't', 'a', // Subchunk2ID
    wav_size, wav_size >> 8, wav_size >> 16, wav_size >> 24, // Subchunk2Size
  };
  memcpy(wav_header, set_wav_header, sizeof(set_wav_header));
}

/* Edge Impulse Arduino examples
 * Copyright (c) 2022 EdgeImpulse Inc.
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */

// If your target is limited in memory remove this macro to save 10K RAM
#define EIDSP_QUANTIZE_FILTERBANK   0

/*
 ** NOTE: If you run into TFLite arena allocation issue.
 **
 ** This may be due to may dynamic memory fragmentation.
 ** Try defining "-DEI_CLASSIFIER_ALLOCATION_STATIC" in boards.local.txt (create
 ** if it doesn't exist) and copy this file to
 ** `<ARDUINO_CORE_INSTALL_PATH>/arduino/hardware/<mbed_core>/<core_version>/`.
 **
 ** See
 ** (https://support.arduino.cc/hc/en-us/articles/360012076960-Where-are-the-installed-cores-located-)
 ** to find where Arduino installs cores on your machine.
 **
 ** If the problem persists then there's not enough memory for this model and application.
 */

/* Includes ---------------------------------------------------------------- */
#include <XIAO-ESP32S3-KWS_inferencing.h>
#include <ESP_I2S.h>
I2SClass I2S;

#define SAMPLE_RATE 16000U
#define SAMPLE_BITS 16

#define LED_BUILT_IN 21

/** Audio buffers, pointers and selectors */
typedef struct {
    int16_t *buffer;
    uint8_t buf_ready;
    uint32_t buf_count;
    uint32_t n_samples;
} inference_t;

static inference_t inference;
static const uint32_t sample_buffer_size = 2048;
static signed short sampleBuffer[sample_buffer_size];
static bool debug_nn = false; // Set this to true to see e.g. features generated from the raw signal
static bool record_status = true;

/**
 * @brief      Arduino setup function
 */
void setup()
{
    // put your setup code here, to run once:
    Serial.begin(115200);
    // comment out the below line to cancel the wait for USB connection (needed for native USB)
    while (!Serial);
    Serial.println("Edge Impulse Inferencing Demo");

    pinMode(LED_BUILT_IN, OUTPUT); // Set the pin as output
    digitalWrite(LED_BUILT_IN, HIGH); //Turn off

    // setup 42 PDM clock and 41 PDM data pins
    I2S.setPinsPdmRx(42, 41);
    if (!I2S.begin(I2S_MODE_PDM_RX, 16000, I2S_DATA_BIT_WIDTH_16BIT, I2S_SLOT_MODE_MONO)) {
      Serial.println("Failed to initialize I2S!");
    while (1) ;
  }

    // summary of inferencing settings (from model_metadata.h)
    ei_printf("Inferencing settings:\n");
    ei_printf("\tInterval: ");
    ei_printf_float((float)EI_CLASSIFIER_INTERVAL_MS);
    ei_printf(" ms.\n");
    ei_printf("\tFrame size: %d\n", EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE);
    ei_printf("\tSample length: %d ms.\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT / 16);
    ei_printf("\tNo. of classes: %d\n", sizeof(ei_classifier_inferencing_categories) / sizeof(ei_classifier_inferencing_categories[0]));

    ei_printf("\nStarting continious inference in 2 seconds...\n");
    ei_sleep(2000);

    if (microphone_inference_start(EI_CLASSIFIER_RAW_SAMPLE_COUNT) == false) {
        ei_printf("ERR: Could not allocate audio buffer (size %d), this could be due to the window length of your model\r\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT);
        return;
    }

    ei_printf("Recording...\n");
}

/**
 * @brief      Arduino main function. Runs the inferencing loop.
 */
void loop()
{
    bool m = microphone_inference_record();
    if (!m) {
        ei_printf("ERR: Failed to record audio...\n");
        return;
    }

    signal_t signal;
    signal.total_length = EI_CLASSIFIER_RAW_SAMPLE_COUNT;
    signal.get_data = &microphone_audio_signal_get_data;
    ei_impulse_result_t result = { 0 };

    EI_IMPULSE_ERROR r = run_classifier(&signal, &result, debug_nn);
    if (r != EI_IMPULSE_OK) {
        ei_printf("ERR: Failed to run classifier (%d)\n", r);
        return;
    }

    int pred_index = 0;     // Initialize pred_index
    float pred_value = 0;   // Initialize pred_value

    // print the predictions
    ei_printf("Predictions ");
    ei_printf("(DSP: %d ms., Classification: %d ms., Anomaly: %d ms.)",
        result.timing.dsp, result.timing.classification, result.timing.anomaly);
    ei_printf(": \n");
    for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
        ei_printf("    %s: ", result.classification[ix].label);
        ei_printf_float(result.classification[ix].value);
        ei_printf("\n");

        if (result.classification[ix].value > pred_value){
           pred_index = ix;
           pred_value = result.classification[ix].value;
      }
    }
    // Display inference result
    if (pred_index == 3){
      digitalWrite(LED_BUILT_IN, LOW); //Turn on
    }
    else{
      digitalWrite(LED_BUILT_IN, HIGH); //Turn off
    }


#if EI_CLASSIFIER_HAS_ANOMALY == 1
    ei_printf("    anomaly score: ");
    ei_printf_float(result.anomaly);
    ei_printf("\n");
#endif
}

static void audio_inference_callback(uint32_t n_bytes)
{
    for(int i = 0; i < n_bytes>>1; i++) {
        inference.buffer[inference.buf_count++] = sampleBuffer[i];

        if(inference.buf_count >= inference.n_samples) {
          inference.buf_count = 0;
          inference.buf_ready = 1;
        }
    }
}

static void capture_samples(void* arg) {

  const int32_t i2s_bytes_to_read = (uint32_t)arg;
  size_t bytes_read = i2s_bytes_to_read;

  while (record_status) {

    /* read data at once from i2s - Modified for XIAO ESP2S3 Sense and I2S.h library */
    // i2s_read((i2s_port_t)1, (void*)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);
    esp_i2s::i2s_read(esp_i2s::I2S_NUM_0, (void*)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);

    if (bytes_read <= 0) {
      ei_printf("Error in I2S read : %d", bytes_read);
    }
    else {
        if (bytes_read < i2s_bytes_to_read) {
        ei_printf("Partial I2S read");
        }

        // scale the data (otherwise the sound is too quiet)
        for (int x = 0; x < i2s_bytes_to_read/2; x++) {
            sampleBuffer[x] = (int16_t)(sampleBuffer[x]) * 8;
        }

        if (record_status) {
            audio_inference_callback(i2s_bytes_to_read);
        }
        else {
            break;
        }
    }
  }
  vTaskDelete(NULL);
}

/**
 * @brief      Init inferencing struct and setup/start PDM
 *
 * @param[in]  n_samples  The n samples
 *
 * @return     { description_of_the_return_value }
 */
static bool microphone_inference_start(uint32_t n_samples)
{
    inference.buffer = (int16_t *)malloc(n_samples * sizeof(int16_t));

    if(inference.buffer == NULL) {
        return false;
    }

    inference.buf_count  = 0;
    inference.n_samples  = n_samples;
    inference.buf_ready  = 0;

//    if (i2s_init(EI_CLASSIFIER_FREQUENCY)) {
//        ei_printf("Failed to start I2S!");
//    }

    ei_sleep(100);

    record_status = true;

    xTaskCreate(capture_samples, "CaptureSamples", 1024 * 32, (void*)sample_buffer_size, 10, NULL);

    return true;
}

/**
 * @brief      Wait on new data
 *
 * @return     True when finished
 */
static bool microphone_inference_record(void)
{
    bool ret = true;

    while (inference.buf_ready == 0) {
        delay(10);
    }

    inference.buf_ready = 0;
    return ret;
}

/**
 * Get raw audio signal data
 */
static int microphone_audio_signal_get_data(size_t offset, size_t length, float *out_ptr)
{
    numpy::int16_to_float(&inference.buffer[offset], out_ptr, length);

    return 0;
}

/**
 * @brief      Stop PDM and release buffers
 */
static void microphone_inference_end(void)
{
    free(sampleBuffer);
    ei_free(inference.buffer);
}

#if !defined(EI_CLASSIFIER_SENSOR) || EI_CLASSIFIER_SENSOR != EI_CLASSIFIER_SENSOR_MICROPHONE
#error "Invalid model for current sensor."
#endif

// constants won't change. They're used here to set pin numbers:
#define buttonPin1 D7  // the number of the pushbutton pin
#define buttonPin2 D8

// variables will change:
int buttonState1 = 0;  // variable for reading the pushbutton status
int buttonState2 = 0;

void setup() {
  // initialize the LED pin as an output:
  Serial.begin(9600);
  // initialize the pushbutton pin as an input:
  pinMode(buttonPin1, INPUT);
  digitalWrite(buttonPin1, LOW);
    pinMode(buttonPin2, INPUT);
  digitalWrite(buttonPin2, LOW);
}

void loop() {
  // read the state of the pushbutton value:
  buttonState1 = digitalRead(buttonPin1);
  buttonState2 = digitalRead(buttonPin2);
// Serial.println("button checking");
  // check if the pushbutton is pressed. If it is, the buttonState is HIGH:
  if (buttonState1 == HIGH) {
    // turn LED on:
    digitalWrite(ledPin, HIGH);
    Serial.println("button1 push");
  }
  else if  (buttonState2 == HIGH) {
    // turn LED on:
    digitalWrite(ledPin, HIGH);
    Serial.println("button2 push");
  }
  else {
    // turn LED off:
    Serial.println(" no button  push");
    digitalWrite(ledPin, LOW);
  }
}

#define MOTIONPIN GPIO_NUM_4

void setup() {
  Serial.begin(9400);
  pinMode(LED_BUILTIN, OUTPUT);
  pinMode(MOTIONPIN, INPUT);
}

void loop() {
  Serial.println("it wake");
  digitalWrite(LED_BUILTIN, HIGH);
  delay(250);
  digitalWrite(LED_BUILTIN, LOW);
  delay(250);
  digitalWrite(LED_BUILTIN, HIGH);
    Serial.println("Going to sleep...");
  delay(1000);
  esp_sleep_enable_ext0_wakeup(MOTIONPIN, 1);
  delay(5000);
  Serial.println("Going to sleep...");
  esp_deep_sleep_start();
}

/* Edge Impulse Arduino examples
 * Copyright (c) 2022 EdgeImpulse Inc.
 *
 * Permission is hereby granted, free of charge, to any person obtaining a copy
 * of this software and associated documentation files (the "Software"), to deal
 * in the Software without restriction, including without limitation the rights
 * to use, copy, modify, merge, publish, distribute, sublicense, and/or sell
 * copies of the Software, and to permit persons to whom the Software is
 * furnished to do so, subject to the following conditions:
 *
 * The above copyright notice and this permission notice shall be included in
 * all copies or substantial portions of the Software.
 *
 * THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR
 * IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,
 * FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE
 * AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER
 * LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,
 * OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE
 * SOFTWARE.
 */

// If your target is limited in memory remove this macro to save 10K RAM
#define EIDSP_QUANTIZE_FILTERBANK   0

/*
 ** NOTE: If you run into TFLite arena allocation issue.
 **
 ** This may be due to may dynamic memory fragmentation.
 ** Try defining "-DEI_CLASSIFIER_ALLOCATION_STATIC" in boards.local.txt (create
 ** if it doesn't exist) and copy this file to
 ** `<ARDUINO_CORE_INSTALL_PATH>/arduino/hardware/<mbed_core>/<core_version>/`.
 **
 ** See
 ** (https://support.arduino.cc/hc/en-us/articles/360012076960-Where-are-the-installed-cores-located-)
 ** to find where Arduino installs cores on your machine.
 **
 ** If the problem persists then there's not enough memory for this model and application.
 */

/* Includes ---------------------------------------------------------------- */
//#include <XIAO-ESP32S3-KWS_inferencing.h>
// #include <Marco-KWS-KIC_inferencing.h>
#include <Caihuo_nihao_hello_inferencing.h>
#include <I2S.h>
#include "WT2605C_Player.h"
#include <Arduino.h>

// #ifdef __AVR__
#include <SoftwareSerial.h>
SoftwareSerial SSerial(D7,D6); // RX, TX
#define COMSerial SSerial
// #define ShowSerial Serial

WT2605C<SoftwareSerial> Mp3Player;


#define SAMPLE_RATE 16000U
#define SAMPLE_BITS 16

#define LED_BUILT_IN 21

#define MOTIONPIN GPIO_NUM_4
#define buttonPin1 D1  // the number of the pushbutton pin CHINESE
#define buttonPin2 D8 // ENGLISH
int buttonState1 = 0;  // variable for reading the pushbutton status
int buttonState2 = 0;
int collectTimes = 0;


#define USE_MULTOCRE 0
int Language = 3;

int remember_language = 3;

void xTaskOne(void *xTask1){
  int count = 0;
  int buttonstate = 3;// if press english return 0;      if press chinese return 1 ;   no buttun pressed return 3
  int i = 0;

  while (1) {
    if(Language == 3){
      buttonstate = Check_button();
      // Serial.println("+=+=+=+=+=+=+=+=+==+++=+");
      if(buttonstate != 3 /*按钮按下*/ && buttonstate != Language /*更换语言*/){
        Language = buttonstate;
        // Serial.println("-------------");
        // Serial.print("xTaskOne : ");
        // Serial.println(Language);
        // Serial.println("-------------");
        // vTaskDelete(NULL);
      }
      delay(10);
      i++;
    }else{
      delay(1000);
      // Serial.println("+++++++++++");
      // Serial.print("xTaskOne : ");
      // Serial.println(Language);
      // Serial.println("++++++++++");
    }

  }
  // 当任务完成时，删除自身
  vTaskDelete(NULL);
}

int Language_2 = 3;
void xTaskTwo(void *xTask2){
  int count = 0;
  while (count < 10) {
    // Serial.println("*****");
    // bool m = microphone_inference_record();
    // if (!m) {
    //     ei_printf("ERR: Failed to record audio...\n");
    //     return;
    // }

    // signal_t signal;
    // signal.total_length = EI_CLASSIFIER_RAW_SAMPLE_COUNT;
    // signal.get_data = &microphone_audio_signal_get_data;
    // ei_impulse_result_t result = { 0 };

    // EI_IMPULSE_ERROR r = run_classifier(&signal, &result, debug_nn);
    // if (r != EI_IMPULSE_OK) {
    //     ei_printf("ERR: Failed to run classifier (%d)\n", r);
    //     return;
    // }

    // int pred_index = 0;     // Initialize pred_index
    // float pred_value = 0;   // Initialize pred_value
    // int buttonstate = Check_button();
    // int language = 3;  // 1 is chinese, 0 is english, 3 is not selected yet

    // Serial.println("Task2");
    // delay(1000);
    // // count++;
    // // Serial.println("count");
    // ei_printf("Predictions ");
    // ei_printf("(DSP: %d ms., Classification: %d ms., Anomaly: %d ms.)",
    // result.timing.dsp, result.timing.classification, result.timing.anomaly);
    // ei_printf(": \n");
    // for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
    //     ei_printf("    %s: ", result.classification[ix].label);
    //     ei_printf_float(result.classification[ix].value);
    //     ei_printf("\n");
    //     if (result.classification[ix].value > 0.2){
    //       pred_index = ix;
    //       pred_value = result.classification[ix].value;

    //   }
    // }

    // // Display inference result
    // ei_printf("now test the sound : %d \n", EI_CLASSIFIER_LABEL_COUNT );
    // if ((pred_index == 0) && (pred_value > 0.6)){
    //   ei_printf("idex 0 \n");//English
    //   language = 0;
    // }else if((pred_index == 2) && (pred_value > 0.6)){
    //   ei_printf("idex 2 \n");
    //   digitalWrite(LED_BUILT_IN, LOW); //noise trun on noise
    //   Language_2 = 3;
    // }
    // else if((pred_index == 1) && (pred_value > 0.6)){
    //   ei_printf("idex 1 \n");
    //   digitalWrite(LED_BUILT_IN, HIGH); //Turn off //nihao
    //   Language_2 = 1;
    // }

  }
  vTaskDelete(NULL);
}


// check which button is press
// if press english return 0;      if press chinese return 1 ;   no buttun pressed return 3
int Check_button(){
  buttonState1 = digitalRead(buttonPin1);
  buttonState2 = digitalRead(buttonPin2);

  if (buttonState1 == HIGH) {
    // turn LED on:
    digitalWrite(LED_BUILT_IN, HIGH);
    Serial.println("Chinese push");
    return 1;
  }
  else if (buttonState2 == HIGH) {
    // turn LED on:
    digitalWrite(LED_BUILT_IN, HIGH);
    Serial.println("English push");
    return 0;
  }
  else {
    // turn LED off:
    // Serial.println(" no button  push");
    digitalWrite(LED_BUILT_IN, LOW);
    return 3;
  }

}

/** Audio buffers, pointers and selectors */
typedef struct {
    int16_t *buffer;
    uint8_t buf_ready;
    uint32_t buf_count;
    uint32_t n_samples;
} inference_t;

static inference_t inference;
static const uint32_t sample_buffer_size = 2048;
static signed short sampleBuffer[sample_buffer_size];
static bool debug_nn = false; // Set this to true to see e.g. features generated from the raw signal
static bool record_status = true;

/**
 * @brief      Arduino setup function
 */
void setup()
{
    // put your setup code here, to run once:
    Serial.begin(9600);
    // comment out the below line to cancel the wait for USB connection (needed for native USB)
    COMSerial.begin(115200);
    // while (!Serial){
    //   //  ShowSerial.println("1");
    // };

    Serial.println("+++++++++++++++++++++++++++++++++++++++++++++++++++++");
    Mp3Player.init(COMSerial);

    Serial.println("0...");

    // while (!Serial);
    Serial.println("Edge Impulse Inferencing Demo");

    pinMode(LED_BUILT_IN, OUTPUT); // Set the pin as output
    digitalWrite(LED_BUILT_IN, HIGH); //Turn off
    // digitalWrite(LED_BUILT_IN, LOW);

    I2S.setAllPins(-1, 42, 41, -1, -1);
    if (!I2S.begin(PDM_MONO_MODE, SAMPLE_RATE, SAMPLE_BITS)) {
      Serial.println("Failed to initialize I2S!");
    // while (1) ;
  }

    // summary of inferencing settings (from model_metadata.h)
    ei_printf("Inferencing settings:\n");
    ei_printf("\tInterval: ");
    ei_printf_float((float)EI_CLASSIFIER_INTERVAL_MS);
    ei_printf(" ms.\n");
    ei_printf("\tFrame size: %d\n", EI_CLASSIFIER_DSP_INPUT_FRAME_SIZE);
    ei_printf("\tSample length: %d ms.\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT / 16);
    ei_printf("\tNo. of classes: %d\n", sizeof(ei_classifier_inferencing_categories) / sizeof(ei_classifier_inferencing_categories[0]));

    ei_printf("\nStarting continious inference in 1 seconds...\n");
    ei_sleep(1000);

    if (microphone_inference_start(EI_CLASSIFIER_RAW_SAMPLE_COUNT) == false) {
        ei_printf("ERR: Could not allocate audio buffer (size %d), this could be due to the window length of your model\r\n", EI_CLASSIFIER_RAW_SAMPLE_COUNT);
        return;
    }

    ei_printf("Recording...\n");
  pinMode(LED_BUILTIN, OUTPUT);
  pinMode(MOTIONPIN, INPUT);
  digitalWrite(LED_BUILTIN, HIGH);
  delay(250);
  digitalWrite(LED_BUILTIN, LOW);
  delay(1000);
  digitalWrite(LED_BUILTIN, HIGH);
  delay(250);

  // initialize the pushbutton pin as an input:
  pinMode(buttonPin1, INPUT);
  digitalWrite(buttonPin1, LOW);
  pinMode(buttonPin2, INPUT);
  digitalWrite(buttonPin2, LOW);
  delay(10);
#if !USE_MULTCORE
  xTaskCreate(
    xTaskOne,/* Task function. */
    "TaskOne",/* String with name of task. */
    4096,/* Stack size in bytes.*/
    NULL,/* parameter passed as input of the task */
    1,/* priority of the task.(configMAx PRIORITIES - 1 being the highest, and @ being the lowest.) */
    NULL);/* Task handle.*/



  xTaskCreate(
    xTaskTwo,/* Task function.*/
    "TaskTwo",/* String with name of task. */
    4096,/* Stack size in bytes.*/
    NULL,/* parameter passed as input of the task */
    2,/* priority of the task.(configMax PRIORITIES - 1 being the highest, and  being the lowest.) */
    NULL);  /* Task handle.*/

#else
  //最后一个参数至关重要,决定这个任务创建在哪个核上.PRO_CPU 为 ,APP_cPu 为1,城者tskNoAFFINITY允许任务在两者上运行.
  xTaskCreatepinnedToCore(xTaskOne,"TaskOne",4096,NULL,1,NULL,0);
  xTaskCreatepinnedToCore(xTaskTwo,"TaskTwo",4896,NULL,2,NULL,1);

#endif
}

/**
 * @brief      Arduino main function. Runs the inferencing loop.
 */
void loop()
{
    bool m = microphone_inference_record();
    if (!m) {
        ei_printf("ERR: Failed to record audio...\n");
        return;
    }

    signal_t signal;
    signal.total_length = EI_CLASSIFIER_RAW_SAMPLE_COUNT;
    signal.get_data = &microphone_audio_signal_get_data;
    ei_impulse_result_t result = { 0 };

    EI_IMPULSE_ERROR r = run_classifier(&signal, &result, debug_nn);
    if (r != EI_IMPULSE_OK) {
        ei_printf("ERR: Failed to run classifier (%d)\n", r);
        return;
    }

    int pred_index = 0;     // Initialize pred_index
    float pred_value = 0;   // Initialize pred_value
    int buttonstate = Language;
    Serial.println(buttonstate);
    int language = 3;  // 1 is chinese, 0 is english, 3 is not selected yet
    if(buttonstate == language){ // which means language didn't change ==> didn't select ==> then try to rec sound to select language
      // print the predictions
      ei_printf("Predictions ");
      ei_printf("(DSP: %d ms., Classification: %d ms., Anomaly: %d ms.)",
      result.timing.dsp, result.timing.classification, result.timing.anomaly);
      ei_printf(": \n");
      for (size_t ix = 0; ix < EI_CLASSIFIER_LABEL_COUNT; ix++) {
          ei_printf("    %s: ", result.classification[ix].label);
          ei_printf_float(result.classification[ix].value);
          ei_printf("\n");
          if (result.classification[ix].value > 0.2){
            pred_index = ix;
            pred_value = result.classification[ix].value;

        }
      }
    }

    // int language = 3;  // 1 is chinese, 0 is english, 3 is not selected yet
    // check any buton is press?
    // buttonstate = Check_button();

    if(buttonstate == language){ // if the button no press return 2, then check sound language
      // Display inference result
      ei_printf("now test the sound : %d \n", EI_CLASSIFIER_LABEL_COUNT );
      if ((pred_index == 0) && (pred_value > 0.5)){
        ei_printf("idex 0 \n");//English
        language = 0;
                Language = 1;
        digitalWrite(LED_BUILTIN, HIGH);
        delay(100);
        digitalWrite(LED_BUILTIN, LOW);
        delay(100);
        digitalWrite(LED_BUILTIN, HIGH);
        delay(100);
        digitalWrite(LED_BUILTIN, LOW);
      }else if((pred_index == 2) && (pred_value > 0.6)){
        ei_printf("idex 2 \n");
        digitalWrite(LED_BUILT_IN, LOW); //noise trun on noise
        language = 3;

      }
      else if((pred_index == 1) && (pred_value > 0.5)){
        ei_printf("idex 1 \n");
        digitalWrite(LED_BUILT_IN, HIGH); //Turn off //nihao
        language = 1;
                digitalWrite(LED_BUILTIN, HIGH);
        delay(100);
        digitalWrite(LED_BUILTIN, LOW);
        delay(100);
        digitalWrite(LED_BUILTIN, HIGH);
        delay(100);
        digitalWrite(LED_BUILTIN, LOW);
      }
    }else {
      language = buttonstate; // langague already change
    }

  // if language is selected
  // if(language != 3 && language != remember_language){
  if(language != 3 && language != remember_language){
    // play the introduction .
    remember_language = language;

    // Mp3Player.stop();
    int vol = 15;
    Mp3Player.volume(vol);
    Serial.println("Volume set to: " + String(vol));
    //if language change by button press  change language.
    //if language change play the introduction again.
    Serial.println("Play the MP3");
    if(language == 0) { // english
    delay(10);
      int index = 2;
      Mp3Player.playSDRootSong(index);
      Serial.println("Play music: " + String(index));
      delay(1000);
      // Mp3Player.stop();
    }else{ // Chinese
      int index = 1;
          delay(10);
      Mp3Player.playSDRootSong(index);
      Serial.println("Play music: " + String(index));
      delay(1000);
      // Mp3Player.stop();
    }
    Language = 3;
    delay(1000);

    delay(1000);

    collectTimes == 0;
  }
  //  Serial.println(collecTimes);
  //if the
  if(collectTimes == 100){
    remember_language = 10;

  }


#if EI_CLASSIFIER_HAS_ANOMALY == 1
    ei_printf("    anomaly score: ");
    ei_printf_float(result.anomaly);
    ei_printf("\n");
#endif
  collectTimes++;
  // if all loop is finish
  // deep sleep with RIP wakeup
  if(collectTimes > 1000000){
    Serial.println("Going to sleep...");
    delay(1000);
    collectTimes = 0;
    esp_sleep_enable_ext0_wakeup(MOTIONPIN, 1);
    // Serial.println("it wake");
    delay(5000);
    Serial.println("Going to sleep...");
    esp_deep_sleep_start();
  }
}

static void audio_inference_callback(uint32_t n_bytes)
{
    for(int i = 0; i < n_bytes>>1; i++) {
        inference.buffer[inference.buf_count++] = sampleBuffer[i];

        if(inference.buf_count >= inference.n_samples) {
          inference.buf_count = 0;
          inference.buf_ready = 1;
        }
    }
}

static void capture_samples(void* arg) {

  const int32_t i2s_bytes_to_read = (uint32_t)arg;
  size_t bytes_read = i2s_bytes_to_read;

  while (record_status) {

    /* read data at once from i2s - Modified for XIAO ESP2S3 Sense and I2S.h library */
    // i2s_read((i2s_port_t)1, (void*)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);
    esp_i2s::i2s_read(esp_i2s::I2S_NUM_0, (void*)sampleBuffer, i2s_bytes_to_read, &bytes_read, 100);

    if (bytes_read <= 0) {
      ei_printf("Error in I2S read : %d", bytes_read);
    }
    else {
        if (bytes_read < i2s_bytes_to_read) {
        ei_printf("Partial I2S read");
        }

        // scale the data (otherwise the sound is too quiet)
        for (int x = 0; x < i2s_bytes_to_read/2; x++) {
            sampleBuffer[x] = (int16_t)(sampleBuffer[x]) * 8;
        }

        if (record_status) {
            audio_inference_callback(i2s_bytes_to_read);
        }
        else {
            break;
        }
    }
  }
  vTaskDelete(NULL);
}

/**
 * @brief      Init inferencing struct and setup/start PDM
 *
 * @param[in]  n_samples  The n samples
 *
 * @return     { description_of_the_return_value }
 */
static bool microphone_inference_start(uint32_t n_samples)
{
    inference.buffer = (int16_t *)malloc(n_samples * sizeof(int16_t));

    if(inference.buffer == NULL) {
        return false;
    }

    inference.buf_count  = 0;
    inference.n_samples  = n_samples;
    inference.buf_ready  = 0;

//    if (i2s_init(EI_CLASSIFIER_FREQUENCY)) {
//        ei_printf("Failed to start I2S!");
//    }

    ei_sleep(100);

    record_status = true;

    xTaskCreate(capture_samples, "CaptureSamples", 1024 * 32, (void*)sample_buffer_size, 10, NULL);

    return true;
}

/**
 * @brief      Wait on new data
 *
 * @return     True when finished
 */
static bool microphone_inference_record(void)
{
    bool ret = true;

    while (inference.buf_ready == 0) {
        delay(10);
    }

    inference.buf_ready = 0;
    return ret;
}

/**
 * Get raw audio signal data
 */
static int microphone_audio_signal_get_data(size_t offset, size_t length, float *out_ptr)
{
    numpy::int16_to_float(&inference.buffer[offset], out_ptr, length);

    return 0;
}

/**
 * @brief      Stop PDM and release buffers
 */
static void microphone_inference_end(void)
{
    free(sampleBuffer);
    ei_free(inference.buffer);
}

//
//static int i2s_init(uint32_t sampling_rate) {
//  // Start listening for audio: MONO @ 8/16KHz
//  i2s_config_t i2s_config = {
//      .mode = (i2s_mode_t)(I2S_CHANNEL_MONO),
//      .sample_rate = sampling_rate,
//      .bits_per_sample = (i2s_bits_per_sample_t)16,
//      .channel_format = I2S_CHANNEL_FMT_ONLY_RIGHT,
//      .communication_format = I2S_COMM_FORMAT_I2S,
//      .intr_alloc_flags = 0,
//      .dma_buf_count = 8,
//      .dma_buf_len = 512,
//      .use_apll = false,
//      .tx_desc_auto_clear = false,
//      .fixed_mclk = -1,
//  };
//  i2s_pin_config_t pin_config = {
//      .bck_io_num = -1,    // IIS_SCLK 26
//      .ws_io_num = 42,     // IIS_LCLK 32
//      .data_out_num = -1,  // IIS_DSIN -1
//      .data_in_num = 41,   // IIS_DOUT 33
//  };
//  esp_err_t ret = 0;
//
//  ret = i2s_driver_install((i2s_port_t)1, &i2s_config, 0, NULL);
//  if (ret != ESP_OK) {
//    ei_printf("Error in i2s_driver_install");
//  }
//
//  ret = i2s_set_pin((i2s_port_t)1, &pin_config);
//  if (ret != ESP_OK) {
//    ei_printf("Error in i2s_set_pin");
//  }
//
//  ret = i2s_zero_dma_buffer((i2s_port_t)1);
//  if (ret != ESP_OK) {
//    ei_printf("Error in initializing dma buffer with 0");
//  }
//
//  return int(ret);
//}
//
//static int i2s_deinit(void) {
//    i2s_driver_uninstall((i2s_port_t)1); //stop & destroy i2s driver
//    return 0;
//}

#if !defined(EI_CLASSIFIER_SENSOR) || EI_CLASSIFIER_SENSOR != EI_CLASSIFIER_SENSOR_MICROPHONE
#error "Invalid model for current sensor."
#endif
