Published July 14, 2022 © GPL3+

Simon Says Game With a Joystick!!!!

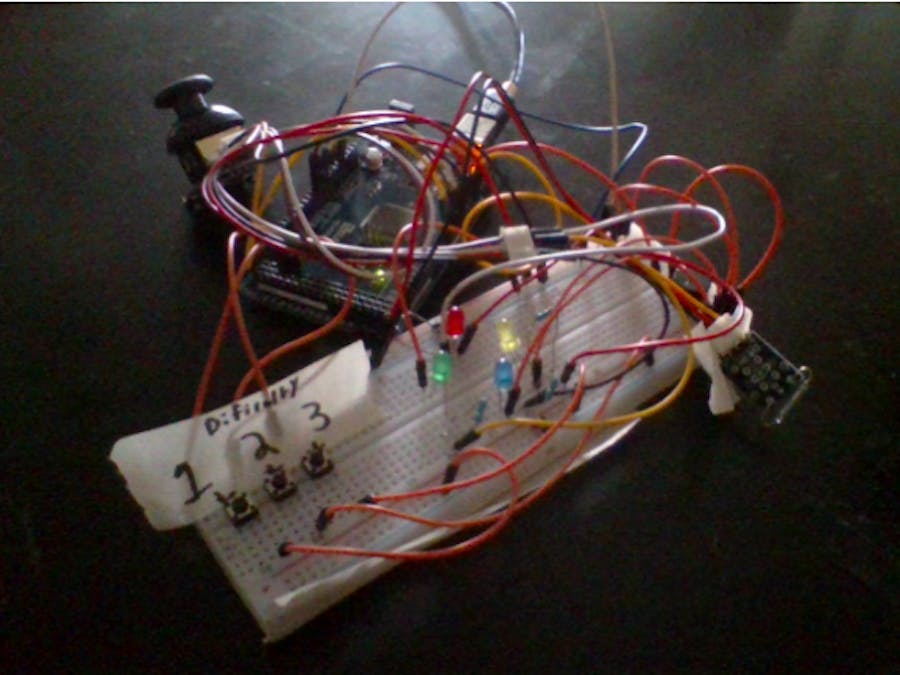

Me and my friend made a Simon says game with a reed start switch and a joystick

IntermediateFull instructions provided200

Things used in this project

Hardware components

Analog joystick (Generic)

Reed Switch, SPST-NO

Buzzer, Piezo

choose 4 random colors of your choice

LED (generic)

Resistor 220 ohm

Push Button

Arduino Mega 2560

Male/Female Jumper Wires

alot are going to be required

Jumper wires (generic)

alot are going to be required

Software apps and online services

Arduino IDE

Arduino Web Editor

Story

When we saw the joystick module, we immediately thought of a project that included a 4 directional aspect. The first thing that came to mind was the Simon Says game, which flashes a sequence of lights and then has the player repeat the sequence on a series of buttons. We realized that we could simulate this with joystick movements, and then set to work on developing the game logic. We decided to create 2 separate arrays, one of the correct sequence, and another of the player's imputed sequence. The way the game determines if you were successful in matching the original sequence is by comparing the 2 arrays together. Once we had a system of arrays successfully implemented, it was a matter of creating a set or for looks and if statements to index each array and compare them. If the color in the original sequence was not equal to the color in the imputed sequence, and if statement would set a boolean to false, and a if statement located at the top of the loop() would check at the beginning of each round if the player had lost the previous round, and would stop the game. The most challenging part of this project was integrating the different aspects together. The reed switch module was simple, but showing the player the sequence and then waiting for an input proved to be a challenge. To solve this, we put the random sequence generation into its own function, as well as the input sequence. We then implemented a specific function to compare the 2 sequences together, and called all 3 functions consecutively in the loop. This allowed our loop to have a fairly small amount of code in it, which made locating and fixing problems we came across easier. Lastly, we implemented the variable speed/difficulty buttons, which was relatively easy. The only difficulty with the buttons was making sure that the program waited for the user to select one of the buttons, and did not begin the game until they had done so. Overall, this project was super fun, and challenged our understanding of arrays, as well as the ability to wire components efficiently.

Code

Arduino Simon Says project

/*
   Arduino Joystick
   7-segment display
   4 leds
   Rotary Encoder
   Buzzer
   Touch sensor
*/

//ADD FUNCTIONALTIY FOR DELAY
int pause = 2500;
int fast = 0;

//For Reed Switch / Find if the player got something wrong
int buttonpin = 10; //define switch port
int val; //define digital variable val
bool ON = false;

bool reedStart = false;
bool stillPlaying = true;

// For the code
const int codeLength = 4;
int sequence[codeLength];
int your_sequence[codeLength];

//For Difficulty Buttons
int Button3 = 47;
int Button5 = 45;
int Button7 = 49;

int prevDirection = 9;
int currentDirection = 8;

const int UP = 6;
const int DOWN = 4;
const int LEFT = 7;
const int RIGHT = 5;

// Joystick pin numbers
const int SW_pin = 2; // digital pin connected to switch output
const int X_pin = 0; // analog pin connected to X output
const int Y_pin = 1; // analog pin connected to Y output

//LED Pin Numbers
const int redLED = 4;
const int greenLED = 5;
const int blueLED = 6;
const int yellowLED = 7;

//Buzzer Pins
const int buzzer = 9;

//set delay 500
unsigned long int initTime = millis();

void setup() {
  pinMode(SW_pin, INPUT);
  digitalWrite(SW_pin, HIGH);
  Serial.begin(9600);

  pinMode(redLED, OUTPUT);
  pinMode(greenLED, OUTPUT);
  pinMode(blueLED, OUTPUT);
  pinMode(yellowLED, OUTPUT);

  pinMode(buttonpin, INPUT);//define switch as a output port

  pinMode(Button3, INPUT_PULLUP);
  pinMode(Button5, INPUT_PULLUP);
  pinMode(Button7, INPUT_PULLUP);

  /////////////////////////////////

  while (fast == 0) {
    if (digitalRead(Button3) == LOW) {
      fast = 1500;
      tone(buzzer, 1000);
      delay(100);
      noTone(buzzer);
    } else if (digitalRead(Button5) == LOW) {
      fast = 1000;
      tone(buzzer, 1000);
      delay(100);
      noTone(buzzer);
    } else if (digitalRead(Button7) == LOW) {
      fast = 500;
      tone(buzzer, 1000);
      delay(100);
      noTone(buzzer);
    }
  }

  Serial.println(fast);
}

void loop() {


  if (ON == 1 && stillPlaying == true) {

    pause -= 20;


    tone(buzzer, 500);
    delay(500);
    noTone(buzzer);
    tone(buzzer, 900);
    delay(500);
    noTone(buzzer);

    delay(200);
    digitalWrite(redLED, HIGH);
    digitalWrite(blueLED, HIGH);
    digitalWrite(yellowLED, HIGH);
    digitalWrite(greenLED, HIGH);
    delay(300);
    digitalWrite(redLED, LOW);
    digitalWrite(blueLED, LOW);
    digitalWrite(yellowLED, LOW);
    digitalWrite(greenLED, LOW);
    delay(200);
    digitalWrite(redLED, HIGH);
    digitalWrite(blueLED, HIGH);
    digitalWrite(yellowLED, HIGH);
    digitalWrite(greenLED, HIGH);
    delay(300);
    digitalWrite(redLED, LOW);
    digitalWrite(blueLED, LOW);
    digitalWrite(yellowLED, LOW);
    digitalWrite(greenLED, LOW);


    delay(2000);


    generateSequence();

    Serial.println("Sqeuence Generated");

    delay(200);
    tone(buzzer, 3000);
    digitalWrite(redLED, HIGH);
    digitalWrite(blueLED, HIGH);
    digitalWrite(yellowLED, HIGH);
    digitalWrite(greenLED, HIGH);
    delay(300);
    digitalWrite(redLED, LOW);
    digitalWrite(blueLED, LOW);
    digitalWrite(yellowLED, LOW);
    digitalWrite(greenLED, LOW);
    noTone(buzzer);


    getSequence();


    for (int i = 0; i < codeLength; i++) {
      Serial.println(your_sequence[i]);
    }


    delay(300);

    checkSequence();
    Serial.println(stillPlaying);
  }

  val = digitalRead(buttonpin); //read the value of the digital interface 3 assigned to val
  //Serial.println(ON);
  if (val == LOW) {
    ON = true;
  }

}


void playTone(int led_num) {
  if (led_num == UP) {
    tone(buzzer, 3000);
    delay(100);
  } else if (led_num == DOWN) {
    tone(buzzer, 4000);
    delay(100);
  } else if (led_num == LEFT) {
    tone(buzzer, 1000);
    delay(100);
  } else if (led_num == RIGHT) {
    tone(buzzer, 2000);
    delay(100);
  }

  noTone(buzzer);

}

void generateSequence() {
  for (int i = 0; i < codeLength; i++) {
    randomSeed(analogRead(A13));
    int randNumber = random(4, 8);

    sequence[i] = randNumber;

    Serial.println(sequence[i]);
  }

  tone(buzzer, 1000);

  for (int i = 0; i < codeLength; i++) {
    //Serial.print("Hello");
    digitalWrite(sequence[i], HIGH);
    playTone(sequence[i]);
    delay(fast);
    digitalWrite(sequence[i], LOW);
    delay(fast);

  }

}

void getSequence() {

  Serial.println("Getting sequence");

  int i = 0;

  while (i < codeLength) {
    //Serial.println(i);
    int xPos = analogRead(X_pin);
    int yPos = analogRead(Y_pin);
    int SW_pin = digitalRead(SW_pin);

    if (xPos >= 1020 && yPos >= 480) {
      Serial.println("Red LED on");

      your_sequence[i] = DOWN;
      tone(buzzer, 4000);
      delay(200);
      noTone(buzzer);

      digitalWrite(redLED, HIGH);
      digitalWrite(blueLED, LOW);
      digitalWrite(yellowLED, LOW);
      digitalWrite(greenLED, LOW);
      delay(300);
      digitalWrite(redLED, LOW);
      digitalWrite(blueLED, LOW);
      digitalWrite(yellowLED, LOW);
      digitalWrite(greenLED, LOW);

      delay(1000);

      i++;

    } else if (xPos <= 10 && yPos >= 480) {
      Serial.println("Blue LED on");

      your_sequence[i] = UP;
      tone(buzzer, 3000);
      delay(200);
      noTone(buzzer);

      digitalWrite(redLED, LOW);
      digitalWrite(blueLED, HIGH);
      digitalWrite(yellowLED, LOW);
      digitalWrite(greenLED, LOW);
      delay(300);
      digitalWrite(redLED, LOW);
      digitalWrite(blueLED, LOW);
      digitalWrite(yellowLED, LOW);
      digitalWrite(greenLED, LOW);

      delay(1000);

      i++;

    } else if (xPos >= 510 && yPos <= 10) {
      Serial.println("Green LED on");

      your_sequence[i] = RIGHT;
      tone(buzzer, 2000);
      delay(200);
      noTone(buzzer);

      digitalWrite(redLED, LOW);
      digitalWrite(blueLED, LOW);
      digitalWrite(yellowLED, LOW);
      digitalWrite(greenLED, HIGH);
      delay(300);
      digitalWrite(redLED, LOW);
      digitalWrite(blueLED, LOW);
      digitalWrite(yellowLED, LOW);
      digitalWrite(greenLED, LOW);

      delay(1000);

      i++;

    } else if (xPos >= 510 && yPos >= 1020) {
      Serial.println("Yellow LED on");

      your_sequence[i] = LEFT;
      tone(buzzer, 1000);
      delay(200);
      noTone(buzzer);

      digitalWrite(redLED, LOW);
      digitalWrite(blueLED, LOW);
      digitalWrite(yellowLED, HIGH);
      digitalWrite(greenLED, LOW);
      delay(300);
      digitalWrite(redLED, LOW);
      digitalWrite(blueLED, LOW);
      digitalWrite(yellowLED, LOW);
      digitalWrite(greenLED, LOW);

      delay(1000);

      i++;

    }

  }
}

void checkSequence() {
  for (int i = 0; i < codeLength; i++) {
    if (your_sequence[i] != sequence[i]) {
      stillPlaying = false;
      digitalWrite(redLED, HIGH);
      digitalWrite(blueLED, HIGH);
      digitalWrite(yellowLED, HIGH);
      digitalWrite(greenLED, HIGH);

      tone(buzzer, 2000);
      delay(700);
      noTone(buzzer);
      delay(200);
      tone(buzzer, 1000);
      delay(700);
      noTone(buzzer);

    }
  }
}
