500W H-Bridge Power Stage

Do not look at if you are making few wats toy.

AdvancedFull instructions provided2 hours947

Things used in this project

Hardware components

Multilayer Ceramic Capacitor, 1800 pF

Vishay Ceramic Capacitor 100nF/50V

Ceramic Capacitor 4.7uF/100V

KEMET Electronics Corporation Film Capacitor 0.22uF/63V

Panasonic Capacitor 100uF/63V

Panasonic Capacitor 1000uF/63V

MBR360G – 3A Schottky Barrier Rectifier

Diode Schottky SD103B-F

Terminal Block N4 P3.5mm

Terminal Block N4 P5mm

Barrel Jack Connector 2mm

Terminal Block N2 P5mm

Molex Male Header 2x2 P2.54mm

Molex Male Header 2x3 P2.54mm

Generic Jumper (0.1")

Inductor 4.7uH, 744750340047

Female Header N15 P2.54

STMicroelectronics Power MOSFET N-Channel TO-220

Through Hole Resistor, 4.7 ohm

TE Connectivity Through Hole Resistor 47K ohm

Through Hole Resistor, 4.7 kohm

Fixed Network Resistor 3.3K ohm

Renesas MOSFET Driver Dual

6 x HEX Inverter SN74S04N

XP Power DC/DC Converter 72Vin, 9Vout

Texas Instruments Linear Voltage Regulator 5Vout, 78L05A

Heatsink TO-220

Thermal Insulator Pad

Hand tools and fabrication machines

Soldering iron (generic)

Story

Can be powered with input source 14V - 50V (J3 or J4). Inputs can be configured as two independent for each half-bridge or as single input where other half is inverted (JMPR1-[3-4], JMPR2-[3-5; 4-6]).

Open Source Design.

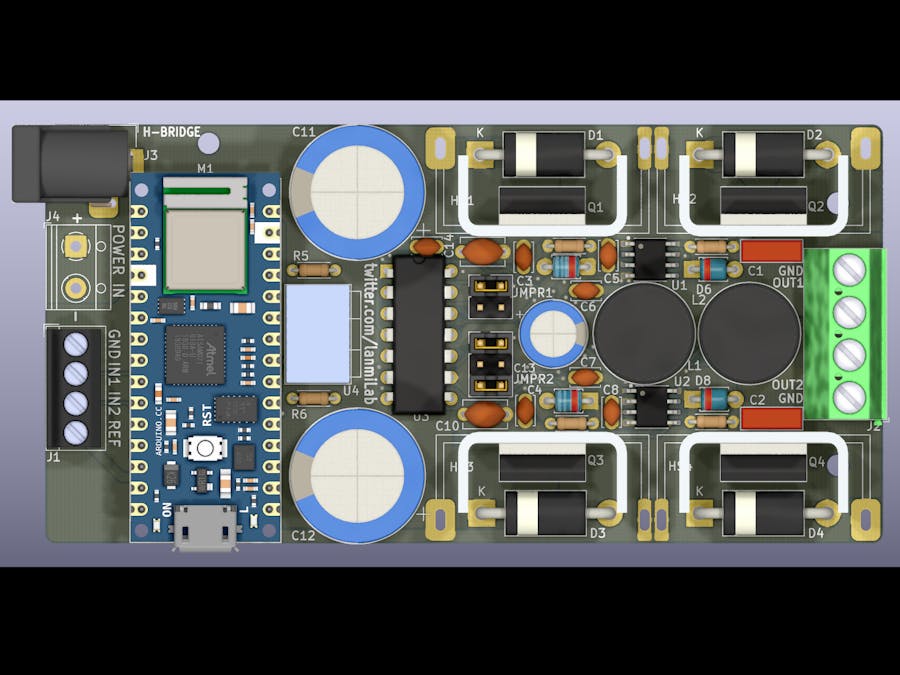

Assembly

Download and send gerbers.zip to PCB Manufacturer. Use part list BOM and ibom.html as soldering guide.

With Interactive BOM like this no way to miss-solder.

For full power solder heatsinks to PCB from bottom side. Do not forget to put liskun isolators between MOSFETs and heatsink.

twitter.com/lanmiLab

Schematics

Credits

LanmiLab

5 projects • 5 followers

Engineer, Researcher, Maker, Embedded Systems Consultant. If you require any help with your project or idea, feel free to contact me.
