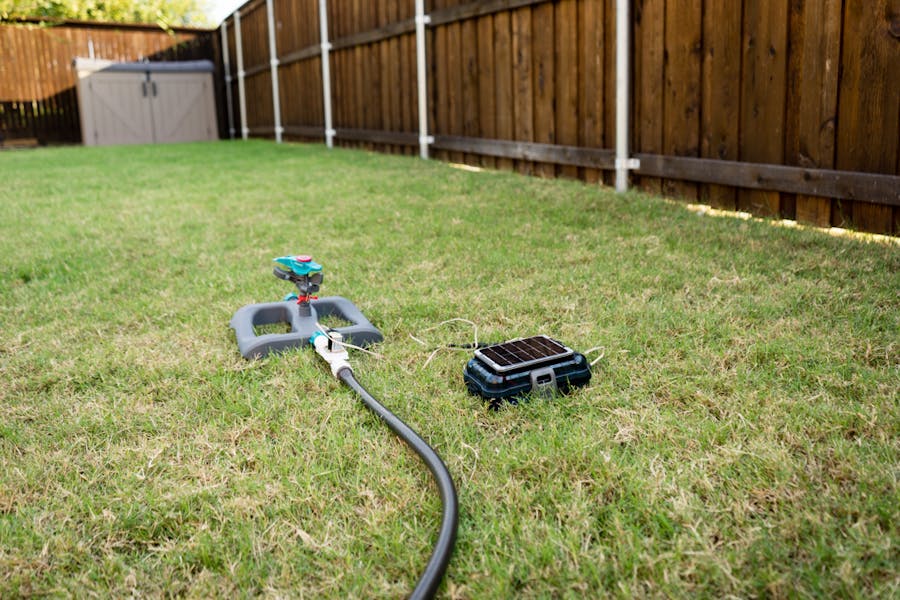

Solar-Powered, Internet-Connected Lawn Sprinkler Project

More info about solar powered automatic sprinkler at www.movingelectrons.net

I’ve been looking for an excuse to do a little project with Adafruit’s Feather HUZZAH board and MicroPython. As an engineer who graduated some years ago, having a Wi-Fi enabled micro-controller which runs (Micro) Python 3 and costs less than $20 is really amazing.

My initial plan was to use this automatic lawn sprinkler to be a rodent deterrent to keep rabbits and squirrels out of my lawn, but I have also used it to keep flower beds and newly planted trees hydrated. It can also be used to prank your friends. In any case, those are just excuses; I really wanted to tinker with electronics and Python.

This project has several moving parts, but I’ll go through each step in detail and will link to key tutorials and instructions. If you have any questions, feel free to leave a comment below.

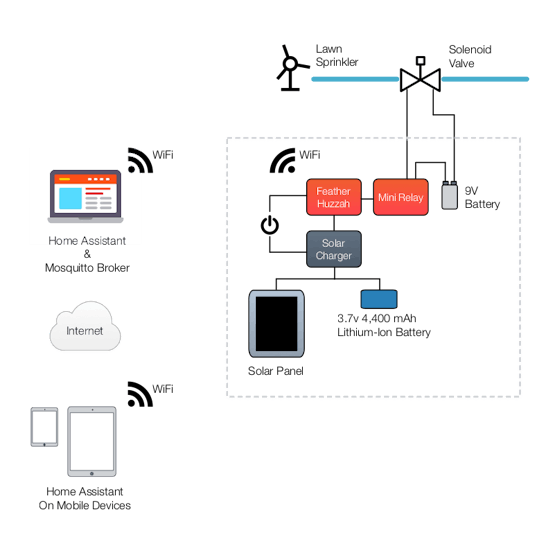

Here is a general diagram showing the general process:

Hardware Used

Adafruit was an invaluable resource for this project. In addition to the geeky products and electronics they sell, which are the backbone of this project, Adafruit makes available Learning posts, Python libraries and forums that saved me a lot of time on this project. They offer their most popular products on Amazon and they even accept amazon payments through their website.

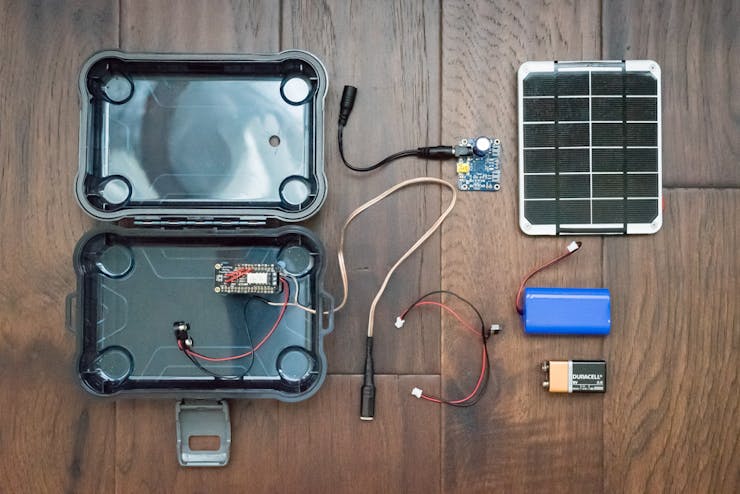

Here is a detailed list of the hardware used:

• Adafruit’s Feather Huzzah

• Feather Header Kit - 12-pin and 16-pin Female Header Set

• Adafruit Latching Mini Relay FeatherWing

• Lithium Ion Battery Pack - 3.7V 4400mAh

• USB / DC / Solar Lithium Ion/Polymer charger

• Medium 6V 2W Solar panel - 2.0 Watt

• 3.5 / 1.3mm or 3.8 / 1.1mm to 5.5 / 2.1mm DC Jack Adapter Cable

• I used a DIY DC cable and connector. However, this waterproof DC Power Cable Set - 5.5/2.1mm should work

• JST 2-pin cable x 2

• Breadboard-friendly SPDT Slide Switch

• 9V Battery

• 9V battery cable

• Solenoid valve 12V

• Automatic rotating lawn sprinkler

• Weather sealed plastic box

• Sugru

• Mack’s Pillow Soft Silicone Earplugs

Services and Software

A fundamental part of this project is the MQTT protocol, which is a Client-Server Internet of Things connectivity protocol. It’s fast, easy to implement and allows communication between the Feather Huzzah (MQTT client) and the MQTT Server/Broker.

MQTT comes bundled within MycroPython, and since it’s widely used, it allows the Feather Huzzah to talk with several automation services like IO - Adafruit, Cayenne or Initial State. I’ll be using Home Assistant which is a popular home automation system built on Python that runs on Unix/Linux based computers and NAS devices (I’m running it on a Mac Mini) . Although Home Assistant comes with an MQTT server, it’s fairly bare bones, so I’ll be using Mosquitto to be the link (i.e. broker) between the MQTT client on the Feather Huzzah and Home Assistant.

I tried several configurations and settled on this one because of its versatility: the lawn sprinkler can be operated manually from the host computer or mobile devices running Home Assistant. It can also be activated through automation setup on Home Assistant or even through standalone python scripts interacting with Mosquitto. My final goal is to have it operate based on image recognition/computer vision, but that’s going to take me some time to implement.

I’m assuming both Home Assistant and Mosquitto are installed on the server machine (instructions here and here). Also, you need to create a Switch on Home Assistant by including the following lines in the configuration file (configuration.yaml):

mqtt:
  broker: 127.0.0.1
switch:
  platform: mqtt
  name: "Outside Sprinkler"
  command_topic: "home/sprinkler"
  payload_on: "on"
  payload_off: "off"

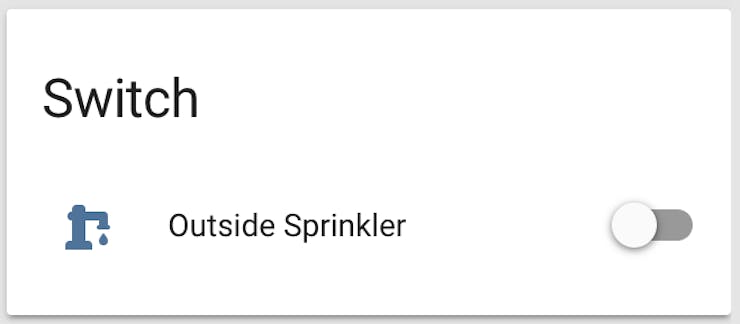

Since Mosquitto and Home Assistant are installed on the same machine, the MQTT broker IP is 127.0.0.1. If everything is configured correctly, you should be able to see something like this on the Home Assistant’s main screen:

Now that the server side is done, let’s move to the client side and the script that should be put on the Feather Huzzah.

Feather Huzzah & MicroPython Script

The Feather Huzzah is based on the ESP8266 chip, which is a fairly fast (for a chip) Wifi enabled microcontroller capable of running MicroPython among other languages.

There is a huge online community supporting this chip offering tutorials and instructions on how to build a wide variety of hobby and IoT projects. Since I got adafruit’s board, I decided to follow their tutorials. This one and this one are key to quickly getting up and running on MycroPython, transferring scripts back and forward and running scripts on the board using Ampy. However, I would recommend going through all the MicroPython Basics Series by Tony DiCola. He does a fantastic job explaining the process and the series include videos on which he goes in detail over each step of the tutorials.

All the needed files can be downloaded from the GitHub repository. There is only two files that need to be placed on the Feather Huzzah:

config.json

This is the configuration file. It holds all the information needed to connect to the WiFi network and the MQTT server in Json format as follows:

{
    "ESSID": "WiFi network name (SSID)",
    "PASSWD": "Insert the WiFi password",
    "MQTT_Broker": "Internal IP of the MQTT Server.",
    "TOPIC": "home/sprinkler",
  "DURATION": 8
}

Notes:

All constants must be between quotes (“”), except the DURATION value.Change the TOPIC per the way you have configured your MQTT server/broker. I have used home/sprinkler as the topic to subscribe to on this tutorial.DURATION indicates the duration the sprinkler will be on in seconds. 8 Seconds is more than adequate in my case.

main.py

This is the actual MicroPython script. It performs the following tasks in sequence:

• Attempts to connect to the pre-configured WiFi network. The Feather Huzzah red LED stays red while attempting to connect. Once the board is authenticated by the WiFi router, the LED turns off.

• It connects to the MQTT server and watches the TOPIC specified in the configuration file for changes.

• If the TOPIC values changes to on, it activates the sprinkler for the DURATION value indicated in the configuration file.

Since one of the goals is consuming the least possible amount of current, I went with the latching mini relay feather wing which requires two different signals to be sent to the relay (set/unset) to turn it on and off. Although this involves soldering an additional wire and a couple more lines of code, it’s well worth the current savings.

Assembly Notes

Assembly does require some soldering and it might be the most challenging part of this project, but it isn’t that difficult to do. If you are a beginner, I would recommend getting an inexpensive practicing kit on amazon. You would need a soldering iron, solder wire and some sort of vise to hold your board.

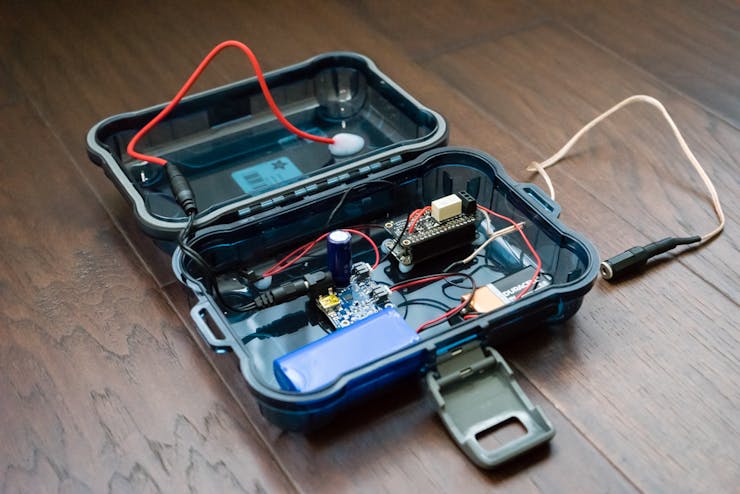

The Feather Header Kit should be soldered on top of the Feather Huzzah to allow for the Latching Mini Relay Feather Wing to be placed on top (see picture above for final result).

The Feather Wing comes disassembled, so the included header should be soldered to it. Additionally, a couple of cable wires should be soldered to this board to allow for the Set/Unset pins to actuate the mini relay. These are the short red wires next to the relay on the picture above.

Make sure the wires are soldered as follows:

• Pin 13 to the Set pin on the Feather Wing.

• Pin 14 to the Unset pin on the Feather Wing.

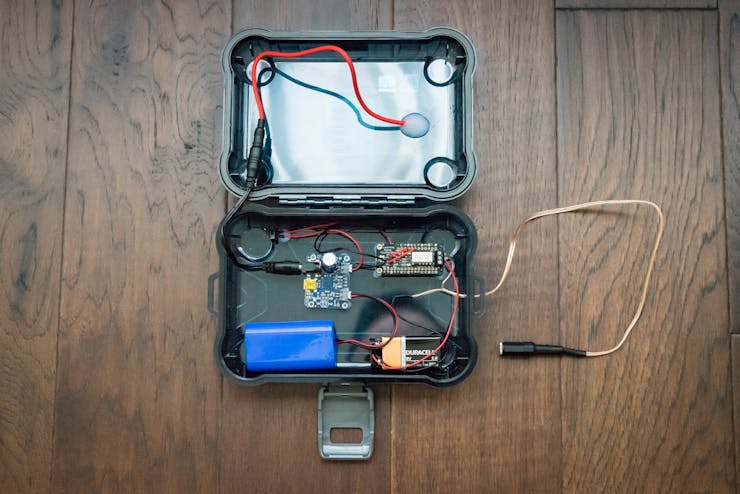

The correct arrangement can be seen on the picture taken directly above the open weather-proof box.

Important: Make sure the wires are soldered to the correct pins, as these are the ones used on the MicroPython code.

The rest of the assembly process is pretty straightforward. Adafruit’s boards clearly indicate where connections and wiring should go. The diagram and pictures in this post should serve as guidance as well. A couple of items that proved to be really useful were Sugru and Mack’s Silicone Earplugs. I used Sugru to attach the solar panel to the weatherproof box lid. Since both have irregular surfaces, using double-sided tape was not practical and hot glue is a bit messy. I put 4 round pieces of Sugru on each of the solar panel’s corners and adjusted as needed before it curated. On the other hand, I used the soft silicone earplugs to seal the box penetrations and put all components in place inside the box. The material is malleable, high-temperature resistant, waterproof and doesn’t leave much residue when removed. I could have used Sugru or double sided tape, but I wanted to be able of swaping components out or changing their position.

Here is a quick video showing the final result. The lawn sprinkler is activated by tapping on the sprinkler switch on Home Assistant’s iOS App.

Putting this project together was both a fun and a learning experience. If you have any questions, feel free to leave a comment in the original post at www.movingelectrons.net.
