Portable 5730 LED Array with Switch

Thank you JLCPCB for sponsoring this project. Please order your PCBs at jlcpcb.com/RAT

This project is about building a very bright LED array using 5730 SMD LEDs, which is one of the largest LED size in the market.

A 5730 LED can produce up to 50 lumens of light with 0.5W power. It can draw a current of 0.15A and the voltage drop is 3.4V.

We are using a 5V power supply to light the 4 LEDs in parallel.

To calculate the resistors to use,

5V - 3.4V = 1.6V

1.6V / 0.15A = 10.6667 Ohms

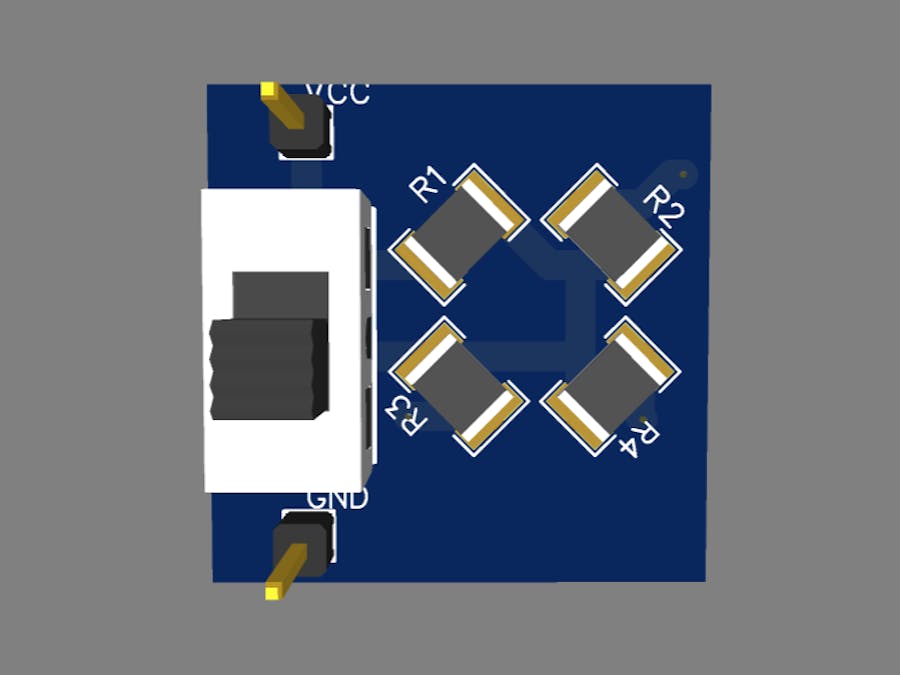

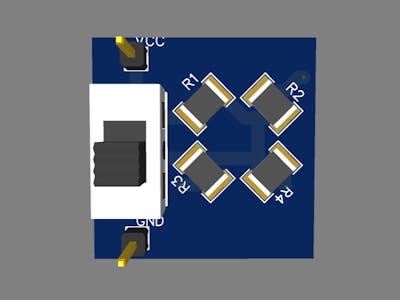

Therefore, each LED requires a 11 Ohms 1812 SMD resistor of 1W rating.

The aim of this project is to create a portable flashlight that is very bright in the dark.

You may like to use a hot plate to solder the 5730 SMD LEDs and then use a soldering iron to solder the 1812 SMD resistors.
