Robot arm - powered AI assistant

AI assistants are maybe one of the most powerful invention of our times and manage to help us every day with more and more tools, like audio and video processing. Therefore I decided to give my AI assistant the capability to help me in the physical world, beyond the limit of a chat imprisoned in a screen!

I built the structure for the keyestudio robot arm kit for Arduino following the tutorial, then I created some custom functions in an Arduino sketch:

shake_hands(); /*lets the robot arm introduce itself by shaking your hand with the clamp*/

agree(); /*makes the robot nod*/

disagree(); /*makes the robot move left and right to disagree*/

grab_straight(); /*makes the robot grab an object in front of it*/

Then I created a python script to chat with Gemini 1.5 Flash via API and I gave the model instructions to provide a command among

['SAY YES', 'SAY NO', 'SHAKE HANDS', 'GRAB STRAIGHT']

to send to the board controlling the robot arm via serial communication, then a full answer to send to an Arduino Uno board, which prints it on an LCD Display connected.

Finally, I added some frontend with a Flask app and an html file with CSS animations.

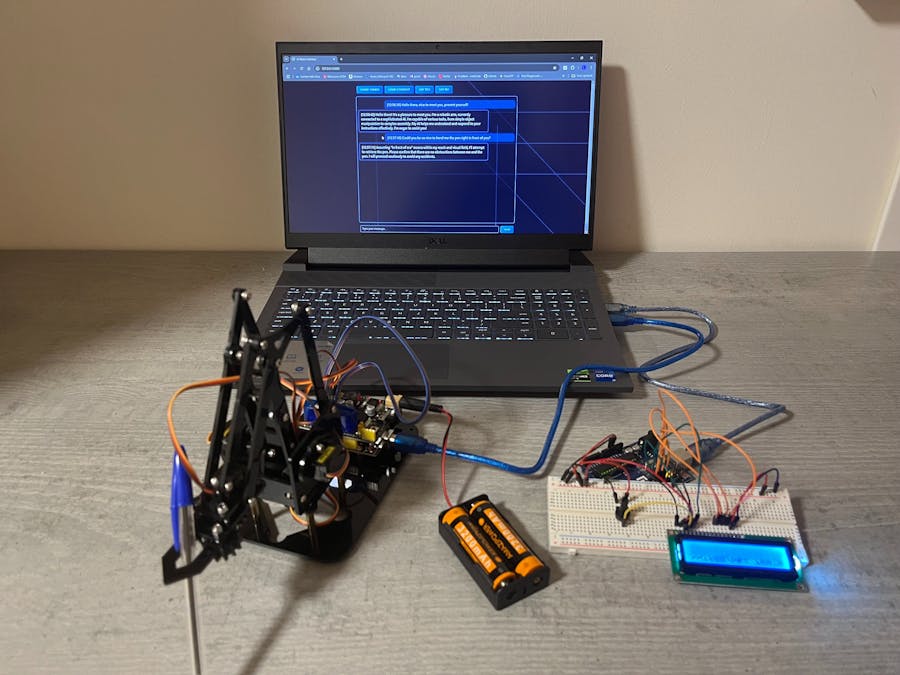

The final result is a captivating UI interface and a physical interacting system:
