Arduino LED Temperature Indicator

Give this the parameters you want and the LEDs will light up according to the temperature cold blue, green fine, red hot

BeginnerProtip56,637

Things used in this project

Hardware components

Arduino UNO

LED (generic)

Any color

Temperature Sensor

Jumper wires (generic)

Breadboard (generic)

Story

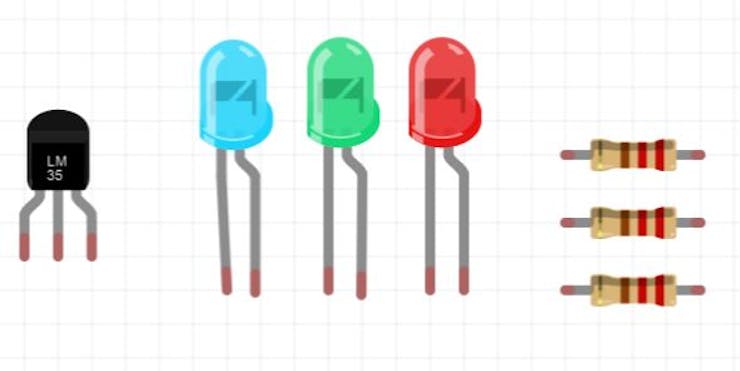

Step 1: Get Parts

Arduino Uno/Genuino

Breadboard

Jumper wires (generic)

3 220Ω resistors

3 LEDs (any color)

A temperature sensor (mine is an LM35, but most should work)

Step 2: Put Parts in Place

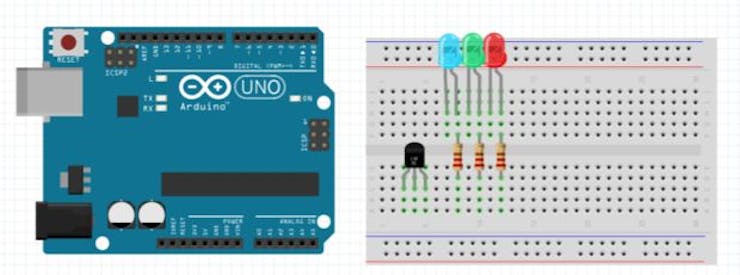

Follow Picture

Step 3: Wire It Up

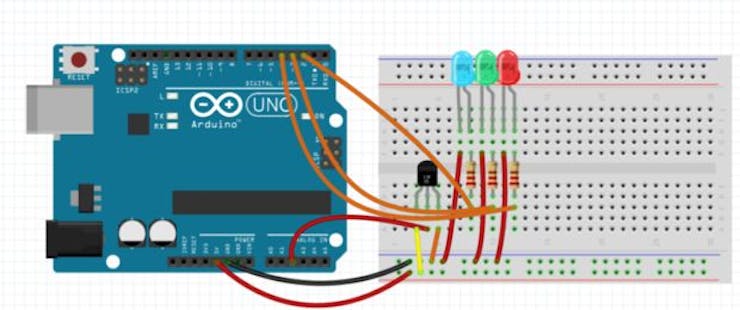

Wire Set-up

Wire it up:

>Red LED goes to digital pin 4 through one of the resistors, and ground

>Green LED goes to digital pin 3 though a resistor, and ground

>Blue LED goes to digital pin 2 through a resistor, and ground

>Pin one (the pin on the left) of the temperature sensor goes to 5v

>Pin two (the pin in the middle) of the temperature sensor goes to analog pin A2

>pin three (the pin on the right) of the temperature sensor goes to ground

Step 4 : Put Code

Code

Code

const int hot = 87; //set hot parameter
const int cold = 75; //set cold parameter
void setup() {
pinMode(A2, INPUT); //sensor
pinMode(2, OUTPUT); //blue
pinMode(3, OUTPUT); //green
pinMode(4, OUTPUT); //red
Serial.begin(9600);
}
void loop() {
int sensor = analogRead(A2);
float voltage = (sensor / 1024.0) * 5.0;
float tempC = (voltage - .5) * 100;
float tempF = (tempC * 1.8) + 32;
Serial.print("temp: ");
Serial.print(tempF);
if (tempF < cold) { //cold
digitalWrite(2, HIGH);
digitalWrite(3, LOW);
digitalWrite(4, LOW);
Serial.println(" It's Cold.");
}
else if (tempF >= hot) { //hot
digitalWrite(2, LOW);
digitalWrite(3, LOW);
digitalWrite(4, HIGH);
Serial.println(" It's Hot.");
}
else { //fine
digitalWrite(2, LOW);
digitalWrite(3, HIGH);
digitalWrite(4, LOW);
Serial.println(" It's Fine.");
}
delay(10);
}

Arduino LED Temperature Indicator
