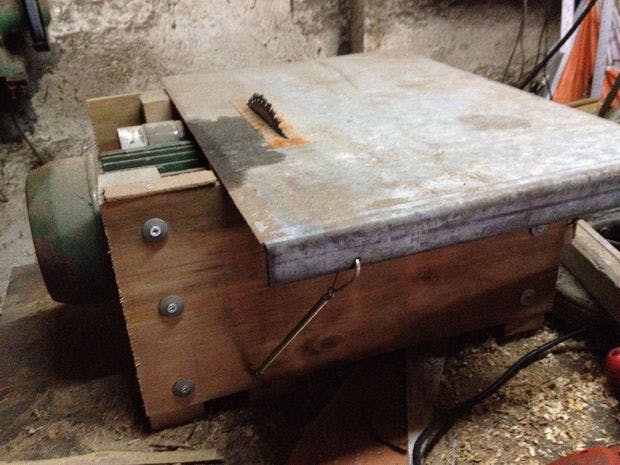

Hi everybody, i had build a small circular bench, and i will give you my photos, drawings and my help to you build one too. This machine is cheap, around 50 euros and very helpful.
Let's start ;)
My Portuguese blog: www.logicamecatronica.com
For this project, this is the material that you need to build one small circular bench:
wood (on next step you will see the size)
wood screws
one motor 220v 0,8HP 5.2A (you can use other with the same dimension)
metal plate
white glue for wood
circuit breaker C6
The circuit breaker only will interrupt one phase of machine, the cable will connect direct at motor.
With this video, you will see how can you assembly all the parts :) it's easy
This photos are of many angles of my machine, with this you can ask questions and see how can you connect the cable at motor with circuit maker for example, if you have questions, ask me please.
Well, we come to the end, this small video proof that machine works without problems. I hope that you like, this project is easy to do, and like i said before, it is helpful. If you have anything that you don't understand, please ask me, i will answer and correct the article.
