diy-VT100: A Miniature Hardware Terminal

Description

A small VT100 that you can carry in your hands, connect to any hardware that provide serial interface.

https://www.madresistor.com/diy-vt100

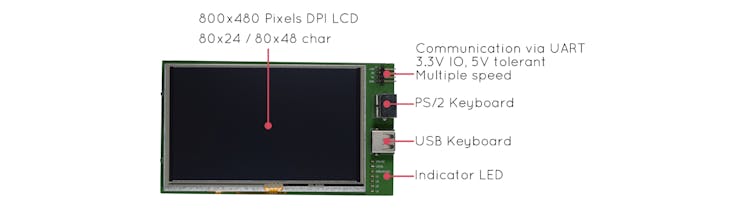

• Bell (Speaker - 800Hz - Generated via DAC)

• 7 LED (ONLINE, LOCAL, KBD LOCKED, L1, L2, L3, L4 )

• USB and PS/2 Keyboard

• UART 3.3V (5V tolerant pins & Multiple speeds)

• LCD (80x48 characters)

• Accept VT100 commands (most of them - at the moment)

• EEPROM to store configuration - Uses STM32F767 (ARM uC M7)

Design files and firmware are released under GNU GPLv3 or later.

• https://gitlab.com/madresistor/diy-vt100-firmware

• https://gitlab.com/madresistor/diy-vt100-hardware

Details

Logs:

• Complete source code & Hardware design of diy-VT100

• diy-VT100 meets BeagleBoneBlack (BBB)

• Viewing Arduino Serial Log using diy-VT100

• diy-VT100 Revision 2

• First glimpse of the the new design of diy-VT100

• Prototyping the new design with STM32F7

• Code running on STM32F749 Discovery (w/ 800x480 LCD)

• \0/ the PCBs for new design of diy-VT100 has arrived

• New design of diy-VT100 (LCD with 80x24 chars)

• Firmware

• diy-VT100 Crowdfunding
