Arduino Servo Controller App

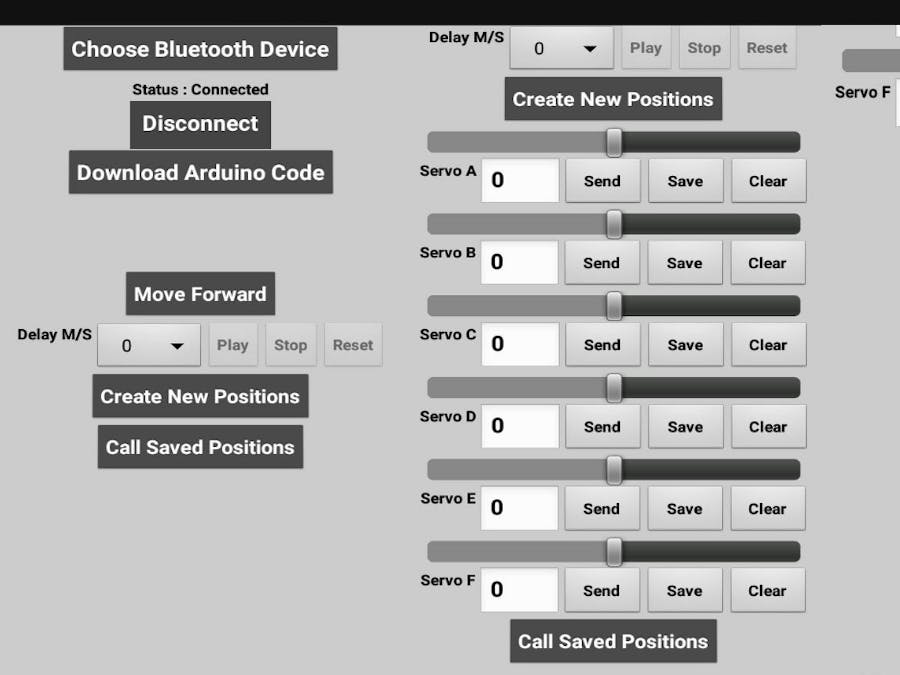

Mobile phone application that controls up to six servos

IntermediateProtip1 hour176
Arduino Servo Controller App

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Arduino sensor shield
×1
Biped Robot Kit
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics






Code

control_6_servos.ino

Arduino
String readString;
#include <Servo.h>
Servo servoA;
Servo servoB;
Servo servoC;
Servo servoD;
Servo servoE;
Servo servoF;


void setup() {
  Serial.begin(9600);



  servoA.attach(3);  //the pin for the servoa control
  servoB.attach(5);  //the pin for the servob control
  servoC.attach(6);  //the pin for the servoc control
  servoD.attach(9);  //the pin for the servod control
  servoE.attach(10);  //the pin for the servoc control
  servoF.attach(11);  //the pin for the servod control
  servoA.write(90);
  servoB.write(90);
  servoC.write(90);
  servoD.write(90);
  servoE.write(90);
  servoF.write(90);

}

void loop() {



  if (Serial.available())  {
    char c = Serial.read();
    if (c == ',') {
    if (readString.length() >1) {
        Serial.println(readString);

        int n = readString.toInt();

        // auto select appropriate value, copied from someone elses code.
        if(n >= 500)
        {
          Serial.print("writing Microseconds: ");
          Serial.println(n);
          if(readString.indexOf('A') >0) servoA.writeMicroseconds(n);
          if(readString.indexOf('B') >0) servoB.writeMicroseconds(n);
          if(readString.indexOf('C') >0) servoC.writeMicroseconds(n);
          if(readString.indexOf('D') >0) servoD.writeMicroseconds(n);
          if(readString.indexOf('E') >0) servoE.writeMicroseconds(n);
          if(readString.indexOf('F') >0) servoF.writeMicroseconds(n);
        }
        else
        {
          Serial.print("writing Angle: ");
          Serial.println(n);
          if(readString.indexOf('A') >0) servoA.write(n);
          if(readString.indexOf('B') >0) servoB.write(n);
          if(readString.indexOf('C') >0) servoC.write(n);
          if(readString.indexOf('D') >0) servoD.write(n);
          if(readString.indexOf('E') >0) servoE.write(n);
          if(readString.indexOf('F') >0) servoF.write(n);
        }
         readString="";
      }
    }
    else {
      readString += c;
    }
  }
}
