DC-DC LED Boost Module Adjustable 100W 3.0~35V To 3.5~35V

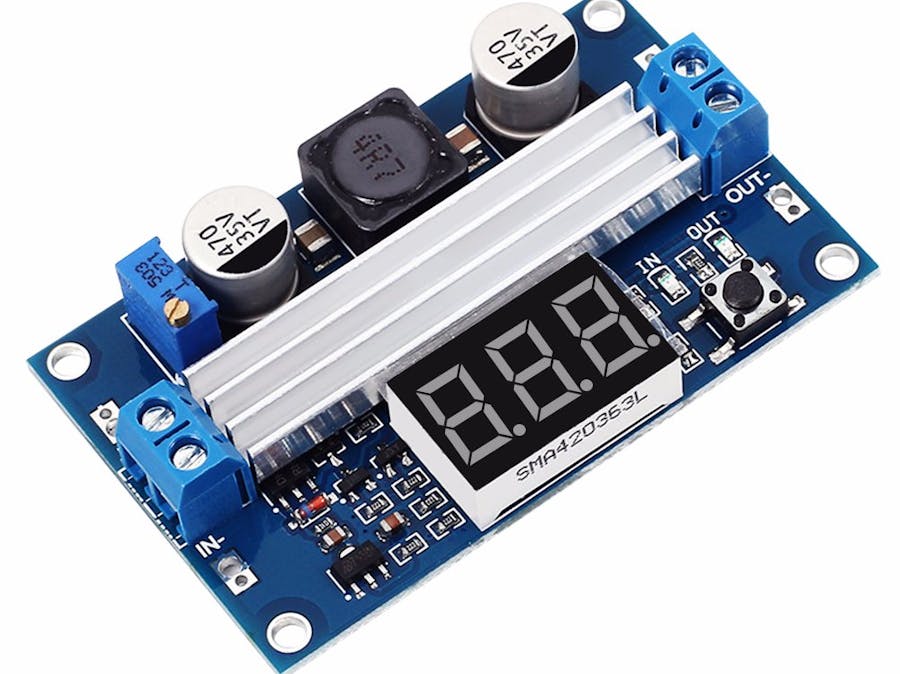

• Our set up Voltage Converter has mini size, 2.6*1.7*0.5 inches. It can be installed inside the box, installed in front, or placed directly on the desktop, etc.

• HIGH QUALITY: the boost Voltage Converter comes with a great heat sink, terminal block, clear LED. the three chips are AOD4184, SD1040CS and LTC1871

• LED DISPLAY: It can easily to set the output voltage and real-time display output and input voltage when switching. Convenient to check the voltage.

• THE OUTPUT POWER: Average 100W, When the input and output voltage are both greater than 20v, it can reach up to 128w.

The manual for you:

1) Connect load at OUT+ and OUT- at first. Please note the positive and negative.

2) Connect power supply at IN+ and IN-. Please note the positive and negative.

3) Press the button to switch the display input or output voltage value.

Here is one tip for you:

If a high-power load would be connected, it is recommended that the switch be turned on and then connected to the load because of the large inrush current immediately after power on, it will limit current to self-lock protection.

Parameters and Values:

1. Input voltage: DC3 ~ 35V (Display will be abnormal if input less than 4V)

2. Input current: 9A (Max)

3. Output voltage: DC3.5-35V

4. Output current: 6A (Max)

5. Output power: 75W (Stable Operation)

6. Conversion efficiency: 96.7% (Max)

7. Output ripple: 24mV (TYP)

8. Error range: ±0.3v

9. Size: 2.6*1.7*0.5 inches

10. Measuring range of onboard voltmeter: 4~40V

11. Short circuit protection: Yes (limit current 14A).

12. Input reverse protection: No (One diode can be connected in series by yourself if need protection)
