Create an automated bubble soap machine with Arduino Uno and few basic components. Most of the parts list come with the typical Arduino starter kit. My toggle switch was broken, so I took to hook wires and connected/disconnected for the on/off.
The "Setup Mode" serial port command is so that you can set and save to flash memory the position the servo should stop for dunking in the soap (called "soap position" in the code) and degrees to stop in front of the blower (called "blow position" in the code). Enter setup mode, turn the potentiometer and the servo will move along. Stop turning at the desires position and type the serial command to save the new position for blow and soap values. The instructions and code values are in the attached spreadsheet.
The fans are readily available on the usual web-sites. Mine was purchased on Amazon.

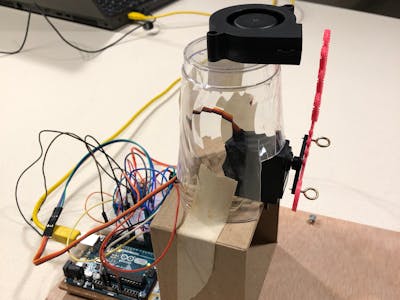

I constructed the tower from whatever was available and is perhaps less than ideal but works. Height of each shelf will have to be thought through based on the length of the wand you use. Bowl for the soap is best if large and deep with straight sides. Tapered sides are okay too as long as motor shelf has more clearance underneath than mine.
//Scott Mangiacotti and Celestine
//Brookline, MA USA
//May 2019
//BY1
//Version 1.0
#include <Servo.h>
#include <EEPROM.h>
//Constants
int const GIVE_BACK_TIME = 125;
//Constants for inputs
int const I_POS_ADJUST_PIN = A0;
int const I_ON_OFF = 2;
//Constants for outputs
int const O_RED_LED_PIN = 3;
int const O_GREEN_LED_PIN = 4;
int const O_BLUE_LED_PIN = 5;
int const O_SERVO_PIN = 9;
int const O_BLOWER_PIN = 10;
//Global variables
bool gRunning = false;
bool gSetupMode = false;
bool gTestMode = false;
bool gVerboseDiagMode = false;
Servo gServo;
int gBlowPos;
int gSoapPos;
int gCurrentPos;
int gCurrentPotPos;
int gStepNum = 0;
int gScansInStep;
int gTimeInStep;
//Runs once
void setup()
{
//Open a serial port
Serial.begin(9600);
//Setup inputs
pinMode(I_ON_OFF, INPUT);
//Setup digital outputs
pinMode(O_RED_LED_PIN, OUTPUT);
pinMode(O_GREEN_LED_PIN, OUTPUT);
pinMode(O_BLUE_LED_PIN, OUTPUT);
pinMode(O_BLOWER_PIN, OUTPUT);
gServo.attach(O_SERVO_PIN);
//Read settings from NVM
readSettingsFromNVM();
//Post product information to serial port
reportProductInfo();
}
//Runs continuously
void loop()
{
//Serial port message receipt processing
if (Serial.available() > 0)
{
int iControlCode;
iControlCode = Serial.parseInt();
processSerialMessage(iControlCode);
}
//Process time before sequencer execution
gScansInStep++;
gTimeInStep = gScansInStep * GIVE_BACK_TIME; //in milliseconds
//Execute sequencer states and transitions
sequencerExecute();
//Handle setup mode
if (gSetupMode == true)
{
int iMath;
iMath = (gCurrentPotPos/1024.0) * 180;
gServo.write(iMath);
}
//Process I/O
readDevices();
processLEDs();
//Give a little time back
delay(GIVE_BACK_TIME);
}
//Execute states and transitions of the sequencer
void sequencerExecute()
{
if (gStepNum == 0)
{
if (gRunning == true)
{
gStepNum = 10;
gScansInStep = 0;
}
}
else if (gStepNum == 10)
{ //go to soap position
gServo.write(gSoapPos);
gStepNum = 20;
gScansInStep = 0;
}
else if (gStepNum == 20)
{ //servo at soap position
if (gCurrentPos == gSoapPos)
{
gStepNum = 30;
gScansInStep = 0;
}
}
else if (gStepNum == 30)
{ //wait time (0.5 seconds)
if (gTimeInStep >= 1000)
{
gStepNum = 40;
gScansInStep = 0;
}
}
else if (gStepNum == 40)
{ //go to blow position
gServo.write(gBlowPos);
gStepNum = 50;
gScansInStep = 0;
}
else if (gStepNum == 50)
{ //servo at blow position
if (gCurrentPos == gBlowPos)
{
gStepNum = 60;
gScansInStep = 0;
}
}
else if (gStepNum == 60)
{ //turn on blower
digitalWrite(O_BLOWER_PIN, HIGH);
gStepNum = 70;
gScansInStep = 0;
}
else if (gStepNum == 70)
{ //wait time (0.5 seconds)
if (gTimeInStep >= 2000)
{
gStepNum = 80;
gScansInStep = 0;
}
}
else if (gStepNum == 80)
{ //turn off blower
digitalWrite(O_BLOWER_PIN, LOW);
gStepNum = 99;
gScansInStep = 0;
}
else if (gStepNum == 99)
{ //return to start
gStepNum = 0;
gScansInStep = 0;
}
}
//Read positional values into global variables
void readDevices()
{
//Read potentiomter value (scaled 0-1023)
gCurrentPotPos = analogRead(I_POS_ADJUST_PIN);
//Read on/off toggle switch position
int iVal;
iVal = digitalRead(I_ON_OFF);
if (iVal == 0)
{
gRunning = false;
}
else if (iVal == 1)
{
gRunning = true;
}
//Read servo actual position
gCurrentPos = gServo.read();
//Post status
if (gVerboseDiagMode == true)
{
displayStatus();
}
}
void processLEDs()
{
//Turn on red LED
if (gRunning == false && gSetupMode == false)
{
digitalWrite(O_RED_LED_PIN, HIGH);
digitalWrite(O_GREEN_LED_PIN, LOW);
digitalWrite(O_BLUE_LED_PIN, LOW);
}
//Turn on green LED
if (gRunning == true)
{
digitalWrite(O_RED_LED_PIN, LOW);
digitalWrite(O_GREEN_LED_PIN, HIGH);
digitalWrite(O_BLUE_LED_PIN, LOW);
}
//Turn on blue LED
if (gSetupMode == true)
{
digitalWrite(O_RED_LED_PIN, LOW);
digitalWrite(O_GREEN_LED_PIN, LOW);
digitalWrite(O_BLUE_LED_PIN, HIGH);
}
}
//Display status of system to serial port
void displayStatus()
{
Serial.print("step num: ");
Serial.println(gStepNum);
Serial.print("scans in step: ");
Serial.println(gScansInStep);
Serial.print("time in step (ms): ");
Serial.println(gTimeInStep);
Serial.print("servo position: ");
Serial.println(gCurrentPos);
Serial.print("potentiometer pos: ");
Serial.println(gCurrentPotPos);
Serial.println("---");
}
//Read values from EEPROM for soap position and blow position of the servo
void readSettingsFromNVM()
{
int iAddr;
int iVal;
//Initialize address counters
iAddr = 0;
iVal = 0;
//Read soap servo position from non-volatile-memory
EEPROM.get(iAddr, iVal);
//Validate value
if (iVal >= 0 && iVal <= 180)
{
gSoapPos = iVal;
Serial.print("Soap position successfully read from NVM: ");
Serial.println(gSoapPos);
}
else
{
gSoapPos = 45;
Serial.print("Failure to read soap position from NVM: ");
Serial.print(iVal);
Serial.print(", value set to: ");
Serial.println(gSoapPos);
}
//Increment address counter
iAddr += sizeof(int);
iVal = 0;
//Read blower servo position from non-volatile-memory
EEPROM.get(iAddr, iVal);
if (iVal >= 0 && iVal <= 180)
{
gBlowPos = iVal;
Serial.print("Blower position successfully read from NVM: ");
Serial.println(gBlowPos);
}
else
{
gBlowPos = 135;
Serial.print("Failure to read blower position from NVM: ");
Serial.println(iVal);
Serial.print(", value set to: ");
Serial.println(gBlowPos);
}
}
//Write values to EEPROM for blower and soap servo positions
void writeSettingsToNVM()
{
int iAddr;
//Write red distance to non-volatile-memory
iAddr = 0;
EEPROM.put(iAddr, gSoapPos);
//Write yellow distance to non-volatile-memory
iAddr += sizeof(int);
EEPROM.put(iAddr, gBlowPos);
//Post results
Serial.println("settings successfully saved to NVM");
}
//Process received messages from the serial port interface
//Input parameter iControlCode is the value received from the serial port to be processed
//First two digits are the control command, remaining three are the value to process
void processSerialMessage(int iControlCode)
{
int iControlCommand;
int iControlValue;
//Calculate command and value
iControlCommand = iControlCode / 1000;
iControlValue = iControlCode % 1000;
//Report command and value
Serial.print("control code: ");
Serial.println(iControlCode);
Serial.print("control command: ");
Serial.println(iControlCommand);
Serial.print("control value: ");
Serial.println(iControlValue);
//Misc command category
if (iControlCommand == 10)
{
if (iControlValue == 0)
{ //display app info
reportProductInfo();
}
else if (iControlValue == 1)
{ //verbose messaging toggle
if (gVerboseDiagMode == false)
{
gVerboseDiagMode = true;
Serial.println("verbose messaging enabled");
}
else
{
gVerboseDiagMode = false;
Serial.println("verbose messaging disabled");
}
}
else if (iControlValue == 2)
{ //enter setup mode
if (gStepNum == 0 && gRunning == false)
{
gSetupMode = true;
Serial.println("Now in setup mode");
}
else
{
Serial.println("Could not enter setup mode because system is running");
}
}
else if (iControlValue == 3)
{ //exit setup mode
gSetupMode = false;
Serial.println("Setup mode exited");
}
else if (iControlValue == 4)
{ //save new soap position
if (gSetupMode == true)
{
gSoapPos = (gCurrentPotPos/1024.0) * 180.0;
writeSettingsToNVM();
Serial.print("New soap position saved: ");
Serial.println(gSoapPos);
}
else
{
Serial.println("Cannot save new soap position when not in setup mode");
}
}
else if (iControlValue == 5)
{ //save new blower position
if (gSetupMode == true)
{
gBlowPos = (gCurrentPotPos/1024.0) * 180.0;
writeSettingsToNVM();
Serial.print("New blower position saved: ");
Serial.println(gBlowPos);
}
else
{
Serial.println("Cannot save new soap position when not in setup mode");
}
}
else if (iControlValue == 6)
{ //display soap position
Serial.print("Current soap position: ");
Serial.println(gSoapPos);
}
else if (iControlValue == 7)
{ //display blower position
Serial.print("Current blower position: ");
Serial.println(gBlowPos);
}
else if (iControlValue == 8)
{ //display servo position
Serial.print("Current servo position: ");
Serial.println(gCurrentPos);
}
else if (iControlValue == 9)
{ //display potentiometer position
Serial.print("Current potentiometer position: ");
Serial.println(gCurrentPotPos);
}
else if (iControlValue == 10)
{ //enter test mode
if (gStepNum == 0 && gRunning == false && gSetupMode == false)
{
gTestMode = true;
Serial.println("Now in test mode");
}
else
{
Serial.println("Could not enter test mode because system is running or in setup mode");
}
}
else if (iControlValue == 11)
{ //exit test mode
gTestMode = false;
Serial.println("Test mode exited");
}
else if (iControlValue == 12)
{ //test mode: read on/off sw state
if (gTestMode == true)
{
int iRead;
iRead = digitalRead(I_ON_OFF);
if (iRead == 0)
{
Serial.println("Test mode: Switch is off");
}
else if (iRead == 1)
{
Serial.println("Test mode: Switch is on");
}
}
else
{
Serial.println("Must be in test mode");
}
}
else if (iControlValue == 13)
{ //cycle red LED
if (gTestMode == true)
{
digitalWrite(O_RED_LED_PIN, HIGH);
delay(1000);
digitalWrite(O_RED_LED_PIN, LOW);
}
else
{
Serial.println("Must be in test mode");
}
}
else if (iControlValue == 14)
{ //cycle green LED
if (gTestMode == true)
{
digitalWrite(O_GREEN_LED_PIN, HIGH);
delay(1000);
digitalWrite(O_GREEN_LED_PIN, LOW);
}
else
{
Serial.println("Must be in test mode");
}
}
else if (iControlValue == 15)
{ //cycle blue LED
if (gTestMode == true)
{
digitalWrite(O_BLUE_LED_PIN, HIGH);
delay(1000);
digitalWrite(O_BLUE_LED_PIN, LOW);
}
else
{
Serial.println("Must be in test mode");
}
}
else if (iControlValue == 16)
{ //cycle blower
if (gTestMode == true)
{
digitalWrite(O_BLOWER_PIN, HIGH);
delay(5000);
digitalWrite(O_BLOWER_PIN, LOW);
}
else
{
Serial.println("Must be in test mode");
}
}
else if (iControlValue == 17)
{
if (gSetupMode == false && gTestMode == false)
{
gRunning = true;
Serial.println("Run mode started");
}
else
{
Serial.println("Could not enter run mode because system is in setup mode or test mode");
}
}
else if (iControlValue == 18)
{
gRunning = false;
Serial.println("Run mode stopped");
}
else
{
Serial.print("invalid control value: ");
Serial.println(iControlValue);
}
}
if (iControlCommand == 11)
{ //test mode: servo position command
if (iControlValue >= 0 || iControlValue <= 180)
{
gServo.write(iControlValue);
Serial.print("servo commanded to test mode position: ");
Serial.println(iControlValue);
}
}
if (iControlCommand == 12)
{
//spare
}
//End of request string
Serial.println("-----");
}
//Send product information to the serial port
void reportProductInfo()
{
//Report product and other information to serial port
Serial.println("BY1");
Serial.println("by Scott Mangiacotti and Celestine");
Serial.println("Brookline, MA USA");
Serial.println("May 2019");
}
Comments
Please log in or sign up to comment.
