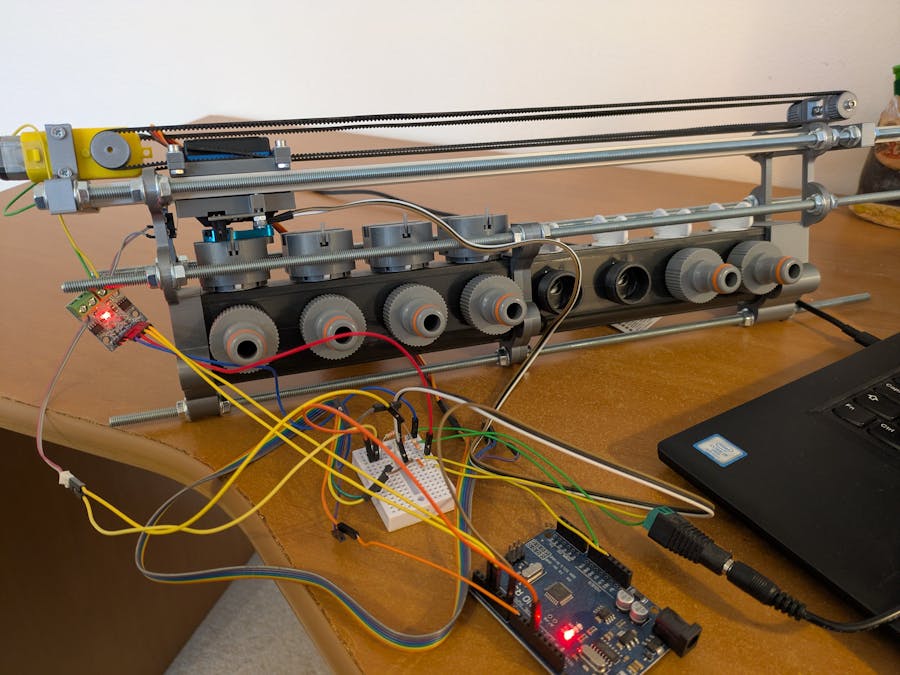

Cheap Controller for 8 Irrigation Valves

#include <Servo.h>

// Motor control pins
const int AIA = 3;
const int AIB = 4;
const int BIA = 5;
const int BIB = 6;
const int controlPin = 7;    // Direction control pin
const int blinkLed = 13;      // LED pin for error indication
byte speed = 255;

const int endStopPin = 12;    // Endstop pin

int direction = 1;
int valveCount = 0;

Servo myServo;               // Servo motor instance
const int servoPin = 9;       // Servo motor pin

// Move motor forward
void forward() {
  analogWrite(AIA, 0);
  analogWrite(AIB, speed);
  analogWrite(BIA, 0);
  analogWrite(BIB, speed);
}

// Move motor backward
void backward() {
  analogWrite(AIA, speed);
  analogWrite(AIB, 0);
  analogWrite(BIA, speed);
  analogWrite(BIB, 0);
}

// Stop the motor
void stopMotor() {
  digitalWrite(AIA, LOW);
  digitalWrite(AIB, LOW);
  digitalWrite(BIA, LOW);
  digitalWrite(BIB, LOW);
}

// Blink LED indefinitely to indicate error
void startBlinkLed() {
  while (true) {
    digitalWrite(blinkLed, HIGH);
    delay(50);
    digitalWrite(blinkLed, LOW);
    delay(300);
  }
}

// Open the valve for a specified time in seconds
bool openValve(int timeInSeconds) {
  myServo.write(0);
  delay(3000);

  Serial.println("Irrigation started.");

  myServo.write(5);
  delay(500);
  delay(timeInSeconds * 1000);

  myServo.write(175);
  delay(3000);
  myServo.write(167);
  delay(500);

  if (digitalRead(controlPin) == HIGH) {
    Serial.println("Attempting to fully close the valve...");
    myServo.write(180);
    delay(1000);
    myServo.write(167);
    delay(500);
  }

  Serial.println("Irrigation finished.");
  return true;
}

// Move to a specific valve
bool moveToValve(int valveNumber) {
  if (valveCount == valveNumber) return true;

  if (valveCount < valveNumber) {
    forward();
    delay(200);
    while (valveCount != valveNumber) {
      if (digitalRead(controlPin) == LOW) {
        valveCount++;
        if (valveCount == valveNumber) break;
        while (digitalRead(controlPin) == LOW) {
          delay(5);
        }
      }
      delay(10);
    }
  } else {
    backward();
    delay(200);
    while (valveCount != valveNumber) {
      if (digitalRead(controlPin) == LOW) {
        valveCount--;
        if (valveCount == valveNumber) break;
        while (digitalRead(controlPin) == LOW) {
          delay(5);
        }
      }
      delay(10);
    }
  }

  stopMotor();
  delay(100);
  return true;
}

void setup() {
  pinMode(AIA, OUTPUT);
  pinMode(AIB, OUTPUT);
  pinMode(BIA, OUTPUT);
  pinMode(BIB, OUTPUT);
  pinMode(controlPin, INPUT);
  pinMode(blinkLed, OUTPUT);
  pinMode(endStopPin, INPUT);
  myServo.attach(servoPin);

  myServo.write(170);
  delay(3000);

  Serial.begin(9600);

  backward();
  while (digitalRead(endStopPin) == 0) {
    delay(10);
  }
  stopMotor();
  delay(100);
  forward();
  delay(40);
  stopMotor();
  delay(100);

  valveCount = 0;
  Serial.println("Starting...");
}

void loop() {
  delay(10);

  if (Serial.available()) {
    delay(10);

    char valveCharArray[2];
    char minutesCharArray[3];

    valveCharArray[0] = Serial.read();
    valveCharArray[1] = '\0';

    minutesCharArray[0] = Serial.read();
    minutesCharArray[1] = Serial.read();
    minutesCharArray[2] = '\0';

    Serial.read(); // To clear extra input
    Serial.read();

    int valveInt = atoi(valveCharArray);
    int minutesInt = atoi(minutesCharArray);

    Serial.print("Opening valve ");
    Serial.print(valveInt);
    Serial.print(" for ");
    Serial.print(minutesInt);
    Serial.println(" minutes.");

    moveToValve(valveInt);
    openValve(minutesInt);

    delay(1000);
    Serial.println(valveCount);
  }
}
