Rower Console with Hall Sensor

//  ---------------------------------------------------------------------------------------------------------------------
//  Rower Console With Hall Sensor
//  Written by Martin Maillardet for ESP32 Dev Module
//  V0.1  August 2021
//

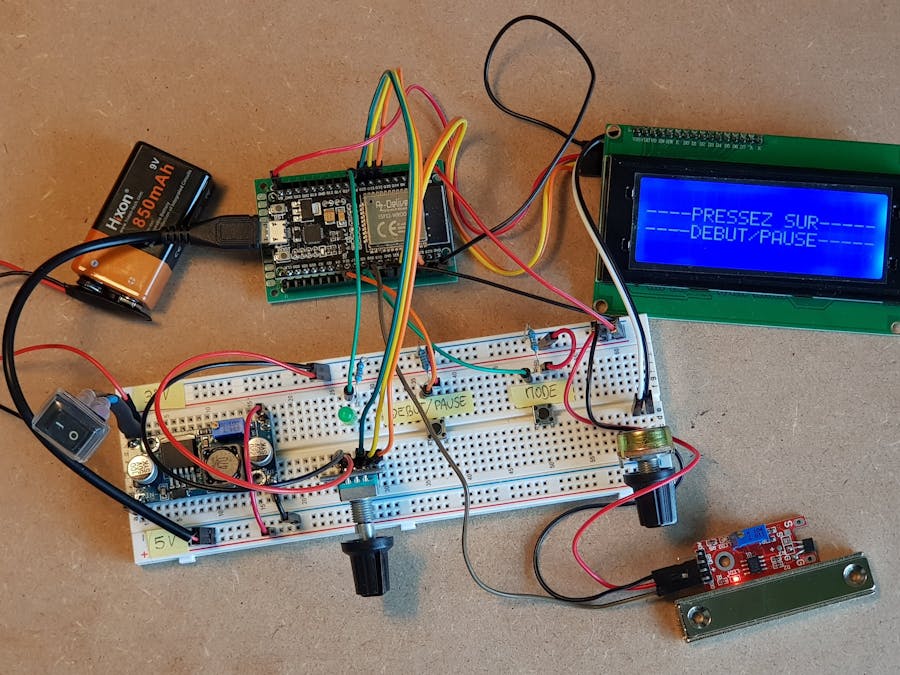

//  Hardware requirements:
//  * ESP32-WROOM-32
//  * 20 x 4 character LCD screen.
//  * Push button for pause/resume. (on digital pin 2)
//  * Push button for cycling through display modes. (on digital pin 3)
//  * Rotary Encoder
//  * Hall sensor which should be attached rower to sense when the rolling sit pass over. (on digital pin 4)
//
//  Noteworthy features:
//  * Computes time counted in ascending order (in hours, minutes and seconds), distance in kilometers,
//    speed in kilometers per hour.
//  * Computes strokes, average strokes per hour and maximum strokes per hour, rowing time, kilometers rowed,
//    average kilometers per hour, maximum kilometers per hour, speed, maximum speed and average speed for all sessions/periods recorded.
//    (shown in "S##" data when looking at session data in pause mode)
//  * Computes total strokes, average strokes per hour and maximum strokes per hour, total time, total kilometers rowed,
//    average kilometers per hour and maximum kilometers per hour rowed for all sessions/periods recorded.
//    (shown in "Tot" data when looking at session data in pause mode)
//  * Stores up to 49 sessions/periods which can be viewed when in pause mode by pressing the Display Mode button
//    NOTE: 50th session gets recorded in position for session 49 thus overriding data for 49th session.
//  * No data is being recorded while in pause mode.
//
//
//  Thanks to Alan De Windt (alan_dewindt@yahoo.com), the coding of distance, speed and lap counter is based on his own "Bicycle Odometer & Speedometer"
//  (https://create.arduino.cc/projecthub/alan_dewindt/bicycle-odometer-and-speedometer-with-99-lap-period-recorder-331d2b?ref=tag&ref_id=speedometer&offset=0)
//  Thanks to Cimanes for the cadence code based on his "Bike trainer logger"
//  (https://create.arduino.cc/projecthub/cimanes/bike-trainer-logger-8d97d6?ref=search&ref_id=bike&offset=3)
//  Thanks to Curious Scientist, the code part of menu is based on his "Advanced menu system with rotary encoder"
//  (https://curiousscientist.tech/blog/20x4lcd-rotaryencoder-menu)
//
//  ---------------------------------------------------------------------------------------------------------------------


#include "AiEsp32RotaryEncoder.h"
#define ROTARY_ENCODER_A_PIN 32
#define ROTARY_ENCODER_B_PIN 33
#define ROTARY_ENCODER_BUTTON_PIN 25
#define ROTARY_ENCODER_STEPS 4
AiEsp32RotaryEncoder rotaryEncoder = AiEsp32RotaryEncoder(ROTARY_ENCODER_A_PIN, ROTARY_ENCODER_B_PIN, ROTARY_ENCODER_BUTTON_PIN, -1, ROTARY_ENCODER_STEPS);


#include <EEPROM.h>
#include <LiquidCrystal_I2C.h>

LiquidCrystal_I2C lcd(0x27, 20, 4); //------- Set the LCD address to 0x27 for a 20 chars and 4 line lcd

#define EEPROM_SIZE 512

//---------------------------------------------- Menu Variables
int menuCounter = 0; //counts the clicks of the rotary encoder between menu items (0-3 in this case)

bool distBetwin2Strokes_selected = false; //enable/disable to change the value of menu item
bool resistanceLevel_selected = false;
bool strokeCountSessionTarget_selected = false;
bool strokeCountTotalTarget_selected = false;
//Note: if a menu is selected ">" becomes "X".

bool refreshLCD = true; //refreshes values
bool refreshSelection = false; //refreshes selection (> / X)

//---------------------------------------------- Counter Variables
float distBetwin2Strokes = 6.1; //------- Distance betwin too strokes expressed in Meters
float resistanceLevel = 2.2; //------- Resistance Level of the Rower
int strokeCountSessionTarget = 500;
int strokeCountTotalTarget = 1500;

const int PAUSEBUTTON = 16;
boolean lastPauseButton = LOW;
boolean currentPauseButton = LOW;

const int DISPLAYMODEBUTTON = 17;
boolean lastDisplayModeButton = LOW;
boolean currentDisplayModeButton = LOW;

const int STROKESENSOR = 18;
boolean lastStrokeSensor = LOW;
boolean currentStrokeSensor = LOW;

boolean startShown = HIGH;
unsigned long startShownTime = 0;
unsigned long blinkStartMessageDelay = 3000;

boolean paused = LOW;
boolean pausedShown = LOW;
unsigned long pausedStartTime = 0;

boolean strokeActionShown = LOW;
unsigned long strokeActionShownStartTime = 0;

boolean letsGoShown = LOW;
unsigned long letsGoStartTime = 0;

unsigned long lastStrokeStartTime = 0;
unsigned long strokingTime = 0;
unsigned long lastMinuteStrokeStartTime = 0;

int currentDisplayMode = 0;
int showSession = 0;
int sessionCurrentlyShown = 50;
int currentSession = 0;

float currentDistance;
unsigned long currentDuration;
int currentMaximumKPH;
int currentAverageKPH;
int currentKPH;
int averageDistancePerMinute;

float arrayDistance[50];
unsigned long arrayDuration[50];
int arrayMaximumKPH[50];
int arrayAverageKPH[50];
int arrayDistancePerMinute[50];
unsigned long arrayStrokeCount[50];
byte arrayMaximumCadence[50];
byte arrayAverageCadence[50];
byte arrayCadence[50];

unsigned int currentSitCount = 0;
unsigned int currentStrokeCount = 0;
unsigned int lastStrokeCount = 0;
unsigned int lastMinuteStrokeCount = 0;
unsigned int lastMinuteStrokeCounter = 0;
unsigned long currentTime = 0;
unsigned long sessionStartTime = 0;

float km = 0.00;
float kph = 0.00;
int intHours;
int intMinutes;
int intSeconds;

const unsigned long MILLISECONDSINSECOND = 1000;
const unsigned long MILLISECONDSINMINUTE = 60000;
const unsigned long MILLISECONDSINHOUR = 3600000;

//---------------------------------------------- Cadence Variables

const int DELAYTIME2CADENCEPULSEMAX     = 5000 ; // Max allowed time delay between cadence pulses
const int DELAYTIME2CADENCEPULSEMIN  =  200 ; // Min time delay between cadence pulses
const int DELAYTIMEPRINTCADENCE   = 1000 ; // Time delay for serial print refresh

unsigned long tprint = 0 ;   // Time reference in miliseconds for signal print

byte  currentCadence   = 0 ;        // Cadence (rpm)
byte  Cadence0  = 0 ;        // Cadence reference for filter
byte  Dcad      = 10 ;        // Max cadence difference

byte  currentAverageCadence = 0 ;            // Average cadence (pedals / min)
byte  currentMaximumCadence = 0 ;            // Maximum cadence (pedals / min)

const byte HALL_SENSOR_LED = 26;

//***********************************************************************************************************************************************
//                                                                   SETUP                                                                      *
//***********************************************************************************************************************************************

void setup()
{
  Serial.begin(115200); // begin in 115200 baud

  //---------------------------------------------- Initialize Rotary
  rotaryEncoder.begin();
  rotaryEncoder.setup(
      [] { rotaryEncoder.readEncoder_ISR(); },
      [] { rotary_onButtonClick(); });

  //---------------------------------------------- Configure digital input pins for push buttons and Hall sensor
  pinMode (STROKESENSOR, INPUT);
  pinMode (PAUSEBUTTON, INPUT);
  pinMode (DISPLAYMODEBUTTON, INPUT);
  pinMode (HALL_SENSOR_LED, OUTPUT);

  //---------------------------------------------- Initialize maximum KPH in totals as this may not be calculated if no maximum was computed for sessions
  //---------------------------------------------- and there may be random data in memory location
  arrayMaximumKPH[0] = 0;

  //---------------------------------------------- Initialize LCD screen

  lcd.begin(20, 4);
  lcd.init();
  lcd.backlight();
  lcd.clear();

  EEPROM.begin(EEPROM_SIZE);
  delay(500);

  distBetwin2Strokes = EEPROM.readFloat(0);
  resistanceLevel = EEPROM.readFloat(8);
  strokeCountSessionTarget = EEPROM.readInt(16);
  strokeCountTotalTarget = EEPROM.readInt(24);
}

//***********************************************************************************************************************************************
//                                                                   LOOP                                                                       *
//***********************************************************************************************************************************************

void loop()
{

  //---------------------------------------------- Get current millis
  currentTime = millis();

  //---------------------------------------------- show "PRESS BUTTON TO START"
  if (startShown)
  {
    StartMessage();
  }

  //---------------------------------------------- Read Stroke Hall sensor
  currentStrokeSensor = debounce(lastStrokeSensor, STROKESENSOR);
  if (lastStrokeSensor == HIGH && currentStrokeSensor == LOW)
  {

    //---------------------------------------------- If initial "PRESS BUTTON TO START" is not displayed and not currently paused...
    if (!startShown && !paused)
    {
      //---------------------------------------------- Increase Stroke count
      currentSitCount++;
      digitalWrite(HALL_SENSOR_LED, HIGH);
      delay(20);
      digitalWrite(HALL_SENSOR_LED, LOW);
      if (currentSitCount%2)
      {
        currentStrokeCount++;

        //---------------------------------------------- Display "+" to show that one stroke was recorded
        lcd.setCursor(4, 0);
        lcd.print(F("+"));
        strokeActionShown = HIGH;
        strokeActionShownStartTime = currentTime;

        //---------------------------------------------- Compute millis it took for this latest stroke
        if (lastStrokeStartTime > 0)
        {
          strokingTime = currentTime - lastStrokeStartTime;

          //---------------------------------------------- Compute current speed in kilometers per hour based on time it took to complete last stroke
          kph = (3600000 / strokingTime) * distBetwin2Strokes / 1000;
          currentKPH = kph;

          //---------------------------------------------- If current speed is new maximum speed for this session then store it
          if (currentMaximumKPH < currentKPH)
          {
            currentMaximumKPH = currentKPH;
          }
        }
      lastStrokeStartTime = currentTime;
      }
    }
  }
  lastStrokeSensor = currentStrokeSensor;


  //---------------------------------------------- Calculate Cadence

  //---------------------------------------------- Cadence calculation upon cadence pulse
  if ((currentStrokeCount > 1) and strokingTime > DELAYTIME2CADENCEPULSEMIN)
  {
    if (Cadence0 < 15) Dcad = 8;
    else Dcad = 5;

    //---------------------------------------------- Calculate the cadence
    currentCadence = (60000 / strokingTime);

    //---------------------------------------------- Filter
    currentCadence = constrain(currentCadence, max(0, Cadence0 - Dcad), Cadence0 + Dcad);
    Cadence0 = currentCadence;                      //------- Refresh Cadence reference for filter

    //----------------------------------------------If current cadence is new maximum cadence for this session then store it
    if (currentMaximumCadence < currentCadence)
    {
      currentMaximumCadence = currentCadence;
    }

    //----------------------------------------------Force cadence to "0" when no pulses are detected for the pre-selected time delay:
    if ((currentTime - lastStrokeStartTime) > DELAYTIME2CADENCEPULSEMAX) currentCadence = 0;

    //----------------------------------------------Calculate average values
    if (currentTime - strokingTime < 2000) currentAverageCadence = currentCadence;    //------- Delay before begin calculation of average cadence (2000)
    else currentAverageCadence = (currentStrokeCount * 60000 / (currentTime - sessionStartTime))  ;    //------- Average cadence (strokes / min)

    //----------------------------------------------Calculate strokes last minute
    if (currentTime - sessionStartTime < 60000)
    {   //------ Delay before begin calculation of strokes last minute (60000)
      lastMinuteStrokeCounter = currentStrokeCount;
      lastMinuteStrokeStartTime = sessionStartTime;
    }
    if (currentTime - sessionStartTime > 60000)
    {
      if (currentTime - lastMinuteStrokeStartTime >= 60000)
      {
        lastMinuteStrokeCount =  (currentStrokeCount - lastStrokeCount);
        lastMinuteStrokeStartTime = currentTime;
        lastStrokeCount = currentStrokeCount;
      }
      lastMinuteStrokeCounter = (currentStrokeCount - lastStrokeCount);
    }
  }

  PressPauseButton();
  PressModeButton();
  MessageTiming();

  //---------------------------------------------- If "PUSH BUTTON TO START" is not showing and not currently paused...
  if (!startShown && !paused)
  {
    //---------------------------------------------- Compute milliseconds since start of session
    currentDuration = currentTime - sessionStartTime;

    //---------------------------------------------- Compute distance and average kilometers per hour if stroke has moved
    if (currentStrokeCount > 0)
    {
      //---------------------------------------------- Compute kilometers rowed
      //---------------------------------------------- Distance betwin too strokes is in meters
      currentDistance = currentStrokeCount * distBetwin2Strokes / 1000;

      //---------------------------------------------- Compute average kilometers per hour since start of session
      currentAverageKPH = currentDistance * 3600000 / currentDuration;
    }
  }

  //---------------------------------------------- If no messages are currently showing then update data on display
  if (!startShown && !letsGoShown && !pausedShown)
  {
    if (currentDisplayMode < 3)
    {
      if (currentDisplayMode == 1)
      {
        UpdateDataOnDisplay();
        rotaryEncoder.disable();
      }

      //---------------------------------------------- When Pressing Mode Button
      else
      {
        rotaryEncoder.enable();
        rotary_loop();
        if(refreshLCD == true) //If we are allowed to update the LCD ...
        {
          updateLCD(); // ... we update the LCD ...

          //... also, if one of the menus are already selected...
          if(distBetwin2Strokes_selected == true || resistanceLevel_selected == true || strokeCountSessionTarget_selected == true || strokeCountTotalTarget_selected == true)
          {
          // do nothing
          }
          else
          {
            rotaryEncoder.setBoundaries(0, 3, false); //minValue, maxValue, circleValues true|false (when max go to min and vice versa)
            rotaryEncoder.setAcceleration(0);
            if (menuCounter != rotaryEncoder.readEncoder())
            {
              rotaryEncoder.reset (menuCounter);
            }
            updateCursorPosition(); //update the position
          }
          refreshLCD = false; //reset the variable - wait for a new trigger
        }
       if(refreshSelection == true) //if the selection is changed
       {
          updateSelection(); //update the selection on the LCD
          refreshSelection = false; // reset the variable - wait for a new trigger
       }
      }
    }

    //----------------------------------------------  Otherwise device is paused so show historical session information
    else
    {
      ShowHistoricalSessionsInformations();
      rotaryEncoder.enable();
      RotaryHistoricalSessionsInformations();
    }
  }
}
//***********************************************************************************************************************************************
//                                                                   START MESSAGE                                                              *
//***********************************************************************************************************************************************

void StartMessage ()
{
  if ((currentTime - startShownTime > 0) && (currentTime - startShownTime < blinkStartMessageDelay))
  {
    lcd.setCursor(0, 1);
    lcd.print(F("----PRESSEZ SUR-----"));
    lcd.setCursor(0, 2);
    lcd.print(F("----DEBUT/PAUSE-----"));
  }
  if ((currentTime - startShownTime > blinkStartMessageDelay) && (currentTime - startShownTime < blinkStartMessageDelay + 50))
  {
    lcd.clear();
  }
  if ((currentTime - startShownTime > blinkStartMessageDelay + 100) && (currentTime - startShownTime < blinkStartMessageDelay * 2))
  {
    lcd.setCursor(0, 0);
    lcd.print(F("Dist/CdR (m) -> "));
    lcd.setCursor(16,0); //1st line, 10th block
    lcd.print(F("   ")); //erase the content by printing space over it
    lcd.setCursor(16,0); //1st line, 10th block
    if (distBetwin2Strokes < 10)
    {
      lcd.print (F(" "));
      lcd.print(distBetwin2Strokes,1);
    }
    else
   {
     lcd.print(distBetwin2Strokes,1); //print the value of distBetwin2Strokes variable
    }
    //-----------------------------------
    lcd.setCursor(0, 1);
    lcd.print(F("Niv de Force -> "));
    lcd.setCursor(16,1);
    lcd.print(F("   "));
    lcd.setCursor(16,1);
    if (resistanceLevel < 10)
    {
      lcd.print (F(" "));
      lcd.print(resistanceLevel,1);
    }
    else
    {
      lcd.print(resistanceLevel,1);
    }
    //---------------------
    lcd.setCursor(0, 2);
    lcd.print(F("CdR/Seance   -> "));
    lcd.setCursor(16,2);
    lcd.print(F("   "));
    lcd.setCursor(16,2);
    if (strokeCountSessionTarget < 10)
    {
      lcd.print (F("   "));
      lcd.print(strokeCountSessionTarget);
    }
    else if (strokeCountSessionTarget < 100)
    {
      lcd.print (F("  "));
      lcd.print(strokeCountSessionTarget);
    }
    else if (strokeCountSessionTarget < 1000)
    {
      lcd.print (F(" "));
      lcd.print(strokeCountSessionTarget);
    }
    else
    {
      lcd.print(strokeCountSessionTarget); //
    }
    //---------------------
    lcd.setCursor(0, 3);
    lcd.print(F("Obj CdR Tot  -> "));
    lcd.setCursor(16,3);
    lcd.print(F("   "));
    lcd.setCursor(16,3);
    if (strokeCountTotalTarget < 10)
    {
      lcd.print (F("   "));
      lcd.print(strokeCountTotalTarget);
    }
    else if (strokeCountTotalTarget < 100)
    {
      lcd.print (F("  "));
      lcd.print(strokeCountSessionTarget);
    }
    else if (strokeCountTotalTarget < 1000)
    {
      lcd.print (F(" "));
      lcd.print(strokeCountTotalTarget);
    }
    else
    {
      lcd.print(strokeCountTotalTarget); //
    }
    }
    if (currentTime - startShownTime > blinkStartMessageDelay * 2)
    {
      lcd.clear();
      startShownTime = currentTime;
    }
}


//***********************************************************************************************************************************************
//                                                                   COMPUTE TIME                                                               *
//***********************************************************************************************************************************************


//---------------------------------------------- Compute hours, minutes and seconds for given duration expressed in milliseconds
void computeHMS(unsigned long duration)
{

  float floatHours;
  float floatMinutes;
  float floatSeconds;

  intHours = 0;
  intMinutes = 0;
  intSeconds = 0;

  if (duration >= 1000)
  {
    floatSeconds = duration / MILLISECONDSINSECOND % 60;
    intSeconds = floatSeconds;

    floatMinutes = duration / MILLISECONDSINMINUTE % 60;
    intMinutes = floatMinutes;

    floatHours = duration / MILLISECONDSINHOUR % 24;
    intHours = floatHours;
  }
}


//***********************************************************************************************************************************************
//                                                                   START/PAUSE BUTTON                                                         *
//***********************************************************************************************************************************************

//---------------------------------------------- When Pause Button is pressed
void PressPauseButton()
{
  //---------------------------------------------- Read PAUSE/RESUME push button
  currentPauseButton = debounce(lastPauseButton, PAUSEBUTTON);
  if (lastPauseButton == LOW && currentPauseButton == HIGH)
  {

    //---------------------------------------------- If "PRESS BUTTON TO START" message has been showing then we now need to start 1st session/period
    if (startShown)
    {

      startShown = LOW;

      //---------------------------------------------- Show "C'EST PARTI!" message
      ShowLetsGo();
      letsGoShown = HIGH;
      letsGoStartTime = currentTime;

      currentSession = 1;
      resetSessionVariables();
      currentDisplayMode = 1;

    }
    else
    {
      //---------------------------------------------- Otherwise if pause is active then we need to take it out of pause and start new session/period
      if (paused)
      {

        paused = LOW;

        //---------------------------------------------- Show "C'EST PARTI!" message
        ShowLetsGo();
        letsGoShown = HIGH;
        letsGoStartTime = currentTime;

        //---------------------------------------------- Increment session counter
        currentSession++;

        //---------------------------------------------- If we are starting a 100th session/period then we should write data into 99th array position (overwriting this session)
        //---------------------------------------------- as we can only keep track of 99 sessions/periods in total
        if (currentSession > 49)
        {
          currentSession = 49;
          //---------------------------------------------- Pretend session 50 (out-of-bounds value) is currently shown (even though 99 is currently shown)
          //---------------------------------------------- to force display of new data for session 49
          sessionCurrentlyShown = 50;
        }

        resetSessionVariables();
        currentDisplayMode = 1;
      }

      //---------------------------------------------- Otherwise pause is not currently active so we need to save session/period data and activate pause
      else
      {
        paused = HIGH;

        //---------------------------------------------- Calculate duration
        currentDuration = currentTime - sessionStartTime;

        //---------------------------------------------- If session duration is less than 2 seconds (which means user pressed the pause button while "LET'S GO" message
        //---------------------------------------------- was shown) then do not store the session/ignore it
        if (currentDuration < 3000)
        {
          currentSession--;
        }
        //---------------------------------------------- Otherwise store the session
        else
        {

          //---------------------------------------------- Compute distance and average kilometers per hour if stroke moved
          if (currentStrokeCount > 0)
          {
            currentDistance = currentStrokeCount * distBetwin2Strokes / 1000;
            currentAverageKPH = currentDistance * 3600000 / currentDuration;
            averageDistancePerMinute = (currentDistance * 60000 * 1000) / currentDuration;
          }

          //---------------------------------------------- Store data for session/period into array
          arrayDistance[currentSession] = currentDistance;
          arrayDuration[currentSession] = currentDuration;
          arrayAverageKPH[currentSession] = currentAverageKPH;
          arrayMaximumKPH[currentSession] = currentMaximumKPH;
          arrayStrokeCount[currentSession] = currentStrokeCount;
          arrayMaximumCadence[currentSession] = currentMaximumCadence;
          arrayAverageCadence[currentSession] = currentAverageCadence;
          arrayDistancePerMinute[currentSession] = averageDistancePerMinute;

          // Update totals for all sessions/periods
          arrayDistance[0] = arrayDistance[0] + currentDistance;
          arrayDuration[0] = arrayDuration[0] + currentDuration;
          arrayAverageKPH[0] = arrayDistance[0] * 3600000 / arrayDuration[0];
          if (currentMaximumKPH > arrayMaximumKPH[0])
          {
            arrayMaximumKPH[0] = currentMaximumKPH;
          }
          arrayStrokeCount[0] = arrayStrokeCount[0] + currentStrokeCount;
          if (currentMaximumCadence > arrayMaximumCadence[0])
          {
            arrayMaximumCadence[0] = currentMaximumCadence;
          }
          arrayAverageCadence[0] = arrayAverageCadence[0] + currentAverageCadence;
          arrayDistancePerMinute[0] = (arrayDistance[0] * 60000 * 1000) / arrayDuration[0];
        }

        //---------------------------------------------- In case "LET'S GO!" has been showing, turn it off now since we want to show "PAUSED!" message
        //---------------------------------------------- and we don't want it to be removed when "LET'S GO!" times out
        letsGoShown = LOW;

        //---------------------------------------------- Show "PAUSED!" message
        showPaused();
        pausedShown = HIGH;
        pausedStartTime = currentTime;

        //---------------------------------------------- We will need to show data for session which was just finished
        showSession = currentSession;
        currentDisplayMode = 3;

        //---------------------------------------------- Set out-of-bounds value to sessionCurrentlyShown to force session data to be shown
        sessionCurrentlyShown = 50;
      }
    }
  }
  lastPauseButton = currentPauseButton;
}


//***********************************************************************************************************************************************
//                                                                   ROTARY ENCODER LOOP                                                        *
//***********************************************************************************************************************************************

void rotary_loop()
{
    if(distBetwin2Strokes_selected == true)
    {
      if (rotaryEncoder.encoderChanged())
      {
        distBetwin2Strokes = (float)rotaryEncoder.readEncoder() / 10; // / 10.0
        updateLCD();
      }
    }

    else if(resistanceLevel_selected == true)
    {
      if (rotaryEncoder.encoderChanged())
      {
        resistanceLevel = (float)rotaryEncoder.readEncoder() / 10; // / 10.0
        updateLCD();
      }
    }

    else if(strokeCountSessionTarget_selected == true)
    {
      if (rotaryEncoder.encoderChanged())
      {
        strokeCountSessionTarget = rotaryEncoder.readEncoder();
        updateLCD();
      }
    }

    else if(strokeCountTotalTarget_selected == true)
    {
      if (rotaryEncoder.encoderChanged())
      {
        strokeCountTotalTarget = rotaryEncoder.readEncoder();
        updateLCD();
      }
    }

    else
    {
      if (rotaryEncoder.encoderChanged())
      {
        menuCounter = rotaryEncoder.readEncoder();
        //Serial.println(menuCounter);
        refreshLCD = true; //reset the variable - wait for a new trigger
      }
    }
}


//***********************************************************************************************************************************************
//                                                                   ROTARY ENCODER BUTTON                                                      *
//***********************************************************************************************************************************************

void rotary_onButtonClick()
{
    static unsigned long lastTimePressed = 0;
    if (millis() - lastTimePressed < 200)
        return;
    lastTimePressed = millis();


  switch(menuCounter)
  {
     case 0:
     distBetwin2Strokes_selected = !distBetwin2Strokes_selected; //we change the status of the variable to the opposite
     break;

     case 1:
     resistanceLevel_selected = !resistanceLevel_selected;
     break;

     case 2:
     strokeCountSessionTarget_selected = !strokeCountSessionTarget_selected;
     break;

     case 3:
     strokeCountTotalTarget_selected = !strokeCountTotalTarget_selected;
     break;
  }
  refreshLCD = true; //Refresh LCD after changing the value of the menu
  refreshSelection = true; //refresh the selection ("X")
}


//***********************************************************************************************************************************************
//                                                                   MODE BUTTON                                                                *
//***********************************************************************************************************************************************

//---------------------------------------------- When Mode Button is pressed
void PressModeButton()
{
  //---------------------------------------------- Read DISPLAY MODE push button
  currentDisplayModeButton = debounce(lastDisplayModeButton, DISPLAYMODEBUTTON);
  if (lastDisplayModeButton == LOW && currentDisplayModeButton == HIGH)
  {

    //---------------------------------------------- Otherwise if "LET'S GO!" message is not shown nor is "PAUSED!" message shown...
    if (!startShown && !letsGoShown && !pausedShown)
    {

      //---------------------------------------------- If not currently paused (so session is ongoing)...
      if (!paused)
      {

        //---------------------------------------------- Flip between the two different display modes available
        if (currentDisplayMode == 1)
        {
          currentDisplayMode = 2;
          updateLCD();
        }
        else
        {
          currentDisplayMode = 1;
          eepromSave();
        }

        //---------------------------------------------- Clear display and show appropriate labels
        showLabels(currentDisplayMode);
      }

      //---------------------------------------------- Otherwise we are in paused mode so cycle through session data available, including totals page
      else
      {
        currentDisplayMode = 3;
        showSession++;
        if (showSession > currentSession)
        {
          showSession = 0; // Show totals
        }
      }
    }
  }
  lastDisplayModeButton = currentDisplayModeButton;

  if (currentDisplayMode == 1)
  {
    distBetwin2Strokes_selected = false;
    resistanceLevel_selected = false;
    strokeCountSessionTarget_selected = false;
    strokeCountTotalTarget_selected = false;
  }

}


//***********************************************************************************************************************************************
//                                                                   UPDATE LCD                                                                 *
//***********************************************************************************************************************************************

void updateLCD()
{
  //MENU 0
  lcd.setCursor(16,0); //1st line, 10th block
  lcd.print(F("   ")); //erase the content by printing space over it
  lcd.setCursor(16,0); //1st line, 10th block
  if (distBetwin2Strokes < 10)
  {
    lcd.print (F(" "));
    lcd.print(distBetwin2Strokes,1);
  }
  else
  {
    lcd.print(distBetwin2Strokes,1); //print the value of distBetwin2Strokes variable
  }

  //MENU 1
  lcd.setCursor(16,1);
  lcd.print(F("   "));
  lcd.setCursor(16,1);
  if (resistanceLevel < 10)
  {
    lcd.print (F(" "));
    lcd.print(resistanceLevel,1);
  }
  else
  {
    lcd.print(resistanceLevel,1);
  }

  //MENU 2
  lcd.setCursor(16,2);
  lcd.print(F("   "));
  lcd.setCursor(16,2);
  if (strokeCountSessionTarget < 10)
  {
    lcd.print (F("   "));
    lcd.print(strokeCountSessionTarget);
  }
  else if (strokeCountSessionTarget < 100)
  {
    lcd.print (F("  "));
    lcd.print(strokeCountSessionTarget);
  }
  else if (strokeCountSessionTarget < 1000)
  {
    lcd.print (F(" "));
    lcd.print(strokeCountSessionTarget);
  }
  else
   {
  lcd.print(strokeCountSessionTarget); //
   }

  //MENU 3
  lcd.setCursor(16,3);
  lcd.print(F("   "));
  lcd.setCursor(16,3);
  if (strokeCountTotalTarget < 10)
  {
    lcd.print (F("   "));
    lcd.print(strokeCountTotalTarget);
  }
  else if (strokeCountTotalTarget < 100)
  {
    lcd.print (F("  "));
    lcd.print(strokeCountSessionTarget);
  }
  else if (strokeCountTotalTarget < 1000)
  {
    lcd.print (F(" "));
    lcd.print(strokeCountTotalTarget);
  }
  else
   {
  lcd.print(strokeCountTotalTarget); //
   }

  refreshLCD = true;
}


//***********************************************************************************************************************************************
//                                                                   PRINT & MENU NAVIGATION                                                    *
//***********************************************************************************************************************************************

void updateCursorPosition()
{
  //Clear display's ">" parts
  lcd.setCursor(0,0); //1st line, 1st block
  lcd.print(F(" ")); //erase by printing a space
  lcd.setCursor(0,1);
  lcd.print(F(" "));
  lcd.setCursor(0,2);
  lcd.print(F(" "));
  lcd.setCursor(0,3);
  lcd.print(F(" "));



  //Place cursor to the new position
  switch(menuCounter) //this checks the value of the counter (0, 1, 2 or 3)
  {
    case 0:
    lcd.setCursor(0,0); //1st line, 1st block
    lcd.print(F(">"));
    break;
    //-------------------------------
    case 1:
    lcd.setCursor(0,1); //2nd line, 1st block
    lcd.print(F(">"));
    break;
    //-------------------------------
    case 2:
    lcd.setCursor(0,2); //3rd line, 1st block
    lcd.print(F(">"));
    break;
    //-------------------------------
    case 3:
    lcd.setCursor(0,3); //4th line, 1st block
    lcd.print(F(">"));
    break;
  }
}

void updateSelection()
{
  //When a menu is selected ">" becomes "X"

  if(distBetwin2Strokes_selected == true)
  {
    lcd.setCursor(0,0); //1st line, 1st block
    lcd.print(F("X"));
    rotaryEncoder.setBoundaries(0, 200, false); //minValue, maxValue, circleValues true|false (when max go to min and vice versa)
    rotaryEncoder.setAcceleration(100);
    if (distBetwin2Strokes != rotaryEncoder.readEncoder())
    {
      rotaryEncoder.reset (distBetwin2Strokes*10);
    }

  }
  //-------------------
   if(resistanceLevel_selected == true)
  {
    lcd.setCursor(0,1); //2nd line, 1st block
    lcd.print(F("X"));
    rotaryEncoder.setBoundaries(0, 70, false); //minValue, maxValue, circleValues true|false (when max go to min and vice versa)
    rotaryEncoder.setAcceleration(50);
    if (resistanceLevel != rotaryEncoder.readEncoder())
    {
      rotaryEncoder.reset (resistanceLevel*10);
    }
  }
  //-------------------
  if(strokeCountSessionTarget_selected == true)
  {
    lcd.setCursor(0,2); //3rd line, 1st block
    lcd.print(F("X"));
    rotaryEncoder.setBoundaries(0, 9999, false); //minValue, maxValue, circleValues true|false (when max go to min and vice versa)
    rotaryEncoder.setAcceleration(1000);
    if (strokeCountSessionTarget != rotaryEncoder.readEncoder())
    {
      rotaryEncoder.reset (strokeCountSessionTarget);
    }
  }
  //-------------------
  if(strokeCountTotalTarget_selected == true)
  {
    lcd.setCursor(0,3); //4th line, 1st block
    lcd.print(F("X"));
    rotaryEncoder.setBoundaries(0, 9999, false); //minValue, maxValue, circleValues true|false (when max go to min and vice versa)
    rotaryEncoder.setAcceleration(1000);
    if (strokeCountTotalTarget != rotaryEncoder.readEncoder())
    {
      rotaryEncoder.reset (strokeCountTotalTarget);
    }
  }
}


//***********************************************************************************************************************************************
//                                                                   MESSAGES DURATION                                                          *
//***********************************************************************************************************************************************

//---------------------------------------------- Set Duration Messages
void MessageTiming()
{
  //---------------------------------------------- If stroke indicator has been showing, take if off if it has been 250 millis or more
  if (strokeActionShown && !startShown && !paused && (currentTime >= (strokeActionShownStartTime + 200)))
  {
    strokeActionShown = LOW;
    lcd.setCursor(4, 0);
    lcd.print(F(" "));
  }

  //---------------------------------------------- If stroke indicator has been showing, take current KPH to 0 if it has been 3000 millis or more
  if (!startShown && !paused && (currentTime >= (lastStrokeStartTime + 3000)) && currentKPH > 0)
  {
    currentKPH = 0;
  }

  //---------------------------------------------- If "LET'S GO!" has been showing, take it off if it has been 2 seconds or more
  if (letsGoShown && (currentTime >= (letsGoStartTime + 2000)))
  {
    letsGoShown = LOW;
    showLabels(currentDisplayMode);
  }

  //---------------------------------------------- If "Paused!" has been showing, take it off if it has been 2 seconds or more
  if (pausedShown && (currentTime >= (pausedStartTime + 2000)))
  {
    pausedShown = LOW;
    showLabels(currentDisplayMode);
  }
}


//***********************************************************************************************************************************************
//                                                                   RESET COUNTER VARIABLES                                                    *
//***********************************************************************************************************************************************

//---------------------------------------------- Reset all variables used for calculating current/ongoing session
void resetSessionVariables()
{
  currentStrokeCount = 0;

  sessionStartTime = currentTime;

  currentDistance = 0;
  currentDuration = 0;
  currentMaximumKPH = 0;
  currentAverageKPH = 0;
  currentStrokeCount = 0;
  currentMaximumCadence = 0;
  currentAverageCadence = 0;
}


//***********************************************************************************************************************************************
//                                                                   PRINT                                                                      *
//***********************************************************************************************************************************************


//---------------------------------------------- Show "LET'S GO!" Message
void ShowLetsGo()
{
  lcd.clear();
  lcd.setCursor(7, 1);
  lcd.print(F("C'EST"));
  lcd.setCursor(7, 2);
  lcd.print(F("PARTI!"));
}

//---------------------------------------------- Show "PAUSED!" Message
void showPaused()
{
  lcd.clear();
  lcd.setCursor(7, 1);
  lcd.print(F("PAUSE!"));
}

//---------------------------------------------- Show appropriate labels for current mode
void showLabels(int currentDisplayMode)
{

  lcd.clear();
  switch (currentDisplayMode)
  {
    case 1:
      lcd.setCursor(0, 0);
      lcd.print(F("CdR:"));
      lcd.setCursor(0, 1);
      lcd.print(F("CPM"));
      lcd.setCursor(8, 1);
      lcd.print(F("Mx"));
      lcd.setCursor(15, 1);
      lcd.print(F("Mo"));
      lcd.setCursor(0, 2);
      lcd.print(F("Vit"));
      lcd.setCursor(8, 2);
      lcd.print(F("Mx"));
      lcd.setCursor(15, 2);
      lcd.print(F("Mo"));
      lcd.setCursor(11, 3);
      lcd.print(F("D:"));
      lcd.setCursor(0, 3);
      lcd.print(F("CDM"));
      break;
    case 2:
      lcd.setCursor(1, 0);
      lcd.print(F("Dist/CdR (m):"));
      lcd.setCursor(1, 1);
      lcd.print(F("Niv de Force:"));
      lcd.setCursor(1, 2);
      lcd.print(F("CdR/Seance:"));
      lcd.setCursor(1, 3);
      lcd.print(F("Obj CdR Tot:"));
      break;
  }
}


/*
   Serial.print("  currentStrokeCount:");
   Serial.print(currentStrokeCount);
   Serial.print("  currentCadence:");
   Serial.print(currentCadence);
   Serial.print("  Cadence0:");
   Serial.print(Cadence0);
   Serial.print("  Dcad:");
   Serial.print(Dcad);
   Serial.print("  tprint:");
   Serial.print(tprint);
   Serial.print("  currentAverageCadence:");
   Serial.println(currentAverageCadence);
   Serial.print("  lastStrokeStartTime:");
   Serial.print(lastStrokeStartTime);
   Serial.print("  sessionStartTime:");
   Serial.println(sessionStartTime);
   Serial.print("  lastStrokeCount:");
   Serial.print(lastStrokeCount);
   Serial.print("  lastMinuteStrokeCount:");
   Serial.print(lastMinuteStrokeCount);
   Serial.print("  strokingTime:");
   Serial.print(strokingTime);
   Serial.print("  lastMinuteStrokeStartTime:");
   Serial.println(lastMinuteStrokeStartTime);
*/

void UpdateDataOnDisplay()
{
  //---------------------------------------------- Current Distance
  lcd.setCursor(13, 3);
  if (currentDistance < 10)
  {
    lcd.print(F("0"));
    lcd.print(currentDistance);
  }
  else
  {
    lcd.print(currentDistance);
  }
  lcd.print(F("km"));

  //---------------------------------------------- Current Duration
  computeHMS(currentDuration);
  lcd.setCursor(12, 0);
  if (intHours < 10)
  {
    lcd.print(F("0"));
  }
  lcd.print(intHours);

  lcd.print(F(":"));
  if (intMinutes < 10)
  {
    lcd.print(F("0"));
  }
  lcd.print(intMinutes);

  lcd.print(F(":"));
  if (intSeconds < 10)
  {
    lcd.print(F("0"));
  }
  lcd.print(intSeconds);

  //---------------------------------------------- Current Speed
  lcd.setCursor(3, 2);
  if (currentKPH < 10)
  {
    lcd.print(F("00"));
    lcd.print(currentKPH);
  }
  else if (currentKPH < 100)
  {
    lcd.print(F("0"));
    lcd.print(currentKPH);
  }
  else
  {
    lcd.print(currentKPH);
  }

  //---------------------------------------------- Current Maximum Speed
  lcd.setCursor(10, 2);
  if (currentMaximumKPH < 10)
  {
    lcd.print(F("00"));
    lcd.print(currentMaximumKPH);
  }
  else if (currentMaximumKPH < 100)
  {
    lcd.print(F("0"));
    lcd.print(currentMaximumKPH);
  }
  else
  {
    lcd.print(currentMaximumKPH);
  }

  //---------------------------------------------- Current Average Speed
  lcd.setCursor(17, 2);
  if (currentAverageKPH < 10)
  {
    lcd.print(F("00"));
    lcd.print(currentAverageKPH);
  }
  else if (currentAverageKPH < 100)
  {
    lcd.print(F("0"));
    lcd.print(currentAverageKPH);
  }
  else
  {
    lcd.print(currentAverageKPH);
  }

  //---------------------------------------------- Print Cadence

  //---------------------------------------------- Cadence Print Refresh
  if (currentTime - tprint > DELAYTIMEPRINTCADENCE)
  {

    //---------------------------------------------- Current Stroke Number
    lcd.setCursor(5, 0);
    if (currentStrokeCount < 10)
    {
      lcd.print(F("000"));
      lcd.print(currentStrokeCount);
    }
    else if (currentStrokeCount < 100)
    {
      lcd.print(F("00"));
      lcd.print(currentStrokeCount);
    }
    else if (currentStrokeCount < 1000)
    {
      lcd.print(F("0"));
      lcd.print(currentStrokeCount);
    }
    else
    {
      lcd.print(currentStrokeCount);
    }

    //---------------------------------------------- Current Cadence
    lcd.setCursor(3, 1);
    if (currentCadence < 10)
    {
      lcd.print(F("00"));
      lcd.print(currentCadence);
    }
    else if (currentCadence < 100)
    {
      lcd.print(F("0"));
      lcd.print(currentCadence);
    }
    else
    {
      lcd.print(currentCadence);
    }

    //---------------------------------------------- Current Maximum Cadence
    lcd.setCursor(10, 1);
    if (currentMaximumCadence < 10)
    {
      lcd.print(F("00"));
      lcd.print(currentMaximumCadence);
    }
    else if (currentMaximumCadence < 100)
    {
      lcd.print(F("0"));
      lcd.print(currentMaximumCadence);
    }
    else
    {
      lcd.print(currentMaximumCadence);
    }

    //---------------------------------------------- Current Average Cadence
    lcd.setCursor(17, 1);
    if (currentAverageCadence < 10)
    {
      lcd.print(F("00"));
      lcd.print(currentAverageCadence);
    }
    else if (currentAverageCadence < 100)
    {
      lcd.print(F("0"));
      lcd.print(currentAverageCadence);
    }
    else
    {
      lcd.print(currentAverageCadence);
    }

    //---------------------------------------------- Last Minute Strokes

    lcd.setCursor(3, 3);
    if (lastMinuteStrokeCounter < 10)
    {
      lcd.print(F("0"));
      lcd.print(lastMinuteStrokeCounter);
    }
    else
    {
      lcd.print(lastMinuteStrokeCounter);
    }

    lcd.setCursor(5, 3);
    lcd.print(F("("));
    lcd.setCursor(6, 3);
    if (lastMinuteStrokeCount < 10)
    {
      lcd.print(F("0"));
      lcd.print(lastMinuteStrokeCount);
    }
    else
    {
      lcd.print(lastMinuteStrokeCount);
    }
    lcd.setCursor(8, 3);
    lcd.print(F(")"));

    tprint = currentTime;
  }
}

void RotaryHistoricalSessionsInformations()
{
    int16_t encoderDelta = rotaryEncoder.encoderChanged();

    //optionally we can ignore whenever there is no change
    if (encoderDelta == 0)
        return;

    //for some cases we only want to know if value is increased or decreased (typically for menu items)
    if (encoderDelta > 0)
        showSession++;
        if (showSession > currentSession)
        {
          showSession = 0; // Show totals
        }
    if (encoderDelta < 0)
        showSession--;
        if (showSession < 0)
        {
          showSession = currentSession;
        }
        if (showSession > currentSession)
        {
          showSession = 0; // Show totals
        }
}




void ShowHistoricalSessionsInformations()
{
  //---------------------------------------------- Update display only if we need to show data for different session to that currently shown
  //---------------------------------------------- this way display is not constantly cleared and refreshed with same data which would
  //---------------------------------------------- cause display to flicker and is not needed anyway as data is not changing
  if (sessionCurrentlyShown != showSession)
  {
    sessionCurrentlyShown = showSession;

    lcd.clear();

    lcd.setCursor(0, 0);
    if (showSession == 0)
    {
      lcd.print(F("Tot"));
    }
    else
    {
      lcd.print(F("S"));
      if (showSession < 10 )
      {
        lcd.print(F("0"));
        lcd.print(showSession);
      }
      else
      {
        lcd.print(showSession);
      }
    }

    //---------------------------------------------- Print Labels
    lcd.setCursor(0, 1);
    lcd.print(F("Cps/min"));
    lcd.setCursor(8, 1);
    lcd.print(F("Mx"));
    lcd.setCursor(15, 1);
    lcd.print(F("Mo"));
    lcd.setCursor(0, 2);
    lcd.print(F("Vitesse"));
    lcd.setCursor(8, 2);
    lcd.print(F("Mx"));
    lcd.setCursor(15, 2);
    lcd.print(F("Mo"));
    lcd.setCursor(11, 3);
    lcd.print(F("D:"));
    lcd.setCursor(0, 3);
    lcd.print(F("DMPM"));

    //---------------------------------------------- Sessions Average Speed
    lcd.setCursor(17, 2);
    if (arrayAverageKPH[showSession] < 10)
    {
      lcd.print(F("00"));
      lcd.print(arrayAverageKPH[showSession]);
    }
    else if (arrayAverageKPH[showSession] < 100)
    {
      lcd.print(F("0"));
      lcd.print(arrayAverageKPH[showSession]);
    }
    else
    {
      lcd.print(arrayAverageKPH[showSession]);
    }

    //---------------------------------------------- Sessions Maximum Speed
    lcd.setCursor(10, 2);
    if (arrayMaximumKPH[showSession] < 10)
    {
      lcd.print(F("00"));
      lcd.print(arrayMaximumKPH[showSession]);
    }
    else if (arrayMaximumKPH[showSession] < 100)
    {
      lcd.print(F("0"));
      lcd.print(arrayMaximumKPH[showSession]);
    }
    else
    {
      lcd.print(arrayMaximumKPH[showSession]);
    }

    //---------------------------------------------- Sessions Distance
    lcd.setCursor(13, 3);
    if (arrayDistance[showSession] < 10)
    {
      lcd.print(F("0"));
      lcd.print(currentDistance);
    }
    else
    {
      lcd.print(arrayDistance[showSession]);
    }
    lcd.print(F("km"));

    //---------------------------------------------- Sessions Duration
    computeHMS(arrayDuration[showSession]);
    lcd.setCursor(12, 0);
    if (intHours < 10)
    {
      lcd.print(F("0"));
    }
    lcd.print(intHours);
    lcd.print(F(":"));
    if (intMinutes < 10)
    {
      lcd.print(F("0"));
    }
    lcd.print(intMinutes);
    lcd.print(F(":"));
    if (intSeconds < 10)
    {
      lcd.print(F("0"));
    }
    lcd.print(intSeconds);

    //---------------------------------------------- Sessions Stroke Number
    lcd.setCursor(5, 0);
    if (arrayStrokeCount[showSession] < 10)
    {
      lcd.print(F("000"));
      lcd.print(arrayStrokeCount[showSession]);
    }
    else if (arrayStrokeCount[showSession] < 100)
    {
      lcd.print(F("00"));
      lcd.print(arrayStrokeCount[showSession]);
    }
    else if (arrayStrokeCount[showSession] < 1000)
    {
      lcd.print(F("0"));
      lcd.print(arrayStrokeCount[showSession]);
    }
    else
    {
      lcd.print(arrayStrokeCount[showSession]);
    }

    //---------------------------------------------- Sessions Maximum Cadence
    lcd.setCursor(10, 1);
    if (arrayMaximumCadence[showSession] < 10)
    {
      lcd.print(F("00"));
      lcd.print(arrayMaximumCadence[showSession]);
    }
    else if (arrayMaximumCadence[showSession] < 100)
    {
      lcd.print(F("0"));
      lcd.print(arrayMaximumCadence[showSession]);
    }
    else
    {
      lcd.print(arrayMaximumCadence[showSession]);
    }

    //---------------------------------------------- Sessions Average Cadence
    lcd.setCursor(17, 1);
    if (arrayAverageCadence[showSession] < 10)
    {
      lcd.print(F("00"));
      lcd.print(arrayAverageCadence[showSession]);
    }
    else if (arrayAverageCadence[showSession] < 100)
    {
      lcd.print(F("0"));
      lcd.print(arrayAverageCadence[showSession]);
    }
    else
    {
      lcd.print(arrayAverageCadence[showSession]);
    }


    //---------------------------------------------- Sessions Average Distance Per Minute
    lcd.setCursor(4, 3);
    if (arrayDistancePerMinute[showSession] < 10)
    {
      lcd.print(F("00"));
      lcd.print(arrayDistancePerMinute[showSession]);
    }
    else if (arrayDistancePerMinute[showSession] < 100)
    {
      lcd.print(F("0"));
      lcd.print(arrayDistancePerMinute[showSession]);
    }
    else
    {
      lcd.print(arrayDistancePerMinute[showSession]);
      lcd.print(F("m"));
    }
  }
}

void eepromSave()
{
  EEPROM.writeFloat(0,distBetwin2Strokes);
  EEPROM.writeFloat(8,resistanceLevel);
  EEPROM.writeInt(16,strokeCountSessionTarget);
  EEPROM.writeInt(24,strokeCountTotalTarget);
  EEPROM.commit();
}




//---------------------------------------------- A debouncing function that can be used for any button
boolean debounce(boolean last, int pin)
{
  boolean current = digitalRead(pin);
  if (last != current)
  {
    delay(10);
    current = digitalRead(pin);
  }
  return current;
}
