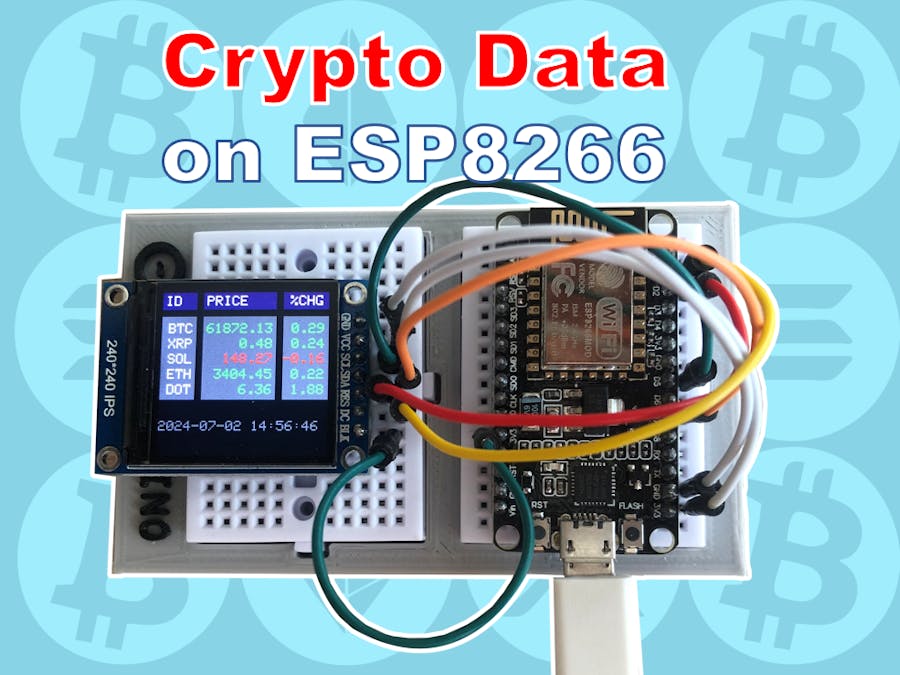

Building Arduino Crypto Price Ticker with Gemini API

#include <ESP8266WiFi.h>
#include <WiFiClientSecure.h>
#include <Adafruit_GFX.h>
#include <Adafruit_ST7789.h>
#include <SPI.h>
#include <ArduinoJson.h>

#define ST77XX_GRAY 0x8410 // Define a gray color
String timestamp;

const char* ssid = "Dziubym";
const char* password = "Mikigosia1";
const char* serverName = "api.gemini.com";

// Define the WiFi client
WiFiClientSecure client;

#define TFT_DC    D1     // TFT DC pin
#define TFT_RST   D2     // TFT RST pin
#define TFT_CS    D8     // TFT CS pin

// Initialize ST7789 TFT library with hardware SPI module
Adafruit_ST7789 tft = Adafruit_ST7789(TFT_CS, TFT_DC, TFT_RST);

void setup() {
  Serial.begin(9600);
  // Connect to Wi-Fi network
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.print(".");
  }

  Serial.println(""); Serial.println("WiFi connected");
  Serial.println("IP address: "); Serial.println(WiFi.localIP());

  // Initialize the display
  tft.init(240, 240, SPI_MODE2);
  tft.setRotation(1);
  tft.fillScreen(ST77XX_BLACK);
  tft.setTextWrap(true);
  tft.setTextColor(ST77XX_WHITE);
  tft.setTextSize(2);
  tft.fillRect(0, 5, 50, 25, 0x505050);   // First box
  tft.fillRect(60, 5, 105, 25, 0x505050);  // Second box
  tft.fillRect(175, 5, 65, 25, 0x505050); // Third box
  tft.setCursor(5,10);
  tft.print("ID   PRICE     %CHG");

}

void loop() {
  client.setInsecure(); // turn off SSL verification
  if (client.connect(serverName, 443)) {

    String url = "/v1/pricefeed";

    client.print(String("GET ") + url + " HTTP/1.1\r\n" +
                 "Host: " + serverName + "\r\n" +
                 "Connection: close\r\n\r\n");

    unsigned long timeout = millis();
    while (client.available() == 0) {
      if (millis() - timeout > 5000) {
        Serial.println(">>> Client Timeout !");
        client.stop();
        return;
      }
    }

    //Skip HTTP headers
    while (client.available()) {
      String line = client.readStringUntil('\r');
      if (line.indexOf("Date") != -1) timestamp = reformatDateString(line);
      if (line == "\n" || line == "\r\n") {
        break;
      }
    }
    // Read the JSON response

    String payload = "[";
    bool isFirst = true;
    while (client.available()) {
      String chunk = client.readStringUntil('\n');
      int start = 0, end = 0;

      // Find and extract necessary parts
      while ((start = chunk.indexOf("{\"pair\":\"", end)) != -1) {
        end = chunk.indexOf("}", start) + 1;
        String pairData = chunk.substring(start, end);

        if (pairData.indexOf("BTCUSD") != -1 ||
            pairData.indexOf("ETHUSD") != -1 ||
            pairData.indexOf("XRPUSD") != -1 ||
            pairData.indexOf("SOLUSD") != -1 ||
            pairData.indexOf("DOTUSD") != -1) {
          if (!isFirst) {
            payload += ",";
          }
          payload += pairData;
          isFirst = false;
        }
      }
    }
    payload += "]";
 // Serial.print(payload);
  displayPricefeed(payload);
  }
  delay(3000);
}

// Function to round a string representation of a float to two decimal places
String roundToTwoDecimalPlaces(const char* value) {
  float num = atof(value);
  char buffer[10];
  dtostrf(num, 4, 2, buffer);
  return String(buffer);
}

String convertToPercentage(String value) {
    // Convert the string to a float
    float floatValue = value.toFloat();

    // Multiply by 100 to get the percentage
    float percentage = floatValue * 100;

    // Create a string representation with two decimal places
    char buffer[7]; // Allows for "-0.00" (6 characters)
    dtostrf(percentage, 6, 2, buffer);

    // Remove trailing spaces
    String result = String(buffer);
    result.trim();

    return result;
}


String reformatDateString(String dateString) {
  // Remove '\r' if it is at the end of the string
  if (dateString.endsWith("\r")) {
    dateString.remove(dateString.length() - 1);
  }

  // Example input: "Date: Sun, 30 Jun 2024 09:16:31 GMT"
  // Desired output: "2024-06-30 09:16:31"

  // Extract components from the date string
  int dayStart = dateString.indexOf(',') + 2;
  String day = dateString.substring(dayStart, dayStart + 2);

  int monthStart = dayStart + 3;
  String monthStr = dateString.substring(monthStart, monthStart + 3);

  int yearStart = monthStart + 4;
  String year = dateString.substring(yearStart, yearStart + 4);

  int timeStart = yearStart + 5;
  String time = dateString.substring(timeStart, timeStart + 8);

  // Convert month abbreviation to number
  String month;
  if (monthStr == "Jan") month = "01";
  else if (monthStr == "Feb") month = "02";
  else if (monthStr == "Mar") month = "03";
  else if (monthStr == "Apr") month = "04";
  else if (monthStr == "May") month = "05";
  else if (monthStr == "Jun") month = "06";
  else if (monthStr == "Jul") month = "07";
  else if (monthStr == "Aug") month = "08";
  else if (monthStr == "Sep") month = "09";
  else if (monthStr == "Oct") month = "10";
  else if (monthStr == "Nov") month = "11";
  else if (monthStr == "Dec") month = "12";

  // Format the new date string
  String compactDateString = year + "-" + month + "-" + day + " " + time;

  return compactDateString;
}


void  displayPricefeed(String JSONdata){


// Parse JSON data
  StaticJsonDocument<8192> doc; // Parse JSON data
  deserializeJson(doc, JSONdata);
  // Display data on the TFT screen
  int y=50;
  tft.fillRect(0, 40, 50, 120, ST77XX_GRAY);   // First box
  tft.fillRect(60, 40, 105, 120, ST77XX_GRAY);  // Second box
  tft.fillRect(175, 40, 65, 120, ST77XX_GRAY); // Third box
  for (size_t i = 0; i < doc.size(); i++) {
    const char* pair = doc[i]["pair"];
    if (strcmp(pair, "BTCUSD") == 0 ||
        strcmp(pair, "ETHUSD") == 0 ||
        strcmp(pair, "SOLUSD") == 0 ||
        strcmp(pair, "XRPUSD") == 0 ||
        strcmp(pair, "DOTUSD") == 0) {

      const char* price = doc[i]["price"];
      const char* percentChange24h = doc[i]["percentChange24h"];

 // Remove currency characters
      String symbol = String(pair).substring(0, 3);

      // Round price and percentage to two decimal places
      String roundedPrice = roundToTwoDecimalPlaces(price);
      String roundedPercentChange = convertToPercentage(percentChange24h);



      // Display symbol
      tft.setTextColor(ST77XX_WHITE);
      tft.setCursor(10, y);
      tft.print(symbol);


      // Set color based on percent change
      float percentChange = atof(percentChange24h);
      if (percentChange >= 0) {
        tft.setTextColor(ST77XX_GREEN);
      } else {
        tft.setTextColor(ST77XX_RED);
      }

      char buffer[50];

      // Display price
      tft.setCursor(65, y); // Move one character to the left (assuming each character is about 5 pixels wide)
      sprintf(buffer, "%8s", roundedPrice.c_str());
      tft.print(buffer);

      // Display percent change
      tft.setCursor(175, y);
      sprintf(buffer, "%5s", roundedPercentChange.c_str());
      tft.print(buffer);
      y=y+22;
    }
  }
  tft.fillRect(0, 180, 240, 30, ST77XX_BLACK);   // First box
  tft.setTextColor(ST77XX_GRAY);
  tft.setCursor(0, y+30);
  tft.print(timestamp);
}
