MINAS KALARAKIS
Published

DRO for Lathe Optimum 180X300

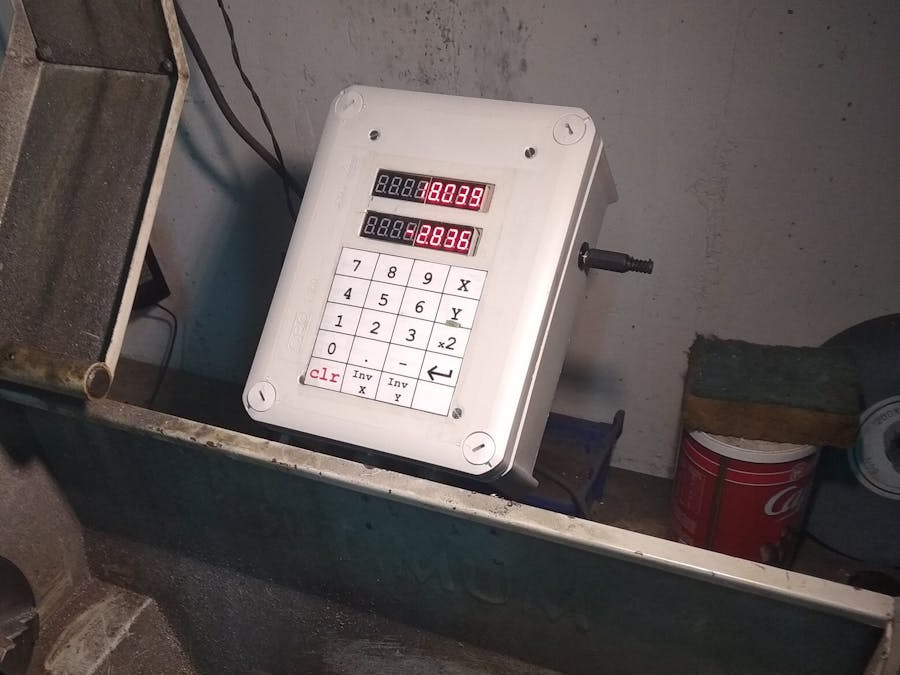

A digital read out using magnetic stripes for a small lathe, e.g. Optimum 180X300.

IntermediateFull instructions provided16 hours776
DRO for Lathe Optimum 180X300

Things used in this project

Hardware components

Microchip dspic33CK64MP105
×1
AS5311
×2

Story

Read more

Schematics

AS5311

This is the sensor PCB, use Autodesk Eagle to print the PCB

DRO main PCB with microchip Dspic33CK64MP105

These files are the schematic and PCB of DRO. Zip file includes a folder with gerber files.

Code

new version 2.0

C/C++
sensors are wakeup every timer tick, keyboard functions work better, programmed value is displayed only on the display associated with the axis
No preview (download only).

DRO project code

C/C++
Use the microchip Mplabx-5.25 and XC16 compiler to work with it These tools are free and can be downloaded from Microchip web site. The zip file contains all the code.
If you have a better code or idea about it please send an email to me at info@kalarakis.gr
No preview (download only).
