TinyML for Impact Detection using Node-RED

# Introduction

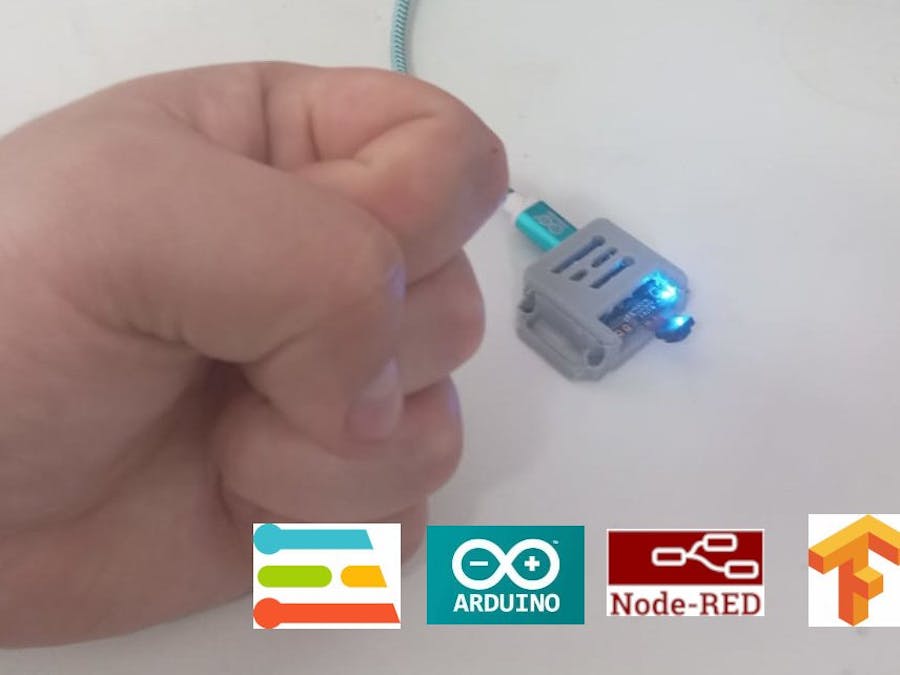

This project aims to recognize impacts using deep learning techniques with the Arduino Nicla Vision board. Signals from the accelerometer and gyroscope are acquired to detect three movements: IDLE, finger, and fist. This project combines TinyML and Node-RED for efficient real-time gesture classification.

# Materials

• Arduino Nicla Vision
• Arduino IDE
• Edge Impulse
• Node-RED

# Process

A review of the project is shown in this video:

The following steps detail how to develop this project:

## Connect Arduino Nicla Vision to Edge Impulse

Sign up on Edge Impulse and create a new project. Select your device as Arduino Nicla Vision.

• In the dashboard, select Create Impulse and configure the input axes with data from the accelerometer and gyroscope: accX, accY, accZ, gyrX, gyrY, and gyrZ.
• Adjust the window size to 2000 ms and the window increase to 200 ms to capture movements properly. Set the frequency to 100 Hz and make sure the zero-pad data option is enabled.

• Then, add a Spectral Features processing block to analyze the spectral characteristics of the signals. Configure the accelerometer and gyroscope axes for spectral analysis.

## Training and Classification

• Add a neural network classification block in Edge Impulse. Use the spectral features as input and set three output classes: finger, fist, and idle.
• Configure the neural network with two dense layers: one with 20 neurons and another with 10 neurons. Choose a learning rate of 0.0005 and 30 training cycles.
• Train the model and evaluate the results using the confusion matrix. Ensure that the model achieves good classification accuracy (in this case, 100% accuracy for the three classes was obtained).

Deploy the project using the binary containing for Arduino Nicla Vision.

## Upload the Firmware to Arduino

• Once the model is trained, generate the firmware.bin file and upload it to the Arduino Nicla Vision using the Arduino IDE.

## Connect it to Node-RED using Serial

Unlike many projects that use MQTT, this project uses serial communication between the Arduino Nicla Vision and Node-RED.

• Node-RED Configuration: In Node-RED, configure a serial in node to receive data directly from the Arduino’s serial port.

• Data Processing: Use switch nodes to classify the data into the three categories: finger, fist, and idle.

you have to install media plugin in node-red.

Here’s a view of the Node-RED flow, which includes serial in nodes, switch nodes, and text-to-number conversion functions to process real-time results.

## Create the Dashboard in Node-RED

• Use the ui_media node to display images associated with each classification.
• Configure debug nodes to check the flow's functionality and monitor the real-time results.

[
    {
        "id": "2f9b628e742c71b5",
        "type": "ui_media",
        "z": "df1547252af1e3b2",
        "group": "789a32d6ecfd3433",
        "name": "",
        "width": 0,
        "height": 0,
        "order": 0,
        "category": "finger",
        "file": "idle.PNG",
        "layout": "center",
        "showcontrols": true,
        "loop": true,
        "onstart": false,
        "scope": "local",
        "tooltip": "",
        "x": 1170,
        "y": 620,
        "wires": [
            [
                "f8c8fea32d1d8249"
            ]
        ]
    },
    {
        "id": "789a32d6ecfd3433",
        "type": "ui_group",
        "name": "TinyML Classifier",
        "tab": "ae15ee185323f2ed",
        "order": 1,
        "disp": true,
        "width": "6",
        "collapse": false,
        "className": ""
    },
    {
        "id": "ae15ee185323f2ed",
        "type": "ui_tab",
        "name": "Home",
        "icon": "dashboard",
        "disabled": false,
        "hidden": false
    }
]

## Conclusion

This project demonstrates how TinyML and Node-RED can be integrated using Arduino Nicla Vision to classify real-time movements. The flexibility of Node-RED and TinyML's capability to process sensor signals directly on the device opens the door to various applications in gesture control and activity monitoring.
