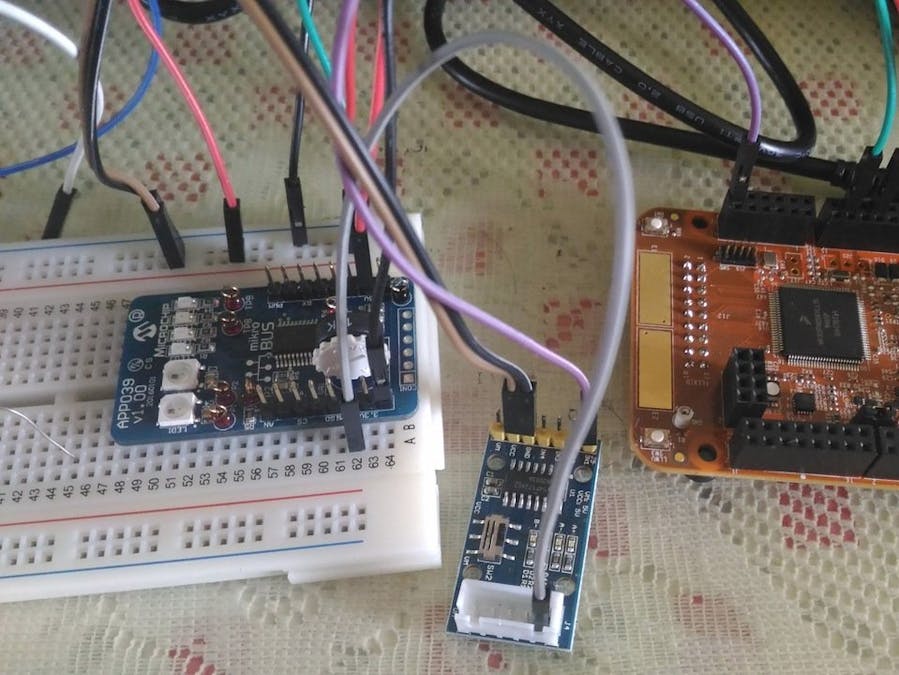

Flex-WS2812B

/*
* Copyright (c) 2015, Freescale Semiconductor, Inc.
* All rights reserved.
*
* Redistribution and use in source and binary forms, with or without modification,
* are permitted provided that the following conditions are met:
*
* o Redistributions of source code must retain the above copyright notice, this list
*   of conditions and the following disclaimer.
*
* o Redistributions in binary form must reproduce the above copyright notice, this
*   list of conditions and the following disclaimer in the documentation and/or
*   other materials provided with the distribution.
*
* o Neither the name of Freescale Semiconductor, Inc. nor the names of its
*   contributors may be used to endorse or promote products derived from this
*   software without specific prior written permission.
*
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND
* ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
* WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
* DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER OR CONTRIBUTORS BE LIABLE FOR
* ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
* (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
* LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
* ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
* (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
*/

#include "fsl_debug_console.h"
#include "fsl_dspi.h"
#include "fsl_flexio_spi.h"
#include "board.h"

#include "clock_config.h"
#include "pin_mux.h"
/*******************************************************************************
 * Definitions
 ******************************************************************************/
#define BOARD_FLEXIO_BASE FLEXIO0
#define FLEXIO_SPI_SOUT_PIN 2U
#define FLEXIO_CLOCK_FREQUENCY CLOCK_GetFreq(kCLOCK_PllFllSelClk)
#define BOARD_DSPI_SLAVE_BASE SPI0
#define SLAVE_SPI_IRQ SPI0_IRQn
#define MASTER_SPI_IRQ FLEXIO0_IRQn
#define TRANSFER_SIZE 18U        /*! Transfer dataSize */
#define TRANSFER_BAUDRATE 500000U /*! Transfer baudrate - 500k */

/*******************************************************************************
 * Prototypes
 ******************************************************************************/
/* DSPI user callback */
void FLEXIO_SPI_MasterUserCallback(FLEXIO_SPI_Type *base,
                                   flexio_spi_master_handle_t *handle,
                                   status_t status,
                                   void *userData);

/*******************************************************************************
 * Variables
 ******************************************************************************/
uint8_t masterRxData[TRANSFER_SIZE] = {0U};
uint8_t masterTxData[TRANSFER_SIZE] = {0U};


FLEXIO_SPI_Type spiDev;
flexio_spi_master_handle_t g_m_handle;


volatile bool isTransferCompleted = false;

/*******************************************************************************
 * Code
 ******************************************************************************/

void FLEXIO_SPI_MasterUserCallback(FLEXIO_SPI_Type *base,
                                   flexio_spi_master_handle_t *handle,
                                   status_t status,
                                   void *userData)
{
    if (status == kStatus_Success)
    {
        __NOP();
    }
}


int main(void)
{
    BOARD_InitPins();
    BOARD_BootClockRUN();
    BOARD_InitDebugConsole();

    CLOCK_SetFlexio0Clock(1U);

    uint32_t i;
    flexio_spi_master_config_t masterConfig;
    flexio_spi_transfer_t masterXfer;


    /* Master config */
    /*
     * masterConfig.enableMaster = true;
     * masterConfig.enableInDoze = false;
     * masterConfig.enableInDebug = true;
     * masterConfig.enableFastAccess = false;
     * masterConfig.baudRate_Bps = 3200000U;
     * masterConfig.phase = kFLEXIO_SPI_ClockPhaseFirstEdge;
     * masterConfig.dataMode = kFLEXIO_SPI_8BitMode;
     */
    FLEXIO_SPI_MasterGetDefaultConfig(&masterConfig);
    masterConfig.baudRate_Bps = 2400000U;

    spiDev.flexioBase = BOARD_FLEXIO_BASE;
    spiDev.SDOPinIndex = FLEXIO_SPI_SOUT_PIN;
    /*
    spiDev.SDIPinIndex = FLEXIO_SPI_SIN_PIN;
    spiDev.SCKPinIndex = FLEXIO_SPI_CLK_PIN;
    spiDev.CSnPinIndex = FLEXIO_SPI_PCS_PIN;
    */
    spiDev.shifterIndex[0] = 0U;
    spiDev.shifterIndex[1] = 1U;
    spiDev.timerIndex[0] = 0U;
    spiDev.timerIndex[1] = 1U;

    FLEXIO_SPI_MasterInit(&spiDev, &masterConfig, FLEXIO_CLOCK_FREQUENCY);


    /* Set dspi slave interrupt priority higher. */
    NVIC_SetPriority(MASTER_SPI_IRQ, 1U);


    /* Set up the transfer data */
    for (i = 0U; i < TRANSFER_SIZE; i++)
    {
        //masterTxData[i] = 8U;
        masterRxData[i] = 0U;

    }
    //high 1110 0XE
    //low 1000 0X8
    masterTxData[0]=0xDB;
    masterTxData[1]=0x6D;
    masterTxData[2]=0xB6;
    masterTxData[3]=0x92;
    masterTxData[4]=0x49;
    masterTxData[5]=0x24;
    masterTxData[6]=0x92;
    masterTxData[7]=0x49;
    masterTxData[8]=0x24;
    masterTxData[9]=0xDB;
    masterTxData[10]=0x6D;
    masterTxData[11]=0xB6;
    masterTxData[12]=0x92;
    masterTxData[13]=0x49;
    masterTxData[14]=0x24;
    masterTxData[15]=0x92;
    masterTxData[16]=0x49;
    masterTxData[17]=0x24;


    /* Set up master transfer */
    FLEXIO_SPI_MasterTransferCreateHandle(&spiDev, &g_m_handle, FLEXIO_SPI_MasterUserCallback, NULL);

    /*Start master transfer*/
    masterXfer.txData = masterTxData;
    masterXfer.rxData = masterRxData;
    masterXfer.dataSize = TRANSFER_SIZE;
    masterXfer.flags = kFLEXIO_SPI_8bitMsb;

    FLEXIO_SPI_MasterTransferNonBlocking(&spiDev, &g_m_handle, &masterXfer);

    FLEXIO_SPI_MasterDeinit(&spiDev);

    while (1)
    {
    }
}
