Published March 11, 2017 © GPL3+

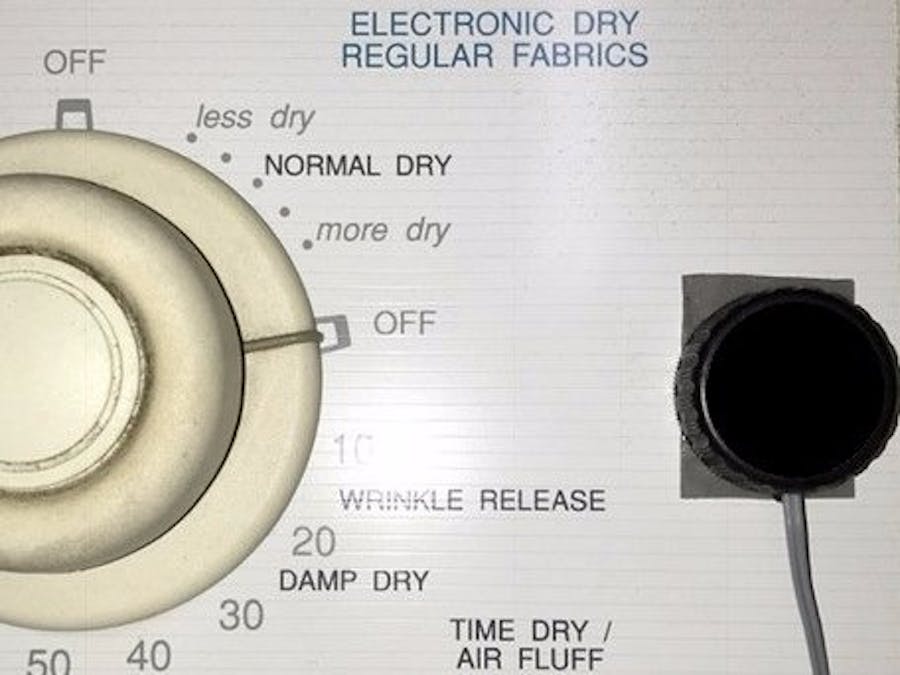

Washer/Dryer Monitor

Monitor your appliance's power indicator with a photocell for easy notifications without high voltage wiring.

BeginnerFull instructions provided2 hours1,620

Things used in this project

Hardware components

Particle Photon

Photo resistor

Resistor 10k ohm

Hand tools and fabrication machines

Soldering iron (generic)

Story

What it does.

This project allows you to monitor your washer/dryer running status and receive a notification when complete. You can also check on the elapsed time by accessing a web page from the Photon itself.

How it works.

The concept works by monitoring the appliance's power indicator with a photocell. This way, there is no high voltage wiring needed within the appliance itself. The key is in the photocell assembly; it has to be light-tight. I found that a black plastic bottle cap worked the best because it blocked all of the external light. Other colors let light in that confuses the system with ambient light changes.

Photocell mounted inside of black cap.

Locate the ON indicator of your appliance. If you do not have an ON indicator, look for any indicator that is ON during operation and OFF when complete.

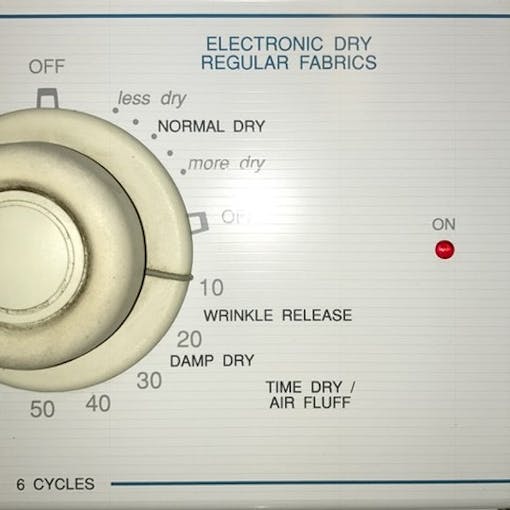

Dryer power ON indicator before attaching photocell.

Affix the photocell assembly to the indicator with a square of double back adhesive foam. Don't forget to cut a hole in the center to allow the indicator to show through. Align the assembly on the foam and press to adhere.

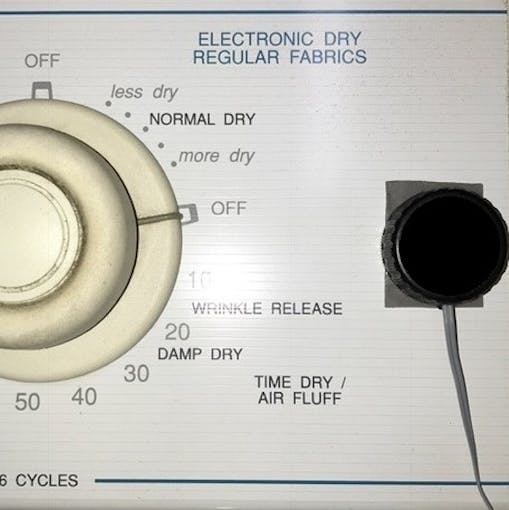

After

Connect the photocell leads to the Photon circuit. Install the project code. And you are ready to run.

Note: You may need to adjust the analog ON/OFF transition value in the code depending on the actual photocell used and the amount of light the indicator produces. And if your indicator turn ON at the end of cycle, just replace the < with > in the analog value test code.

Accessing the web page for status.

Once the Photon is powered up and operational with the project code loaded, obtain its LAN IP address from either the initial Particle.io setup process or from your wireless router's connected devices page. Then, use any LAN connected computer or smart device (phone or tablet) and enter the LAN IP address (e.g. 192.168.1.128) into the browser site box as in this example: 192.168.1.128:8080/status.html. The 8080 port the server is on is defined in the project source code. You must enter the IP address: port / status.html exactly as in the example or your browser will not connect to the Photon. Use the browser's refresh button/icon to update the page and its status. Browser screen shots below:

Each appliance is separate from the other.

You will receive separate notifications when each completes.

Getting notified.

IFTTT.com offers a free account that can be used to send you emails or SMS messages when your Photon publishes an event; in this project, that would be a LAUNDRY event. A simple tutorial showing how an event can trigger an email is at https://community.particle.io/t/beginner-tutorial-ifttt-publish-an-event-spark-internet-button/10270 starting at step 5, or a Particle.io Integration/WebHook can be used to relay the event to other applications and projects.

Other uses.

This photocell/indicator concept can be used to monitor any appliance or device that has a status indication. Just modify the code to suit your needs.

Code

Laundry Monitor

/*
 * Project Laundry Monitor
 * Description: Washer / Dryer monitor and notifications
 * Author: Martin Smaha
 * Date: 3/9/2017
 */
#include <string.h>

 TCPServer server = TCPServer(8080);//web page port
 TCPClient client;
 char LANBuf[1026],pBuf[128];
 int LED = D7;
 int washerAnalogPin = A0;
 int dryerAnalogPin = A1;

 bool isWasherRunning;
 bool isDryerRunning;
 unsigned long WasherRunTime_sec;
 unsigned long DryerRunTime_sec;
 unsigned long msecLast;
 int washerValue;
 int dryerValue;

 void WebHeader(void);
 void WebServer(void);
 void FormatRuntime(unsigned long xSeconds);

// setup() runs once, when the device is first turned on.
void setup() {
  // start listening for clients
  server.begin();
  // small blue LED on board
  pinMode(LED, OUTPUT);
  digitalWrite(LED, LOW);
  // variables
  LANBuf[0] = 0;
  msecLast = millis();
  washerValue = 0;
  dryerValue = 0;
}

// loop() runs over and over again, as quickly as it can execute.
void loop() {
  WebServer();
  unsigned long msec = millis();
  if (msec > msecLast) {
    unsigned long diff = msec - msecLast;
    if (diff >= 1000) {
      ReadAnalogs();//only read them once per second
      diff -= 1000;
      msecLast = msec - diff;
    }
  } else {
    msecLast = msec;// this throws away 1 millisecond every 49 days due to wrapping
  }
}

// Web Header
void WebHeader(void) {
  client.print("HTTP/1.1 200 OK\r\n\r\n<html><head><title>Laundry</title><style>div {border: 2px solid #a1a1a1;padding: 10px 40px;width: 200px;border-radius: 25px;}button {width: 100px;height: 40px;background: blue;color: white;}button:hover {color: black;}</style>");
  client.print("<META HTTP-EQUIV='Pragma' CONTENT='no-cache'>");
  client.print("<META HTTP-EQUIV='Expires' CONTENT='-1'>");
  client.print("<meta content='text/html; charset=ISO-8859-1' http-equiv='Content-Type'>");
  client.print("<meta name='viewport' content='width=device-width, initial-scale=1'></head>");
}

// Web server
void WebServer(void) {
  if (client.connected()) {
    int isRequest = -1;
    if (client.available()) { //get first data segment
      memset(LANBuf,0,sizeof(LANBuf));//clear old data
      client.read((uint8_t*)LANBuf,sizeof(LANBuf) - 2);//leave the buffer zero terminated
      //determine which page browser has requested
      if (strstr(LANBuf,"GET") != NULL) {
        isRequest = 0;
      }
      if (strstr(LANBuf,"status.html") != NULL) {
        isRequest = 1;
      }
    }
    //send response
    if (isRequest == 0) { //standard http error message for page not found
      client.print("HTTP/1.1 404 \r\n\r\n");
      client.stop();
    }
    if (isRequest == 1) { //status.html
      WebHeader();
      client.print("<body bgcolor=#ffffff width=250px><div><h1>Laundry</h1><table>");
      // status LEDs
      if (isWasherRunning) {
        client.print("<tr><td><span style=background:#00ff00;> &nbsp &nbsp </span></td><td><font>Washer</font></td>");
        FormatRuntime(WasherRunTime_sec);
        client.print(pBuf);
      } else {
        client.print("<tr><td><span style=background:#cccccc;> &nbsp &nbsp </span></td><td><font>Washer</font></td><td>OFF</td>");
      }
      client.print("</tr><tr><td>&nbsp</td><td>&nbsp</td><td>&nbsp</td></tr>");
      if (isDryerRunning) {
        client.print("<tr><td><span style=background:#00ff00;> &nbsp &nbsp </span></td><td><font>Dryer</font></td>");
        FormatRuntime(DryerRunTime_sec);
        client.print(pBuf);
      } else {
        client.print("<tr><td><span style=background:#cccccc;> &nbsp &nbsp </span></td><td><font>Dryer</font></td><td>OFF</td>");
      }
      client.print("</tr></table>");
      //diagnostic section. Comment out this section once analog values have been adjusted
      sprintf(pBuf,"<hr><p>Washer: %d<br>Dryer: %d</p>",washerValue,dryerValue);
      client.print(pBuf);
      //end diagnostic section
      client.print("</div></body></html>");
      client.stop();
    }
  } else {
    // if no client is yet connected, check for a new connection
    client = server.available();
  }
}
void ReadAnalogs(void) {
  washerValue = analogRead(washerAnalogPin);  // read the analogPin
  bool isON = (washerValue < 1024);
  if (isWasherRunning) {
    if (isON) {
      WasherRunTime_sec++;
    } else {
      isWasherRunning = false;
      if (WasherRunTime_sec >= 60) { //prevents notifications when cycling thru timer
        Particle.publish("LAUNDRY","Washer Done",60,PRIVATE);
      }
    }
  } else {
    if (isON) {
      isWasherRunning = true;
      WasherRunTime_sec = 0;
    }
  }
  dryerValue = analogRead(dryerAnalogPin);  // read the analogPin
  isON = (dryerValue < 1024);
  if (isDryerRunning) {
    if (isON) {
      DryerRunTime_sec++;
    } else {
      isDryerRunning = false;
      if (DryerRunTime_sec >= 60) { //prevents notifications when cycling thru timer
        Particle.publish("LAUNDRY","Dryer Done",60,PRIVATE);
      }
    }
  } else {
    if (isON) {
      isDryerRunning = true;
      DryerRunTime_sec = 0;
    }
  }
  if (isWasherRunning || isDryerRunning) { //used of initial testing
    digitalWrite(LED, HIGH);
  } else {
    digitalWrite(LED, LOW);
  }
}

void FormatRuntime(unsigned long xSeconds) {
  unsigned int hours;
  unsigned int minutes;
  unsigned int seconds;
  hours = xSeconds / 3600;
  xSeconds -= hours * 3600;
  minutes = xSeconds / 60;
  xSeconds -= minutes * 60;
  seconds = xSeconds;
  sprintf(pBuf,"<td><font>ON for %dh %dm %ds</font></td>",hours,minutes,seconds);
}

Credits

Martin Smaha

4 projects • 9 followers

Designing hardware and software since 1975.
