Programming Learning Shield

Programming Learning Board

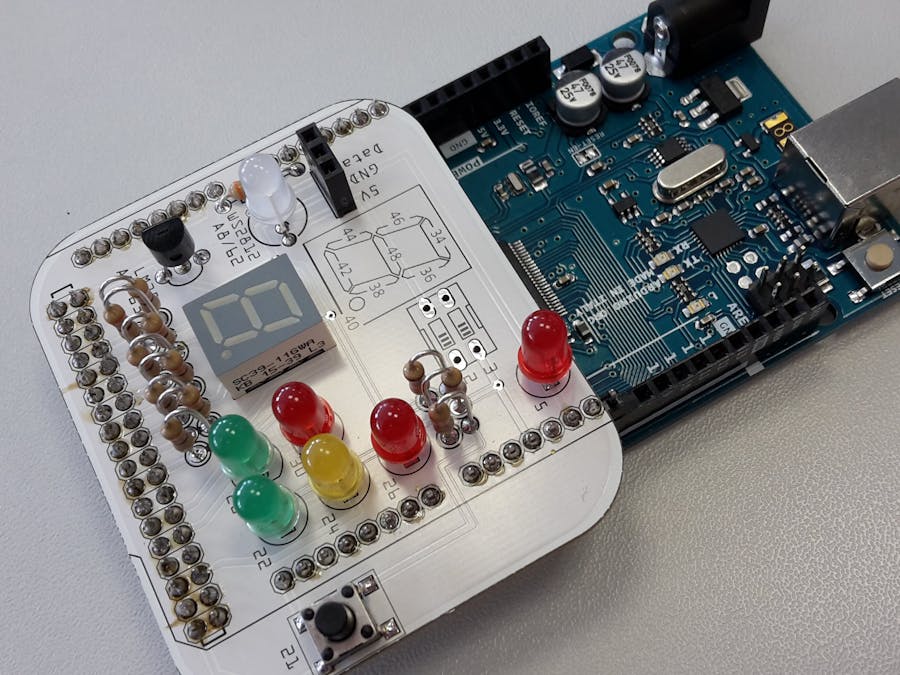

This project was developed as accessory for a beginners programming course. It aims on providing examples for the most common Arduino programming use cases. As a help, all used pins are printed on top.

Designed for an Arduino Mega!

List of Components:

• 3 red LEDs with build-in resistors

• 2 green LEDs with build-in resistors

• 1 yellow LEDs with build-in resistors

• 1 5mm WS2812 LED

• 2 10k resistors

• 10 330 resistors

• 1 LM35 temperature sensor

• 1 7 Segmentdisplay

• 2 pin dip switch (not on the pictures)

• 1 push down button

• 1 1*3 header (for more WS2812 LEDs)

• 4 1*8 pin headers

• 1 2*6 pin header

• 1 2*10 pin header

Possible Tasks:

• build a traffic light including pedestian light and countdown

• read temperature value as analog input

• try a ws2812 LED (=Neopixel) and add more

• use pwm to dim a LED
