Tim Jarosz
Published © MIT

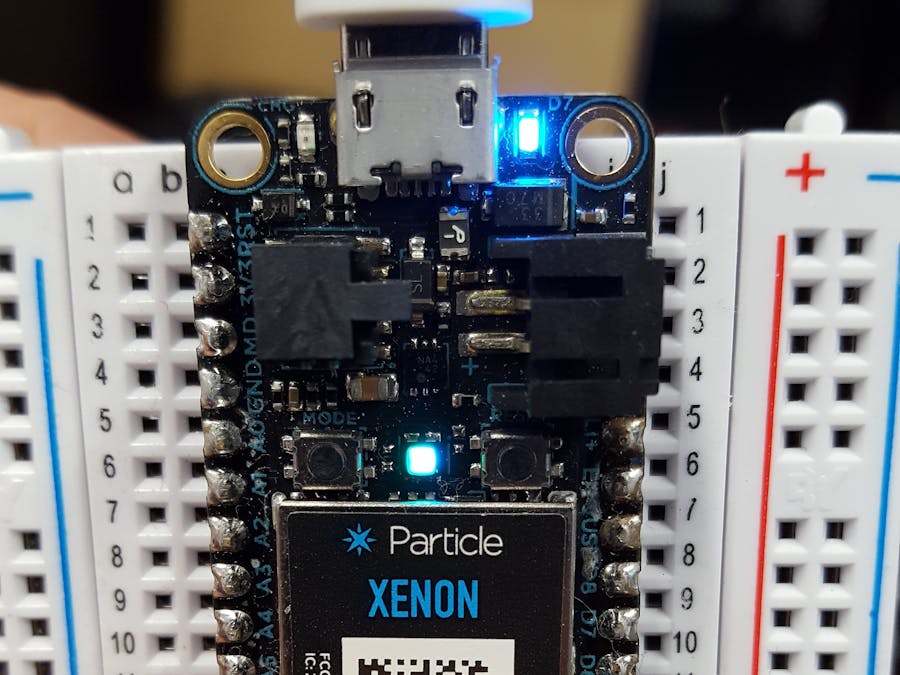

Particle Mesh Pi Day 2019

My entry for the Particle.io community Pi Day contest 2019. I used a Particle Xenon to flash 100 decimal places of Pi in Morse code.

BeginnerFull instructions provided1 hour694
Particle Mesh Pi Day 2019

Things used in this project

Hardware components

Xenon
Particle Xenon
Does the actual LED blinking of Morse Code.
×1
Argon
Particle Argon
Acts as a gateway to send the compiled code to the Xenon endpoint over-the-air (OTA).
×1

Story

Read more

Schematics

Pi-day Blinking Video

Watch 50 seconds of the number Pi being flashed in Morse code.

Code

Pi-day Morse Code

C/C++
You can flash this to just about any Particle device (Photon, Electron, Argon, Xenon, Boron).
.
#include <math.h>

//Original morse_code by LED
/*
  This code was written by Ebrahim Bawazir in 2013 and updated in 2015
          U R FREE TO USE IT AND MODIFY IT AS U WANT
                      *****************
*/

//Adapted for use to flash 100 digits of Pi by ninjatill
//for the Particle.io community Pi-day contest

int LED = D7;//the led pin
char piArray[] = "3.141592653589793238462643383279502884197169399375105820974944592307816406286208998628034825342117067";
char input;
uint8_t charIndex = 0;
unsigned long startMillis = 0;
unsigned long delayDuration = 10000;

float speedMultiplier = 2;

enum states:int {
  PROCESS
  , DELAY
};

states myState;
states lastState;

void setup () {
  pinMode(LED,OUTPUT);//tell that the 13 pin is an output
  digitalWrite(LED, HIGH);
  delay(500);
  digitalWrite(LED, LOW);
  myState = states::DELAY;
  lastState = states::PROCESS;
}

void loop () {
    if (myState != lastState) {
        lastState = myState;

        switch (myState) {
            case PROCESS:
                charIndex = 0;
                break;
            case DELAY:
                startMillis = millis();
                break;
        }
    }

    switch (myState) {
        case PROCESS: // code to be executed if n = 1;
            ProcessArray();
            break;
        case DELAY: // code to be executed if n = 2;
            if (millis() - startMillis > delayDuration) {
                myState = PROCESS;
            }
            break;
    }

}

void ProcessArray() {
    if (charIndex < arraySize(piArray)) {
        input = piArray[charIndex];
        if (input == 'a' || input == 'A') {lA();}//if the input is a or A go to function lA
        if (input == 'b' || input == 'B') {lB();}//same but with b letter
        if (input == 'c' || input == 'C') {lC();}
        if (input == 'd' || input == 'D') {lD();}
        if (input == 'e' || input == 'E') {lE();}
        if (input == 'f' || input == 'F') {lF();}
        if (input == 'g' || input == 'G') {lG();}
        if (input == 'h' || input == 'H') {lH();}
        if (input == 'i' || input == 'I') {lI();}
        if (input == 'j' || input == 'J') {lJ();}
        if (input == 'k' || input == 'K') {lK();}
        if (input == 'l' || input == 'L') {lL();}
        if (input == 'm' || input == 'M') {lM();}
        if (input == 'n' || input == 'N') {lN();}
        if (input == 'o' || input == 'O') {lO();}
        if (input == 'p' || input == 'P') {lP();}
        if (input == 'q' || input == 'Q') {lQ();}
        if (input == 'r' || input == 'R') {lR();}
        if (input == 's' || input == 'S') {lS();}
        if (input == 't' || input == 'T') {lT();}
        if (input == 'u' || input == 'U') {lU();}
        if (input == 'v' || input == 'V') {lV();}
        if (input == 'w' || input == 'W') {lW();}
        if (input == 'x' || input == 'X') {lX();}
        if (input == 'y' || input == 'Y') {lY();}
        if (input == 'z' || input == 'Z') {lZ();}
        if (input == '1') {n1();}// the numbers
        if (input == '2') {n2();}
        if (input == '3') {n3();}
        if (input == '4') {n4();}
        if (input == '5') {n5();}
        if (input == '6') {n6();}
        if (input == '7') {n7();}
        if (input == '8') {n8();}
        if (input == '9') {n9();}
        if (input == '0') {n0();}
        if (input == '.') {space();}//the space
        if (input == ' ') {space();}//the space
        charIndex++;
    } else {
        myState = states::DELAY;
    }
}

//f=unctions for the letters and the numbers
void lA () {dot();dash();shortspace();}//letter A in morse code!
void lB () {dash();dot();dot();dot();shortspace();}//same for B
void lC () {dash();dot();dash();dot();shortspace();}
void lD () {dash();dot();dot();shortspace();}
void lE () {dot();shortspace();}
void lF () {dot();dot();dash();dot();shortspace();}
void lG () {dash();dash();dot();shortspace();}
void lH () {dot();dot();dot();dot();shortspace();}
void lI () {dot();dot();shortspace();}
void lJ () {dot();dash();dash();dash();shortspace();}
void lK () {dash();dot();dash();shortspace();}
void lL () {dot();dash();dot();dot();shortspace();}
void lM () {dash();dash();shortspace();}
void lN () {dash();dot();shortspace();}
void lO () {dash();dash();dash();shortspace();}
void lP () {dot();dash();dash();dot();shortspace();}
void lQ () {dash();dash();dot();dash();shortspace();}
void lR () {dot();dash();dot();shortspace();}
void lS () {dot();dot();dot();shortspace();}
void lT () {dash();shortspace();}
void lU () {dot();dot();dash();shortspace();}
void lV () {dot();dot();dot();dash();shortspace();}
void lW () {dot();dash();dash();shortspace();}
void lX () {dash();dot();dot();dash();shortspace();}
void lY () {dash();dot();dash();dash();shortspace();}
void lZ () {dash();dash();dot();dot();shortspace();}
void n1 () {dot();dash();dash();dash();dash();shortspace();}//number 1 in morse code
void n2 () {dot();dot();dash();dash();dash();shortspace();}
void n3 () {dot();dot();dot();dash();dash();shortspace();}
void n4 () {dot();dot();dot();dot();dash();shortspace();}
void n5 () {dot();dot();dot();dot();dot();shortspace();}
void n6 () {dash();dot();dot();dot();dot();shortspace();}
void n7 () {dash();dash();dot();dot();dot();shortspace();}
void n8 () {dash();dash();dash();dot();dot();shortspace();}
void n9 () {dash();dash();dash();dash();dot();shortspace();}
void n0 () {dash();dash();dash();dash();dash();shortspace();}
void period () {dot();dash();dot();dash();dot();dash();shortspace();}
void space () {delay (ceil((float)1200 / speedMultiplier));}//space between words
void dot () {digitalWrite(LED,HIGH); delay (ceil((float)300 / speedMultiplier)); digitalWrite(LED,LOW); delay (ceil((float)300 / speedMultiplier));}//the dot this code make the led on for 300 than off for 300
void dash () {digitalWrite(LED,HIGH); delay (ceil((float)900 / speedMultiplier)); digitalWrite(LED,LOW); delay (ceil((float)300 / speedMultiplier));}//the dash this code make the led on for 900 than off for 300
void shortspace () {delay(ceil((float)600 / speedMultiplier));}//space between letters
/*done*/

Credits

Tim Jarosz
1 project • 1 follower
Hobbyist engineer. Mainly using Particle Photon (and some Arduino Unos) for IoT.
Contact
Thanks to Ebrahim Bawazir.
