1.Please use internet cable to connect ICOM Next with the computer, and charge ICOM Next via 12V power adapter or connect ICOM Next to BMW vehicle for power.
2.Use IE Internet Explorer to open http://169.254.33.45:60080/, username/password: root/NZY1150263

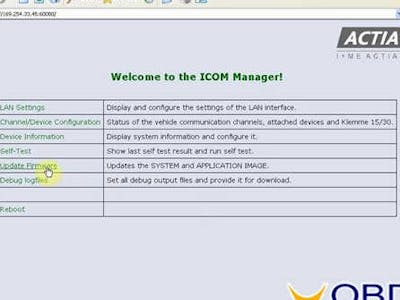

3.Select “Update Firmware”, you can see ICOM firmware version information.
4.Select “Browse” to select file “ICOM-BootImage-01-25-02.bin”, set image type as “SYSTEM”, click “Send the file”.
5.Select “Yes” when you get prompt “Write the image file to the flash?”, then ICOM indicator light will turn red.
6.When it shows “The SYSTEM IMAGE update was successful”, click “Update Firmware”.
7. Choose “ICOM-ApplicationImage-01-40-05.bin”, set image type “APPLICATION”, click “Send the file”, this will be done in several minutes please be patient.
8.click “Yes” when you get prompt “Write the image file to the flash?”, then the ICOM indicator light will turn red again.
9.Complete updating, click “reboot”.
10.Click “Home” – “Update Firmware”, you will see ICOM Next firmware display the newest version.
Tip:Make sure your computer obtain IP address automatically.
Done! GOOD LUCK!
