DIY Ultrasonic Radar

Hello world, This time I'm going to make ultrasonic radar from Arduino nano and HC-SR04. I'm using arduino nano because I want to make my project compact.

Supplies

We need:-

HARDWARE

1)Arduino nano

2)Breadboard

3)Some jumper wires

4)HC-SR04 ultrasonic sensor

5) A micro servo motor

SOFTWARE

1)Arduino IDE

2)Processing 3

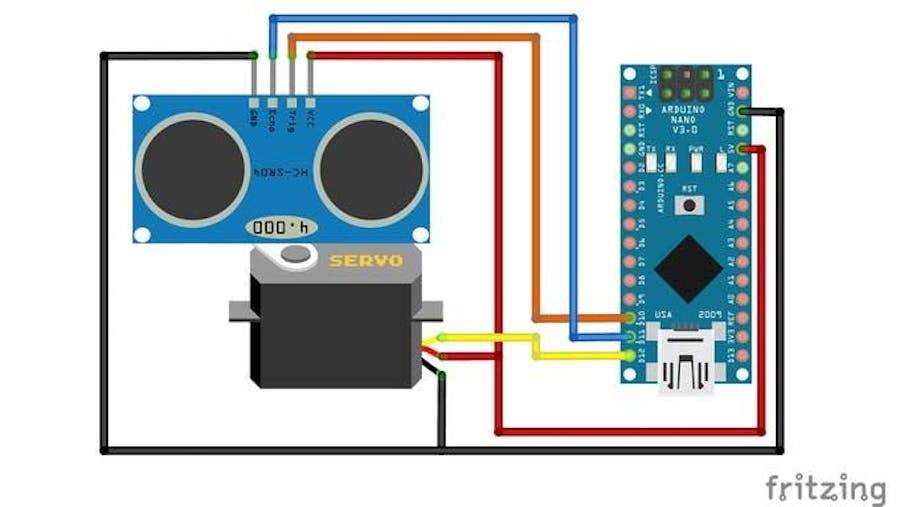

Step 1: Connections

Connections are very simple. I will use a breadboard for easiness.

Connect VCC & GND of Servo & Ultrasonic sensor to 5v & GND of arduino nano respectively.

Connect Echo of ultrasonic sensor to D10.

Connect Trig of ultrasonic sensor to D11.

Signal pin of servo to D12.

See schematics for clear understanding..........

Step 2: Programming

Proggraming of this project divides into 2 sections.

1) ARDUINO IDE.

2) PROCESSING 3.

I've attach both codes with this step.

Step 3: Working

I've uploaded a video of this project with full tutorial. You can see my video on my youtube channel.
