Protoboard/shield for easy and safe prototyping with a Spark Core. This protoboard is designed to fit in a OKW Plug/Socket Case A9022465 (RS art.nr 583-432). Check so the socket and plug works in your country.
RWino-Plug is a protoboard/shield for Spark Core. With this card you can easily build a WIFI controlled power switch or dimmer. It is up to you to make the rest of the design and software. I have made a simple Arduino sketch to demonstrate zero crossing detector and firing of the triac. Altium CAD-files and Gerber files.
RWino Plug

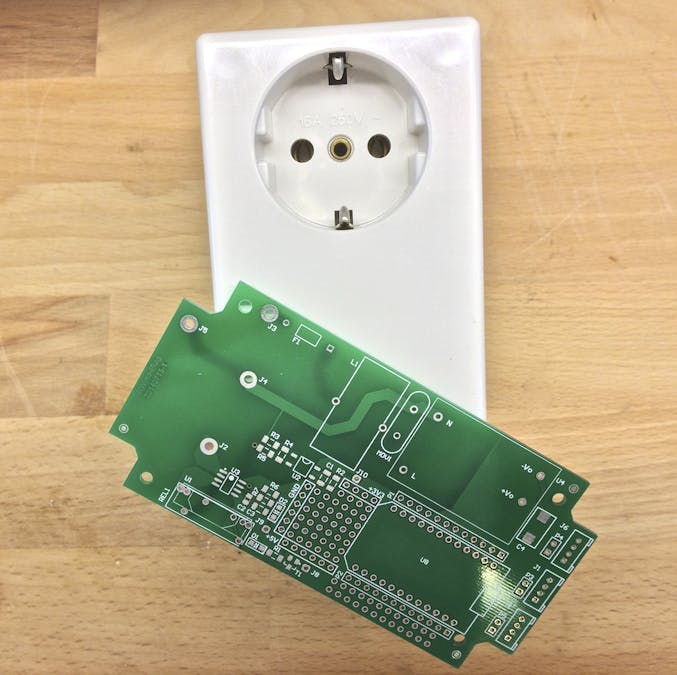

On the protoboard/shield there are places for a power supply, relay or solid state relay/ triac, filter, optocoupler for zero crossing detector, Spark Core module and prototype area.
The protoboard/shield comes with schematics and BOM-list with information were you can buy components for the PCB.
RWino-Plug is designed to handle 230VAC 6A, it's important that you understand that it's on your on risk you use this protoboard/shield.
We only sell the PCB Card.
