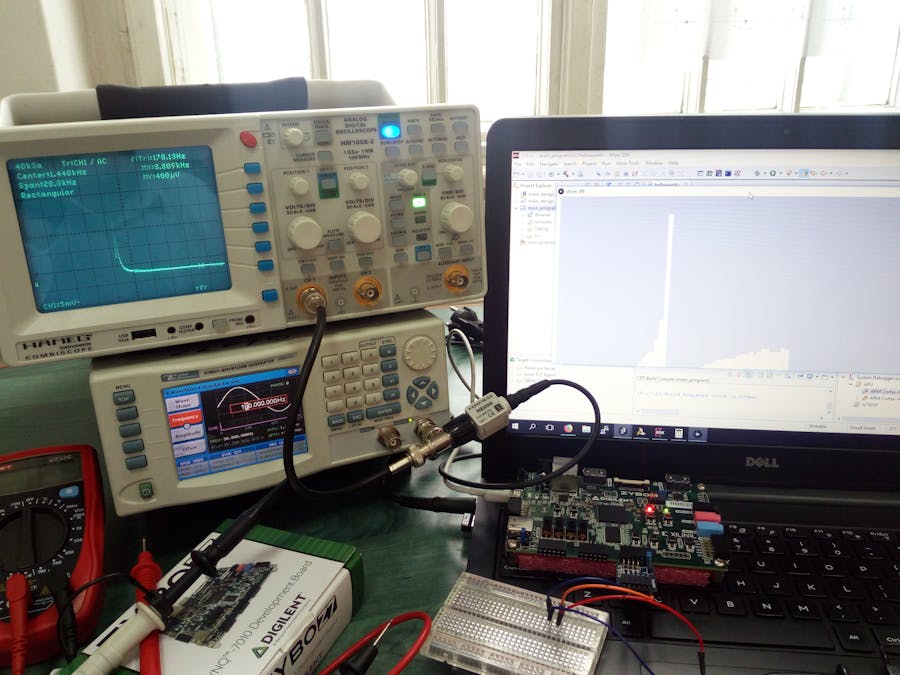

Spectrum Analyzer for Industrial Applications

#include <stdio.h>
#include <stdbool.h>
#include <math.h>
#include "platform.h"
#include "xil_printf.h"
#include <xgpio.h>
#include "xparameters.h"
#include "sleep.h"
#include "PmodAD2.h"

// FSM Statuses
#define RESET 0
#define WRITE 1
#define READ 2
#define PROCESSING 3
#define CHECK_RFFD 4
#define SHOW 5
#define READ_AD 6

// function prototipes
void one_clock(u16 data_write);
bool check_rffd();
bool check_valid();

int state = 0;
int count = 0;
int read_count = 0;
u16 value = 0;
u16 data_write = 0x0000;
u32 dft_data = 0x00000000;
u8 exp_data = 0x00;
#define num_points 120

u16 xk_re[num_points - 1];
u16 xk_im[num_points - 1];
u16 analog_signal[num_points -1];

XGpio gpio, gpio2;
PmodAD2 analog_in;

int main()
{
	XGpio_Initialize(&gpio, XPAR_AXI_GPIO_0_DEVICE_ID);
	XGpio_SetDataDirection(&gpio, 1, 0x0); // channel 1 OUTPUT
	XGpio_SetDataDirection(&gpio, 2, 0xF); // channel 2 INPUT

	XGpio_Initialize(&gpio2, XPAR_AXI_GPIO_1_DEVICE_ID);
	XGpio_SetDataDirection(&gpio2, 1, 0xF); // channel 1 INPUT
	XGpio_SetDataDirection(&gpio2, 2, 0x0); // channel 2 OUTPUT

	// set transform length (D'8' = 120 points;
	XGpio_DiscreteWrite(&gpio2, 2, 0x08);

	AD2_begin(&analog_in, XPAR_PMODAD2_0_AXI_LITE_IIC_BASEADDR, AD2_IIC_ADDR);
	AD2_WriteConfig(&analog_in, 0x10);

	init_platform();
    //print("Platform init\n\r");

    while(1){
    	switch(state){
    	case RESET:
    		// clear = 1 (bit 14);
    		data_write = 0x4000;
    		XGpio_DiscreteWrite(&gpio, 1, data_write);
    		// CLK
    		one_clock(data_write);
    		// clear = 0 (bit 14);
    		data_write = data_write & 0xBFFF;
    		//xil_printf("DFT Reset\n\r");
    		if(check_rffd()){
    			count = 0;
    			state = READ_AD;
    		}else{
    			state = RESET;
    		}
    		break;
    	case READ_AD:
    		for(int i = 0; i <= num_points; i++){
        		int an1 = 0;
        		int an2 = 0;
    			usleep(250);
    			value = 0;

    			AD2_ReadConv(&analog_in, &value);
				value = value & AD2_DATA_MASK;
				an1 = value;

				value = 0;
				AD2_ReadConv(&analog_in, &value);
				value = value & AD2_DATA_MASK;
				an2 = value;

    			analog_signal[i] = ((an1 + an2) / 2)/2; // average of 2 readings
    			//xil_printf("%d \n\r", value);
    		}
			state = WRITE;
    		break;
    	case WRITE:

    		data_write = 0x0;
    		//XN RE to DFT
    		data_write = data_write | analog_signal[count];
    		// if count = 0 then set FD_IN
    		if(count == 0){
    			data_write = data_write | 0x2000;
    		}
    		XGpio_DiscreteWrite(&gpio, 1, data_write);

    		// CLK
    		one_clock(data_write);
    		count = count + 1;

    		if(count == num_points-1){
    			count = 0;
    			data_write = 0x0;
    			state = PROCESSING;
    		}else{
    			state = WRITE;
    		}
    		break;
    	case READ:
    		dft_data = 0;
    		dft_data = XGpio_DiscreteRead(&gpio, 2);

    		xk_re[read_count] = dft_data & 0x00000FFF;
    		//xk_im[read_count] = dft_data & 0x00FFF000;

    		one_clock(data_write);

    		if(read_count == 0){
				exp_data = XGpio_DiscreteRead(&gpio2, 1);
				//xil_printf("%d\n",exp_data);

			}
    		read_count = read_count + 1;
    		if(check_valid()){
				state = READ;
			}else{
				state = SHOW;
			}
    		break;
    	case SHOW:
    		//xil_printf("ready");
    		for(int i = 0; i <= num_points-1; i++){
    			if(i==(num_points-1)){
    				xil_printf("%d\n",xk_re[i]);
    			}else{
    				xil_printf("%d,",xk_re[i]);
    			}
    		}
    		state = RESET;
    		break;
    	case PROCESSING:
    		one_clock(data_write);
    		// check data_valid
    		if(check_valid()){
    			read_count = 0;
    			state = READ;
    		}else{
    			state = PROCESSING;
    		}
    		break;
    	default:break;
    	}
    }

    cleanup_platform();
    return 0;
}

void one_clock(u16 data_write){
	data_write = data_write | 0x8000;
	XGpio_DiscreteWrite(&gpio, 1, data_write);
	usleep(1);
	data_write = data_write & 0x7FFF;
	XGpio_DiscreteWrite(&gpio, 1, data_write);
}

bool check_rffd(){
	u32 data = XGpio_DiscreteRead(&gpio, 2);
	if((data & 0x08000000) > 0 ){
		return true;
	}else{
		return false;
	}
}

bool check_valid(){
	u32 data = XGpio_DiscreteRead(&gpio, 2);
	if((data & 0x02000000) > 0 ){
		return true;
	}else{
		return false;
	}
}
