Emic 2 Web Interface

This is my first attent to create a Tessel module utilizing simple components from Radio Shack and Sparkfun.

Components used

• Tessel
• Emic 2
• Thin Speaker
• DUAL MINI BOARD WITH 213 HOLES
• SPDT Slide Switch

Software

• tiny-router
• emic2

Wiring

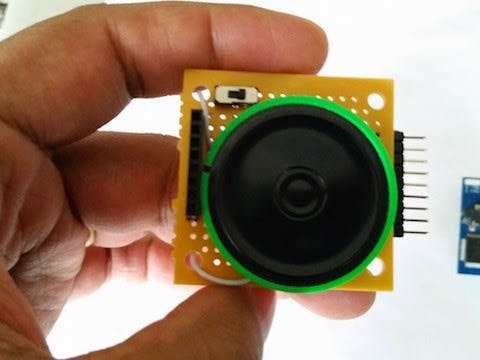

Assembly

Web Interface

Install & run

 git clone https://github.com/pirumpi/emic2-interface.git
    npm install //Install dependencies
    tessel push app.js //run app

Code Preview

 var tessel = require('tessel');
    var router = require('tiny-router');
    var emic2 = require('emic2').use(tessel.port['D']);
    router
        .use('static', {path: './static'})
        .get('/language/{lan}', function(req, res){
            emic2.setLanguage(req.body.lan);
            res.send('ok');
        })
        .get('/volume/{vol}', function(req, res){
            emic2.setVolume(parseInt(req.body.vol));
            res.send('ok');
        })
        .........

Comments

The module is actually too big, so I can't connect other modules if this one is connected. I would really like to get my hands on a Tessel prototype board so I can get the right mesurements. Overall, it was a fun and simple projects for the holidays.
