Trash Bot

Smart Trash can using Arduino UNO and ultrasonic sensor.

BeginnerShowcase (no instructions)575
Trash Bot

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Ultrasonic Sensor - HC-SR04 (Generic)
Ultrasonic Sensor - HC-SR04 (Generic)
×1
SG90 Micro-servo motor
SG90 Micro-servo motor
×1
Jumper wires (generic)
Jumper wires (generic)
×1

Software apps and online services

Arduino IDE
Arduino IDE

Hand tools and fabrication machines

Hot glue gun (generic)
Hot glue gun (generic)
Old box
Thread
It is to connect the servo and the lid

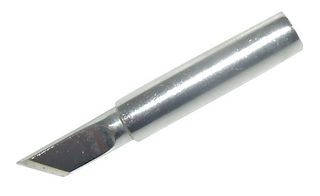

Soldering Iron Tip, Blade
Soldering Iron Tip, Blade

Story

Read more

Schematics

Circuit Diagram

Code

Code

Arduino
#include <Servo.h>   //servo library
Servo servo;
int trigPin = 5;
int echoPin = 6;
int servoPin = 7;
int led= 10;
long duration, dist, average;
long aver[3];   //array for average


void setup() {
    Serial.begin(9600);
    servo.attach(servoPin);
    pinMode(trigPin, OUTPUT);
    pinMode(echoPin, INPUT);
    servo.write(0);         //close cap on power on
    delay(100);
    servo.detach();
}

void measure() {
 digitalWrite(10,HIGH);
digitalWrite(trigPin, LOW);
delayMicroseconds(5);
digitalWrite(trigPin, HIGH);
delayMicroseconds(15);
digitalWrite(trigPin, LOW);
pinMode(echoPin, INPUT);
duration = pulseIn(echoPin, HIGH);
dist = (duration/2) / 29.1;    //obtain distance
}
void loop() {
  for (int i=0;i<=2;i++) {   //average distance
    measure();
   aver[i]=dist;
    delay(10);              //delay between measurements
  }
 dist=(aver[0]+aver[1]+aver[2])/3;

if ( dist<50 ) {
//Change distance as per your need
 servo.attach(servoPin);
  delay(1);
 servo.write(0);
 delay(3000);
 servo.write(150);
 delay(1000);
 servo.detach();
}
Serial.print(dist);
}
