LightBlue Sandbox: Trackpad Control

Control your Bean's LED with the Bean Sandbox in LightBlue Explorer for iOS!

BeginnerProtip304
LightBlue Sandbox: Trackpad Control

Things used in this project

Hardware components

LightBlue Bean
Punch Through LightBlue Bean
×1

Hand tools and fabrication machines

Punch Through LightBlue Explorer for iOS

Story

Read more

Code

TrackpadControl.ino

Arduino
#define BUF_SIZE 64

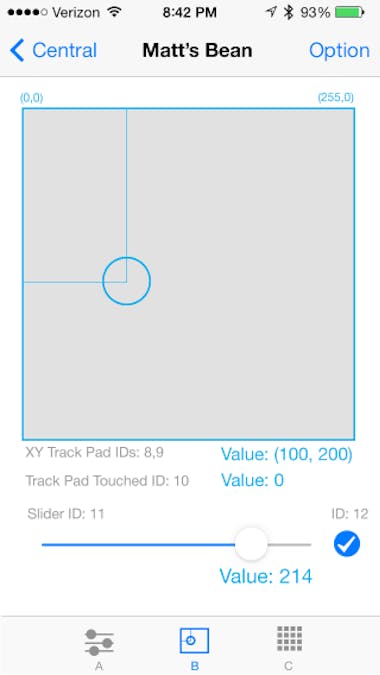

// Sandbox control IDs
const char MSG_XYPAD_X = 8;
const char MSG_XYPAD_Y = 9;

// State variables and default values
char rate = 40;
char intensity = 127;
char buffer[BUF_SIZE] = {0};

void setup() {
  // Bean starts serial automatically; no need to set baud rate
  // Prevent Serial.readBytes from blocking when the user isn't sending us data
  Serial.setTimeout(5);
}

void loop() {
  length = Serial.readBytes(buffer, BUF_SIZE);

  if (length > 0) {
    // Iterate over sandbox messages by processing groups of two bytes.
    for (char i = 0; i < length - 1; i += 2) {
      if (buffer[i] == MSG_XYPAD_X) {
        rate = buffer[i + 1];
        // Cap the blink rate at a minimum period of 10 ms
        if (rate < 5) {
          rate = 5;
        }

      } else if (buffer[i] == MSG_XYPAD_Y) {
        intensity = buffer[i + 1];
      }
    }
  }

  // Blink the LED at the configured intensity and rate
  Bean.setLed(0, intensity, intensity);
  delay(rate);
  Bean.setLed(0, 0, 0);
  delay(rate);
}
