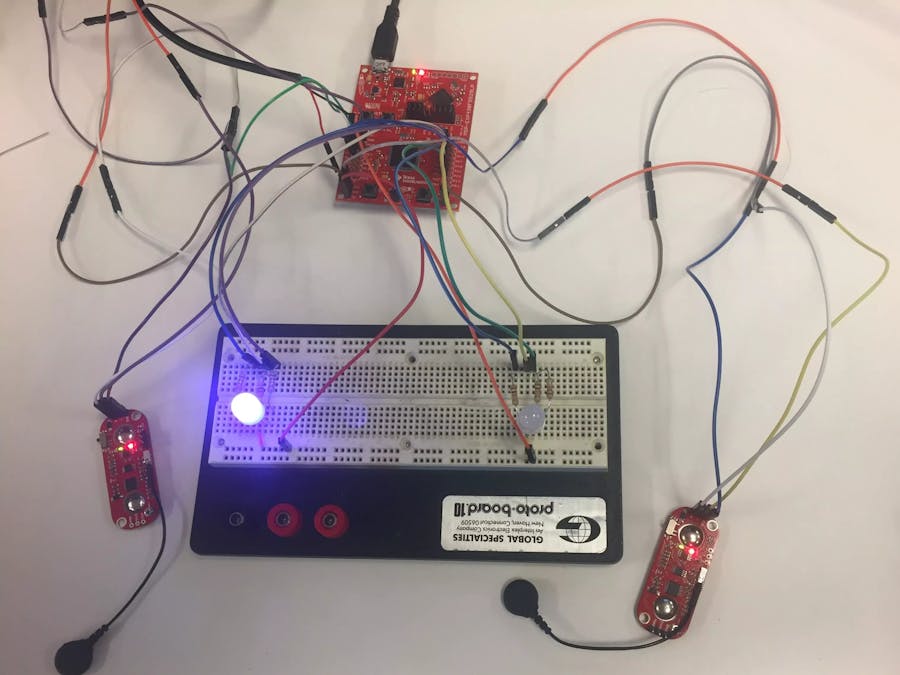

Virtual Arm Wrestling

#include "driverlib.h"

//Timer
int Timer = 1000;

//Voltage variable
int voltage;
int voltage2;

char low[10] = "Low V";
char med[10] = "Med V";
char high[10] = "High V";

char armone[10] = "Arm 1";
char armtwo[10] = "Arm 2";

//LED pin setup
#define Blue BIT3
#define Green BIT4
#define Red BIT5
//LED functions
void RedLED1();
void GreenLED1();
void BlueLED1();

void RedLED2();
void GreenLED2();
void BlueLED2();

void ArmOne();
void ArmTwo();


int v = 0;
int w = 0;

void main (void)
{
    volatile uint16_t i;

    //Stop Watchdog Timer
    WDT_A_hold(WDT_A_BASE);

    //Enable A/D channel A0
    GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P6,
                                               GPIO_PIN1
                                               );
    GPIO_setAsPeripheralModuleFunctionInputPin(GPIO_PORT_P6,
            GPIO_PIN6
            );
    //LED 1
        GPIO_setAsOutputPin(GPIO_PORT_P1,
                            GPIO_PIN5);
        GPIO_setAsOutputPin(GPIO_PORT_P1,
                            GPIO_PIN4);
        GPIO_setAsOutputPin(GPIO_PORT_P1,
                            GPIO_PIN3);

        //LED 2
        GPIO_setAsOutputPin(GPIO_PORT_P1,
                            GPIO_PIN2);
        GPIO_setAsOutputPin(GPIO_PORT_P4,
                            GPIO_PIN3);
        GPIO_setAsOutputPin(GPIO_PORT_P4,
                            GPIO_PIN0);

        //RS232 Connection SetUp
    P3SEL |= BIT3+BIT4;                       // P3.3,4 = USCI_A0 TXD/RXD
     UCA0CTL1 |= UCSWRST;                      // **Put state machine in reset**
     UCA0CTL1 |= UCSSEL_2;                     // SMCLK
     UCA0BR0 = 9;                              // 1MHz 115200 (see User's Guide)
     UCA0BR1 = 0;                              // 1MHz 115200
     UCA0MCTL |= UCBRS_1 + UCBRF_0;            // Modulation UCBRSx=1, UCBRFx=0
     UCA0CTL1 &= ~UCSWRST;                     // **Initialize USCI state machine**
     UCA0IE |= UCRXIE;                         // Enable USCI_A0 RX interrupt

     UCA0BR0   = 104;          // 1MHz SMCLK, 9600 bits/second (baud)
     UCA0BR1   = 0;            // 1MHz SMCLK, 9600 baud
     UCA0MCTL  = UCBRS1;       // 2nd Modulation stage = 1
     UCA0CTL1 &= ~UCSWRST;     // Initialize USCI state machine

     //Initialize the ADC12_A Module
     /*
      * Base address of ADC12_A Module
      * Use internal ADC12_A bit as sample/hold signal to start conversion
      * USE MODOSC 5MHZ Digital Oscillator as clock source
      * Use default clock divider of 1
      */
     ADC12_A_init(ADC12_A_BASE,
         ADC12_A_SAMPLEHOLDSOURCE_SC,
         ADC12_A_CLOCKSOURCE_ADC12OSC,
         ADC12_A_CLOCKDIVIDER_1);

     ADC12_A_enable(ADC12_A_BASE);

     /*
      * Base address of ADC12_A Module
      * For memory buffers 0-7 sample/hold for 64 clock cycles
      * For memory buffers 8-15 sample/hold for 4 clock cycles (default)
      * Disable Multiple Sampling
      */
     ADC12_A_setupSamplingTimer(ADC12_A_BASE,
         ADC12_A_CYCLEHOLD_64_CYCLES,
         ADC12_A_CYCLEHOLD_4_CYCLES,
         ADC12_A_MULTIPLESAMPLESDISABLE);

     //Configure Memory Buffer
     /*
      * Base address of the ADC12_A Module
      * Configure memory buffer 0
      * Map input A0 to memory buffer 0
      * Vr+ = Vref+ (int)
      * Vr- = AVss
      * Memory buffer 0 is not the end of a sequence
      */
     ADC12_A_configureMemoryParam param = {0};
     param.memoryBufferControlIndex = ADC12_A_MEMORY_0;
     param.inputSourceSelect = ADC12_A_INPUT_A0;

     param.memoryBufferControlIndex = ADC12_A_MEMORY_1;
     param.inputSourceSelect = ADC12_A_INPUT_A6;

     param.positiveRefVoltageSourceSelect = ADC12_A_VREFPOS_INT;
     param.negativeRefVoltageSourceSelect = ADC12_A_VREFNEG_AVSS;
     param.endOfSequence = ADC12_A_NOTENDOFSEQUENCE;
     ADC12_A_configureMemory(ADC12_A_BASE ,&param);

     //Configure internal reference
     //If ref generator busy, WAIT
     while ( REF_ACTIVE == Ref_isRefGenBusy(REF_BASE) ) ;
     //Select internal ref = 1.5V
     Ref_setReferenceVoltage(REF_BASE,
         REF_VREF1_5V);
     //Internal Reference ON
     Ref_enableReferenceVoltage(REF_BASE);

     //Delay (~75us) for Ref to settle
     __delay_cycles(75);


     while (0 < Timer)
     {
         //Enable/Start first sampling and conversion cycle
         /*
          * Base address of ADC12_A Module
          * Start the conversion into memory buffer 0
          * Use the single-channel, single-conversion mode
          */
         ADC12_A_startConversion(ADC12_A_BASE,
             ADC12_A_MEMORY_0,
             ADC12_A_SINGLECHANNEL);
         ADC12_A_startConversion(ADC12_A_BASE,
                    ADC12_A_MEMORY_1,
                    ADC12_A_SINGLECHANNEL);

         //Poll for interrupt on memory buffer 0
         while (!ADC12_A_getInterruptStatus(ADC12_A_BASE,
                    ADC12IFG0)) ;

         voltage = (unsigned int) ADC12MEM0;

         while (!ADC12_A_getInterruptStatus(ADC12_A_BASE,
                           ADC12IFG1)) ;

                voltage2 = (unsigned int) ADC12MEM1;

        //Arm 1 LED controll
        if(0 < voltage && voltage < 2500)
        {
            RedLED1();
        }
        if(2500 < voltage && voltage < 2700)
        {
            BlueLED1();
        }
        if(2700 < voltage && voltage < 3000)
        {
            GreenLED1();
        }

        //Arm2 LED controll
        if(0 < voltage2 && voltage2 < 2500)
        {

            RedLED2();
        }
        if(2500 < voltage2 && voltage2 < 2700)
        {
            BlueLED2();
        }
        if(2700 < voltage2 && voltage2 < 3000)
        {
            GreenLED2();
        }

        if(voltage > voltage2)
        {
            v = 0;
            w = 0;
            ArmOne();
        }
        else
        {
            v = 0;
            w = 0;
            ArmTwo();
        }

        Timer--;

        //SET BREAKPOINT HERE
        __no_operation();
    }
}

void RedLED1()
{
    GPIO_setOutputLowOnPin(GPIO_PORT_P1,
                                GPIO_PIN5);
        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN4);
        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN3);

        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                   GPIO_PIN2);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN3);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN0);
}
void GreenLED1()
{
    GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN5);
        GPIO_setOutputLowOnPin(GPIO_PORT_P1,
                                GPIO_PIN4);
        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN3);

        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                   GPIO_PIN2);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN3);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN0);
}

void BlueLED1()
{
    GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN5);
        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN4);
        GPIO_setOutputLowOnPin(GPIO_PORT_P1,
                                GPIO_PIN3);

        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                   GPIO_PIN2);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN3);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN0);
}

void RedLED2()
{
    GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN5);
        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN4);
        GPIO_setOutputLowOnPin(GPIO_PORT_P1,
                                GPIO_PIN3);

        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                   GPIO_PIN2);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN3);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN0);
}
void GreenLED2()
{
    GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN5);
        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN4);
        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN3);

        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                   GPIO_PIN2);
        GPIO_setOutputLowOnPin(GPIO_PORT_P4,
                                   GPIO_PIN3);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN0);
}

void BlueLED2()
{
    GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN5);
        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN4);
        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                GPIO_PIN3);

        GPIO_setOutputHighOnPin(GPIO_PORT_P1,
                                   GPIO_PIN2);
        GPIO_setOutputHighOnPin(GPIO_PORT_P4,
                                   GPIO_PIN3);
        GPIO_setOutputLowOnPin(GPIO_PORT_P4,
                                   GPIO_PIN0);
}



void ArmOne()
{
    while(v < 10)
    {
        UCA0TXBUF = armone[v];  // transmit single character
        v++;
        __delay_cycles(1000);
    }
}

void ArmTwo()
{
    while(w < 10)
    {
        UCA0TXBUF = armtwo[w];  // transmit single character
        w++;
        __delay_cycles(1000);
    }
}
