Seven-segment display with a 74HC595 shift register

Learn how to control a 1-digit seven segment display with a shift register!

IntermediateShowcase (no instructions)7,522
Seven-segment display with a 74HC595 shift register

Things used in this project

Hardware components

74HC595 shift register
×1

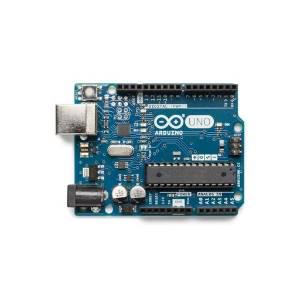

Arduino UNO
Arduino UNO
×1
7 Segment LED Display, InfoVue
7 Segment LED Display, InfoVue
×1
Resistor 220 ohm
Resistor 220 ohm
×2
Jumper wires (generic)
Jumper wires (generic)
lots
×20

Software apps and online services

Arduino IDE
Arduino IDE
Arduino Web Editor
Arduino Web Editor

Story

Read more

Schematics


Code

The code

C/C++
const int latchPin = 13; //latch pin of the 74HC595
const int clockPin = 12; //clock pin of the 74HC595
const int dataPin = 8;   //data pin of the 74HC595
byte leds = 0; //byte variable that holds which LED is turned on at a time
int repeatNum = 300; //number of times to repeat each number
int counter = 0; //counter variable used in the for loops
// Be warned: some numbers take longer to do because they use more LEDS than others, for instance, 1 (uses 2) and 8 (uses 7.) I have tried to make them about equal in terms of time
/* The lines of code:
* leds = 0;
* updateShiftRegister();
* turn off all LEDs
*/
/*
* LED-[  U  ]-VCC
* LED-[     ]-LED
* LED-[     ]-Pin 8 - Data Pin
* LED-[     ]-GND
* LED-[     ]-Pin 13 - Latch Pin
* LED-[     ]-Pin 12 - Clock Pin
* LED-[     ]-VCC
* GND-[     ]-None (Q7')
*     _3_
*5 - [   ] - 2
*    [_6_]
*4 - [   ] - 8
*    [_0_](.) - 7
*/
void setup() {
 pinMode(latchPin, OUTPUT);
 pinMode(dataPin, OUTPUT);
 pinMode(clockPin, OUTPUT);
}
void loop() {
 for(counter = 0; counter <= repeatNum; counter++){
   Zero();
 }
 for(counter = 0; counter <= repeatNum + 400; counter++){
   One();
 }
 for(counter = 0; counter <= repeatNum; counter++){
   Two();
 }
 for(counter = 0; counter <= repeatNum; counter++){
   Three();
 }
 for(counter = 0; counter <= repeatNum; counter++){
   Four();
 }
 for(counter = 0; counter <= repeatNum; counter++){
   Five();
 }
 for(counter = 0; counter <= repeatNum; counter++){
   Six();
 }
 for(counter = 0; counter <= repeatNum + 250; counter++){
   Seven();
 }
 for(counter = 0; counter <= repeatNum; counter++){
   Eight();
 }
 for(counter = 0; counter <= repeatNum; counter++){
   Nine();
 }
}
void updateShiftRegister()
{
  digitalWrite(latchPin, LOW);
  // set the latch pin to low so that the 74HC595 can recieve data
  shiftOut(dataPin, clockPin, MSBFIRST, leds);
  //write the byte leds to the register
  digitalWrite(latchPin, HIGH);
  //set latch pin back to high
}
void One(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 6);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 1);
 updateShiftRegister();
 delay(1);
}
void Two(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 2);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 1);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 5);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 3);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 0);
 updateShiftRegister();
 delay(1);
}
void Three(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 2);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 1);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 5);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 6);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 0);
 updateShiftRegister();
 delay(1);
}
void Four(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 4);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 5);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 1);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 6);
 updateShiftRegister();
 delay(1);
}
void Five(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 2);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 4);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 5);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 6);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 0);
 updateShiftRegister();
 delay(1);
}
void Six(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 2);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 4);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 5);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 6);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 0);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 3);
 updateShiftRegister();
 delay(1);
}
void Seven(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 6);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 1);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 2);
 updateShiftRegister();
 delay(1);
}
void Eight(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 2);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 4);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 5);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 6);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 0);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 3);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 1);
 updateShiftRegister();
 delay(1);
}
void Nine(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 2);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 4);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 5);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 6);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 0);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 1);
 updateShiftRegister();
 delay(1);
}
void Zero(){
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 2);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 4);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 1);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 6);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 0);
 updateShiftRegister();
 delay(1);
 leds = 0;
 updateShiftRegister();
 leds = 0;
 bitSet(leds, 3);
 updateShiftRegister();
 delay(1);
}
