Voice Controlled Curtain Using Alexa and ESP32

Curtain can be raised or lowered using voice or smartphone application.

IntermediateProtip2,622
Voice Controlled Curtain Using Alexa and ESP32

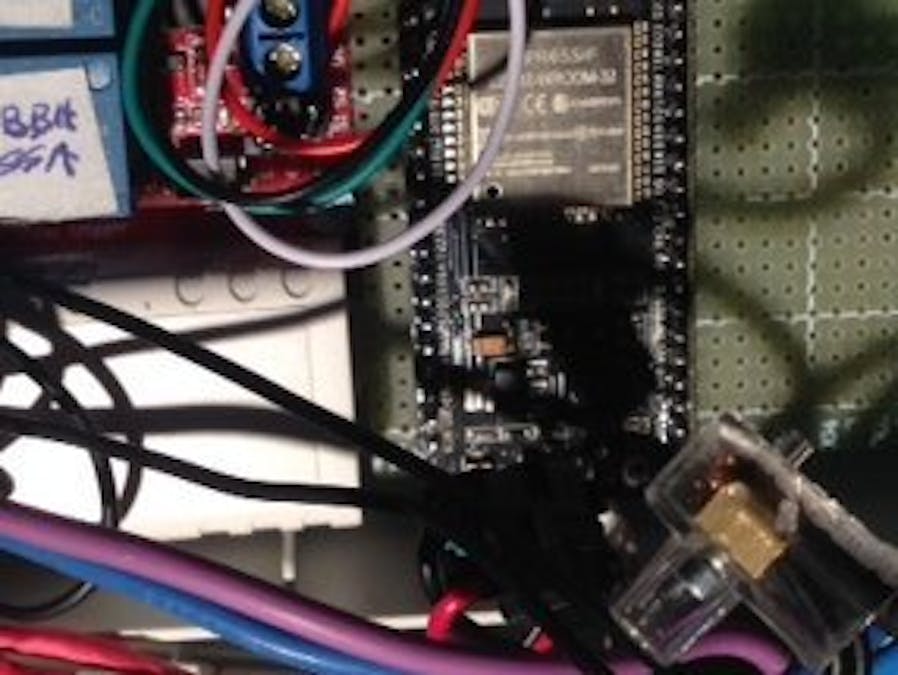

Things used in this project

Hardware components

SparkFun ESP32 Thing
SparkFun ESP32 Thing
×1
5 v power supply
×1
3 leds module
×1
2 relay board
×1
connectors
×1

Software apps and online services

sinric
Alexa Skills Kit
Amazon Alexa Alexa Skills Kit

Story

Read more

Schematics


Code

Alexa controlled curtain

C/C++
Refer to sinric page on github for instruction.
Then go to sinric.com and create account and devices. copy MyApi.ey and MyDeviceID in the code. Insert your wifi network name and password.
[code]
#include <Arduino.h>

#include <WiFi.h>
#include <WiFiMulti.h>
#include <WebSocketsClient.h>
#include <ArduinoJson.h> // get it from https://arduinojson.org/ or install via Arduino library manager
#include "pitches.h"
#include <SimpleTimer.h>
#include <Time.h>
WiFiMulti WiFiMulti;
WebSocketsClient webSocket;

//******************************************************************

#define MyApiKey "xxxxxxxxxxxxxxxxxxxxxxxx" // TODO: Change to your sinric API Key. Your API Key is displayed on sinric.com dashboard
//#define MySSID "xxxxxxxx" // TODO: Change to your Wifi network SSID
//#define MyWifiPassword "xxxxxxxx" // TODO: Change to your Wifi network password
//#define MyDeviceID  "xxxxxxxxxxxxxxxxxxxxxxx"
#define MySSID "xxxxxxxx"
#define MyWifiPassword "xxxxxx"
#define LED  2
#define red  27
#define green  26
int connec_ted = 2;
//  assegnazione  dei pin esp32
int status_on = 25;  //era 25
int lower = 32;
int raise_up = 33;
int connection = LOW;
int action_time = 35;  //35 times 1 second
int what_to_do;
int traffic_light = LOW;
int do_something = LOW;


SimpleTimer timer;



//***********************************************************************************************

void setup() {
  Serial.begin(115200);

  WiFiMulti.addAP(MySSID, MyWifiPassword);
  Serial.println("alexa_curtain 1.1");
  Serial.print("Connecting to Wifi: ");
  Serial.println(MySSID);
  pinMode(connesso, OUTPUT);
  pinMode(LED, OUTPUT);
  pinMode(red, OUTPUT);
  pinMode(green, OUTPUT);
  pinMode (status_on, OUTPUT);
  pinMode (raise_up, OUTPUT);
  pinMode (lower, OUTPUT);
  digitalWrite(raise_up, LOW);
  digitalWrite(lower, LOW);
  digitalWrite(connesso, HIGH);
  digitalWrite(red, HIGH);
  digitalWrite(green, HIGH);

  do_something = LOW;    // action switch on high ther is something to do

  xTaskCreatePinnedToCore(ActionTask, "ActionTask ", 4000, NULL, 5, NULL, 0); //Task for Core 1 priority set at 5
  // Waiting for Wifi connect
  while (WiFiMulti.run() != WL_connected) {
    delay(500);
    if (connection == LOW)
    {
      digitalWrite(connesso, HIGH);
      digitalWrite(status_on, LOW);
      connection = HIGH;
    } else {
      digitalWrite(connesso, LOW);
      digitalWrite(status_on, HIGH);
      connection = LOW;
    }
    Serial.print(".");
  }
  if (WiFiMulti.run() == WL_connected) {
    Serial.println("");
    Serial.print("WiFi connected. ");
    Serial.print("IP address: ");
    Serial.println(WiFi.localIP());
    digitalWrite(connesso, HIGH);
    digitalWrite(status_on, LOW);
  }

  // server address, port and URL
  webSocket.begin("iot.sinric.com", 80, "/");

  // event handler
  webSocket.onEvent(webSocketEvent);
  webSocket.setAuthorization("apikey", MyApiKey);
}
//***********************************************************************************************

void loop() {
  webSocket.loop();
  delay(1);

}

//***********************************************************************************************


void turnOn(String MyDeviceID) {
  if (MyDeviceID == "mysinric deviceid") // Device ID of first device
  {
    Serial.print("Turn ON first device with ID: ");
    Serial.println(MyDeviceID);
  }

}

//***********************************************************************************************

void turnOff(String MyDeviceID) {
  if (MyDeviceID == "mysinric deviceid") // Device ID of  device
  {
    Serial.print("Turn OFF first device with ID: ");
    Serial.println(MyDeviceID);
  }
}


//***********************************************************************************************

char minus = '-';

int n;

void webSocketEvent(WStype_t type, uint8_t * payload, size_t length)

{
  switch (type) {
    case WStype_DISconnec_ted:
      { Serial.printf("[WSc] Webservice disconnec_ted from sinric.com!\n");
      } break;
    case WStype_connec_ted: {
        Serial.printf("[WSc] Service connected to sinric.com at url: %s\n", payload);
        Serial.printf("Waiting for commands from sinric.com ...\n");
      }
      break;
    case WStype_TEXT: {
        Serial.printf("[WSc] get text: %s\n", payload);
        // Example payload for ON :
        //{"deviceId":"5a2b908a74a6703928abf38b","powerState":"ON"}
        DynamicJsonBuffer jsonBuffer (4000);
        JsonObject& json = jsonBuffer.parseObject((char*)payload);
        String deviceId = json ["deviceId"];
        String action = json ["action"];
        String value = json ["value"];

        if (deviceId == "mysinric deviceid") // Device ID of first device
        {
          if (traffic_light == LOW)
          { if ( action == "setPowerState")
            { Serial.println ("entry from power");
              if (value == "ON")
              { what_to_do = HIGH;  //raise_up
                do_something = HIGH;
              }
              if (value == "OFF")
              { what_to_do = LOW;   //lower
                do_something = HIGH;
              }

            }   if (action == "SetBrightness" )

            { Serial.println ("entry from brightness");  // if below 50% lower otherwise raise
              Serial.print (value );
              int n = (value [0] - 48) * 10;
              n = n + (value [1] - 48);
              Serial.println (n );
              Serial.print (" value 1 ");
              Serial.println (value [1] );
              if (n > 50 )
              {
                what_to_do = HIGH;  //raise_up
                do_something = HIGH;
                Serial.println ("raise_up from brightness");
              }
              if (n <= 50 )
              { what_to_do = LOW;   //lower
                do_something = HIGH; Serial.println ("lower from brightness");
              }

            }

            if ( action == "AdjustBrightness")

            { Serial.println ("entry from adjustbrightness");
              Serial.print (value );
              if ( value [0] != minus)
              {
                what_to_do = HIGH;  //raise_up
                do_something = HIGH;
                Serial.println ("raise_up from brightness");
              }
              if ( value [0] == minus)
              { what_to_do = LOW;   //lower
                do_something = HIGH; Serial.println ("lower from brightness");
              }

            }
          } else {
            traffic_light = LOW;
            digitalWrite(raise_up, LOW);//  stop action
            digitalWrite(lower, LOW);
          }
        }
      } break;
    case WStype_BIN:
      { Serial.printf("[WSc] get binary length: %u\n", length);
      } break;
  }

}



//****************************************************

void ActionTask (void * pvParameters)

{
  while (1)
  {
    if (do_something == HIGH)
    { traffic_light = HIGH;
      digitalWrite(LED, HIGH);
      digitalWrite(status_on, HIGH);
      { if (what_to_do == HIGH)             // raise_up curtain
        { digitalWrite(red, LOW);
          digitalWrite(raise_up, HIGH);    //funziona con logica inversa
          actiontime ();
          digitalWrite(raise_up, LOW);
          digitalWrite(red, HIGH);
        }
        else                          // lower curtain
        {
          if (traffic_light == HIGH)
          { digitalWrite(green, LOW);
            digitalWrite(lower, HIGH);    //this depend on the relay board switch it could be low or high for operate
            actiontime ();
          }
          digitalWrite(lower, LOW);
          digitalWrite(green, HIGH);
        }

      }
      digitalWrite(LED, LOW);
      digitalWrite(status_on, LOW);
      traffic_light = LOW;
      do_something = LOW;
    }


    vTaskDelay(2);
  }
}


//***********************************************************************************************

void actiontime ()
{ for (int i = 0; i < action_time; i++)
  { if (traffic_light == HIGH)
      vTaskDelay(1000);
  }
}

//***********************************************************************************************





[/code]

Alexa controlled curtain

C/C++
refer to github Sinric for instructions to create the sw environment
[code]
#include <Arduino.h>

#include <WiFi.h>
#include <WiFiMulti.h>
#include <WebSocketsClient.h>
#include <ArduinoJson.h> // get it from https://arduinojson.org/ or install via Arduino library manager
#include <SimpleTimer.h>
#include <Time.h>
WiFiMulti WiFiMulti;
WebSocketsClient webSocket;

//******************************************************************

#define MyApiKey "xxxxxxxxxxxxxxxxxxxxxxxx" // TODO: Change to your sinric API Key. Your API Key is displayed on sinric.com dashboard
//#define MySSID "xxxxxxxx" // TODO: Change to your Wifi network SSID
//#define MyWifiPassword "xxxxxxxx" // TODO: Change to your Wifi network password
//#define MyDeviceID  "xxxxxxxxxxxxxxxxxxxxxxx"
#define MySSID "xxxxxxxx"
#define MyWifiPassword "xxxxxx"
#define LED  2
#define red  27
#define green  26
int connec_ted = 2;
//  assegnazione  dei pin esp32
int status_on = 25;  //era 25
int lower = 32;
int raise_up = 33;
int connection = LOW;
int action_time = 35;  //35 times 1 second
int what_to_do;
int traffic_light = LOW;
int do_something = LOW;


SimpleTimer timer;



//***********************************************************************************************

void setup() {
  Serial.begin(115200);

  WiFiMulti.addAP(MySSID, MyWifiPassword);
  Serial.println("alexa_curtain 1.1");
  Serial.print("Connecting to Wifi: ");
  Serial.println(MySSID);
  pinMode(connec_ted, OUTPUT);
  pinMode(LED, OUTPUT);
  pinMode(red, OUTPUT);
  pinMode(green, OUTPUT);
  pinMode (status_on, OUTPUT);
  pinMode (raise_up, OUTPUT);
  pinMode (lower, OUTPUT);
  digitalWrite(raise_up, LOW);
  digitalWrite(lower, LOW);
  digitalWrite(connec_ted, HIGH);
  digitalWrite(red, HIGH);
  digitalWrite(green, HIGH);

  do_something = LOW;    // action switch on high ther is something to do

  xTaskCreatePinnedToCore(ActionTask, "ActionTask ", 4000, NULL, 5, NULL, 0); //Task for Core 1 priority set at 5
  // Waiting for Wifi connect
  while (WiFiMulti.run() != WL_CONNECTED) {
    delay(500);
    if (connection == LOW)
    {
      digitalWrite(connec_ted, HIGH);
      digitalWrite(status_on, LOW);
      connection = HIGH;
    } else {
      digitalWrite(connec_ted, LOW);
      digitalWrite(status_on, HIGH);
      connection = LOW;
    }
    Serial.print(".");
  }
  if (WiFiMulti.run() == WL_CONNECTED) {
    Serial.println("");
    Serial.print("WiFi connected. ");
    Serial.print("IP address: ");
    Serial.println(WiFi.localIP());
    digitalWrite(connec_ted, HIGH);
    digitalWrite(status_on, LOW);
  }

  // server address, port and URL
  webSocket.begin("iot.sinric.com", 80, "/");

  // event handler
  webSocket.onEvent(webSocketEvent);
  webSocket.setAuthorization("apikey", MyApiKey);
}
//***********************************************************************************************

void loop() {
  webSocket.loop();
  delay(1);

}

//***********************************************************************************************


void turnOn(String MyDeviceID) {
  if (MyDeviceID == "mysinric deviceid") // Device ID of first device
  {
    Serial.print("Turn ON first device with ID: ");
    Serial.println(MyDeviceID);
  }

}

//***********************************************************************************************

void turnOff(String MyDeviceID) {
  if (MyDeviceID == "mysinric deviceid") // Device ID of  device
  {
    Serial.print("Turn OFF first device with ID: ");
    Serial.println(MyDeviceID);
  }
}


//***********************************************************************************************

char minus = '-';

int n;

void webSocketEvent(WStype_t type, uint8_t * payload, size_t length)

{
  switch (type) {
    case WStype_DISCONNECTED:
      { Serial.printf("[WSc] Webservice DISCONNECTED from sinric.com!\n");
      } break;
    case WStype_CONNECTED: {
        Serial.printf("[WSc] Service connected to sinric.com at url: %s\n", payload);
        Serial.printf("Waiting for commands from sinric.com ...\n");
      }
      break;
    case WStype_TEXT: {
        Serial.printf("[WSc] get text: %s\n", payload);
        // Example payload for ON :
        //{"deviceId":"5a2b908a74a6703928abf38b","powerState":"ON"}
        DynamicJsonBuffer jsonBuffer (4000);
        JsonObject& json = jsonBuffer.parseObject((char*)payload);
        String deviceId = json ["deviceId"];
        String action = json ["action"];
        String value = json ["value"];

        if (deviceId == "mysinric deviceid") // Device ID of first device
        {
          if (traffic_light == LOW)
          { if ( action == "setPowerState")
            { Serial.println ("entry from power");
              if (value == "ON")
              { what_to_do = HIGH;  //raise_up
                do_something = HIGH;
              }
              if (value == "OFF")
              { what_to_do = LOW;   //lower
                do_something = HIGH;
              }

            }   if (action == "SetBrightness" )

            { Serial.println ("entry from brightness");  // if below 50% lower otherwise raise
              Serial.print (value );
              int n = (value [0] - 48) * 10;
              n = n + (value [1] - 48);
              Serial.println (n );
              Serial.print (" value 1 ");
              Serial.println (value [1] );
              if (n > 50 )
              {
                what_to_do = HIGH;  //raise_up
                do_something = HIGH;
                Serial.println ("raise_up from brightness");
              }
              if (n <= 50 )
              { what_to_do = LOW;   //lower
                do_something = HIGH; Serial.println ("lower from brightness");
              }

            }

            if ( action == "AdjustBrightness")

            { Serial.println ("entry from adjustbrightness");
              Serial.print (value );
              if ( value [0] != minus)
              {
                what_to_do = HIGH;  //raise_up
                do_something = HIGH;
                Serial.println ("raise_up from brightness");
              }
              if ( value [0] == minus)
              { what_to_do = LOW;   //lower
                do_something = HIGH; Serial.println ("lower from brightness");
              }

            }
          } else {
            traffic_light = LOW;
            digitalWrite(raise_up, LOW);//  stop action
            digitalWrite(lower, LOW);
          }
        }
      } break;
    case WStype_BIN:
      { Serial.printf("[WSc] get binary length: %u\n", length);
      } break;
  }

}



//****************************************************

void ActionTask (void * pvParameters)

{
  while (1)
  {
    if (do_something == HIGH)
    { traffic_light = HIGH;
      digitalWrite(LED, HIGH);
      digitalWrite(status_on, HIGH);
      { if (what_to_do == HIGH)             // raise_up curtain
        { digitalWrite(red, LOW);
          digitalWrite(raise_up, HIGH);    //funziona con logica inversa
          actiontime ();
          digitalWrite(raise_up, LOW);
          digitalWrite(red, HIGH);
        }
        else                          // lower curtain
        {
          if (traffic_light == HIGH)
          { digitalWrite(green, LOW);
            digitalWrite(lower, HIGH);    //this depend on the relay board switch it could be low or high for operate
            actiontime ();
          }
          digitalWrite(lower, LOW);
          digitalWrite(green, HIGH);
        }

      }
      digitalWrite(LED, LOW);
      digitalWrite(status_on, LOW);
      traffic_light = LOW;
      do_something = LOW;
    }


    vTaskDelay(2);
  }
}


//***********************************************************************************************

void actiontime ()
{ for (int i = 0; i < action_time; i++)
  { if (traffic_light == HIGH)
      vTaskDelay(1000);
  }
}

//***********************************************************************************************





[/code]

Credits

robademar
0 projects • 2 followers
Contact

Comments

Please log in or sign up to comment.
