ESP01 Guestbook

Simple server for a guest-book.

BeginnerWork in progress1,709

Things used in this project

Hardware components

ESP8266 ESP-01 USB Seriell Adapter Programmer

Espressif ESP8266 ESP-01

Software apps and online services

Arduino IDE

Arduino support for ESP8266

esp8266 File Upload Tool

Story

Hello,

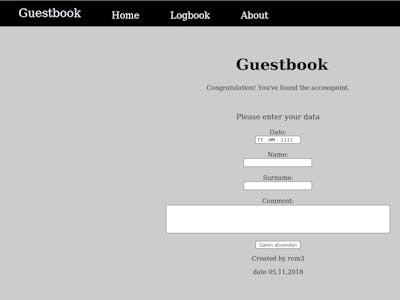

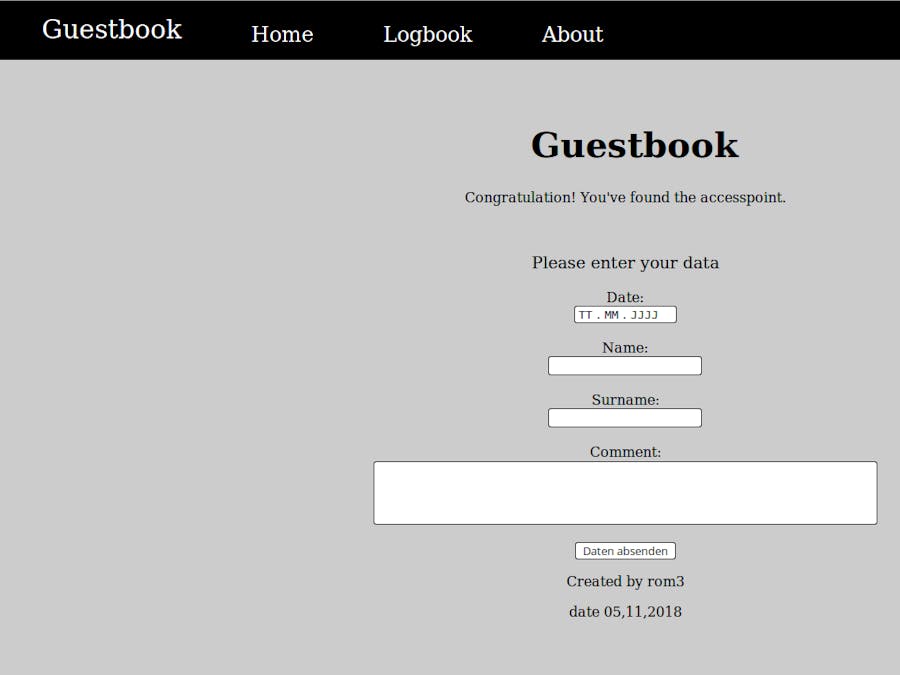

Here I want to present a simple guest book access point server with a web interface.

How to make it:

Install needed software (Arduino IDE, ESP8266 core for Arduino and Spiffs.

Download and uncompress the zip file. Plug the ESP01 in the programmer and set the programmer switch in the program mode. Then stick it in the usb port. Open Guestbook.ino, compile and upload the program to the ESP01. After that, unplug and plug the programmer again in the usb port. Now upload the ESP8266 data from the Arduino IDE. That's all. On your computer select the access point Guestbook. Open your browser and input the url Guestbook.com. You see the the first site from your ESP.

05,15,2018

add a Admin mode. To enter the mode type the Guestbook.com/admin. The admin mode is only fully working in Chrome.

User: admin

Password: esp8266

You can upload, download or delete files.

05,18,2018

rework the program

add visit counter

05,19,2018

minor update

05,21,2018

you can configure the ip address

visitor counter increase only by unknown devices

only one client can connect

known clients can only comment to the site every 10 minutes

05,22,2018

in admin mode:

you can view and edit files in SPIFFS ,

restart the esp,

format the SPIFFS

05,30,2018

add DNSServer.h. No need to type the IP-address, type guestbook.com to enter the side.

08,15,2020

now it works with new IDE

Code

Guestbook

#include <ESP8266WebServer.h>
#include <FS.h>
#include <DNSServer.h>

extern "C" {
#include<user_interface.h>
}

#define LOGBOOK "/logbook.txt"

//#define DEV   //devoleper mode. disable it, for faster web sites

const byte DNS_PORT = 53;
const char* user = "admin";
const char* pass = "esp8266";
const char* dns = "guestbook.com";
const char* ssid = "Guestbook";
const char* password = "";
uint8_t ip[] = {192,168,0,1};

int x, xx, counter;

unsigned long currentMillis;
unsigned long previousMillis = 0;
const long interval = 600000; //delay time for delete

String HTML, fileName, fileEdit, admin;
String Year, Month, Day, rows;
String Vname, Nname, Comment, Counter, head, nav, footer, macAddr;

String formatBytes(size_t bytes) {
  if (bytes < 1024) {
    return String(bytes) + "B";
  } else if (bytes < (1024 * 1024)) {
    return String(bytes / 1024.0) + "KB";
  } else if (bytes < (1024 * 1024 * 1024)) {
    return String(bytes / 1024.0 / 1024.0) + "MB";
  } else {
    return String(bytes / 1024.0 / 1024.0 / 1024.0) + "GB";
  }
}

bool test;

File page;
DNSServer dnsServer;
// Create an instance of the server on Port 80
ESP8266WebServer server(80);

String getContentType(String filename);
void notFound();// Sendet "Not Found"-Seite
void handleUnknown();   // Liefert Web-Seiten aus dem SPIFFS
void handleFileUpload();// upload a new file to the SPIFFS
void adminHtml();
void logHtml();
void indexHtml();
void aboutHtml();
void getMacAddr();

void setup()
{ //Serial.begin(9600);
  SPIFFS.begin();
  //delay(100);
  //loadConfig();
  IPAddress apIP(ip[0],ip[1],ip[2],ip[3]);  // set IP-address
  WiFi.mode(WIFI_AP_STA);
  WiFi.softAPConfig(apIP, apIP, IPAddress(255, 255, 255, 0)); // subnet FF FF FF 00
  WiFi.softAP(ssid,password, 1, 0, 1);                       // ssid,pw,channel,hidden,max conections

  dnsServer.setTTL(300);
  dnsServer.setErrorReplyCode(DNSReplyCode::ServerFailure);
  dnsServer.start(DNS_PORT, dns, apIP);

  server.on("/admin", HTTP_POST,                              // if the client posts to the upload page
  []() {
    server.send(200);
  },                                // Send status 200 (OK) to tell the client we are ready to receive
  handleFileUpload                                          // Receive and save the file
           );
  server.on("/admin", []() {
    if (!server.authenticate(user, pass))
      return server.requestAuthentication();
    adminHtml();
    server.send(303);
  });
  server.on("/log.html", logHtml);
  server.on("/", indexHtml);
  server.on("/index.html", indexHtml);
  server.on("/about.html", aboutHtml);
  server.on("/site.html", siteHtml);
  server.onNotFound(handleUnknown);
  server.begin();

#if not defined (DEV)
  loadString();
#endif
}

void loop()
{
  // Check if a client has connected
  server.handleClient();
  dnsServer.processNextRequest();
  currentMillis = millis();
  if (currentMillis - previousMillis >= interval) {
    previousMillis = currentMillis;

    SPIFFS.remove("/comments.txt");
  }
}
// Sendet "Not Found"-Seite
void notFound()
{ HTML = F("<html><head><title>404 Not Found</title></head><body>"
           "<body><h1>Page not found</h1>"
           "<br><p>404-error</p>"
           //"<body background='/404-error.jpg'>"
           "</body></html>");
  server.send(404, "text/html", HTML);
}

// Es wird versucht, die angegebene Datei aus dem SPIFFS hochzuladen
void handleUnknown()
{ fileName = server.uri();
  page = SPIFFS.open(fileName, "r");
  if (page)
  { String contentTyp = getContentType(fileName);
    size_t sent = server.streamFile(page, contentTyp);
    page.close();
  }
  else {
    notFound();
  }
}
void logHtml()
{
  #if defined (DEV)
  loadString();
  #endif
  page = SPIFFS.open (LOGBOOK, "r" ) ;
  HTML = head;
  HTML += nav;
  HTML += "<br><br><br><center><h1>Guestbook Log</h1>";
  HTML += "<p>Here you can see all people that have found the accesspoint.</p>";
  HTML += "<br><br>";
  HTML += "<table><th>Date</th><th>Name</th><th>Comment</th>";
  test = true;
  do {
    admin = page.readStringUntil('\n');
    if (admin.length() > 0) {

      Year = admin.substring(0, 4);
      Month = admin.substring(5, 7);
      Day = admin.substring(8, 10);
      for (x = 12; x < admin.length(); x++)
      {
        if (admin.charAt(x) == '|') {
          Vname = admin.substring(11, x);
          break;
        }
      }
      for (xx = x + 1; xx < admin.length(); xx++) {
        if (admin.charAt(xx) == '|') {
          Nname = admin.substring(x + 1, xx);
          break;
        }
      }
      Comment = admin.substring(xx + 1, admin.length() - 1);
      HTML += "<tr><td>" + Month + ", " + Day + ", " + Year + "&nbsp;&nbsp;&nbsp;</td>";
      HTML += "<td>" + Vname + "&nbsp;&nbsp;&nbsp;" + Nname + "&nbsp;&nbsp;&nbsp;</td>";
      rows = "1";
      if (Comment.length() > 80) rows = "2";
      if (Comment.length() > 160) rows = "3";
      if (Comment.length() > 240) rows = "4";
      HTML += "<td><textarea rows='" + rows + "' cols='80'>" + Comment + "</textarea></td></tr>";
    } else {
      test = false;
      page.close();
    }
  } while (test);
  Counter = counter;
  HTML += "</table></center><br><br>";
  HTML += "<br><p>" + Counter + " Vistors</p>";
  //HTML+="<p>"+server.client().remoteIP().toString()+"</p>";
  //getMacAddr();
  //HTML+="<p>"+macAddr+"</p>";
  HTML += footer;
  server.send(200, "text/html", HTML);
}
void adminHtml() {
  #if defined (DEV)
  loadString();
  #endif
  if (server.hasArg("format")) {
    SPIFFS.format();
  }
  if (server.hasArg("message")) {
    admin = server.arg(0).c_str();
    admin.replace("%0D%0A++", "\n");
    page = SPIFFS.open (fileEdit, "w" );
    page.print(admin);
    page.close();
  }
  if (server.hasArg("delete")) {
    fileName = server.arg(0).c_str();
    fileName = "/" + fileName;
    SPIFFS.remove(fileName);
  }
  if (server.hasArg("reboot")) {
    ESP.restart();
  }
  if (server.hasArg("show")) {
    fileEdit = server.arg(0).c_str();
    fileEdit = "/" + fileEdit;
    page = SPIFFS.open (fileEdit, "r" );
    HTML = head;
    HTML += nav;
    HTML += "<center><h1>Edit&nbsp;" + fileEdit.substring(1) + "</h1>";
    HTML += "<pre><form action='/admin'><br><textarea rows='20' cols='80' name='message'>";
    admin = page.readString();
    admin.replace("<", "&lt;");
    admin.replace(">", "&gt;");
    HTML += admin + "</textarea></pre>";
    page.close();
    HTML += "<br><input type='submit' value='save'></form><br><form action='/admin'><br><input type='submit' value='back'></form><br></center>";
    server.send(200, "text/html", HTML);
  }
  HTML = head;
  HTML += nav;
  HTML += "<center><br><br><br><form method='post' enctype='multipart/form-data'><input type='file' name='name' required><input class='button' type='submit' value='Upload'></form><br>";
  HTML += "<table>";
  Dir dir = SPIFFS.openDir("/");
  while (dir.next()) {
    HTML += "<tr><td>" + dir.fileName().substring(1) + "</td>&nbsp;&nbsp;&nbsp;";
    //HTML+="<td><form action='/admin'><input type='submit' name='show' value='"+dir.fileName().substring(1)+"'></form>";
    HTML += "<td><button><a href=admin?show=" + dir.fileName().substring(1) + ">show/edit</a></button></td>";
    HTML += "<td><button><a href='" + dir.fileName() + "' download='" + dir.fileName().substring(1) + "'>download</a></button></td>&nbsp;&nbsp;&nbsp;";
    HTML += "<td><button><a href=admin?delete=" + dir.fileName().substring(1) + ">delete</a></button></td>";
    HTML += "<td style='text-align:right'>" + formatBytes(dir.fileSize()) + "</td></tr>&nbsp;&nbsp;&nbsp;";
  }
  HTML += "</table><br>";
  FSInfo fsInfo;
  SPIFFS.info(fsInfo);
  HTML += "FS Bytes:&nbsp;";
  HTML += fsInfo.usedBytes;
  HTML += "&nbsp;/&nbsp;";
  HTML += fsInfo.totalBytes;
  HTML += "<br><br><button><a href=admin?reboot=''>restart</a></button><br>";
  HTML += "<br><button><a href=admin?format=''>format</a></button>";
  HTML += "</center>" + footer;
  server.send(200, "text/html", HTML);
}
void handleFileUpload() { // upload a new file to the SPIFFS
  HTTPUpload& upload = server.upload();
  if (upload.status == UPLOAD_FILE_START) {
    String filename = upload.filename;
    if (!filename.startsWith("/")) filename = "/" + filename;
    page = SPIFFS.open(filename, "w");            // Open the file for writing in SPIFFS (create if it doesn't exist)
    filename = String();
  } else if (upload.status == UPLOAD_FILE_WRITE) {
    if (page)
      page.write(upload.buf, upload.currentSize); // Write the received bytes to the file
  } else if (upload.status == UPLOAD_FILE_END) {
    if (page) {                                   // If the file was successfully created
      page.close();                               // Close the file again
      server.sendHeader("Location", "/admin");     // Redirect the client to the success page
      server.send(303);
    } else {
      server.send(500, "text/plain", "500: couldn't create file");
    }
  }
}
void indexHtml() {
#if defined (DEV)
  loadString();
  #endif
  getMacAddr();
  page = SPIFFS.open("/visitors.txt", "r");
  test = true;
  do {
    admin = page.readStringUntil('|');
      if (admin.length() > 0) {
      if (admin == macAddr) {
        page.close();
        test = false;
      }
    } else {
      test = false;
      page = SPIFFS.open("/visitors.txt", "a+");
      page.print(macAddr + "|");
      page.close();
      counter++;
    }
  } while (test);
  page = SPIFFS.open("/count.txt", "w");
  page.print(counter);
  HTML = head;
  HTML += nav;
  page = SPIFFS.open("/index", "r");
  HTML += page.readString();
  page.close();
  page = SPIFFS.open ("/count.txt", "r" );
  Counter = page.readString();
  page.close();
  HTML += "<br><p>" + Counter + " Vistors</p>";
  HTML += footer;
  server.send(200, "text/html", HTML);
}
void aboutHtml() {
  #if defined (DEV)
  loadString();
  #endif
  HTML = head;
  HTML += nav;
  page = SPIFFS.open("/about", "r");
  HTML += page.readString();
  page.close();
  Counter = counter;
  HTML += "<br><p>" + Counter + " Vistors</p>";
  HTML += footer;
  server.send(200, "text/html", HTML);
}
void siteHtml() {
  #if defined (DEV)
  loadString();
  #endif
  getMacAddr();
  page = SPIFFS.open("/comments.txt", "r");
  test = true;
  do {
    admin = page.readStringUntil('|');
    //Serial.println(admin);
    if (admin.length() > 0) {
      if (admin == macAddr) {
        page.close();
        errorRegister();
        return;
      }
    } else {
      test = false;
      page = SPIFFS.open("/comments.txt", "a+");
      page.print(macAddr + "|");
      page.close();
      previousMillis = millis();
    }
  } while (test);
  page = SPIFFS.open (LOGBOOK, "a+" );
  page.print(server.arg(0).c_str());
  page.print("|");
  String Comm = (server.arg(1).c_str());
  Comm.replace("\n", " ");
  Comm.replace("\r", " ");
  page.print(Comm);
  page.print("|");
  Comm = (server.arg(2).c_str());
  Comm.replace("\n", " ");
  Comm.replace("\r", " ");
  page.print(Comm);
  page.print("|");
  Comm = server.arg(3).c_str();
  Comm.replace("\n", " ");
  Comm.replace("\r", " ");
  page.println(Comm);
  page.close();
  HTML = head;
  HTML += nav;
  page = SPIFFS.open("/site", "r");
  HTML += page.readString();
  page.close();
  Counter = counter;
  HTML += "<br><p>" + Counter + " Vistors</p>";
  HTML += footer;
  server.send(200, "text/html", HTML);
}
void errorRegister() {
  #if defined (DEV)
  loadString();
  #endif
  HTML = head;
  HTML += nav;
  page = SPIFFS.open("/error", "r");
  HTML += page.readString();
  page.close();
  Counter = counter;
  HTML += "<br><p>" + Counter + " Vistors</p>";
  HTML += footer;
  server.send(200, "text/html", HTML);
}

void getMacAddr() {

  struct station_info *stat_info;

  stat_info = wifi_softap_get_station_info();

  macAddr = String(stat_info->bssid[0], HEX);
  macAddr += String(stat_info->bssid[1], HEX);
  macAddr += String(stat_info->bssid[2], HEX);
  macAddr += String(stat_info->bssid[3], HEX);
  macAddr += String(stat_info->bssid[4], HEX);
  macAddr += String(stat_info->bssid[5], HEX);
}
void loadString() {
  page = SPIFFS.open("/count.txt", "r");
  Counter = page.readString();
  page.close();
  counter = Counter.toInt();
  page = SPIFFS.open("/head", "r");
  head = page.readString();
  page.close();
  page = SPIFFS.open("/nav", "r");
  nav = page.readString();
  page.close();
  page = SPIFFS.open("/footer", "r");
  footer = page.readString();
  page.close();
}
String getContentType(String filename) { // convert the file extension to the MIME type
  if (filename.endsWith(".html")) return "text/html";
  else if (filename.endsWith(".css")) return "text/css";
  else if (filename.endsWith(".js")) return "application/javascript";
  else if (filename.endsWith(".ico")) return "image/x-icon";
  return "text/plain";
}

ESP01 Guestbook

Things used in this project

Hardware components

Software apps and online services

Story

How to make it:

Custom parts and enclosures

Guestbook

Code

Guestbook

Credits

rom3

Comments

Embed the widget on your own site

ESP01 Guestbook

ESP01 Guestbook

Things used in this project

Hardware components

Software apps and online services

Story

How to make it:

Custom parts and enclosures

Guestbook

Code

Guestbook

Credits

rom3

Comments

Related channels and tags
