Tan See Youu
Published © LGPL

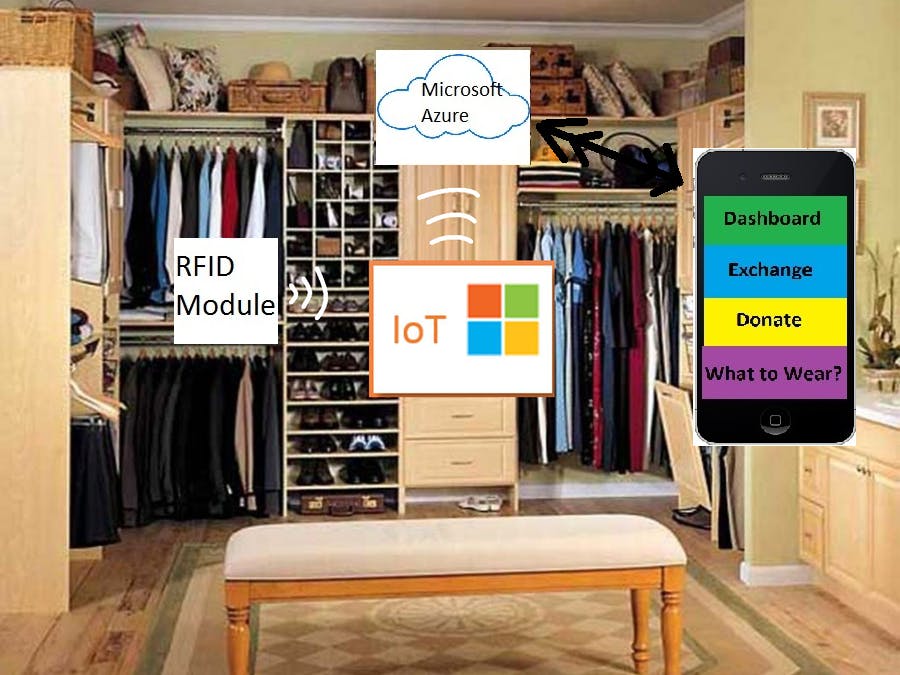

Smart Wardrobe

wardrobe which can suggest you which cloth to wear, notify you which cloth has been ignored.

BeginnerWork in progress36,188
Smart Wardrobe

Things used in this project

Hardware components

Raspberry Pi 2 Model B
Raspberry Pi 2 Model B
×1
Arduino UNO
Arduino UNO
×1
JT2850 RFID module
×1
JT606 RFID antenna
×1

Software apps and online services

Windows 10 IoT Core
Microsoft Windows 10 IoT Core
Microsoft Azure
Microsoft Azure
Service Bus, Web Apps, SQL DB
Arduino IDE
Arduino IDE
Visual Studio 2015
Microsoft Visual Studio 2015
Android Studio
Android Studio

Hand tools and fabrication machines

Microsoft PC runing Windows10 with Visual studio 2015 installed
Android Phone
Raspberry Pi usb wifi dongle

Story

Read more

Custom parts and enclosures

UHF RFID reader schematic

UHF RFID reader module. it is used for reading RFID tag.

UHF RFID reader module PCB file

UHF RFID reader module. it is used for reading RFID tag

UHF RFID reader module breadboard

UHF RFID reader module. it is used for reading RFID tag

Schematics

Smart Wardrobe Schematic

The connection for Arduino to UHF RFID module. Please check the fritzing repository below for more info. http://fritzing.org/projects/smart-wardrobe

Smart Wardrobe

sketch is uploaded to fritzing

Code

RFID module code

C/C++
The arduino code to send read command over to RFID module, it will then return the RFID tag data back to serial port.
/*
  read command will be sent over to RFID module
once tag is read, it will return back to serial port

 */
#include <SoftwareSerial.h>

SoftwareSerial mySerial(10, 11); // RX, TX

void setup() {
  // Open serial communications and wait for port to open:
  Serial.begin(9600);
  while (!Serial) {
    ; // wait for serial port to connect. Needed for Leonardo only
  }

  // set the data rate for the SoftwareSerial port
  mySerial.begin(9600);
}

void loop() { // run over and over
  if (mySerial.available()) {
    //send the read command over to RFID module
    byte message[] = {0xA0,0x06,0x80,0x00,0x01,0x02,0x01,0xD6};
    mySerial.write(message, sizeof(message));
    //send the data back to serial
    if(Serial.available())
      Serial.write(mySerial.read());
  }
}

BackgroundApp IoT code

C#
the background app task running in raspberry pi2
using System;
using Windows.ApplicationModel.Background;
using System.Threading.Tasks;
using System.Threading;
using Windows.Storage.Streams;
using Windows.Devices.Enumeration;
using Windows.Devices.SerialCommunication;
using System.Collections.ObjectModel;
using System.Net;
using System.IO;
using Newtonsoft.Json;
using System.Collections.Generic;

namespace SmartWardrobeBackgroundApp
{
    public sealed class StartupTask : IBackgroundTask
    {
        private SerialDevice serialPort = null;
        DataReader dataReaderObject = null;

        private CancellationTokenSource ReadCancellationTokenSource;
        private string rfidTags
        {
            get; set;
        }

        public void Run(IBackgroundTaskInstance taskInstance)
        {
            //run core function to read and send tags over to Web API
            while(true){
                read_RFID();
            }
        }

        private async void read_RFID()
        {
            try
            {
                string aqs = SerialDevice.GetDeviceSelector();
                var dis = await DeviceInformation.FindAllAsync(aqs);
                foreach(DeviceInformation info in dis) {
                    if (info.Name == "Arduino Uno")
                    {
                        serialPort = await SerialDevice.FromIdAsync(info.Id);
                        // Configure serial settings
                        serialPort.WriteTimeout = TimeSpan.FromMilliseconds(1000);
                        serialPort.ReadTimeout = TimeSpan.FromMilliseconds(1000);
                        serialPort.BaudRate = 9600;
                        serialPort.Parity = SerialParity.None;
                        serialPort.StopBits = SerialStopBitCount.One;
                        serialPort.DataBits = 8;

                        // Create cancellation token object to close I/O operations when closing the device
                        ReadCancellationTokenSource = new CancellationTokenSource();
                        await ReadAsync(ReadCancellationTokenSource.Token);
                    }

                }

            }
            catch
            {
                //don't think need to write error log at the moment
            }
        }

        private async Task ReadAsync(CancellationToken cancellationToken)
        {
            try
            {
                Task<UInt32> loadAsyncTask;

                uint ReadBufferLength = 1024;

                // If task cancellation was requested, comply
                cancellationToken.ThrowIfCancellationRequested();

                // Set InputStreamOptions to complete the asynchronous read operation when one or more bytes is available
                dataReaderObject.InputStreamOptions = InputStreamOptions.Partial;

                // Create a task object to wait for data on the serialPort.InputStream
                loadAsyncTask = dataReaderObject.LoadAsync(ReadBufferLength).AsTask(cancellationToken);

                // Launch the task and wait
                UInt32 bytesRead = await loadAsyncTask;

                if (bytesRead > 0)
                {
                    //get the RFID tags returned by Arduino + RFID module
                    this.rfidTags = dataReaderObject.ReadString(bytesRead);
                    //run the send RFID function:
                    sendRFID(this.rfidTags);
                }

            }
            catch
            {
                //don't think need to write error log at the moment
            }
        }

        /// <summary>
        /// CancelReadTask:
        /// - Uses the ReadCancellationTokenSource to cancel read operations
        /// </summary>
        private void CancelReadTask()
        {
            if (ReadCancellationTokenSource != null)
            {
                if (!ReadCancellationTokenSource.IsCancellationRequested)
                {
                    ReadCancellationTokenSource.Cancel();
                }
            }
        }

        /// <summary>
        /// Process RFID data and send over to web api
        /// </summary>
        private void sendRFID(string myrfid)
        {
            try
            {

                List<string> rfidList = JsonConvert.DeserializeObject<List<string>>(myrfid);
                //get all clothes records in database:
                HttpWebRequest getrequest = (HttpWebRequest)HttpWebRequest.Create("http://smartwardrobe.azurewebsites.net/api/clothes");

                getrequest.Method = "GET";
                getrequest.ContentType = "application/json;charset=utf-8";

                getrequest.BeginGetResponse((x) =>
                {
                    HttpWebResponse response = (HttpWebResponse)getrequest.EndGetResponse(x);
                    Stream mystream = response.GetResponseStream();
                    StreamReader sr = new StreamReader(mystream);
                    string returnval = sr.ReadToEnd();
                    List<string> existingRFIDList = JsonConvert.DeserializeObject<List<string>>(returnval);

                    if (existingRFIDList.Count > rfidList.Count)
                    {
                        //cloth has been taken out
                        //find the missing rfid:
                        foreach (string existRFID in existingRFIDList)
                        {
                            if (rfidList.Contains(existRFID))
                            {
                                continue;
                            }
                            else
                            {
                                //add action
                                string actionbody = JsonConvert.SerializeObject(new ActionObj()
                                {
                                    rfid = existRFID,
                                    status = "1"
                                });
                                HttpWebRequest actionrequest = (HttpWebRequest)HttpWebRequest.Create("http://smartwardrobe.azurewebsites.net/api/actions");

                                actionrequest.Method = "POST";
                                actionrequest.ContentType = "application/json;charset=utf-8";

                                actionrequest.BeginGetRequestStream((ar) =>
                                {
                                    System.Text.UTF8Encoding encoding = new System.Text.UTF8Encoding();
                                    byte[] bytes = encoding.GetBytes(actionbody);
                                    Stream arStream = actionrequest.EndGetRequestStream(ar);
                                    arStream.Write(bytes, 0, bytes.Length);
                                    actionrequest.BeginGetResponse((arRes) =>
                                    {
                                        HttpWebResponse actionresponse = (HttpWebResponse)actionrequest.EndGetResponse(arRes);

                                    }, actionrequest);
                                }, actionrequest);
                            }
                        }
                    }
                    else if (existingRFIDList.Count < rfidList.Count)
                    {
                        //new clt is added:
                        string clothbody = JsonConvert.SerializeObject(new ClothObj()
                        {
                            rfid = myrfid,
                            status = "0",
                            img = new byte[] { },
                            name = "test",
                            type = "dress",
                            color = "yellow",
                            createdAt = DateTime.Now,
                            lastUpdatedAt = DateTime.Now,
                            frequency = 0
                        });

                        HttpWebRequest clothrequest = (HttpWebRequest)HttpWebRequest.Create("http://smartwardrobe.azurewebsites.net/api/clothes/" + myrfid);

                        clothrequest.Method = "POST";
                        clothrequest.ContentType = "application/json;charset=utf-8";

                        clothrequest.BeginGetRequestStream((a) =>
                        {

                            System.Text.UTF8Encoding encoding = new System.Text.UTF8Encoding();


                            byte[] bytes = encoding.GetBytes(clothbody);

                            Stream requestStream = clothrequest.EndGetRequestStream(a);
                            // Send the data.
                            requestStream.Write(bytes, 0, bytes.Length);
                        }, clothrequest);

                        //after sending data, get the response
                        clothrequest.BeginGetResponse((cr) =>
                        {
                            HttpWebResponse clothresponse = (HttpWebResponse)clothrequest.EndGetResponse(cr);

                        }, null);
                    }
                    else
                    {
                        //all clothes are back inside wardrobe, update all status:
                        //add action
                        string actionbody = JsonConvert.SerializeObject(new ActionObj()
                        {
                            rfid = "",
                            status = "1"
                        });
                        HttpWebRequest actionrequest = (HttpWebRequest)HttpWebRequest.Create("http://smartwardrobe.azurewebsites.net/api/actions");

                        actionrequest.Method = "POST";
                        actionrequest.ContentType = "application/json;charset=utf-8";

                        actionrequest.BeginGetRequestStream((ar) =>
                        {
                            System.Text.UTF8Encoding encoding = new System.Text.UTF8Encoding();
                            byte[] bytes = encoding.GetBytes(actionbody);
                            Stream arStream = actionrequest.EndGetRequestStream(ar);
                            arStream.Write(bytes, 0, bytes.Length);
                            actionrequest.BeginGetResponse((arRes) =>
                            {
                                HttpWebResponse actionresponse = (HttpWebResponse)actionrequest.EndGetResponse(arRes);

                            }, actionrequest);
                        }, actionrequest);
                    }

                }, null);
            }
            catch {
                //have no idea what to catch, but this process cannot fail and halt the background app.
            }
        }

        private class ActionObj
        {
            public int id;
            public string status = "0";
            public string rfid;
            public DateTime createdAt = DateTime.Now;
        }


        //Generic object for Clothes
        private class ClothObj
        {
            public int id;
            public string status = "0";
            public string rfid;
            public Byte[] img;
            public string name;
            public string type;
            public string color;
            public DateTime createdAt = DateTime.Now;

            public DateTime lastUpdatedAt = DateTime.Now;

            public int frequency = 0;
        }

    }
}

Smart Wardrobe

This repo will inlcude server side api code, Android app source code and Windows10 IoT Universal App source code to be deployed and run on Raspberry Pi2
