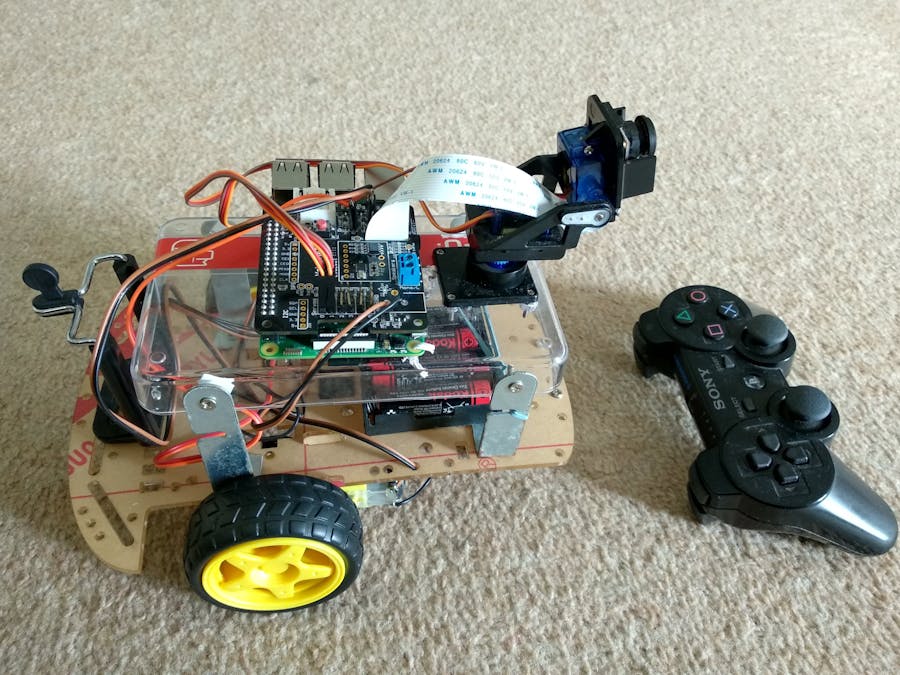

PS3 Joystick Controlled Raspberry Pi Robot

Step 1 : Getting your Hardware ready

I have used Google Voice Hat for motor control, But,you can use any other motor DC motor HAT (eg Adafruit DC Motor HAT). If in case you are using Google AIY voice HAT ensure you isolated power jumper from raspberry pi power, Read AIY manual. Also you need 2DW robotic base, GoPiGo based, I have build some additions to manage the Pan Tilt which I am planning to use it for this project upgrade.

Follow the PIN diagram specified in the AIY manual. I have used GPIO 04 and GPIO 17 to drive the DC motors, powered by battery power pack:

Step 2 : Setting up PS3 controller

Before connecting PS3 controller to Rapberry pi ensure you powered off PS3 station as the bluetooth auto conflict with connectivity. Once you booted Raspberry Pi connect the PS3 controller via USB cable and run the following command:

jstest /dev/input/js0

This command should list all the buttons and values configurations from PS3. If you have the already a joystick driver in place:

If in case you want to calibrate use the command:

jscal -c /dev/input/js0

To install the joystick driver and pygame, Refer sixpair instructions for more:

sudo apt-get -y install libusb-dev joystick python-pygame
cd ~
wget http://www.pabr.org/sixlinux/sixpair.c
gcc -o sixpair sixpair.c -lusb

Step 4: Pair PS3 Bluetooth

As said, ensure you disconnect PS3 console before you press PS3 button in PS3 controller and run following commands to pair:

sudo ~/sixpair

Result Screen:

Current Bluetooth master: b8:27:eb:cb:33:9c
Setting master bd_addr to b8:27:eb:cb:33:9c
sudo bluetoothctl

Result screen:

[NEW] Controller B8:27:EB:CB:33:9C raspberrypi [default]
[NEW] Device CC:B1:1A:DA:B5:F1 [TV] Samsung 5 Series (32)
[NEW] Device E0:AE:5E:A8:A0:89 PLAYSTATION(R)3 Controller
[bluetooth]# discoverable on
Changing discoverable on succeeded
[CHG] Controller B8:27:EB:CB:33:9C Discoverable: yes
[bluetooth]# agent on
Agent registered

Type trust command on the identified device code on [bluetooth]#

trust E0:AE:5E:A8:A0:89
Result
[CHG] Device E0:AE:5E:A8:A0:89 Trusted: yes
Changing E0:AE:5E:A8:A0:89 trust succeeded
[CHG] Device E0:AE:5E:A8:A0:89 Connected: yes
[PLAYSTATION(R)3 Controller]#

Step 5 : Getting Code ready

I have re-used the code from JoyBorg, and have removed the pygame screen and replaced with turtle screen for interactive drawing experience. The idea was to draw turtle drawing in the screen in which Robot would replicate in parallel.

Step 6 : Results
