Blind help

Helps Blind people

BeginnerFull instructions provided13
Blind help

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
Ultrasonic Sensor - HC-SR04 (Generic)
Ultrasonic Sensor - HC-SR04 (Generic)
×1
Buzzer
Buzzer
×1
Male/Female Jumper Wires
Male/Female Jumper Wires
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

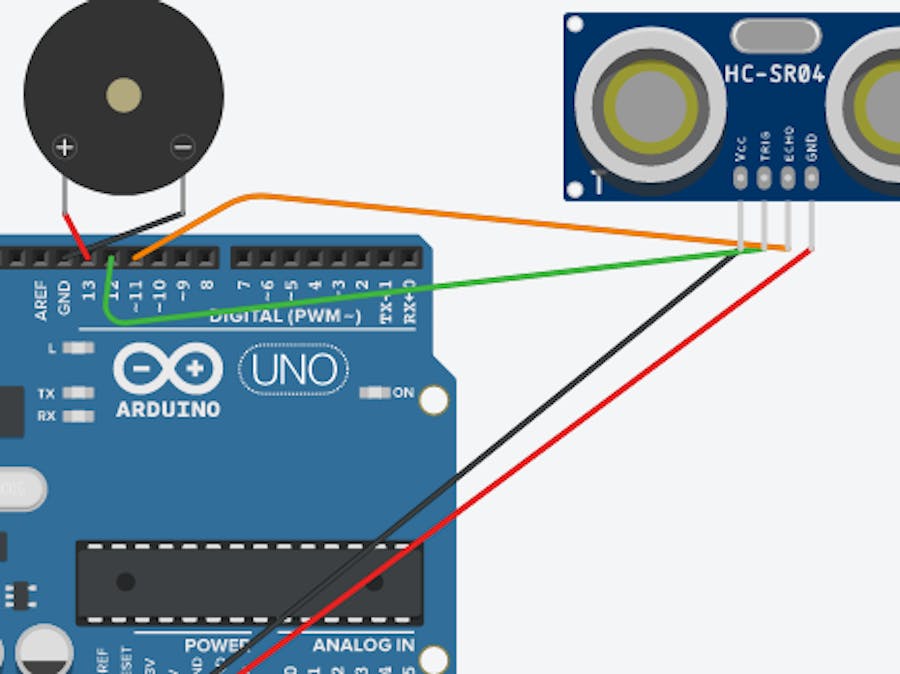

Schematics

circuit

Code

code

Arduino
 #define trigPin 12
#define echoPin 11
int Buzzer = 13; // Connect buzzer pin to 13
int duration, distance; //to measure the distance and time taken

void setup() {
        Serial.begin (9600);
        //Define the output and input objects(devices)
        pinMode(trigPin, OUTPUT);
        pinMode(echoPin, INPUT);
        pinMode(Buzzer, OUTPUT);
}

void loop() {

    digitalWrite(trigPin, HIGH);
    delayMicroseconds(10);
    digitalWrite(trigPin, LOW);
    duration = pulseIn(echoPin, HIGH);
    distance = (duration/2) / 29.1;
    //when distance is greater than or equal to 200 OR less than or equal to 0,the buzzer and LED are off
  if (distance >= 200 || distance <= 0)
        {
        Serial.println("no object detected");
        digitalWrite(Buzzer,LOW);
        }
  else {
        Serial.println("object detected \n");
        Serial.print("distance= ");
        Serial.print(distance);        //prints the distance if it is between the range 0 to 200
        tone(Buzzer,400);              // play tone of 400Hz for 500 ms
  }
}
