Automatic food and water dispenser controlled by SMS

This is a food and water dispenser for your pet that is activated sending a sms from your cellphone.

BeginnerFull instructions provided2,341

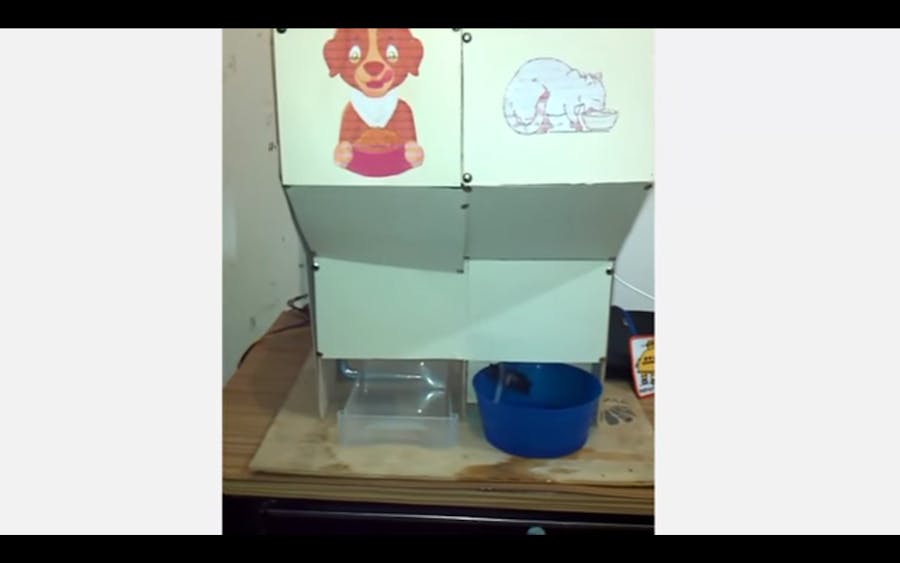

Automatic food and water dispenser controlled by SMS

Things used in this project

Hardware components

Servos (Tower Pro MG996R)
×1
5v relay
×1
Ultrasonic sensor
×1
Mini Pump water
×1

Story

Read more

Schematics

Circuit diagram

Code

automatic_pet_feeder.ino

C/C++
/* This is a program for controlling a automatic pet food and water dispenser from a sms *. Letter 'W' activates the water dispenser and the letter 'F' activates the food dispenser
/*Programa para el manejo de un dispensador de comida y agua para mascotas controlado desde un mensaje de texto. Con la letra 'F' se activa el dispensador de comida y con
la letra 'Wse activa el dispensador de agua */

#include <LGSM.h>    //Library for sms/ Libreria para mensajes de texto
#include <LDateTime.h>  //For the ultrasonic sensor HSR-04/ Para el sensor HSR-04
#include <Servo.h>
Servo servo;

int relay = 7; // Relay connected to the water pump

//***** Variables used for ultrasonic sensor*****
const int TRIG_PIN = 8;
const int ECHO_PIN = 9;

void activatePump()
{
  digitalWrite(relay,HIGH);
}

void deactivatePump()
{
  digitalWrite(relay,LOW);
}

void activateServo()
{
   delay(1000);
  servo.write(180);

  delay(3000);
  servo.write(135);

  delay(1000);
  servo.write(70);
}



void setup()
{
  // initialize serial communication:
  Serial.begin(9600);

  servo.attach(3);
  servo.write(80);
  pinMode(relay,OUTPUT);
  digitalWrite(relay,0);

  pinMode(TRIG_PIN,OUTPUT);
  pinMode(ECHO_PIN,INPUT);

  while(!LSMS.ready())
    {
      delay(1000);
    }

    Serial.println("Tarjeta SIM lista para su uso!");

  }


void loop()
{
   long duration, distanceCm;

  // Give a short LOW pulse beforehand to ensure a clean HIGH pulse/ mando un pequeo pulso en bajo de antemano para asegurar un pulso limpio en alto
  digitalWrite(TRIG_PIN, LOW);
  delayMicroseconds(2);
  digitalWrite(TRIG_PIN, HIGH);
  delayMicroseconds(10);
  digitalWrite(TRIG_PIN, LOW);

  duration = pulseIn(ECHO_PIN,HIGH);

  distanceCm = duration / 29.1 / 2 ;

   Serial.println("Water bowl full");

   Serial.print(distanceCm);
   Serial.print("cm");
   Serial.println();

  //If theSi el tanque ya est lleno apago la bomba
    if(distanceCm<=8)
      {
          deactivatePump();
      }

  //********* SMS /Mensaje de texto ***************
    char buf[20];

    int v;

    //If a text message is received... /Si se recibe un mensaje de texto...
    if(LSMS.available())
    {

      //*******************These lines are only for monitoring the received message in the serial port , they can be omitted in the program ********************************************
      Serial.println("Hay un nuevo mensaje.");

      LSMS.remoteNumber(buf, 20);    // Display Number part

      Serial.print("Numero:");

      Serial.println(buf);

      Serial.print("Contenido:");      // display Content part
      //*******************************************************************************************************************************************************************************

        while(true)

        {
          v = LSMS.read();

          if(v < 0)

          break;

          Serial.print((char)v);

          if((char)v=='W')  //If receives letter W, then activate the mini pump water of the water dispenser/ Si recibe el caracter W activa la mini bomba de agua del dispensador de agua
            {
              activatePump();
            }

           if((char)v=='F')  //If receives letter F, then activates the servo of the food dispenser/ si recibe la letra F activa el servomotor del dispensador de comida
            {
              activateServo();

            }

            else

              digitalWrite(13,LOW);
        }  // end serial available

        Serial.println();

        LSMS.flush();  //Delete the received message / Borra el mensaje recibido

      }

    delay(1000);


}   // end loop
