Published February 13, 2020 © MIT

Mini But Mighty, MiniZed Alarm Clock

Adding a display to the MiniZed Motor Control live build equals an alarm clock that will be sure to start your day off on a good note.

IntermediateShowcase (no instructions)4 hours1,049

Things used in this project

Hardware components

Tria Technologies MiniZed

Digilent Pmod HB3

Digilent Pmod OLEDrgb

DC motor (generic)

Bell or Similar to hit with the motor

Software apps and online services

AMD Vivado Design Suite

Story

Introduction

Let's build an alarm clock.

Building upon Adam Taylor's MiniZed motor control project, we are going to add an oled Pmod and convert the timer to a clock. To set the time and alarm time, we will use the serial port. The motor will be used to make the alarm sound.

Vivado and the Hardware

Starting with the MiniZed Motor Control project, we need to add the oled Pmod and a clock for it.

Download the Digilent Pmod Vivado Library 2019.1 and bring it into the IP catalog of the project as shown in the Getting Started with Digilent Pmod IPs guide.

Add the PmodOLEDrgb as shown below to the MiniZed motor control project:

Add the oled output to Pmod2. The constraints file is attached. The all of the interfaces pins to the display are inputs (outputs of the MiniZed). FCLK_CLK0 needs to be 50MHz for the Pmod IP to work correctly. By default it is 50MHz on the MiniZed.

Hardware

Add the HB3 Pmod to the top row of the Pmod 1 connector exactly how Adam Taylor setup the original project. Then, add the oled Pmod to the Pmod 2 connector with the screen side up.

Vitis (the software)

Using the MiniZed motor control code as a baseline and Digilent's IP as a guide, the software (in attachements) changes the timer to serve as a 1Hz update for the clock. When the time equals the alarm time, the motor runs and rings the bell(s).

What is going on in the code...

A vast majority of the code is setting up the timer and/or interrupts. With regards to the timer and interrupts, the only thing I changed from Adam's baseline was Line 15 from 100 Hz to 1Hz for the TICK_TIMER_FREQ_HZ and what the interrupt function does once triggered (more on that later). For more info on the timer interrupt code, see Adam Taylor's MicroZed Chronicles Part 15.

There are several variables for holding values of the time and alarm. Most of the variables are global. Not the ideal situation, but considering this is the first program I have made on an ARM processor, please excuse the mess.

Main Function

The main function sets up the platform, outputs a welcome message over the serial port, and then sets up the oled via OLEDrgb_begin, which requires #include "PMODOLEDrgb.h"

The function display_menu() starting at line 91 is then called. In this program, it is only called once. This is where the clock and alarm times are set. I had an interesting time figuring out that the scanf function was needed for two digit/character serial port reads instead of the read function which is for one character inputs.

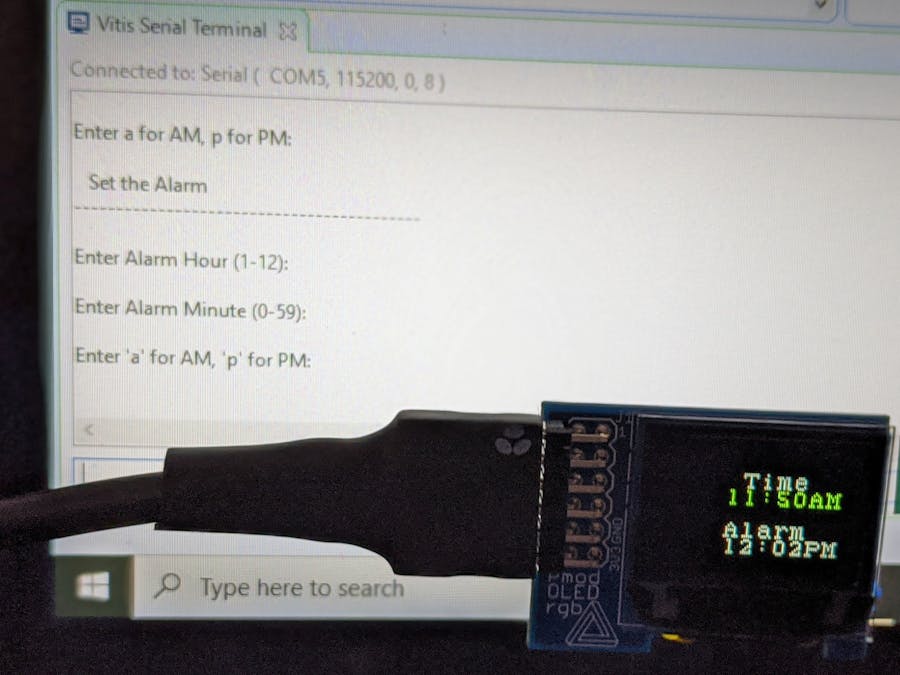

The update_oled() function starting at line 286 is then called. This outputs and formats the time and alarm time on the screen. It is called once in the main function after display_menu() gets the values and each minute (called inside the interrupt function).

Next in main, the timer interrupt is setup and enabled. Then the motor control pins are setup, but NOT commanded to run like Adam's program.

Then main waits in a while loop forever. Everything else happens in the TickHandler(void *CallBackRef) function.

Interrupt Function

The time updates and alarm check occur inside the TickHandler(void *CallBackRef) function starting at line 227. Each interrupt equals one second if a 1Hz TICK_TIMER_FREQ_HZ is set. After 60 seconds, the minute increases, just like a regular clock. Once a minute the update_oled() function is called to change the time. The alarm time is checked against the time and if it is equal, the motor turns on (line 287) for a minute to start your day.

Note: the clock function has a bug with a 12:59 to 1:00 roll-over...Let me know if you figure out what is wrong.

Results

Here is a video of the final project:

Note: The TICK_TIMER_FREQ_HZ is set to 10Hz for this video to make it easier to watch

Conclusion

Thanks to Hackster and Adam Taylor for the build and motivating me to dig into FPGA SoCs. It was a very fun experience and hope to do more projects soon! Hope you learned something and create something even bigger.

Code

#include <stdio.h>
#include "platform.h"
#include "xil_printf.h"
#include "xgpiops.h"
#include "sleep.h"
#include "xil_exception.h"
#include "xttcps.h"
#include "xscugic.h"
#include "xparameters.h"
#include "PmodOLEDrgb.h"

#define GPIO_DEVICE_ID  	XPAR_XGPIOPS_0_DEVICE_ID
#define INTC_DEVICE_ID		XPAR_SCUGIC_0_DEVICE_ID
#define	TICK_TIMER_FREQ_HZ	1  //should be 1 for real clock function, 100 to test functions
#define TTC_TICK_DEVICE_ID	XPAR_XTTCPS_0_DEVICE_ID
#define TTC_TICK_INTR_ID	XPAR_XTTCPS_0_INTR
static void TickHandler(void *CallBackRef);
int SetupTicker(XTtcPs *TtcPsInst,u16 DeviceID,u16 TtcTickIntrID,XScuGic *InterruptController);
static int SetupInterruptSystem(u16 IntcDeviceID,XScuGic *IntcInstancePtr);
int SetupTimer(u16 DeviceID,XTtcPs *TtcPsInst);
void set_pwm(u32 cycle);
void display_menu();
void update_oled();
typedef struct {
u32 OutputHz;	/* Output frequency */
XInterval Interval;	/* Interval value */
u8 Prescaler;	/* Prescaler value */
u16 Options;	/* Option settings */
} TmrCntrSetup;

XGpioPs Gpio;
XGpioPs_Config *ConfigPtr;
XTtcPs_Config *TtcConfig;
XTtcPs ttcTimer;
TmrCntrSetup *TimerSetup;
XScuGic InterruptController;  	/* Interrupt controller instance */
XTtcPs TtcPsInst;
u32 MatchValue;
static TmrCntrSetup SettingsTable={TICK_TIMER_FREQ_HZ, 0, 0, 0};

PmodOLEDrgb oledrgb;
int time_hour_int=12;
char time_hour_char[2];
int time_min_int=59;
char time_min_char[2];
int time_sec_int=0;
int AMzeroPMone=0;

int Alarm_hour_int=1;
int Alarm_min_int=0;
int AlarmAMzeroPMone=0;
char Alarm_hour_char[2];
char Alarm_min_char[2];

int main()
{
u8 DutyCycle;
char key_input;

init_platform();
printf("www.adiuvoengineering.com\n\r");
printf("mods by David Spinden\n\r");
printf("Alarm Clock Example\n\r");
OLEDrgb_begin(&oledrgb, XPAR_PMODOLEDRGB_0_AXI_LITE_GPIO_BASEADDR,XPAR_PMODOLEDRGB_0_AXI_LITE_SPI_BASEADDR);

display_menu();
update_oled();

TmrCntrSetup SettingsTable= {TICK_TIMER_FREQ_HZ, 0, 0, 0};
ConfigPtr = XGpioPs_LookupConfig(GPIO_DEVICE_ID);
XGpioPs_CfgInitialize(&Gpio, ConfigPtr,ConfigPtr->BaseAddr);
XGpioPs_SetDirectionPin(&Gpio, 54, 1);
XGpioPs_SetOutputEnablePin(&Gpio, 54, 1);
//XGpioPs_WritePin(&Gpio, 54, 0x1); //wait until alarm goes off

SetupInterruptSystem(INTC_DEVICE_ID, &InterruptController);
SetupTicker(&ttcTimer,TTC_TICK_DEVICE_ID,TTC_TICK_INTR_ID,&InterruptController);



while (1) {
	;
  }



cleanup_platform();
return 0;
}
void display_menu()
{
char hour_input[2];
char min_input[2];
char AMPMselect;
char Alarm_hour_input[2];
char Alarm_min_input[2];
char AlarmAMPMselect;

//Clear the screen
printf("\033[2J");
//Display the main menu
printf("*******************************************\n");
printf("****      www.adiuvoengineering.com    ****\n");
printf("****      Alarm Clock with Motors      ****\n");
printf("*******************************************\n");
printf("\n");
printf("   Set the Time   \n");
printf("------------------------------------------\n");
printf("\n");
printf("Enter Hour (1-12):\n");
//read(2, (char*)&hour_input, 2);
scanf("%s", hour_input);
//printf("Echo %c\n\r",hour_input);
time_hour_int = atoi(hour_input);
printf("\n");
printf("Enter Minute (0-59):\n");
//read(2, (char*)&min_input, 2);
scanf("%s", min_input);
//printf("Echo %c\n\r",min_input);
time_min_int = atoi(min_input);
printf("\n");
printf("Enter a for AM, p for PM:\n");
read(1, (char*)&AMPMselect, 1);
//printf("Echo %c\n\r",AMPMselect);
if (AMPMselect !='a')
{
	AMzeroPMone=1;
}
printf("\n");


printf("   Set the Alarm   \n");
printf("------------------------------------------\n");
printf("\n");
printf("Enter Alarm Hour (1-12):\n");
scanf("%s", Alarm_hour_input);
//printf("Echo %c\n\r",Alarm_hour_input);
Alarm_hour_int = atoi(Alarm_hour_input);
printf("\n");
printf("Enter Alarm Minute (0-59):\n");
scanf("%s", Alarm_min_input);
//printf("Echo %c\n\r",Alarm_min_input);
Alarm_min_int = atoi(Alarm_min_input);
printf("\n");
printf("Enter 'a' for AM, 'p' for PM:\n");
read(1, (char*)&AlarmAMPMselect, 1);
//printf("Echo %c\n\r",AlarmAMPMselect);
if (AlarmAMPMselect !='a')
{
	AlarmAMzeroPMone=1;
}
printf("\n");

}
void set_pwm(u32 cycle)
{
u32 MatchValue;
MatchValue = (TimerSetup->Interval * cycle) / 100;
XTtcPs_SetMatchValue(&ttcTimer, 0, MatchValue);
}
int SetupTicker(XTtcPs *TtcPsInst,u16 DeviceID,u16 TtcTickIntrID,XScuGic *InterruptController)
{
int Status;
TmrCntrSetup *TimerSetup;
XTtcPs *TtcPsTick;
TimerSetup = &SettingsTable;
TimerSetup->Options |= (XTTCPS_OPTION_INTERVAL_MODE |
XTTCPS_OPTION_MATCH_MODE | XTTCPS_OPTION_WAVE_POLARITY);
Status = SetupTimer(DeviceID,TtcPsInst);
if(Status != XST_SUCCESS) {
return Status;
}
TtcPsTick = TtcPsInst;
Status = XScuGic_Connect(InterruptController, TtcTickIntrID,
(Xil_InterruptHandler)TickHandler, (void *)TtcPsTick);
if (Status != XST_SUCCESS) {
return XST_FAILURE;
}
XScuGic_Enable(InterruptController, TtcTickIntrID);
XTtcPs_EnableInterrupts(TtcPsTick, XTTCPS_IXR_INTERVAL_MASK);
XTtcPs_Start(TtcPsTick);
return Status;
}
static int SetupInterruptSystem(u16 IntcDeviceID,XScuGic *IntcInstancePtr)
{
int Status;
XScuGic_Config *IntcConfig;
IntcConfig = XScuGic_LookupConfig(IntcDeviceID);
if (NULL == IntcConfig) {
return XST_FAILURE;
}
Status = XScuGic_CfgInitialize(IntcInstancePtr, IntcConfig,
IntcConfig->CpuBaseAddress);
if (Status != XST_SUCCESS) {
return XST_FAILURE;
}
Xil_ExceptionRegisterHandler(XIL_EXCEPTION_ID_IRQ_INT,
(Xil_ExceptionHandler) XScuGic_InterruptHandler,
IntcInstancePtr);
Xil_ExceptionEnable();
return XST_SUCCESS;
}
int SetupTimer(u16 DeviceID,XTtcPs *TtcPsInst)
{
int Status;
XTtcPs_Config *Config;
XTtcPs *Timer;
TmrCntrSetup *TimerSetup;
TimerSetup = &SettingsTable;
Timer = TtcPsInst;
Config = XTtcPs_LookupConfig(DeviceID);
if (NULL == Config) {
return XST_FAILURE;
}
Status = XTtcPs_CfgInitialize(Timer, Config, Config->BaseAddress);
if (Status != XST_SUCCESS) {
return XST_FAILURE;
}
XTtcPs_SetOptions(Timer, TimerSetup->Options);
XTtcPs_CalcIntervalFromFreq(Timer, TimerSetup->OutputHz,
&(TimerSetup->Interval), &(TimerSetup->Prescaler));
XTtcPs_SetInterval(Timer, TimerSetup->Interval);
XTtcPs_SetPrescaler(Timer, TimerSetup->Prescaler);
return XST_SUCCESS;
}
static void TickHandler(void *CallBackRef)
{
u32 StatusEvent;
/*
* Read the interrupt status, then write it back to clear the interrupt.
*/
StatusEvent = XTtcPs_GetInterruptStatus((XTtcPs *)CallBackRef);
XTtcPs_ClearInterruptStatus((XTtcPs *)CallBackRef, StatusEvent);
//printf("timer\n\r");
/*update the flag if interrupt has been occurred*/
//UpdateFlag = TRUE;
if (time_sec_int==59)
{
	time_sec_int=0;
	if (time_min_int<59)
	{
		time_min_int++;
	}
	else
	{
		time_min_int=0;
		if (time_hour_int==13)
		{
			time_hour_int=1;
		}
		else
		{
			time_hour_int++;
		}
	}
	update_oled(); //update once a min
	if (time_hour_int==11 && time_min_int==59) //update AM/PM on next cycle
	{
		if (AMzeroPMone==0)
		{
			AMzeroPMone=1;
		}
		else
		{
			AMzeroPMone=0;
		}
	}
}
else
{
	time_sec_int++;
}

if (time_hour_int==Alarm_hour_int && time_min_int==Alarm_min_int)  //sound alarm for a min
{
	printf("Alarm\n");
	XGpioPs_WritePin(&Gpio, 54, 0x1); //motor on
}
else
{
	XGpioPs_WritePin(&Gpio, 54, 0x0);  //motor off
}
}

void update_oled()
{
	itoa(time_hour_int,time_hour_char,10);
	switch(time_min_int)
	{
	case (0):
		strcpy(time_min_char,"00");
		break;
	case(1):
		strcpy(time_min_char,"01");
		break;
	case(2):
		strcpy(time_min_char,"02");
		break;
	case(3):
		strcpy(time_min_char,"03");
		break;
	case(4):
		strcpy(time_min_char,"04");
		break;
	case(5):
		strcpy(time_min_char,"05");
		break;
	case(6):
		strcpy(time_min_char,"06");
		break;
	case(7):
		strcpy(time_min_char,"07");
		break;
	case(8):
		strcpy(time_min_char,"08");
		break;
	case(9):
		strcpy(time_min_char,"09");
		break;
	default:
		itoa(time_min_int,time_min_char,10); //already two digits
		break;
	}
	itoa(Alarm_hour_int,Alarm_hour_char,10);
		switch(Alarm_min_int)
		{
		case (0):
			strcpy(Alarm_min_char,"00");
			break;
		case(1):
			strcpy(Alarm_min_char,"01");
			break;
		case(2):
			strcpy(Alarm_min_char,"02");
			break;
		case(3):
			strcpy(Alarm_min_char,"03");
			break;
		case(4):
			strcpy(Alarm_min_char,"04");
			break;
		case(5):
			strcpy(Alarm_min_char,"05");
			break;
		case(6):
			strcpy(Alarm_min_char,"06");
			break;
		case(7):
			strcpy(Alarm_min_char,"07");
			break;
		case(8):
			strcpy(Alarm_min_char,"08");
			break;
		case(9):
			strcpy(Alarm_min_char,"09");
			break;
		default:
			itoa(Alarm_min_int,Alarm_min_char,10); //already two digits
			break;
		}





	OLEDrgb_SetCursor(&oledrgb, 5, 2);
	   OLEDrgb_PutString(&oledrgb, "Time"); // Default color (green)
	   OLEDrgb_SetCursor(&oledrgb, 4, 3);
	   OLEDrgb_SetFontColor(&oledrgb, OLEDrgb_BuildRGB(0, 0, 255)); // Blue font
	   OLEDrgb_PutString(&oledrgb, time_hour_char);
	   OLEDrgb_SetCursor(&oledrgb, 6, 3);
	   OLEDrgb_PutString(&oledrgb, ":");
	   OLEDrgb_SetCursor(&oledrgb, 7, 3);
	   OLEDrgb_PutString(&oledrgb, time_min_char);
	   OLEDrgb_SetCursor(&oledrgb, 9, 3);
	   if (AMzeroPMone==0)
	   {
		   OLEDrgb_PutString(&oledrgb, "AM");
	   }
	   else
	   {
		   OLEDrgb_PutString(&oledrgb, "PM");
	   }

	   OLEDrgb_SetFontColor(&oledrgb, OLEDrgb_BuildRGB(200, 12, 44));
	   OLEDrgb_SetCursor(&oledrgb, 4, 5);
	   OLEDrgb_PutString(&oledrgb, "Alarm");
	   OLEDrgb_SetCursor(&oledrgb, 4, 6);
	   OLEDrgb_PutString(&oledrgb, Alarm_hour_char);
	   	   OLEDrgb_SetCursor(&oledrgb, 6, 6);
	   	   OLEDrgb_PutString(&oledrgb, ":");
	   	   OLEDrgb_SetCursor(&oledrgb, 7, 6);
	   	   OLEDrgb_PutString(&oledrgb, Alarm_min_char);
	   	   OLEDrgb_SetCursor(&oledrgb, 9, 6);
	   	   if (AlarmAMzeroPMone==0)
	   	   {
	   		   OLEDrgb_PutString(&oledrgb, "AM");
	   	   }
	   	   else
	   	   {
	   		   OLEDrgb_PutString(&oledrgb, "PM");
	   	   }

}

set_property PACKAGE_PIN M15 [get_ports {TTC0_WAVE0_OUT_0     }];
set_property PACKAGE_PIN L15 [get_ports {GPIO_O_0     }];
set_property IOSTANDARD LVCMOS33 [get_ports TTC0_WAVE0_OUT_0];
set_property IOSTANDARD LVCMOS33 [get_ports GPIO_O_0];


# ----------------------------------------------------------------------------
# PL Pmod #2 using Samtec Connectors
# ----------------------------------------------------------------------------
# Bank 34
set_property PACKAGE_PIN P14 [get_ports {pmod_out_pin1_o_0    }];  # "P14.PMOD2_D0_N"
set_property PACKAGE_PIN P13 [get_ports {pmod_out_pin2_o_0     }];  # "P13.PMOD2_D0_P"
set_property PACKAGE_PIN N12 [get_ports {pmod_out_pin3_o_0    }];  # "N12.PMOD2_D1_N"
set_property PACKAGE_PIN N11 [get_ports {pmod_out_pin4_o_0    }];  # "N11.PMOD2_D1_P"
set_property PACKAGE_PIN R15 [get_ports {pmod_out_pin7_o_0    }];  # "R15.PMOD2_D2_N"
set_property PACKAGE_PIN P15 [get_ports {pmod_out_pin8_o_0    }];  # "P15.PMOD2_D2_P"
set_property PACKAGE_PIN R13 [get_ports {pmod_out_pin9_o_0     }];  # "R13.PMOD2_D3_N"
set_property PACKAGE_PIN R12 [get_ports {pmod_out_pin10_o_0     }];  # "R12.PMOD2_D3_P"
set_property IOSTANDARD LVCMOS33 [get_ports pmod_out_pin1_o_0];
set_property IOSTANDARD LVCMOS33 [get_ports pmod_out_pin2_o_0];
set_property IOSTANDARD LVCMOS33 [get_ports pmod_out_pin3_o_0];
set_property IOSTANDARD LVCMOS33 [get_ports pmod_out_pin4_o_0];
set_property IOSTANDARD LVCMOS33 [get_ports pmod_out_pin7_o_0];
set_property IOSTANDARD LVCMOS33 [get_ports pmod_out_pin8_o_0];
set_property IOSTANDARD LVCMOS33 [get_ports pmod_out_pin9_o_0];
set_property IOSTANDARD LVCMOS33 [get_ports pmod_out_pin10_o_0];

Mini But Mighty, MiniZed Alarm Clock

Things used in this project

Hardware components

Software apps and online services

Story

Introduction

Vivado and the Hardware

Vitis (the software)

Results

Conclusion

Schematics

Vivado Block Diagram

Code

helloworld.c

io.xdc

Credits

Dave Spinden

Comments

Embed the widget on your own site

Mini But Mighty, MiniZed Alarm Clock

Mini But Mighty, MiniZed Alarm Clock

Things used in this project

Hardware components

Software apps and online services

Story

Introduction

Vivado and the Hardware

Vitis (the software)

Results

Conclusion

Schematics

Vivado Block Diagram

Code

helloworld.c

io.xdc

Credits

Dave Spinden

Comments

Related channels and tags
