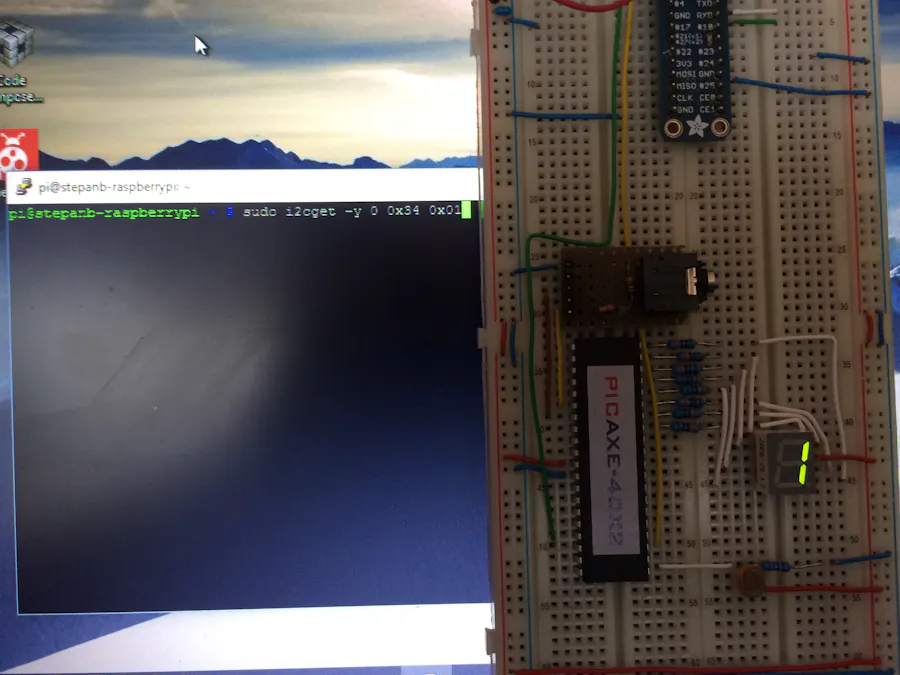

Extending Raspberry Pi using PICAXE

Extending Raspberry Pi using PICAXE

There is no ADC support on Raspberry Pi and only one UART and hardware PWM. If you need to extend it, you can use special chips or 1 PICAXE.

PICAXE

You can imagine PICAXE as Arduino for PIC microcontrollers. It works in similar ways. You use high level functions instead of low level registers. Programming language is BASIC and IDE is available for all platforms. You don’t need to have special HW programming. It is just serial port and two resistors. If you are not familiar with PICAXE start on the Getting Started page.

We will focus on PICAXE X2 family supporting I2C Slave mode.

• PICAXE-20X2
• PICAXE-28X2
• PICAXE-40X2

The idea is very simple. We will connect Raspberry Pi and PICAXE using I2C line and PICAXE will act as I2C slave. We will use ADC and PWM functionality on PICAXE. We can use PICAXE as port expander too. Smallest X2 series PICAXE-20X2 has 18 GPIO, 11 ADC and 4 PWM.

There is special memory area on PICAXE X2 series called scratchpad. If you connect PICAXE as I2C slave you will be able to access this memory same way as 24LCxx series EEPROM.

Raspberry Pi and I2C

There are a lot of articles on how to set up I2C on Raspberry Pi. I will not cover it here. My recommendation is to start with i2cdetect, i2cset and i2cget command line tools. This is the best way to understand how PICAXE X2 works as I2C Slave device.

Read from device 0x34 from memory register 0x01

sudo i2cget -y 1 0x34 0x01

Write value 0x08 to device 0x34 to memory register 0x00

sudo i2cset -y 1 0x34 0x00 0x08

Example Code

Code shows how to use PICAXE as ADC (memory register 0x01) and port expander (memory register 0x00).

#no_data
#no_table

init:
	' set frequency, works better
	setfreq m16
	' B pins as output
	let dirsB = %11111111
	' set 7-bit address
	hi2csetup i2cslave, %01101000
	' incoming i2c communication interrupt
	' http://www.picaxe.com/BASIC-Commands/Interrupts-and-Multi-Tasking/setintflags/
	setintflags %01000000, %01000000
main:
	' read value from ADS and put it to register b1
	readadc 22, b1
	' copy value from b1 to scratchpad regiter 1
	' this value will be available on I2C
	put 1, b1
	debug
	pause 1000
	goto main

' called when value is writen on I2C line
interrupt:
	' copy value from cratchpad to register b0
	get 0, b0
	' check value in b0 and write to pinsB (7-segment display)
	select case b0
	case 0
		let pinsB= %11000000
	case 1
		let pinsB= %11111001
	case 2
		let pinsB= %10100100
	case 3
		let pinsB= %10110000
	case 4
		let pinsB= %10011001
	case 5
		let pinsB= %10010010
	case 6
		let pinsB= %10000010
	case 7
		let pinsB= %11111000
	case 8
		let pinsB= %10000000
	case 9
		let pinsB= %10010000
	case 46
		let pinsB= %01111111
	endselect

	' debug output can be deleted
	debug

	'clear interrupt & reset
	let hi2cflag = 0
	setintflags %01000000,%01000000
	return
