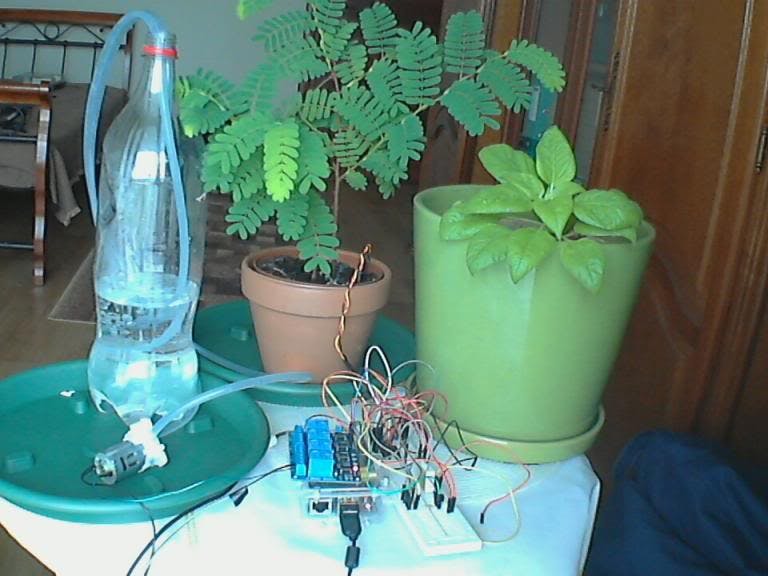

Water Pump Controller

Controlling water pump using on and off buttons.

IntermediateFull instructions provided24,904

Things used in this project

Hardware components

Raspberry Pi 1 Model B+

Relay Module (Generic)

Story

Controlling water pump with raspberry pi is a simple project for the beginners who started working on IOT and Raspberry pi.

Requirements:

1. Raspberry Pi B+ model

2. Relay controller

3. Water pump

Working Instructions:

Step 1: Connect any voltage pin from Raspberry Pi to Relay.

Step 2:Connect any ground pin from Raspberry pi to Relay.

Step 3: Connect any GPIO pin to Relay module (In this project I used pin 7(GPIO4)).

Step 4: Open terminal and execute the program we provided below.

For more queries:

Check out below video.

Control water pump with Raspberry Pi

import RPi.GPIO as GPIO       	# Import required Python libraries
import time
GPIO.setwarnings(False)
GPIO.setmode(GPIO.BOARD)
GPIO.setup(7,GPIO.OUT)
from Tkinter import*
myGui=Tk()
while True:
	def onlamp():
		GPIO.output(7,True)
	def offlamp():
		GPIO.output(7,False)
	myGui.title("Hello")
	myGui.geometry("200x350+200+200")
	while True:
		myButton1=Button(text='on',fg='black',bg='green',command=onlamp).pack()
		myButton2=Button(text='off',fg='black',bg='green',command=offlamp).pack()
		myGui.mainloop()
