Operational amplifier or Op-Amp is a voltage amplifier, which has differential input and single ended output. Generally external components are attached in the feedback circuit to get the required response from the Op-Amp. It is among the most commonly used circuits in electronics being used in variety of applications.
L165V is a power operational amplifier, which is manufactured using monolithic integrated circuit in Pentawatt package. This package is intended for as power Op-Amp applications. High voltage gain and high output power capability provides superior performance.
Features of L165V· Output current supported up to 3A
· Large common mode range
· Large differential mode range
· SOA protection
· Thermal protection
· ± 18 V power supply
Replacement PartLA6500
Pictorial ViewPictorial view of UTsource L165V is given below
Pin description and pin diagram of IC L165V is given below
Ideal operational amplifier has infinite open loop gain, infinite input impedance and infinite bandwidth of operation. Also it has zero output impedance and zero offset voltage. Since it has infinite input impedance there will be current through the input terminals and there will be no voltage drop at the input.
Op-Amp has two input terminals called inverting input and non-inverting input terminal. Input signal applied to the inverting input will have a phase shift when appearing at the output terminal, and the signal applied at the non-inverting terminal will have no phase shift at the output. Depending upon how the external components are connected to the Op-Amp it can perform as summer, integrator, differentiator, and amplifier.
ApplicationsL165V can be used in following applications
· Inverting amplifier
· Non inverting amplifier
· Motor control circuits
· Differentiator and integrator circuits
Bidirectional Motor Control with L165VCircuit diagram of bidirectional motor control using L165 is shown below. Bidirectional motor control circuits are very commonly used in applications where motors are used.

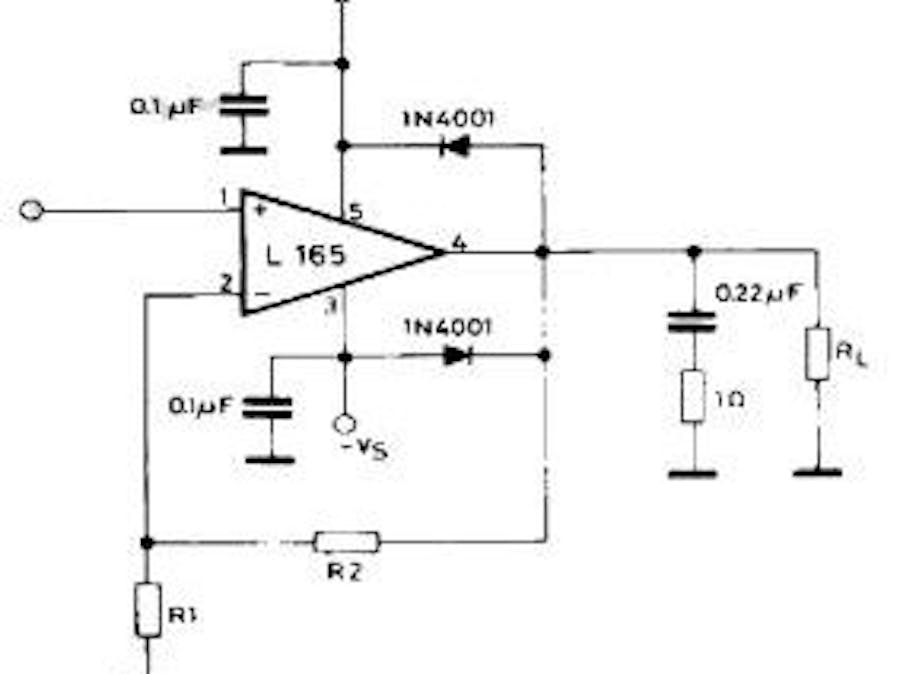

Circuit diagram of non-inverting amplifier is given below. Output of the non-inverting amplifier is in phase with the input signal. circuit below is providing gain greater than 10.
