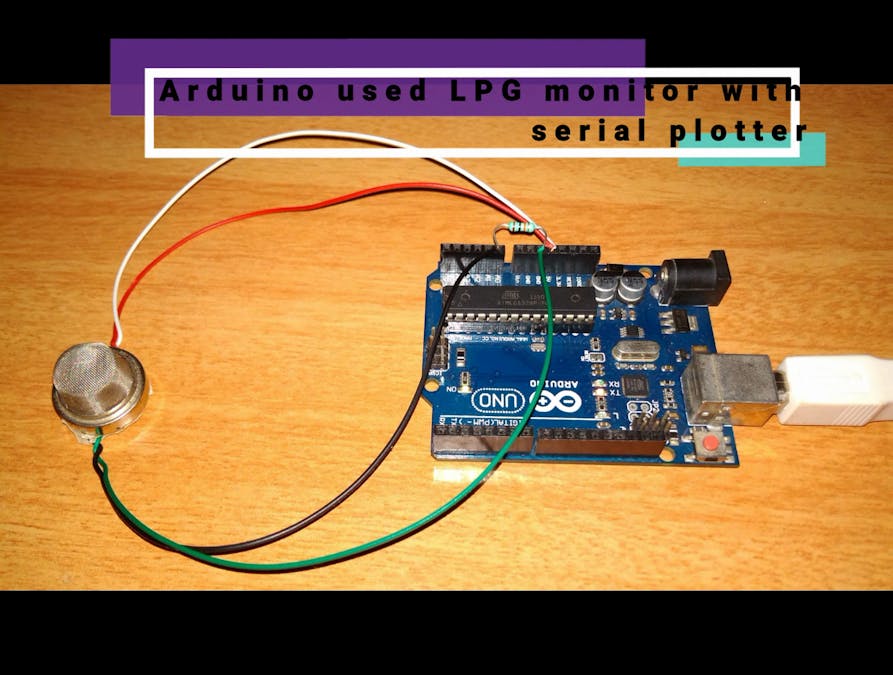

Real time LPG monitoring system

LPG leakage is monitored using arduino and MQ2 gas sensor module. the concentration of LPG particles are plotted using serial plotter.

BeginnerShowcase (no instructions)7,305

Things used in this project

Jumper wires (generic)

This project detects the presence of LPG in the atmosphere, The sensor capture the LPG concentration and sends analog values to the arduino. The arduino plot the analog values in the screen. This is very helpful in factories and gas stations for ensure the safety.

Real time LPG monitoring system
