Zenrack

Be one with cleanliness

Work in progress1,853

Things used in this project

Hardware components

Arduino UNO

LED (generic)

Speaker

Wtv020sd16p

Econoboard

Gravel

Moss

Wires

Force Sensitive Resistors

Nails (for Moisture Sensor)

1/8" acrylic sheet (34" x 18") - clear

1/8" acrylic sheet - black

Galvanized nails

100kΩ Resistor

100Ω Resistor

Story

1 / 11 • LEDs to depict moss condition

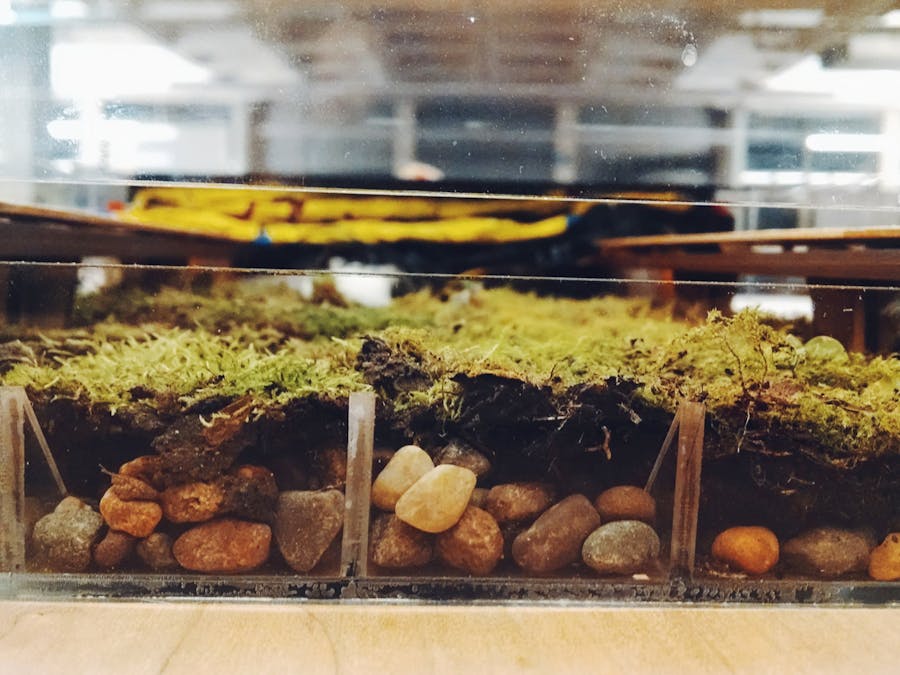

Zenrack is a dishrack that promotes cleanliness and peace. Rocks and moss line the bottom of the device that absorb water and keeps the bottom from growing mold. Moveable crossbeams embedded with force sensitive resistors sit across an acrylic box to support a variety of dishracks. A separate compartment houses the electronics to keep them dry.

When dishes are placed on the Zenrack, tranquil music will start playing to encourage the user to continue to wash dishes. Music will continue to play as the user continues to place dishes on the rack. After all dishes are done, the music will stop.

A moisture sensor keeps track of moss conditions. This is hooked up to an array of LED lights so that is the moss is amply wet (dishes are done often), the light glows blue. If the moisture levels are okay, the light is orange. If the moss is dry (dishes haven't been done for a while), the light shines red.

Untitled file

Download

#include <Wtv020sd16p.h>

int resetPin = 2;  // The pin number of the reset pin.
int clockPin = 3;  // The pin number of the clock pin.
int dataPin = 4;  // The pin number of the data pin.
int busyPin = 5;  // The pin number of the busy pin.
const int analogInPin0 = A0;  // Analog input pin that the FSR is attached to
const int analogInPin1 = A1;  // Analog input pin that the FSR is attached to
const int analogInPin2 = A2;  // Analog input pin that the FSR is attached to
const int analogInPin3 = A3;  // Analog input pin that the FSR is attached to
const int thresh = 25;

int sensorValue0 = 0;
int sensorValue1 = 0;
int sensorValue2 = 0;
int sensorValue3 = 0;
boolean first = true;

int lastWeight = 0;
int lastTrack = 0;
const int numSongs = 2;

Wtv020sd16p wtv020sd16p(resetPin,clockPin,dataPin,busyPin);

void setup() {
  wtv020sd16p.reset();
  Serial.begin(9600);
}

void loop() {
  sensorValue0 = analogRead(analogInPin0);
  sensorValue1 = analogRead(analogInPin1);
  sensorValue2 = analogRead(analogInPin2);
  sensorValue3 = analogRead(analogInPin3);

  // print the results to the serial monitor:
  Serial.print("sensor0 = " );
  Serial.print(sensorValue0);
  Serial.print(" | sensor1 = " );
  Serial.print(sensorValue1);
  Serial.print(" | sensor2 = " );
  Serial.print(sensorValue2);
  Serial.print(" | sensor3 = " );
  Serial.println(sensorValue3);

  int newWeight = (sensorValue0 + sensorValue1 + sensorValue2 + sensorValue3);
  Serial.println(newWeight);
  if (first) {
    lastWeight = newWeight;
    first = false;
  } else {
    if (newWeight > lastWeight + thresh) {
      wtv020sd16p.playVoice(lastTrack % numSongs);
      lastTrack = lastTrack + 1;
    }
    lastWeight = newWeight;
  }


  // wait 2 milliseconds before the next loop
  delay(1000);
}

1 / 3 • First cardboard prototype!

zenrack.ino

#include <Wtv020sd16p.h>

int resetPin = 2;  // The pin number of the reset pin.
int clockPin = 3;  // The pin number of the clock pin.
int dataPin = 4;  // The pin number of the data pin.
int busyPin = 5;  // The pin number of the busy pin.
const int analogInPin0 = A0;  // Analog input pin that the FSR is attached to
const int analogInPin1 = A1;  // Analog input pin that the FSR is attached to
const int analogInPin2 = A2;  // Analog input pin that the FSR is attached to
const int analogInPin3 = A3;  // Analog input pin that the FSR is attached to
const int thresh = 25;

int sensorValue0 = 0;
int sensorValue1 = 0;
int sensorValue2 = 0;
int sensorValue3 = 0;
boolean first = true;

int lastWeight = 0;
int lastTrack = 0;
const int numSongs = 2;

Wtv020sd16p wtv020sd16p(resetPin,clockPin,dataPin,busyPin);

void setup() {
  wtv020sd16p.reset();
  Serial.begin(9600);
}

void loop() {
  sensorValue0 = analogRead(analogInPin0);
  sensorValue1 = analogRead(analogInPin1);
  sensorValue2 = analogRead(analogInPin2);
  sensorValue3 = analogRead(analogInPin3);

  // print the results to the serial monitor:
  Serial.print("sensor0 = " );
  Serial.print(sensorValue0);
  Serial.print(" | sensor1 = " );
  Serial.print(sensorValue1);
  Serial.print(" | sensor2 = " );
  Serial.print(sensorValue2);
  Serial.print(" | sensor3 = " );
  Serial.println(sensorValue3);

  int newWeight = (sensorValue0 + sensorValue1 + sensorValue2 + sensorValue3);
  Serial.println(newWeight);
  if (first) {
    lastWeight = newWeight;
    first = false;
  } else {
    if (newWeight > lastWeight + thresh) {
      wtv020sd16p.playVoice(lastTrack % numSongs);
      lastTrack = lastTrack + 1;
    }
    lastWeight = newWeight;
  }


  // wait 2 milliseconds before the next loop
  delay(1000);
}
