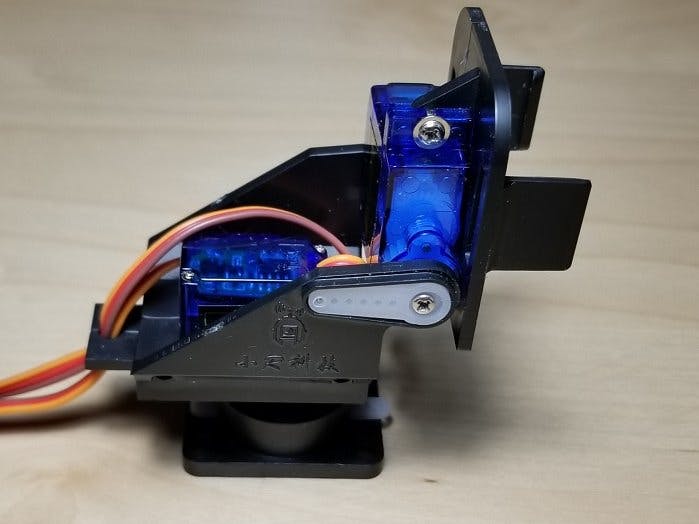

How to Assemble Mini Pan-Tilt Camera Mount

About this project

The project only demonstrates how to build the mini pan tilt camera mount with servos (because it came without instructions). There are additional projects that demonstrate how to use the assembled camera mount with an Arduino Pro Mini and a Sparkfun ESP8266 Thing.

What you get with your purchase

Note the long and short screws!

What you need to assemble everything

Parts needed to assemble the tilt (up/down) portion

Connect side w/post to mount plate

Connect servo to mount plate with servo mount screws

Parts needed to assemble the pan (left/right) portion

Put Servo into slots

Attach side with LONG screws

Move tilt servo CW to stop position

Attach tilt arm to servo

Move pan servo CW to stop position

Attach pan arm to base

Attach base to servo

Test the action

Have fun with your mini pan tilt camera mount! :-)
