Arduino Temperature Logger With Sd Card

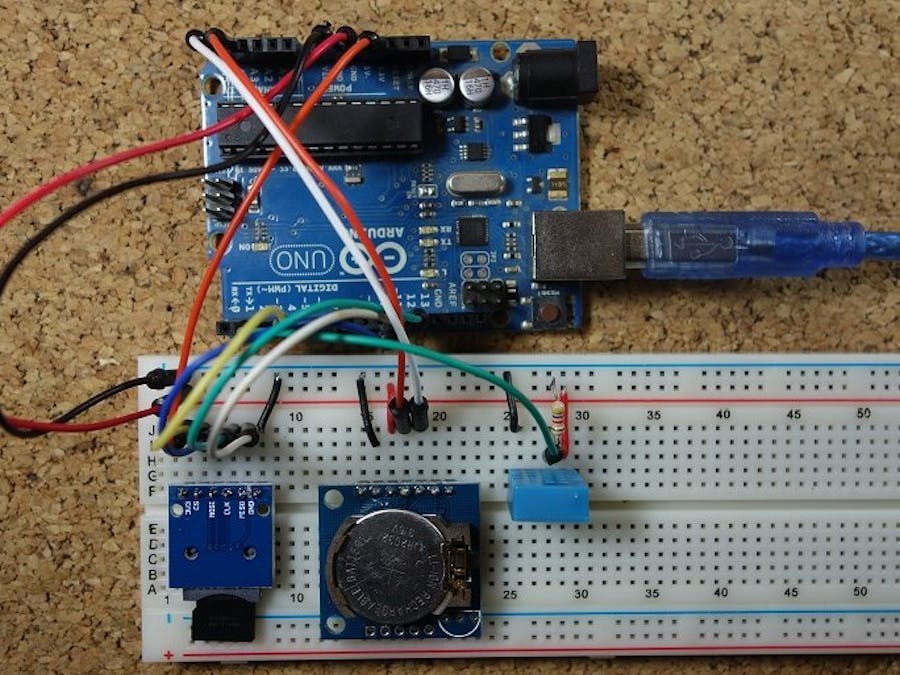

How to create a temperature Arduino data logger. We’ll use the DHT11 to measure temperature

IntermediateFull instructions provided4,078
Arduino Temperature Logger With Sd Card

Things used in this project

Hardware components

Arduino UNO
Arduino UNO
×1
DHT11 Temperature & Humidity Sensor (4 pins)
DHT11 Temperature & Humidity Sensor (4 pins)
×1
Flash Memory Card, SD Card
Flash Memory Card, SD Card
×1
DS3231M - ±5ppm, I2C Real-Time Clock
Maxim Integrated DS3231M - ±5ppm, I2C Real-Time Clock
×1

Software apps and online services

Arduino IDE
Arduino IDE

Story

Read more

Schematics

Schematics

Schematics

Code

Code

Arduino
Code
#include <SPI.h> //for the SD card module
#include <SD.h> // for the SD card
#include <DHT.h> // for the DHT sensor
#include <RTClib.h> // for the RTC

//define DHT pin
#define DHTPIN 2     // what pin we're connected to

// uncomment whatever type you're using
#define DHTTYPE DHT11   // DHT 11
//#define DHTTYPE DHT22   // DHT 22  (AM2302)
//#define DHTTYPE DHT21   // DHT 21 (AM2301)

// initialize DHT sensor for normal 16mhz Arduino
DHT dht(DHTPIN, DHTTYPE);

// change this to match your SD shield or module;
// Arduino Ethernet shield and modules: pin 4
// Data loggin SD shields and modules: pin 10
// Sparkfun SD shield: pin 8
const int chipSelect = 4;

// Create a file to store the data
File myFile;

// RTC
RTC_DS1307 rtc;

void setup() {
  //initializing the DHT sensor
  dht.begin();

  //initializing Serial monitor
  Serial.begin(9600);

  // setup for the RTC
  while(!Serial); // for Leonardo/Micro/Zero
    if(! rtc.begin()) {
      Serial.println("Couldn't find RTC");
      while (1);
    }
    else {
      // following line sets the RTC to the date & time this sketch was compiled
      rtc.adjust(DateTime(F(__DATE__), F(__TIME__)));
    }
    if(! rtc.isrunning()) {
      Serial.println("RTC is NOT running!");
    }

  // setup for the SD card
  Serial.print("Initializing SD card...");

  if(!SD.begin(chipSelect)) {
    Serial.println("initialization failed!");
    return;
  }
  Serial.println("initialization done.");

  //open file
  myFile=SD.open("DATA.txt", FILE_WRITE);

  // if the file opened ok, write to it:
  if (myFile) {
    Serial.println("File opened ok");
    // print the headings for our data
    myFile.println("Date,Time,Temperature ºC");
  }
  myFile.close();
}

void loggingTime() {
  DateTime now = rtc.now();
  myFile = SD.open("DATA.txt", FILE_WRITE);
  if (myFile) {
    myFile.print(now.year(), DEC);
    myFile.print('/');
    myFile.print(now.month(), DEC);
    myFile.print('/');
    myFile.print(now.day(), DEC);
    myFile.print(',');
    myFile.print(now.hour(), DEC);
    myFile.print(':');
    myFile.print(now.minute(), DEC);
    myFile.print(':');
    myFile.print(now.second(), DEC);
    myFile.print(",");
  }
  Serial.print(now.year(), DEC);
  Serial.print('/');
  Serial.print(now.month(), DEC);
  Serial.print('/');
  Serial.println(now.day(), DEC);
  Serial.print(now.hour(), DEC);
  Serial.print(':');
  Serial.print(now.minute(), DEC);
  Serial.print(':');
  Serial.println(now.second(), DEC);
  myFile.close();
  delay(1000);
}

void loggingTemperature() {
  // Reading temperature or humidity takes about 250 milliseconds!
  // Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
  // Read temperature as Celsius
  float t = dht.readTemperature();
  // Read temperature as Fahrenheit
  //float f = dht.readTemperature(true);

  // Check if any reads failed and exit early (to try again).
  if  (isnan(t) /*|| isnan(f)*/) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  //debugging purposes
  Serial.print("Temperature: ");
  Serial.print(t);
  Serial.println(" *C");
  //Serial.print(f);
  //Serial.println(" *F\t");

  myFile = SD.open("DATA.txt", FILE_WRITE);
  if (myFile) {
    Serial.println("open with success");
    myFile.print(t);
    myFile.println(",");
  }
  myFile.close();
}

void loop() {
  loggingTime();
  loggingTemperature();
  delay(5000);
}
